| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
1N5617DIODE GEN PURP 400V 1A AXIAL |
196 | 3.98 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 12V, 1MHz | 150 ns | 500 nA @ 400 V | 400 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
|
1N5615DIODE GEN PURP 200V 1A AXIAL |
217 | 4.11 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 45pF @ 12V, 1MHz | 150 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|
1N5417DIODE GEN PURP 200V 3A AXIAL |
943 | 4.23 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|

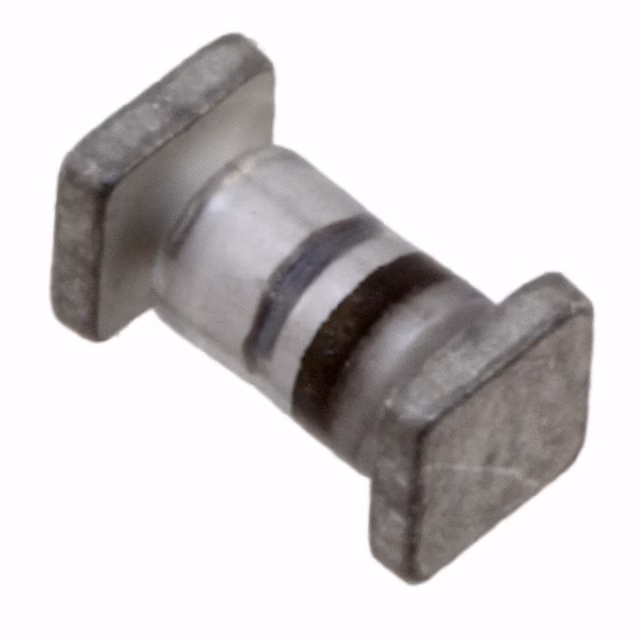

1N5614USDIODE GEN PURP 200V 1A D5A |
345 | 5.04 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|

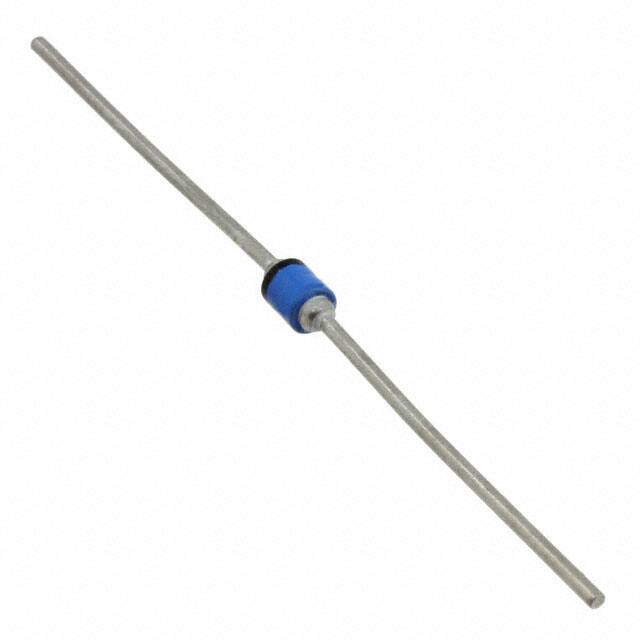

1N5550DIODE GEN PURP 200V 3A AXIAL |
547 | 5.24 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 200 V | 200 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A | |
|
1N5711-1DIODE SCHOTTKY 70V 33MA DO35 |
434 | 6.03 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Through Hole | 2pF @ 0V, 1MHz | - | 200 nA @ 50 V | 70 V | 33mA | -65°C ~ 150°C | 1 V @ 15 mA | |
|
|
1N5802DIODE GEN PURP 50V 1A AXIAL |
706 | 6.14 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 50 V | 50 V | 1A | -65°C ~ 175°C | 875 mV @ 1 A | |
|
1N5809DIODE GEN PURP 100V 3A AXIAL |
418 | 6.27 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 100 V | 100 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | |
|
1N5807DIODE GEN PURP 50V 3A AXIAL |
202 | 6.27 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 50 V | 50 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | |
|
1N5615USDIODE GEN PURP 200V 1A D5A |
474 | 6.48 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 45pF @ 12V, 1MHz | 150 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | |
|

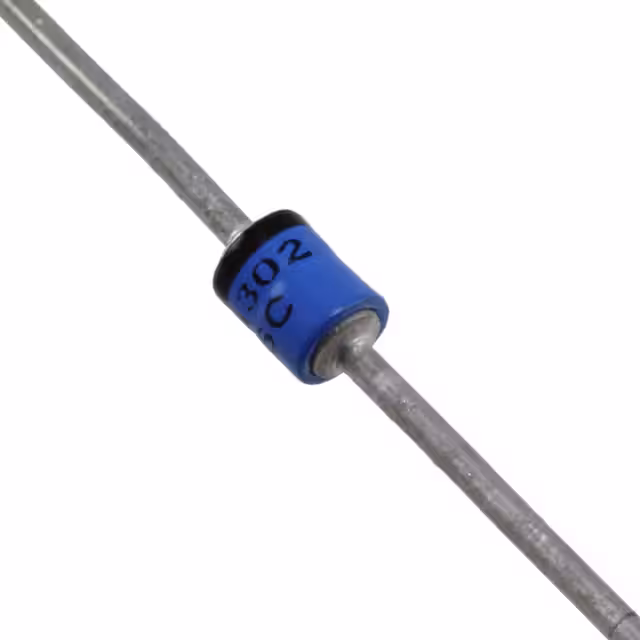

1N5420DIODE GEN PURP 600V 3A AXIAL |
363 | 6.92 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 400 ns | 1 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
1N6640USDIODE GEN PURP 75V 300MA D5D |
101 | 8.10 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 4 ns | 100 nA @ 50 V | 75 V | 300mA (DC) | -65°C ~ 175°C | 1 V @ 200 mA | |
|
JANTX1N6642DIODE GEN PURP 75V 300MA DO35 |
8,021 | 8.18 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 5pF @ 0V, 1MHz | 20 ns | 500 nA @ 75 V | 75 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA |
|
JANTX1N5190DIODE GEN PURP 600V 3A AXIAL |
264 | 13.64 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/424 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 400 ns | 2 µA @ 600 V | 600 V | 3A | - | 1.5 V @ 9 A |
|
MSC050SDA120BCTSIC SBD 1200 V 50 A TO-247 |
235 | 28.83 |
RFQ |
Datasheet |
Tube | RoHS | No Recovery Time > 500mA (Io) | Silicon Carbide Schottky | Active | Through Hole | 246pF @ 400V, 1MHz | 0 ns | 200 µA @ 1200 V | 1200 V | 109A (DC) | -55°C ~ 175°C | 1.8 V @ 50 A | |
|

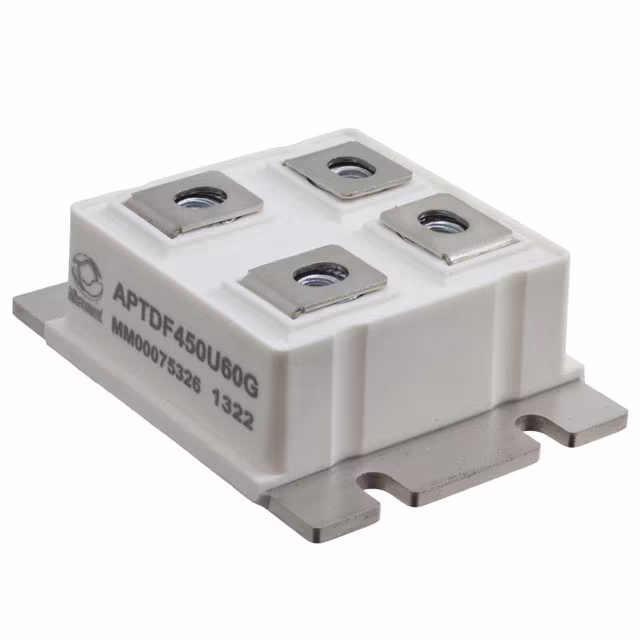

APTDF450U60GDIODE GEN PURP 600V 500A LP4 |
140 | 94.13 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 115 ns | 2.5 mA @ 600 V | 600 V | 500A | - | 1.8 V @ 500 A | |
|
UPR20E3/TR7DIODE GEN PURP 200V 2A POWERMITE |
5,370 | 1.02 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 50 ns | 10 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|
|

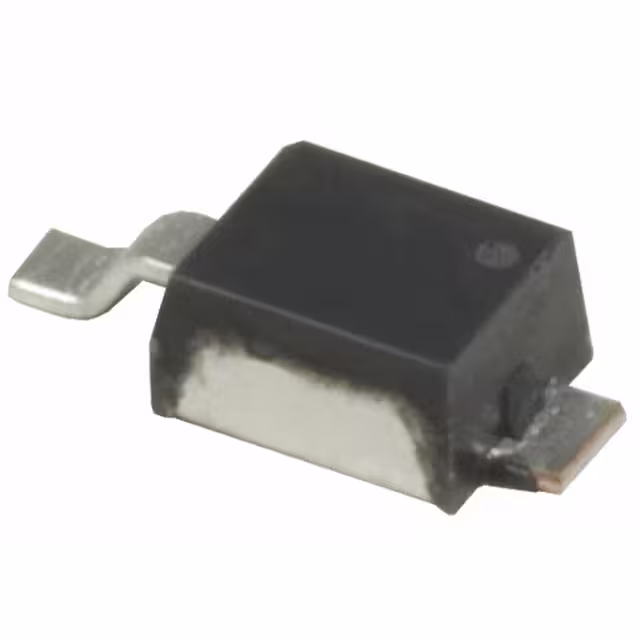

UPS5819E3/TR13DIODE SCHOTTKY 40V 1A POWERMITE1 |
7,717 | 0.39 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 60pF @ 5V, 1MHz | - | 1 mA @ 20 V | 40 V | 1A | -55°C ~ 150°C | 550 mV @ 1 A | |
|

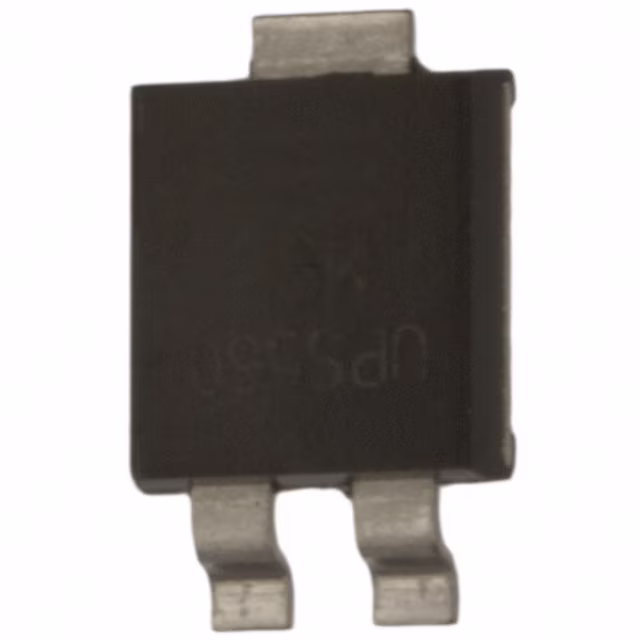

UPS560E3/TR13DIODE SCHOTTKY 60V 5A POWERMITE3 |
2,408 | 0.54 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 150pF @ 4V, 1MHz | - | 200 µA @ 60 V | 60 V | 5A | -55°C ~ 125°C | 690 mV @ 5 A | |
|
UPS5819E3/TR7DIODE SMALL-SIGNAL SCHOTTKY |
1,979 | 0.39 |
RFQ |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 60pF @ 5V, 1MHz | - | 1 mA @ 40 V | 40 V | 1A | -55°C ~ 150°C | 550 mV @ 1 A |
