| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
UES1104DIODE GEN PURP 200V 1A AXIAL |
3,933 | 20.26 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 50 ns | 10 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.25 V @ 1 A | |
|

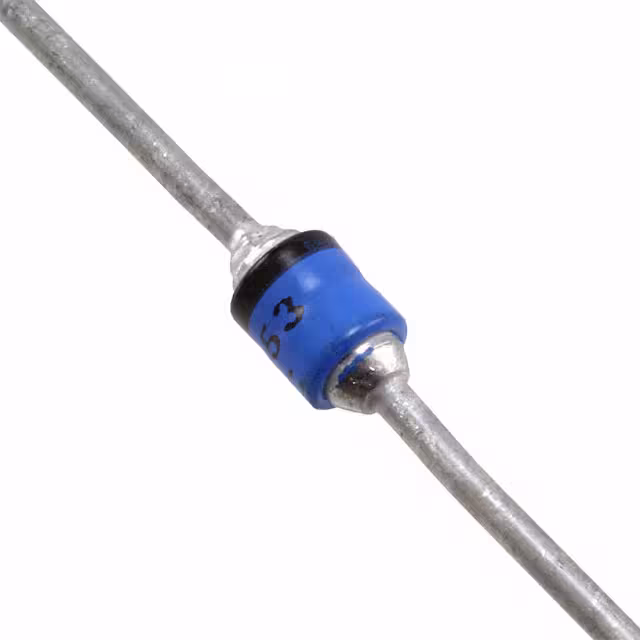

JAN1N5822DIODE SCHOTTKY 40V 3A AXIAL |
3,370 | 165.39 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/620 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 40 V | 40 V | 3A | -65°C ~ 125°C | 500 mV @ 3 A |
|
JANTX1N5615DIODE GEN PURP 200V 1A AXIAL |
3,084 | 5.02 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 45pF @ 12V, 1MHz | 150 ns | 500 nA @ 200 V | 200 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|

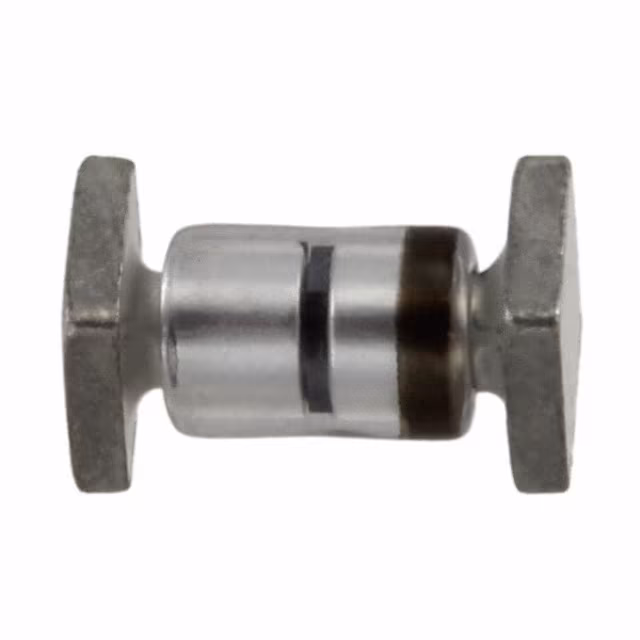

1N5806USDIODE GEN PURP 150V 1A D5A |
3,725 | 5.43 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 150 V | 150 V | 1A | -65°C ~ 175°C | 875 mV @ 1 A | |
|

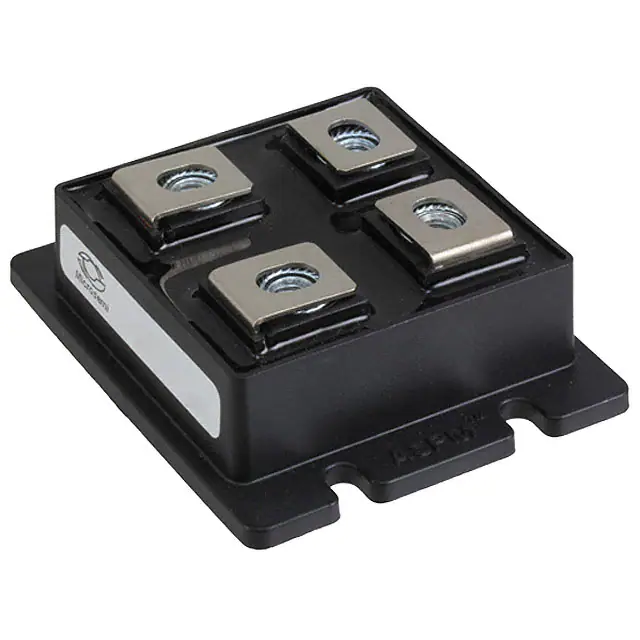

APTDF400U120GDIODE GEN PURP 1.2KV 450A LP4 |
2,756 | 95.95 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis Mount | - | 110 ns | 2.5 mA @ 1200 V | 1200 V | 450A | - | 2.5 V @ 500 A | |
|
1N4150UR-1DIODE GEN PURP 50V 200MA DO213AA |
3,651 | 1.05 |
RFQ |
Datasheet |
Bulk | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | - | 4 ns | 100 nA @ 50 V | 50 V | 200mA | -65°C ~ 175°C | 1 V @ 200 mA | |
|

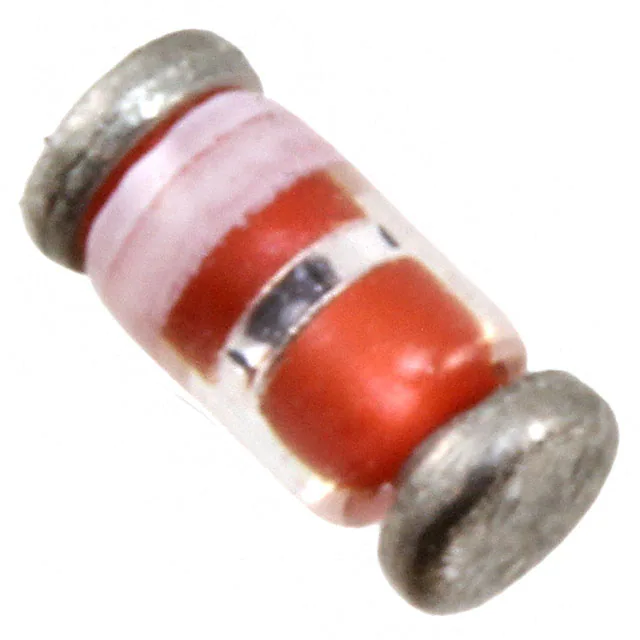

CDS5711UR-1DIODE SCHOTTKY DO-213AA |
3,076 | 182.73 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
APT15DQ60KGDIODE GEN PURP 600V 15A TO220 |
3,168 | 0.68 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 19 ns | 25 µA @ 600 V | 600 V | 15A | -55°C ~ 175°C | 2.4 V @ 15 A | |
|

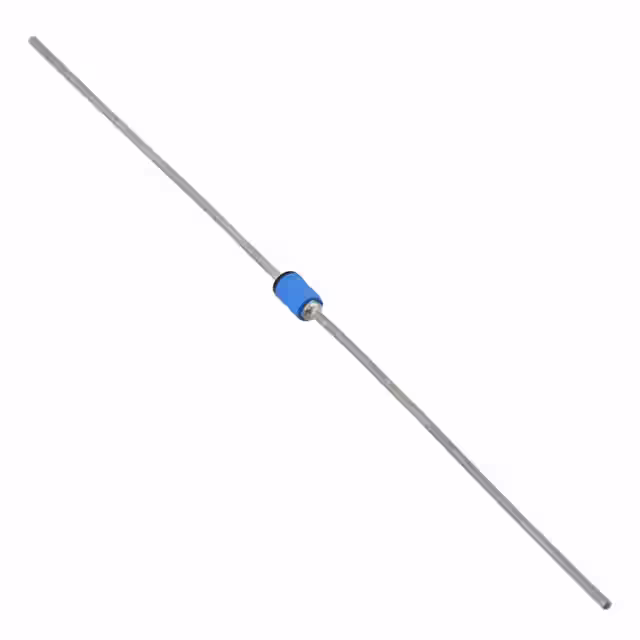

JANTX1N6663DIODE GEN PURP 600V 500MA DO35 |
2,713 | 359.38 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/587 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | - | 50 nA @ 600 V | 600 V | 500mA | -65°C ~ 175°C | 1 V @ 400 mA |
|

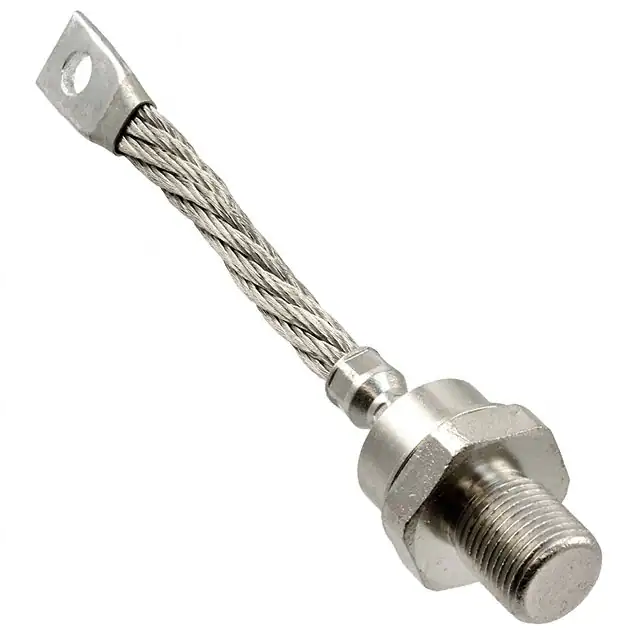

JAN1N3174DIODE GEN PURP 1KV 300A DO205 |
3,399 | 1733.55 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/211 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Chassis, Stud Mount | - | - | 10 mA @ 1000 V | 1000 V | 300A | -65°C ~ 200°C | 1.55 V @ 940 A |
|
5819SMJE3/TR13DIODE SCHOTTKY 40V 1A DO214AA |
3,767 | 0.66 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 1 mA @ 40 V | 40 V | 1A | -55°C ~ 150°C | 550 mV @ 1 A | |
|
|
APT30DQ60KGDIODE GEN PURP 600V 30A TO220 |
2,723 | 0.86 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 30 ns | 25 µA @ 600 V | 600 V | 30A | -55°C ~ 175°C | 2.4 V @ 30 A | |
|
|
APT15DQ120KGDIODE GEN PURP 1.2KV 15A TO220 |
2,493 | 0.94 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 240 ns | 100 µA @ 1200 V | 1200 V | 15A | -55°C ~ 175°C | 3.3 V @ 15 A | |
|
APT30D30BGDIODE GEN PURP 300V 30A TO247 |
3,133 | 2.61 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 25 ns | 250 µA @ 300 V | 300 V | 30A | -55°C ~ 175°C | 1.4 V @ 30 A | |
|
|
APT30D100BGDIODE GEN PURP 1KV 30A TO247 |
3,928 | 2.90 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 290 ns | 250 µA @ 1000 V | 1000 V | 30A | -55°C ~ 175°C | 2.3 V @ 30 A | |
|
|
APT60D120BGDIODE GEN PURP 1.2KV 60A TO247 |
2,723 | 3.37 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 400 ns | 250 µA @ 1200 V | 1200 V | 60A | -55°C ~ 175°C | 2.5 V @ 60 A | |
|
APT15DQ60BGDIODE GEN PURP 600V 15A TO247 |
3,334 | 1.46 |
RFQ |
Datasheet |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 19 ns | 25 µA @ 600 V | 600 V | 15A | -55°C ~ 175°C | 2.4 V @ 15 A | |
|
1N5418DIODE GEN PURP 400V 3A B-MELF |
2,336 | 6.21 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 150 ns | 1 µA @ 400 V | 400 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A | |
|
1N5811USDIODE GEN PURP 150V 3A B-MELF |
2,365 | 6.39 |
RFQ |
Datasheet |
Bulk | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 50 V | 150 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | |
|
|
1N5554USDIODE GEN PURP 1KV 3A B-MELF |
2,905 | 7.59 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 1 µA @ 1000 V | 1000 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A |
