| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CD5821DIODE SMALL-SIGNAL SCHOTTKY |
2,286 | 7.35 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 100 µA @ 30 V | 30 V | 3A | -65°C ~ 125°C | 550 mV @ 3 A | |
|
CDLL5818E3/TRDIODE SMALL-SIGNAL SCHOTTKY |
3,486 | 7.75 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 0.9pF @ 5V, 1MHz | - | 100 µA @ 30 V | 30 V | 1A | - | 600 mV @ 1 A | |
|
JAN1N5553/TRSTD RECTIFIER |
2,870 | 7.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 800 V | 800 V | 3A | -65°C ~ 175°C | 1.3 V @ 9 A |
|
|
1N5819UR-1E3DIODE SMALL-SIGNAL SCHOTTKY |
2,301 | 7.75 |
RFQ |
Bulk | Military, MIL-PRF-19500/586 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 70pF @ 5V, 1MHz | - | 50 µA @ 45 V | 45 V | 1A | -65°C ~ 125°C | 490 mV @ 1 A | |
|
|
JAN1N5554/TRSTD RECTIFIER |
3,358 | 7.37 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 1 V | 1000 V | 3A | -65°C ~ 175°C | 1.3 V @ 9 A |
|
|
1N5619E3/TRSTD RECTIFIER |
2,634 | 4.94 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 12V, 1MHz | - | 500 µA @ 400 V | 600 V | 1A | -65°C ~ 200°C | 1.6 V @ 3 A | |
|
|
MSC010SDA170BDIODE SCHOTTKY 1700V TO-247 |
3,579 | 7.76 |
RFQ |
Datasheet |
Tube | RoHS | - | - | Active | - | - | - | - | - | - | - | - | |
|
|
1N5811US/TRUFR,FRR |
2,293 | 6.56 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 150 V | 150 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A | |
|
|
JAN1N5552DIODE GEN PURP 600V 3A AXIAL |
3,646 | 4.95 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/420 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 2 µs | 1 µA @ 600 V | 600 V | 3A | -65°C ~ 175°C | 1.2 V @ 9 A |
|
JANTX1N6642/TRSIGNAL/COMPUTER DIODE |
3,683 | 7.40 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/578 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 5pF @ 0V, 1MHz | 20 ns | 500 nA @ 75 V | 75 V | 300mA | -65°C ~ 175°C | 1.2 V @ 100 mA | |
|
|
1N5623E3/TRSTD RECTIFIER |
3,339 | 6.57 |
RFQ |
Tape & Reel (TR) | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|
|
JAN1N5623DIODE GEN PURP 1KV 1A AXIAL |
3,961 | 7.41 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 500 ns | 500 nA @ 1000 V | 1000 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
|
1N5811E3RECTIFIER UFR,FRR |
3,194 | 7.41 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 60pF @ 10V, 1MHz | 30 ns | 5 µA @ 150 V | 150 V | 3A | -65°C ~ 175°C | 875 mV @ 4 A |
|
1N5620USDIODE GEN PURP 800V 1A D5A |
3,194 | 7.43 |
RFQ |
Datasheet |
Bulk | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | - | 2 µs | 500 nA @ 800 V | 800 V | 1A | -65°C ~ 200°C | 1.3 V @ 3 A | |
|
|
JANTX1N5804DIODE GEN PURP 100V 1A AXIAL |
2,113 | 6.60 |
RFQ |
Bulk | Military, MIL-PRF-19500/477 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 10V, 1MHz | 25 ns | 1 µA @ 100 V | 100 V | 1A | -65°C ~ 175°C | 875 mV @ 1 A | |
|
1N5621US/TRRECTIFIER UFR,FRR |
3,931 | 7.43 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 12V, 1MHz | 300 ns | 500 nA @ 800 V | 800 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A | ||
|
|
1N6641DIODE GEN PURPOSE |
3,813 | 6.60 |
RFQ |
Bulk | RoHS | - | - | Active | - | - | - | - | - | - | - | - | ||
|

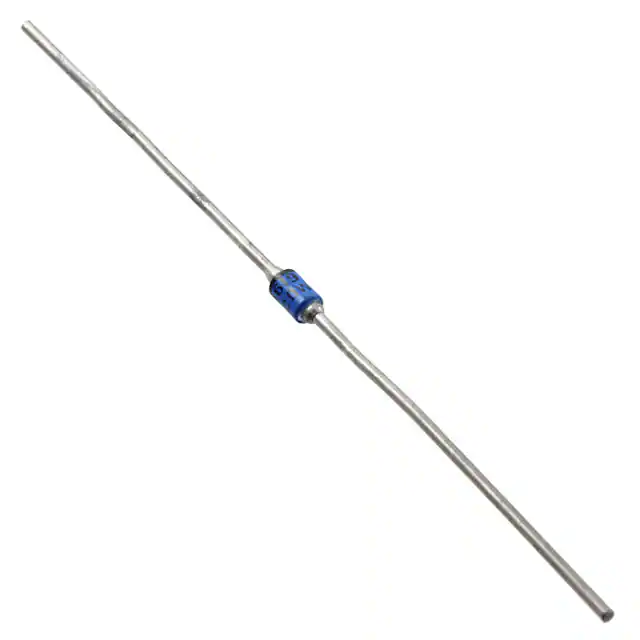

JANTX1N5619DIODE GEN PURP 600V 1A AXIAL |
3,273 | 4.98 |
RFQ |
Datasheet |
Bulk | Military, MIL-PRF-19500/429 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 250 ns | 500 nA @ 600 V | 600 V | 1A | -65°C ~ 175°C | 1.6 V @ 3 A |
|
|
JANTX1N5415/TRRECTIFIER UFR,FRR |
3,730 | 7.43 |
RFQ |
Datasheet |
Tape & Reel (TR) | Military, MIL-PRF-19500/411 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 150 ns | 1 µA @ 50 V | 50 V | 3A | -65°C ~ 175°C | 1.5 V @ 9 A |
|
|
JANTXV1N3595A-1/TRSIGNAL/COMPUTER DIODE |
2,974 | 6.60 |
RFQ |
Tape & Reel (TR) | Military, MIL-PRF-19500/241 | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Through Hole | - | 3 µs | 2 nA @ 125 V | 125 V | 150mA | -65°C ~ 175°C | 920 mV @ 100 mA |
