| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

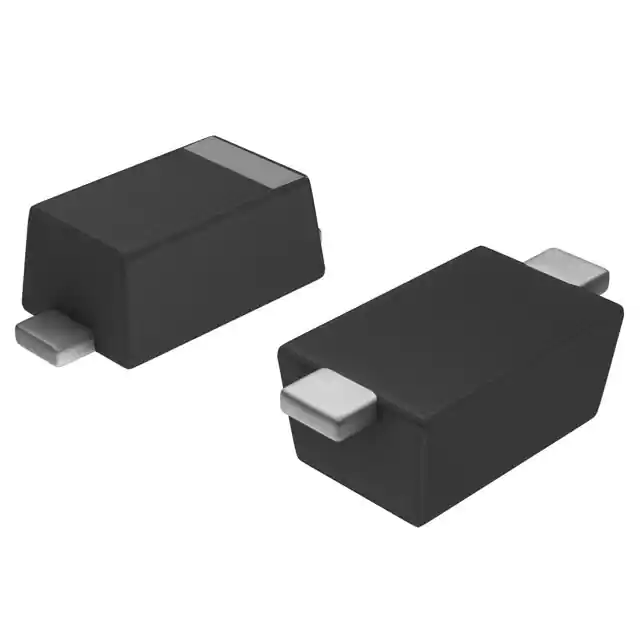

BAV21WS RRGDIODE GEN PURP 250V 200MA SOD323 |
3,594 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 5pF @ 0V, 1MHz | 50 ns | 100 nA @ 200 V | 250 V | 200mA | -65°C ~ 150°C | 1.25 V @ 200 mA | |
|
1N5395G R0GDIODE GEN PURP 400V 1.5A DO204AC |
2,665 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A | |
|
HS1K M2GDIODE GEN PURP 800V 1A DO214AC |
3,156 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 75 ns | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
1N5397G R0GDIODE GEN PURP 600V 1.5A DO204AC |
3,013 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1.5A | -55°C ~ 150°C | 1 V @ 1.5 A | |
|
|
HS1M M2GDIODE GEN PURP 1A DO214AC |
3,678 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | - | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
2A04G R0GDIODE GEN PURP 400V 2A DO204AC |
2,228 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
US1K M2GDIODE GEN PURP 800V 1A DO214AC |
2,418 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
2A05G R0GDIODE GEN PURP 600V 2A DO204AC |
2,017 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
US1M M2GDIODE GEN PURP 1A DO214AC |
2,075 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 75 ns | 5 µA @ 1000 V | - | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
1N5817 A0GDIODE SCHOTTKY 20V 1A DO204AL |
2,020 | 0.09 |
RFQ |
Datasheet |
Tape & Box (TB) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 55pF @ 4V, 1MHz | - | 1 mA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 450 mV @ 1 A | |
|
|
2A06G R0GDIODE GEN PURP 800V 2A DO204AC |
3,461 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 800 V | 800 V | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
B0530W RHGDIODE SCHOTTKY 30V 500MA SOD123 |
2,821 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 130 µA @ 30 V | 30 V | 500mA | -55°C ~ 125°C | 430 mV @ 500 mA | |
|
|
2A07G R0GDIODE GEN PURP 2A DO204AC |
3,398 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | - | 5 µA @ 1000 V | - | 2A | -55°C ~ 150°C | 1 V @ 2 A | |
|
|
B0520LW RHGDIODE SCHOTTKY 14V 500MA SOD123 |
3,642 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | 170pF @ 0V, 1MHz | - | 250 µA @ 20 V | 14 V | 500mA | -55°C ~ 125°C | 385 mV @ 500 mA | |
|
|
SR004 R0GDIODE SCHOTTKY 40V 500MA DO204AL |
2,676 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 110pF @ 4V, 1MHz | - | 500 µA @ 40 V | 40 V | 500mA | -55°C ~ 125°C | 550 mV @ 500 mA | |
|
|
SR006 R0GDIODE SCHOTTKY 60V 500MA DO204AL |
3,465 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | 80pF @ 4V, 1MHz | - | 500 µA @ 60 V | 60 V | 500mA | -55°C ~ 150°C | 700 mV @ 500 mA | |
|
|
SR106 R0GDIODE SCHOTTKY 60V 1A DO204AL |
2,938 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 1A | -55°C ~ 150°C | 700 mV @ 1 A | |
|
F1T6GHR0GDIODE GEN PURP 800V 1A TS-1 |
3,389 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 800 V | 800 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A |
|
|
F1T7GHR0GDIODE GEN PURP 1A TS-1 |
3,224 | 0.07 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 15pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | - | 1A | -55°C ~ 150°C | 1.3 V @ 1 A |
|
LL4002G L0GDIODE GEN PURP 100V 1A MELF |
3,800 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | - | 5 µA @ 100 V | 100 V | 1A (DC) | -65°C ~ 150°C | 1.1 V @ 1 A |
