| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
SS15 M2GDIODE SCHOTTKY 50V 1A DO214AC |
2,166 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Discontinued at Digi-Key | Surface Mount | - | - | 200 µA @ 50 V | 50 V | 1A | -55°C ~ 150°C | 750 mV @ 1 A | |
|
|
RS2KAHM2GDIODE GEN PURP 800V 1.5A DO214AC |
2,699 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 500 ns | 5 µA @ 800 V | 800 V | 1.5A | -55°C ~ 150°C | 1.3 V @ 1.5 A |
|
|
RS2MAHM2GDIODE GEN PURP 1.5A DO214AC |
2,525 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 500 ns | 5 µA @ 1000 V | - | 1.5A | -55°C ~ 150°C | 1.3 V @ 1.5 A |
|
|
RS2DAHM2GDIODE GEN PURP 200V 1.5A DO214AC |
2,401 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 150 ns | 5 µA @ 200 V | 200 V | 1.5A | -55°C ~ 150°C | 1.3 V @ 1.5 A |
|

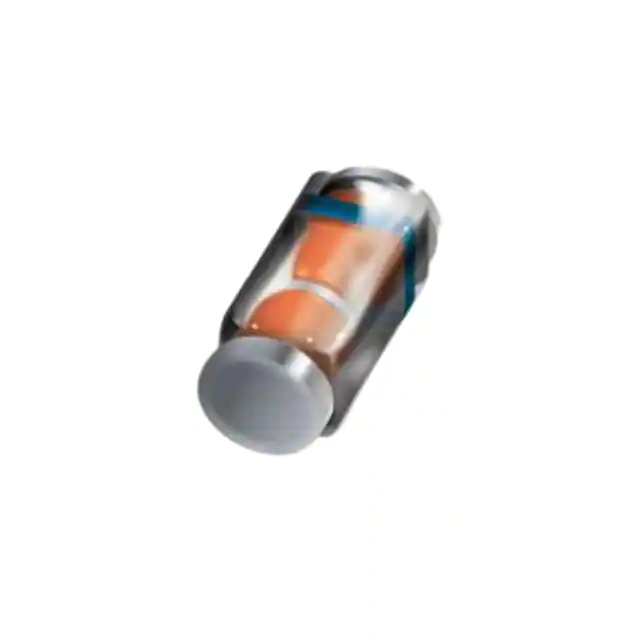

LL4448 L0GDIODE GP 75V 150MA MINIMELF |
2,984 | 0.02 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | 4 ns | 5 µA @ 75 V | 75 V | 150mA | -65°C ~ 175°C | 1 V @ 100 mA | |
|
|
RS2GAHM2GDIODE GEN PURP 400V 1.5A DO214AC |
3,495 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 150 ns | 5 µA @ 400 V | 400 V | 1.5A | -55°C ~ 150°C | 1.3 V @ 1.5 A |
|
|
RS2JAHM2GDIODE GEN PURP 600V 1.5A DO214AC |
3,880 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 250 ns | 5 µA @ 600 V | 600 V | 1.5A | -55°C ~ 150°C | 1.3 V @ 1.5 A |
|
1N4005GHA0GDIODE GEN PURP 600V 1A DO204AL |
2,180 | 0.08 |
RFQ |
Datasheet |
Tape & Box (TB) | Automotive, AEC-Q101 | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | - | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1 V @ 1 A |
|
ESDLWHRQGDIODE, SUPER FAST |
3,957 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 21pF @ 4V, 1MHz | 35 ns | 1 µA @ 200 V | 200 V | 800mA | -55°C ~ 150°C | 950 mV @ 800 mA |
|
|
HS1D M2GDIODE GEN PURP 200V 1A DO214AC |
2,968 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 50 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
LS4148 L0GDIODE GP 75V 450MA MINIMELF |
2,736 | 0.03 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 4pF @ 0V, 1MHz | - | 5 µA @ 75 V | 75 V | 450mA | -65°C ~ 175°C | 1 V @ 450 mA | |
|
|
ESGLWHRQGDIODE, SUPER FAST |
2,054 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 35 ns | 1 µA @ 400 V | 400 V | 800mA | -55°C ~ 150°C | 1.3 V @ 800 mA |
|
|
HS1F M2GDIODE GEN PURP 300V 1A DO214AC |
2,033 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 50 ns | 5 µA @ 300 V | 300 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|
|
ESJLWHRQGDIODE, SUPER FAST |
2,269 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 19pF @ 4V, 1MHz | 35 ns | 1 µA @ 600 V | 600 V | 800mA | -55°C ~ 150°C | 1.7 V @ 800 mA |
|
RS2B M4GDIODE GEN PURP 100V 2A DO214AA |
3,343 | 0.09 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 50pF @ 4V, 1MHz | 150 ns | 5 µA @ 100 V | 100 V | 2A | -55°C ~ 150°C | 1.3 V @ 2 A | |
|
|
HS1G M2GDIODE GEN PURP 400V 1A DO214AC |
3,904 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A | |
|
|
HS1J M2GDIODE GEN PURP 600V 1A DO214AC |
3,832 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 75 ns | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 150°C | 1.7 V @ 1 A | |
|
|
US1D M2GDIODE GEN PURP 200V 1A DO214AC |
3,761 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1 V @ 1 A | |
|

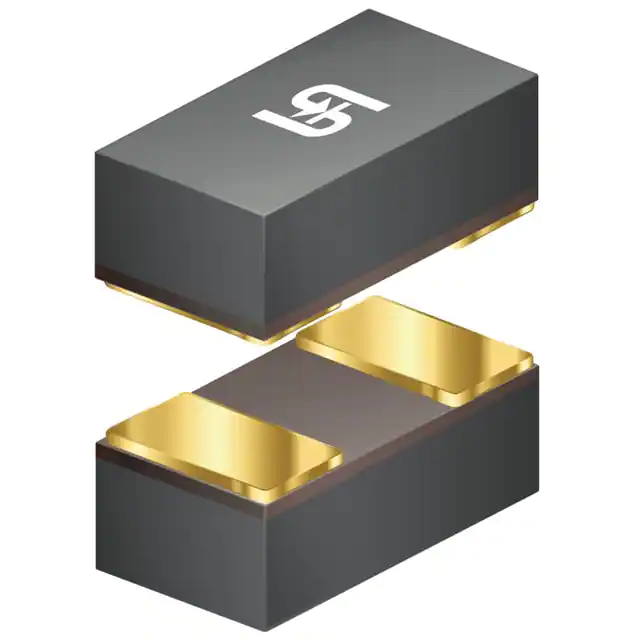

TSS40L RWGDIODE SCHOTTKY 40V 200MA 1005 |
3,603 | 0.10 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Not For New Designs | Surface Mount | 5pF @ 0V, 1MHz | 5 ns | 200 nA @ 30 V | 40 V | 200mA | -65°C ~ 125°C | 1 V @ 40 mA | |
|
|
US1G M2GDIODE GEN PURP 400V 1A DO214AC |
2,934 | 0.08 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 15pF @ 4V, 1MHz | 50 ns | 5 µA @ 400 V | 400 V | 1A | -55°C ~ 150°C | 1 V @ 1 A |
