| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HERAF1604GDIODE GEN PURP 16A 300V IT0-220A |
3,456 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 150pF @ 4V, 1MHz | 50 ns | 10 µA @ 300 V | 300 V | 16A (DC) | -55°C ~ 150°C | 1 V @ 16 A | ||
|
|
MBR1660DIODE SCHOTTKY 60V 16A TO220 |
3,545 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 60 V | 60 V | 16A (DC) | -55°C ~ 150°C | 750 mV @ 16 A | ||
|
|
UGF10JDIODE GEN PURP 600V 10A ITO220AC |
2,245 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 25 ns | 5 µA @ 600 V | 600 V | 10A (DC) | -55°C ~ 150°C | 2 V @ 10 A | ||
|

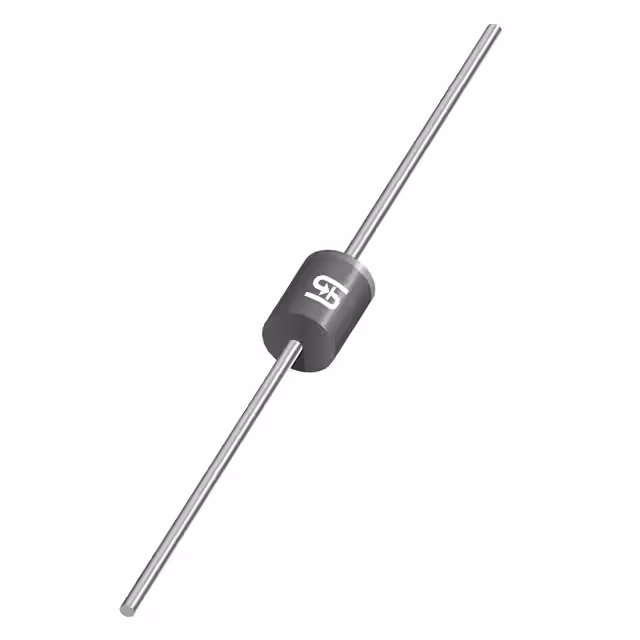

SR1503HDIODE SCHOTTKY 15A 30V R-6 |
2,761 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 30 V | 30 V | 15A (DC) | -55°C ~ 150°C | 550 mV @ 15 A | |
|

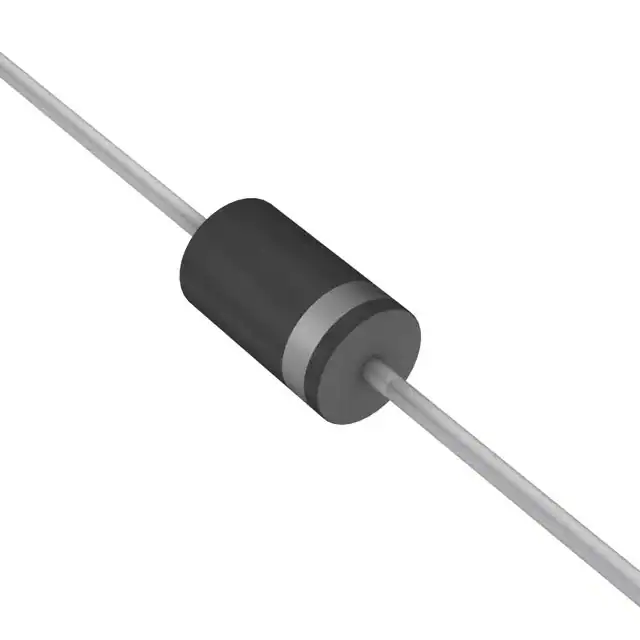

SF32GDIODE GEN PURP 100V 3A DO201AD |
2,259 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 80pF @ 4V, 1MHz | 35 ns | 5 µA @ 100 V | 100 V | 3A (DC) | -55°C ~ 150°C | 950 mV @ 3 A | ||
|
|
SF63GHDIODE GEN PURP 6A 150V DO-201AD |
2,066 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 100pF @ 4V, 1MHz | 35 ns | 5 µA @ 150 V | 150 V | 6A (DC) | -55°C ~ 150°C | 975 mV @ 6 A | |
|
|
SF63GDIODE GEN PURP 6A 150V DO-201AD |
2,924 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 100pF @ 4V, 1MHz | 35 ns | 5 µA @ 150 V | 150 V | 6A (DC) | -55°C ~ 150°C | 975 mV @ 6 A | ||
|
HER201GDIODE GEN PURP 2A 50V DO-15 |
2,953 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 35pF @ 4V, 1MHz | 50 ns | 5 µA @ 50 V | 50 V | 2A (DC) | -55°C ~ 150°C | 1 V @ 2 A | ||
|
|
SFAF1608GDIODE GEN PURP 600V 16A ITO220AC |
3,791 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 100pF @ 4V, 1MHz | 35 ns | 10 µA @ 600 V | 600 V | 16A (DC) | -55°C ~ 150°C | 1.7 V @ 16 A | ||
|
|
FR151GDIODE FAST REC 1.5A 50V DO-15 |
3,449 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | 150 ns | 5 µA @ 50 V | 50 V | 1.5A (DC) | -55°C ~ 150°C | 1.3 V @ 1.5 A | ||
|
|
SR509DIODE SCHOTTKY 5A 90V DO-201AD |
3,414 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 90 V | 90 V | 5A (DC) | -55°C ~ 150°C | 850 mV @ 5 A | ||
|
|
SRAF1040DIODE SCHOTTKY 40V 10A ITO220AC |
3,817 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 500 µA @ 40 V | 40 V | 10A (DC) | -55°C ~ 125°C | 550 mV @ 10 A | ||
|
|

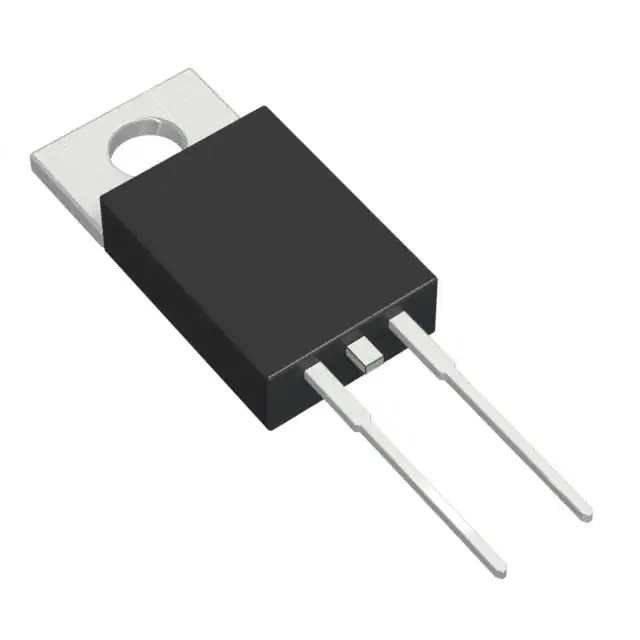

UGA15120DIODE GEN PURP 15A TO220AC |
3,808 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 65 ns | 5 µA @ 1200 V | 1200 V | 15A (DC) | -55°C ~ 175°C | 2.9 V @ 15 A | ||
|
|
UF5JFCDIODE GEN PURP 600V 5A ITO220AC |
2,001 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 30pF @ 4V, 1MHz | 25 ns | 30 µA @ 600 V | 600 V | 5A (DC) | -55°C ~ 150°C | 2.8 V @ 5 A | ||
|
|

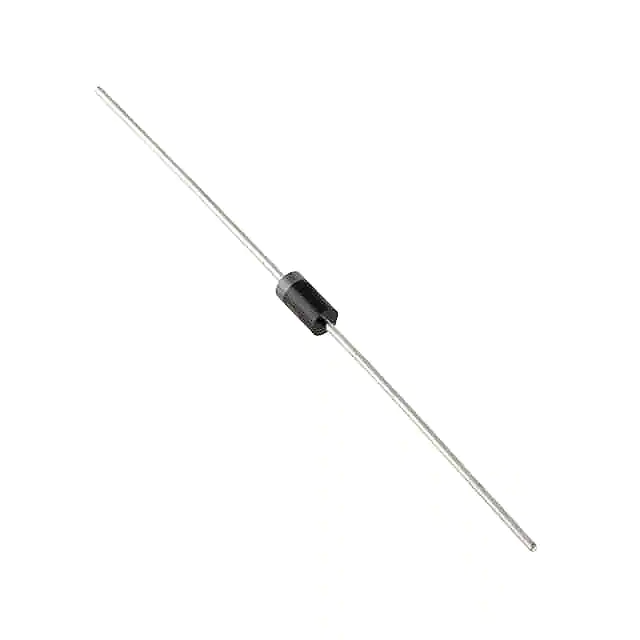

1N4933GHDIODE GEN PURP 50V 1A DO41 |
3,746 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | 200 ns | 5 µA @ 50 V | 50 V | 1A (DC) | -55°C ~ 150°C | 1.2 V @ 1 A | |
|
|
UGA8120HDIODE GEN PURP 8A TO220AC |
3,166 | 0.00 |
RFQ |
Tube | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | - | 70 ns | 5 µA @ 1200 V | 1200 V | 8A (DC) | -55°C ~ 175°C | 2.8 V @ 8 A | |
|
|
1N4934GDIODE GEN PURP 100V 1A DO41 |
2,435 | 0.00 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 10pF @ 4V, 1MHz | 200 ns | 5 µA @ 100 V | 100 V | 1A (DC) | -55°C ~ 150°C | 1.2 V @ 1 A | ||
|
|
GPA804DIODE GEN PURP 8A 400V TO220AC |
3,767 | 0.00 |
RFQ |
Tube | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 50pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 8A (DC) | -55°C ~ 150°C | 1.1 V @ 8 A | ||
|
|
SF33GHDIODE GEN PURP 150V 3A DO201AD |
3,656 | 0.00 |
RFQ |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 80pF @ 4V, 1MHz | 35 ns | 5 µA @ 150 V | 150 V | 3A (DC) | -55°C ~ 150°C | 950 mV @ 3 A | |
|
|
MBRF760DIODE SCHOTTKY 60V 7.5A ITO220AC |
3,567 | 0.00 |
RFQ |
Tube | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Through Hole | - | - | 100 µA @ 60 V | 60 V | 7.5A (DC) | -55°C ~ 150°C | 750 mV @ 7.5 A |
