| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | RoHS | Speed | Diode Type | Part Status | Mounting Type | Capacitance @ Vr, F | Reverse Recovery Time (trr) | Current - Reverse Leakage @ Vr | Voltage - DC Reverse (Vr) (Max) | Current - Average Rectified (Io) | Operating Temperature | Voltage - Forward (Vf) (Max) @ If |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

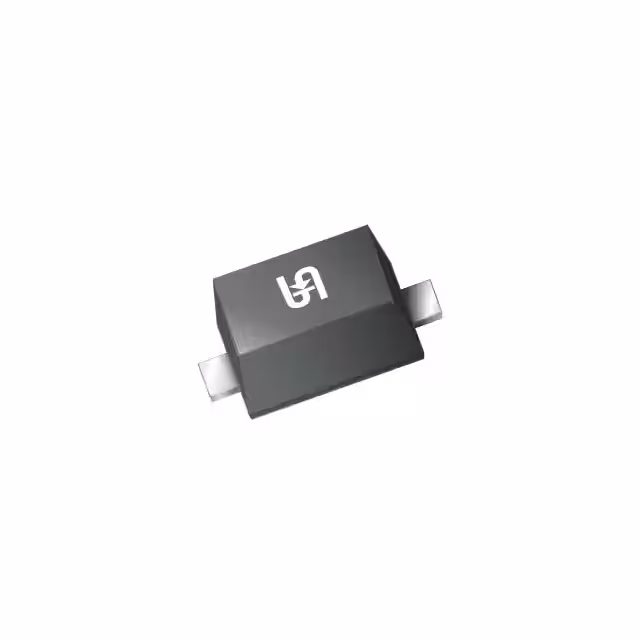

RB520G-30 RLGDIODE SCHOTTKY 30V 100MA SOD723 |
2,621 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Small Signal =< 200mA (Io), Any Speed | Schottky | Active | Surface Mount | - | - | 500 nA @ 10 V | 30 V | 100mA | 125°C (Max) | 450 mV @ 10 mA | |
|
SSL12 M2GDIODE SCHOTTKY 20V 1A DO214AC |
3,912 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 20 V | 20 V | 1A | -55°C ~ 125°C | 390 mV @ 1 A | |
|
|
SSL13 M2GDIODE SCHOTTKY 30V 1A DO214AC |
2,468 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 30 V | 30 V | 1A | -55°C ~ 125°C | 390 mV @ 1 A | |
|
|
SSL14 M2GDIODE SCHOTTKY 40V 1A DO214AC |
3,568 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 40 V | 40 V | 1A | -55°C ~ 125°C | 390 mV @ 1 A | |
|
|
S2DA M2GDIODE GEN PURP 200V 1.5A DO214AC |
3,491 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 200 V | 200 V | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | |
|
|
S2GA M2GDIODE GEN PURP 400V 1.5A DO214AC |
2,531 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 400 V | 400 V | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | |
|
|
S2JA M2GDIODE GEN PURP 600V 1.5A DO214AC |
3,507 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 600 V | 600 V | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | |
|
|
S2KA M2GDIODE GEN PURP 800V 1.5A DO214AC |
3,174 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 800 V | 800 V | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | |
|
1N5404G R0GDIODE GEN PURP 400V 3A DO201AD |
2,159 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Through Hole | 25pF @ 4V, 1MHz | - | 5 µA @ 400 V | 400 V | 3A | -55°C ~ 150°C | 1 V @ 3 A | |
|
|
S2MA M2GDIODE GEN PURP 1.5A DO214AC |
2,957 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 1.5 µs | 5 µA @ 1000 V | - | 1.5A | -55°C ~ 150°C | 1.1 V @ 1.5 A | |
|
SF28G R0GDIODE GEN PURP 600V 2A DO204AC |
2,218 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Through Hole | 20pF @ 4V, 1MHz | 35 ns | 5 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1.7 V @ 2 A | |
|
S1JL RVGDIODE GEN PURP 600V 1A SUB SMA |
3,518 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 9pF @ 4V, 1MHz | 1.8 µs | 5 µA @ 600 V | 600 V | 1A | -55°C ~ 175°C | 1.1 V @ 1 A | |
|
ES2LDHM4GDIODE GEN PURP 200V 2A DO214AA |
3,530 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 25pF @ 4V, 1MHz | 35 ns | 10 µA @ 200 V | 200 V | 2A | -55°C ~ 150°C | 940 mV @ 2 A |
|
|
ES2LGHM4GDIODE GEN PURP 400V 2A DO214AA |
3,967 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 35 ns | 10 µA @ 400 V | 400 V | 2A | -55°C ~ 150°C | 1.3 V @ 2 A |
|
|
SKL13BHM4GDIODE SCHOTTKY 30V 1A DO214AA |
2,801 | 0.15 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 200 µA @ 30 V | 30 V | 1A | -55°C ~ 125°C | 390 mV @ 1 A |
|
|
ES2LJHM4GDIODE GEN PURP 600V 2A DO214AA |
2,697 | 0.12 |
RFQ |
Datasheet |
Tape & Reel (TR) | Automotive, AEC-Q101 | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 20pF @ 4V, 1MHz | 35 ns | 10 µA @ 600 V | 600 V | 2A | -55°C ~ 150°C | 1.7 V @ 2 A |
|
S2BDIODE GEN PURP 100V 2A DO214AA |
3,529 | 0.12 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 1.5 µs | 1 µA @ 100 V | 100 V | 2A | -55°C ~ 150°C | 1.15 V @ 2 A | ||
|
|
S2ADIODE GEN PURP 50V 2A DO214AA |
3,817 | 0.12 |
RFQ |
Tape & Reel (TR) | RoHS | Standard Recovery >500ns, > 200mA (Io) | Standard | Active | Surface Mount | 30pF @ 4V, 1MHz | 1.5 µs | 1 µA @ 50 V | 50 V | 2A | -55°C ~ 150°C | 1.15 V @ 2 A | ||
|
|
SS22DIODE SCHOTTKY 20V 2A DO214AA |
3,297 | 0.15 |
RFQ |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Schottky | Active | Surface Mount | - | - | 400 µA @ 20 V | 20 V | 2A (DC) | -55°C ~ 125°C | 500 mV @ 2 A | ||
|
|
RS1D M2GDIODE GEN PURP 200V 1A DO214AC |
3,093 | 0.06 |
RFQ |
Datasheet |
Tape & Reel (TR) | RoHS | Fast Recovery =< 500ns, > 200mA (Io) | Standard | Active | Surface Mount | 10pF @ 4V, 1MHz | 150 ns | 5 µA @ 200 V | 200 V | 1A | -55°C ~ 150°C | 1.3 V @ 1 A |
