Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
T63/38/25-3E27-M7 FERRITE CORES ROUND Ferroxcube	3,453	10.80	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	2.480 (63.00mm)	-	±25%	Ungapped	7000	-	0.497	152	306	-	46500	Uncoated	0.984 (25.00mm)
ER64/13/51-3C96 PLANAR ER CORES Ferroxcube	3,795	11.17	RFQ	Datasheet	Bulk	-	Active	ER	ER 64 x 13 x 51	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.500 (12.70mm)
ER64/13/51-3F4 PLANAR ER CORES Ferroxcube	2,618	11.17	RFQ	Datasheet	Bulk	-	Active	ER	ER 64 x 13 x 51	3F4	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.500 (12.70mm)
T63/38/25-3C90 FERRITE CORES ROUND Ferroxcube	3,705	11.17	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C90	2.480 (63.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)
ER64/13/51-3C95 PLANAR ER CORES Ferroxcube	2,670	11.38	RFQ	Datasheet	Bulk	-	Active	ER	ER 64 x 13 x 51	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.500 (12.70mm)

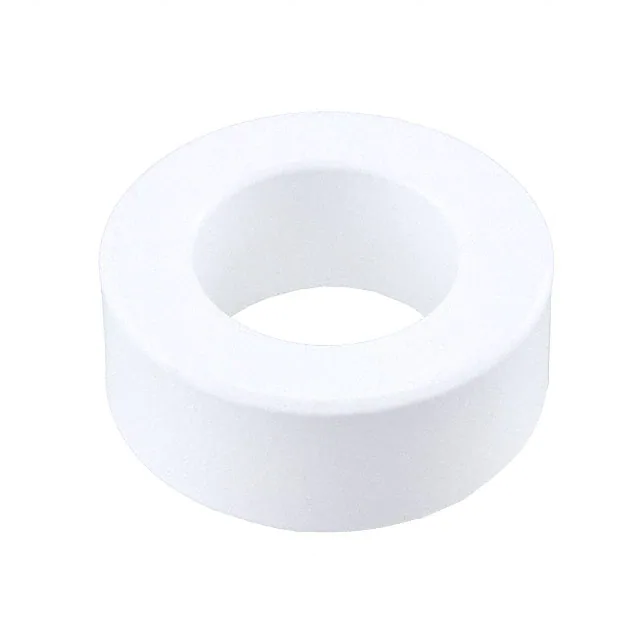

TX63/38/25-3E10-M FERRITE CORES ROUND Ferroxcube	2,289	12.14	RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	2.480 (63.00mm)	-	±30%	Ungapped	9500	-	0.497	152	306	-	46500	Epoxy	0.984 (25.00mm)
ER64/13/51-3C97 PLANAR ER CORES Ferroxcube	3,955	12.20	RFQ	Datasheet	Bulk	-	Active	ER	ER 64 x 13 x 51	3C97	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.500 (12.70mm)
ER64/13/51-3F36 PLANAR ER CORES Ferroxcube	2,911	12.20	RFQ	Datasheet	Bulk	-	Active	ER	ER 64 x 13 x 51	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.500 (12.70mm)
T63/38/25-3E27 FERRITE CORES ROUND Ferroxcube	2,687	12.29	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	2.480 (63.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)
T63/38/25-3C11 FERRITE CORES ROUND Ferroxcube	2,705	12.29	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C11	2.480 (63.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)
T58/41/18-3E65 FERRITE CORES ROUND Ferroxcube	3,293	12.44	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E65	2.295 (58.30mm)	-	±25%	-	5200	-	-	-	-	-	-	Uncoated	0.693 (17.60mm)
TX63/38/25-3E27-M7 FERRITE CORES ROUND Ferroxcube	3,462	12.67	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	2.480 (63.00mm)	-	±25%	Ungapped	7000	-	0.497	152	306	-	46500	Epoxy	0.984 (25.00mm)
T63/38/25-3E6 FERRITE CORES ROUND Ferroxcube	3,197	12.84	RFQ	Datasheet	Bulk	-	Active	Toroid	-	-	2.480 (63.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.984 (25.00mm)
ROD10/245-4B1 FERRITE ROD Ferroxcube	3,599	12.95	RFQ	Datasheet	Bulk	-	Active	ROD	ROD 10 x 245	-	0.394 (10.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	-
EC90/45/30-3C94 EC CORES Ferroxcube	2,723	13.99	RFQ		Bulk	-	Active	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-	-

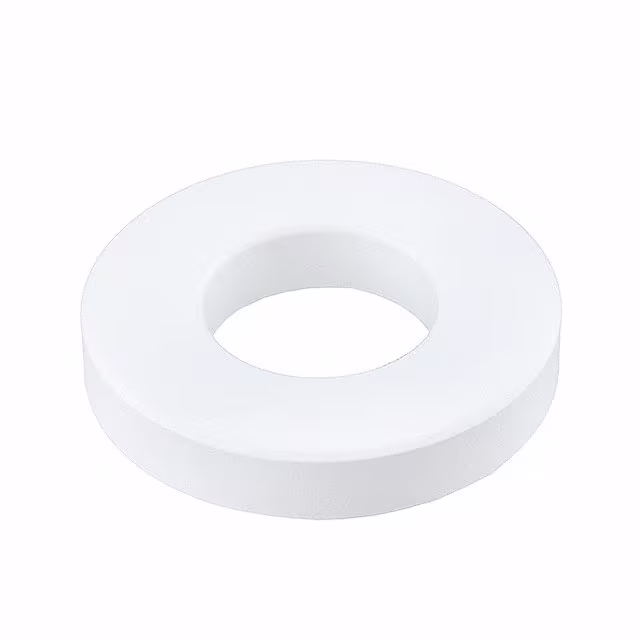

TX80/40/15-3C11 FERRITE CORES ROUND Ferroxcube	2,782	14.23	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 80 x 40 x 15	3C11	3.268 (83.00mm)	-	±25%	Ungapped	4300	-	0.604	174	288	-	50200	Epoxy	0.626 (15.90mm)
TX80/40/15-3E27 FERRITE CORES ROUND Ferroxcube	2,942	14.23	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 80 x 40 x 15	3E27	3.268 (83.00mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.626 (15.90mm)
TX63/38/25-3C11 FERRITE CORES ROUND Ferroxcube	2,986	14.40	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C11	2.480 (63.00mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.984 (25.00mm)
TX80/40/15-3E6 FERRITE CORES ROUND Ferroxcube	2,253	14.88	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 80 x 40 x 15	-	3.268 (83.00mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.626 (15.90mm)
I100/25/25-3C90-/G6 U AND UR CORES Ferroxcube	3,739	14.90	RFQ	Datasheet	Bulk	-	Active	I	I 100 x 25 x 25	3C90	-	-	-	-	-	-	-	-	-	-	-	Uncoated	1.000 (25.40mm)
