| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | CoreType | Material | Diameter | InductanceFactor(Al) | Tolerance | Gap | EffectivePermeability(µe) | InitialPermeability(µi) | CoreFactor(ΣI/A)mm-1 | EffectiveLength(le)mm | EffectiveArea(Ae)mm² | MinimumCoreCrossSection(Amin)mm² | EffectiveMagneticVolume(Ve)mm³ | Finish | Height | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
T107/65/25-3C11FERRITE CORES ROUND |
3,129 | 46.70 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | - | 3C11 | 4.213 (107.00mm) | - | - | Ungapped | - | - | 0.504 | 259 | 514 | - | 133000 | Uncoated | 0.984 (25.00mm) |
|
|
P66/56-3C95P CORES 2PC SET |
2,912 | 64.22 |
RFQ |
Datasheet |
Bulk | - | Active | P | P 66 x 56 | 3C95 | 2.610 (66.29mm) | - | ±25% | Ungapped | - | - | 0.172 | 123 | 717 | 591 | 88200 | Uncoated | 2.256 (57.30mm) |
|
|
TX140/106/25-3C11FERRITE CORES ROUND |
3,062 | 104.85 |
RFQ |
Datasheet |
Bulk | - | Active | Toroid | TX 140 x 106 x 25 | 3C11 | 5.528 (140.40mm) | - | - | - | - | - | - | - | - | - | - | Epoxy | 0.996 (25.30mm) |
|

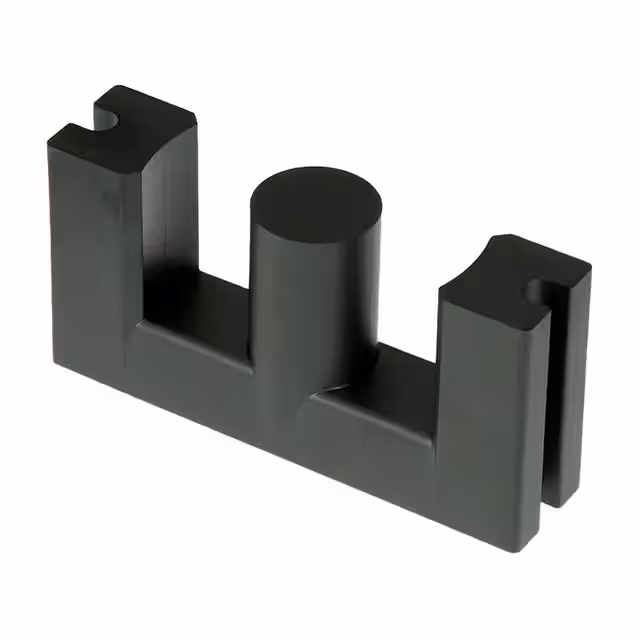

EC70/34/17-3C81CORES |
3,014 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | EC | EC 70 x 34 x 17 | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | - |
_3C91.jpg)
|
P18/11-3C81CORES 2PC SET |
2,688 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P (Pot Core) | P 18 x 11 | - | 0.724 (18.40mm) | 4 µH | ±25% | Ungapped | 1900 | - | 0.597 | 25.8 | 43.3 | 36 | 1120 | Uncoated | 0.417 (10.60mm) |
_3C91.jpg)
|
P42/29-3C81CORES 2PC SET |
2,397 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | P (Pot Core) | P 42 x 29 | - | 1.669 (42.40mm) | 11.5 µH | ±25% | Ungapped | 2370 | - | 0.259 | 68.6 | 265 | 214 | 18200 | Uncoated | 1.157 (29.40mm) |
|

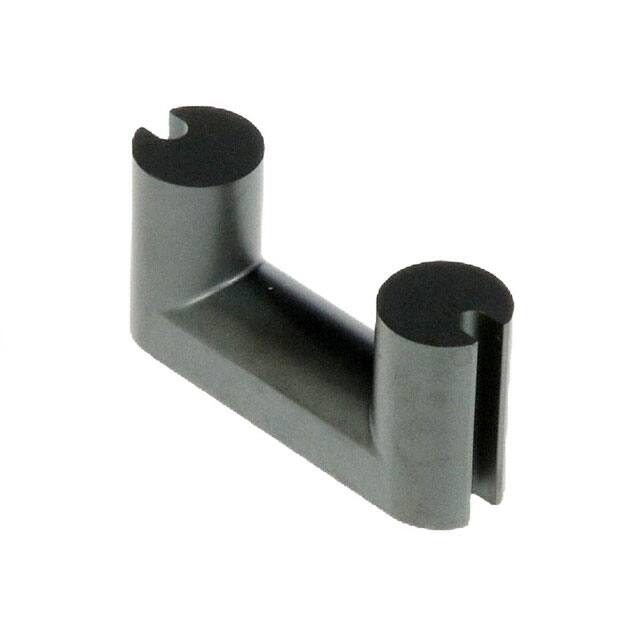

UR42/21/12-3C81CORES |
3,920 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | UR | - | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 0.827 (21.00mm) |
|

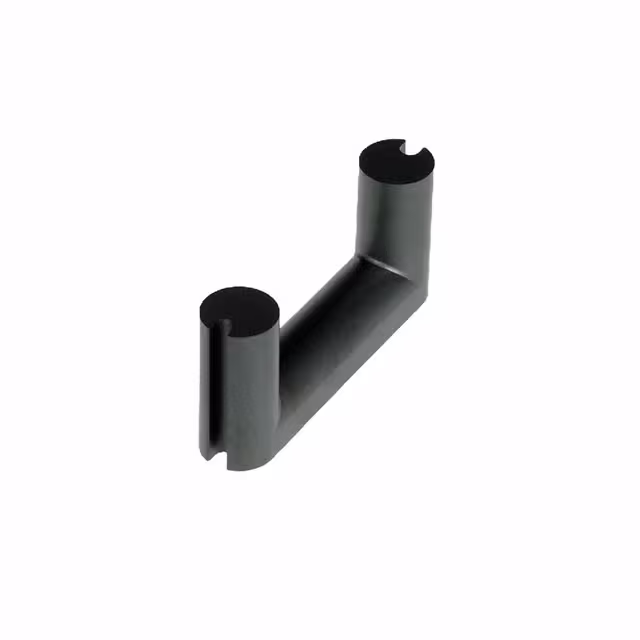

UR64/29/14-3C81CORES |
2,410 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | UR | - | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.142 (29.00mm) |
|

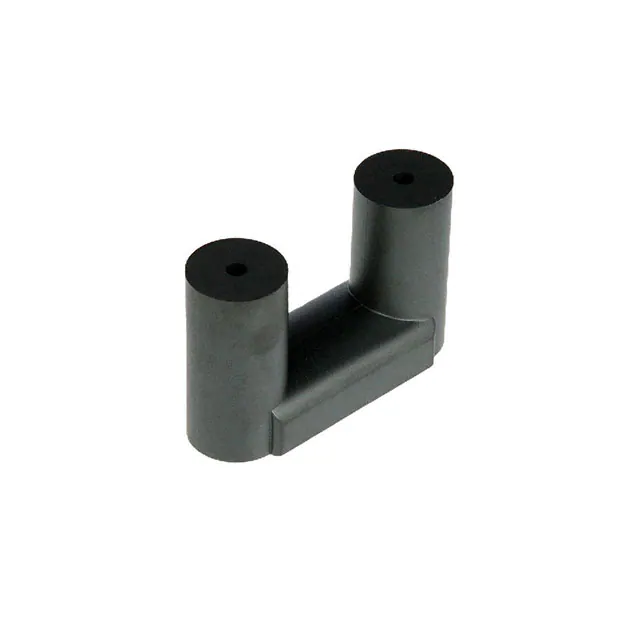

UR64/40/20-3C80CORES |
2,292 | 0.00 |
RFQ |
Datasheet |
Bulk | - | Obsolete | UR | UR 64 x 40 x 20 | - | - | - | - | - | - | - | - | - | - | - | - | Uncoated | 1.575 (40.00mm) |
|
|
CS5TN024150760N00PCORE IRON |
2,998 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS5TN033201187N0EPCORE IRON |
2,682 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS3BDS30304600NCZPCORE IRON |
2,419 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS4TN020130641N0EPCORE IRON |
2,045 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS4TN027151194N0EPCORE IRON |
2,972 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
QS2TN017090425N00PCORE IRON |
2,723 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CS3ROD06301600000PCORE IRON |
2,700 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS5TN020130644N0EPCORE IRON |
3,329 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
QS4TN033201182U00PCORE IRON |
2,545 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
GS4TN012080430N00PCORE IRON |
2,738 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CS4TX033201181N00PCORE IRON |
2,055 | 0.00 |
RFQ |
Bulk | * | Obsolete | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - |
