Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
P11/7/I-3C91 FERRITE CORE 2PC SET Ferroxcube	453	1.60	RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 11 x 7	3C91	0.437 (11.10mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.260 (6.60mm)
TX22/14/13-3C94 FERRITE CORES ROUND Ferroxcube	205	1.65	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 13	3C94	0.880 (22.35mm)	-	±20%	Ungapped	-	2300	1.07	54.2	50.9	-	2750	Epoxy	0.510 (12.95mm)

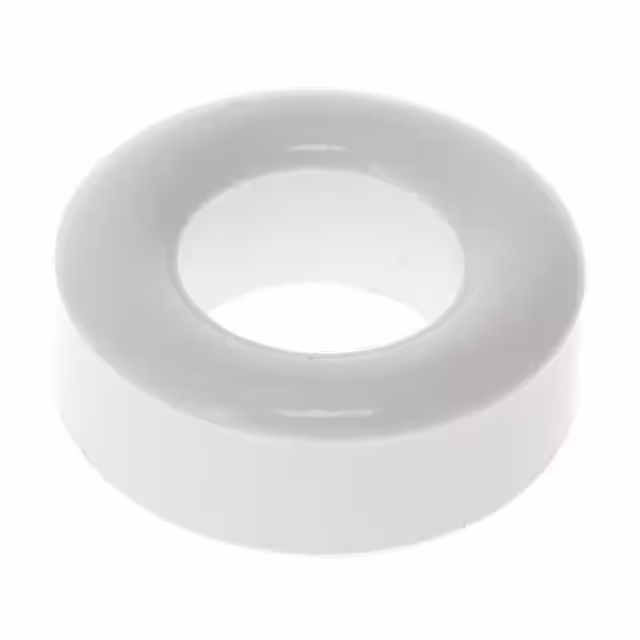

TX26/15/10-3E10-M FERRITE CORES ROUND Ferroxcube	393	1.73	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 10	-	1.061 (26.95mm)	-	±30%	Ungapped	10000	-	1.08	60.1	55.9	-	3360	Epoxy	0.429 (10.90mm)

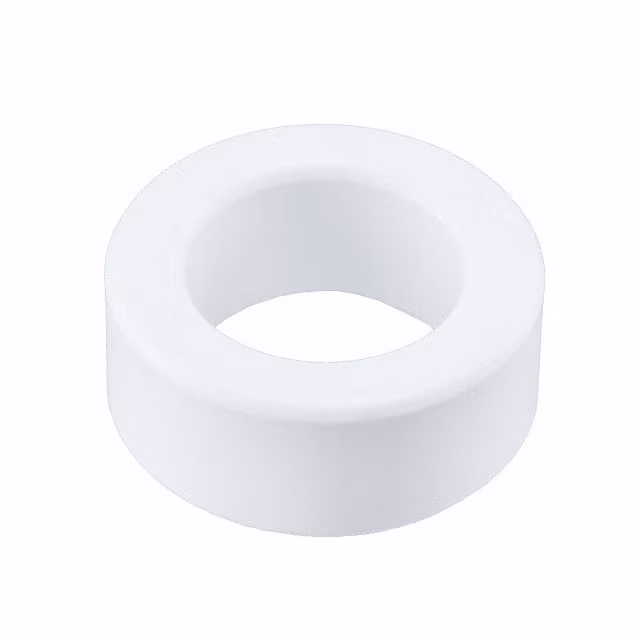

TX25/15/13-3E10-M FERRITE CORES ROUND Ferroxcube	493	1.80	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	-	1.007 (25.95mm)	-	±30%	Ungapped	10000	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
P14/8/I-3F46 FERRITE CORE 2PC SET Ferroxcube	2,812	1.94	RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 14 x 8	3F46	0.553 (14.05mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.165 (4.20mm)
RM7/ILP-3C95 FERRITE CORE 2PC SET Ferroxcube	940	1.96	RFQ	Datasheet	Bulk	-	Active	RM	RM 7	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.386 (9.80mm)
TX25/15/13-3C90 FERRITE CORES ROUND Ferroxcube	341	1.97	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	3C90	1.007 (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.539 (13.70mm)
TX25/15/13-3C94 FERRITE CORES ROUND Ferroxcube	288	1.97	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	3C94	1.007 (25.95mm)	-	±25%	Ungapped	2300	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
TX25/15/10-3E65 FERRITE CORES ROUND Ferroxcube	574	1.99	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 10	-	1.007 (25.95mm)	-	±25%	Ungapped	5200	-	1.23	60.2	48.9	-	2944	Epoxy	0.429 (10.90mm)
TX25/15/10-3E6 FERRITE CORES ROUND Ferroxcube	3,178	1.99	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 10	-	1.007 (25.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429 (10.90mm)
EFD10/5/3-3F36-S FERRITE CORE 2PC SET Ferroxcube	402	2.08	RFQ	Datasheet	Bulk	-	Active	EFD	EFD 10 x 5 x 3	3F36	-	-	±25%	Ungapped	1020	-	3.29	23.7	7.2	6.5	171	Uncoated	0.205 (5.20mm)
P11/7/I-3F46 FERRITE CORE 2PC SET Ferroxcube	572	2.11	RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 11 x 7	3F46	0.437 (11.10mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.260 (6.60mm)
PQ20/20-3F36 FERRITE CORE 2PC SET Ferroxcube	916	2.12	RFQ	Datasheet	Bulk	-	Active	PQ	PQ 20 x 20	3F36	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.795 (20.20mm)
EP17-3C96 FERRITE CORE 2PC SET Ferroxcube	311	2.12	RFQ	Datasheet	Bulk	-	Active	EP	EP 17	3C96	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.661 (16.80mm)
TX22/14/13-3E12 FERRITE CORES ROUND Ferroxcube	282	2.14	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 22 x 14 x 13	-	0.880 (22.35mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.510 (12.95mm)
RM8/ILP-3C95 FERRITE CORE 2PC SET Ferroxcube	521	2.17	RFQ	Datasheet	Bulk	-	Active	RM	RM 8	3C95	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.457 (11.60mm)
TX29/19/15-3E10-M FERRITE CORES ROUND Ferroxcube	233	2.19	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 15	-	1.179 (29.95mm)	-	±30%	Ungapped	10000	-	0.98	73.2	73.9	-	5410	Epoxy	0.632 (16.05mm)
TX29/19/7.6-3E12 FERRITE CORES ROUND Ferroxcube	699	2.25	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 7.6	-	0.640 (16.25mm)	-	±30%	Ungapped	12000	-	2.06	73.2	35.5	-	2600	Epoxy	0.258 (6.55mm)
TX25/15/13-3E6 FERRITE CORES ROUND Ferroxcube	426	2.26	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	-	1.007 (25.95mm)	-	±30%	Ungapped	10000	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
P18/11/I-3F46 FERRITE CORE 2PC SET Ferroxcube	250	2.30	RFQ	Datasheet	Bulk	-	Active	P (Pot Core)	P 18 x 11	3F46	0.701 (17.90mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.417 (10.60mm)
