Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	CoreType	Material	Diameter	InductanceFactor(Al)	Tolerance	Gap	EffectivePermeability(µe)	InitialPermeability(µi)	CoreFactor(ΣI/A)mm^-1	EffectiveLength(le)mm	EffectiveArea(Ae)mm²	MinimumCoreCrossSection(Amin)mm²	EffectiveMagneticVolume(Ve)mm³	Finish	Height	Length
EC35/17/10-3C94 FERRITE CORE Ferroxcube	193	1.94	RFQ	Datasheet	Bulk	-	Active	EC	EC 35 x 17 x 10	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.681 (17.30mm)
EFD10/5/3-3F46-S FERRITE CORE 2PC SET Ferroxcube	449	1.98	RFQ	Datasheet	Bulk	-	Active	EFD	EFD 10 x 5 x 3	3F46	-	-	±25%	Ungapped	655	-	3.29	23.7	7.2	6.5	171	Uncoated	0.205 (5.20mm)
EFD12/6/3.5-3F36-S FERRITE CORE 2PC SET Ferroxcube	998	2.13	RFQ	Datasheet	Bulk	-	Active	EFD	EFD 12 x 6 x 3.5	3F36	-	-	±25%	Ungapped	1130	-	2.5	28.5	11.4	10.7	325	Uncoated	0.244 (6.20mm)
TX25/15/13-3E65 FERRITE CORES ROUND Ferroxcube	295	2.16	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 25 x 15 x 13	-	1.007 (25.95mm)	-	±25%	Ungapped	5200	-	0.97	60.1	62.1	-	3740	Epoxy	0.539 (13.70mm)
TX26/15/10-3E12 FERRITE CORES ROUND Ferroxcube	393	2.34	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 10	-	1.061 (26.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.429 (10.90mm)
TX26/15/20-3E10-M FERRITE CORES ROUND Ferroxcube	107	2.38	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 20	-	1.061 (26.95mm)	-	±30%	Ungapped	10000	-	0.538	60.1	112	-	6720	Epoxy	0.827 (21.00mm)
EC41/19/12-3C94 FERRITE CORE Ferroxcube	163	2.46	RFQ	Datasheet	Bulk	-	Active	EC	EC 41 x 19 x 12	3C94	-	-	-	-	-	-	-	-	-	-	-	Uncoated	0.768 (19.50mm)
TX26/15/20-3C94 FERRITE CORES ROUND Ferroxcube	113	2.74	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 26 x 15 x 20	3C94	1.061 (26.95mm)	-	±25%	Ungapped	2300	-	0.538	60.1	112	-	6720	Epoxy	0.827 (21.00mm)
TX36/23/10-3E65 FERRITE CORES ROUND Ferroxcube	297	2.92	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 10	-	1.463 (37.15mm)	-	±25%	Ungapped	5200	-	1.38	89.7	64.9	-	5820	Epoxy	0.430 (10.92mm)
TX36/23/10-3E6 FERRITE CORES ROUND Ferroxcube	138	2.92	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 36 x 23 x 10	-	1.463 (37.15mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.430 (10.92mm)
TX29/19/15-3E12 FERRITE CORES ROUND Ferroxcube	3,064	3.02	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 29 x 19 x 15	-	1.179 (29.95mm)	-	-	-	-	-	-	-	-	-	-	Epoxy	0.632 (16.05mm)
TX40/24/16-3E10-M FERRITE CORES ROUND Ferroxcube	3,293	5.43	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 40 x 24 x 16	-	1.640 (41.65mm)	-	±30%	Ungapped	10000	-	0.769	96.3	125	-	12100	Epoxy	0.673 (17.10mm)
TX42/26/18-3E27-M7 FERRITE CORES ROUND Ferroxcube	3,643	6.53	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	3E27	1.697 (43.15mm)	-	±25%	Ungapped	7000	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)
TX40/24/16-3E6 FERRITE CORES ROUND Ferroxcube	3,456	7.35	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 40 x 24 x 16	-	1.640 (41.65mm)	-	±30%	Ungapped	10000	-	0.769	96.3	125	-	12100	Epoxy	0.673 (17.10mm)
TX42/26/18-3E27 FERRITE CORES ROUND Ferroxcube	3,319	8.07	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	3E27	1.697 (43.15mm)	-	±25%	Ungapped	5500	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)
TX42/26/18-3E65 FERRITE CORES ROUND Ferroxcube	3,821	8.43	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 42 x 26 x 18	-	1.697 (43.15mm)	-	±25%	Ungapped	5200	-	0.769	103	134	-	13810	Epoxy	0.736 (18.70mm)

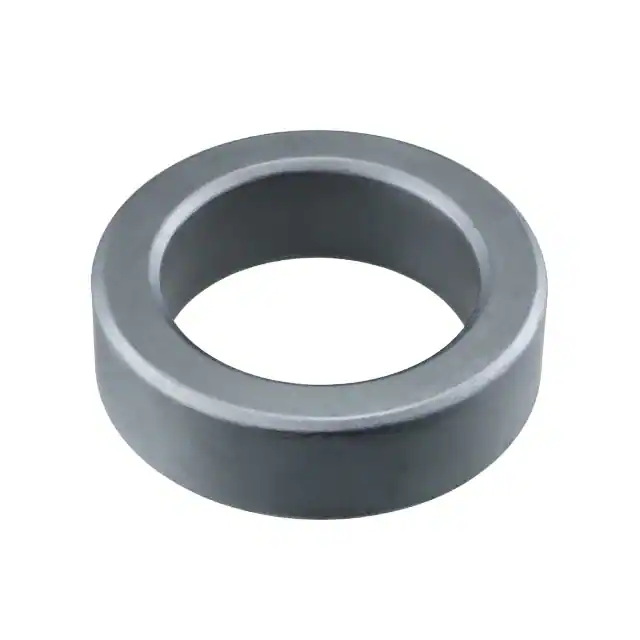

T58/41/18-3C90 FERRITE CORES ROUND Ferroxcube	2,217	10.31	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3C90	2.295 (58.30mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	0.693 (17.60mm)
PM50/39-3C94 FERRITE CORE 2PC SET Ferroxcube	3,172	30.38	RFQ	Datasheet	Bulk	-	Active	PM	PM 50 x 39	3C94	1.969 (50.00mm)	-	-	-	-	-	-	-	-	-	-	Uncoated	1.535 (39.00mm)
T102/66/15-3E27 FERRITE CORES ROUND Ferroxcube	3,881	40.38	RFQ	Datasheet	Bulk	-	Active	Toroid	-	3E27	4.016 (102.00mm)	-	±25%	-	-	-	-	-	-	-	-	Uncoated	0.591 (15.00mm)
TX32/19/13-3E27 FERRITE CORES ROUND Ferroxcube	3,940	3.84	RFQ	Datasheet	Bulk	-	Active	Toroid	TX 32 x 19 x 13	3E27	1.281 (32.55mm)	-	±25%	Ungapped	5500	-	0.99	76	76.5	-	5820	Epoxy	0.528 (13.40mm)
