Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension

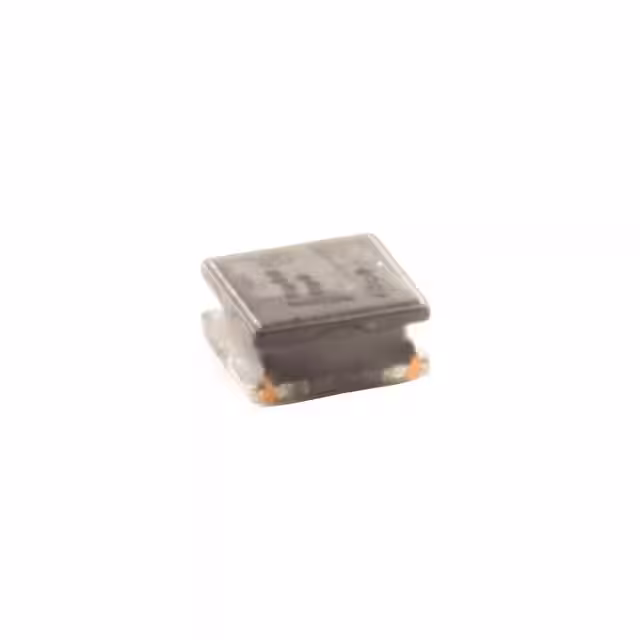

PCCV20-2R2M-RC 2.2uH +/-20% Shielded Power Chip Allied Components International	2,395	0.98	RFQ	Datasheet	0806 (2016 Metric)	Tape & Reel (TR)	PCCV20	Active	-	-	2.2 µH	±20%	1.17 A	1.17A	Semi-Shielded	190mOhm	-	-	-	-55°C ~ 125°C	1 MHz	-	Surface Mount	0806
PCCV20-4R7M-RC 4.7uH +/-20% Shielded Power Chip Allied Components International	3,571	0.98	RFQ	Datasheet	0806 (2016 Metric)	Tape & Reel (TR)	PCCV20	Active	-	-	4.7 µH	±20%	810 mA	750mA	Semi-Shielded	360mOhm	-	-	-	-55°C ~ 125°C	1 MHz	-	Surface Mount	0806
HFC05-1N5S-RC 1.5nH +/-0.3nH 0603 Hi-Freq Chip Allied Components International	2,668	0.98	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	HFC05	Active	Multilayer	Ceramic	1.5 nH	±0.3nH	600 mA	-	Unshielded	100mOhm Max	8 @ 100MHz	8GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603
HFC05-1N8S-RC 1.8nH +/-0.3nH 0603 Hi-Freq Chip Allied Components International	2,627	0.98	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	HFC05	Active	Multilayer	Ceramic	1.8 nH	±0.3nH	600 mA	-	Unshielded	100mOhm Max	8 @ 100MHz	8GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603
HFC05-1N2S-RC 1.2nH +/-0.3nH 0603 Hi-Freq Chip Allied Components International	3,131	0.98	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	HFC05	Active	Multilayer	Ceramic	1.2 nH	±0.3nH	600 mA	-	Unshielded	100mOhm Max	8 @ 100MHz	10GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603
HFC05-3N9S-RC 3.9nH +/-.3nH% 0603 Hi-Freq Chip Allied Components International	3,772	0.98	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	HFC05	Active	Multilayer	Ceramic	3.9 nH	±0.3nH	600 mA	-	Unshielded	140mOhm Max	10 @ 100MHz	5GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603
LS03-R10J-RC .10uH +/-5% Ferrite Core Chip Allied Components International	3,470	0.98	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	LS03	Active	Wirewound	Ferrite	100 nH	±5%	-	1.5A	Unshielded	130mOhm Max	17 @ 7.9MHz	1.65GHz	-	-40°C ~ 125°C	7.9 MHz	-	Surface Mount	0603
CC10-1000NJ-RC 1000nH +/-5% Ceramic Core Chip Allied Components International	2,035	0.98	RFQ	Datasheet	1008 (2520 Metric)	Tape & Reel (TR)	-	Active	Wirewound	Ceramic	1 µH	±5%	370 mA	-	Unshielded	1.75Ohm Max	35 @ 50MHz	290MHz	-	-40°C ~ 125°C	25 MHz	-	Surface Mount	1008
HFC03-1N5S-RC 1.2nH +/-0.5nH High Freq Chip Allied Components International	3,764	0.98	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR)	HFC03	Active	-	-	1.5 nH	±0.3nH	400 mA	-	Unshielded	100mOhm Max	8 @ 100kHz	9GHz	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	0402
PCSDR125-220M-RC 22UH 20% PWR CHIP SHIELDED IND. Allied Components International	2,789	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	-	-	22 µH	±20%	3.71 A	4.71A	Shielded	47.5mOhm Max	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-
LRHQ20-5R6K-RC-1 5.6uH +/-10% Lo-Res Hi-Q Chip Allied Components International	3,150	0.98	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR)	LRHQ20	Active	Wirewound	Ferrite	5.6 µH	±10%	250 mA	-	Unshielded	1.3Ohm Max	35 @ 1MHz	31MHz	-	-25°C ~ 85°C	1 MHz	-	Surface Mount	1210
PCHC25-2R2M-RC 2.2UH 20% PWR CHIP HIGH CURRENT Allied Components International	3,099	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	2.2 µH	±20%	3.1 A	3.5A	Unshielded	35mOhm Max	-	100MHz	-	-40°C ~ 125°C	100 kHz	-	Surface Mount	-
HFC05-1N0S-RC 1.0nH +/-0.3nH 0603 Hi-Freq Chip Allied Components International	3,808	0.98	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	HFC05	Active	Multilayer	Ceramic	1 nH	±0.3nH	600 mA	-	Unshielded	100mOhm Max	8 @ 100MHz	10GHz	-	-55°C ~ 125°C	100 MHz	-	Surface Mount	0603
PCS4D18-6R8N-RC 6.8H30% POWER CHIP SHIELDED INDU Allied Components International	3,818	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	6.8 µH	±30%	-	760mA	Shielded	200mOhm	-	-	-	-30°C ~ 100°C	7.96 MHz	-	Surface Mount	-
PCS4D18-100N-RC 10H30% POWER CHIP SHIELDED INDUC Allied Components International	3,570	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	10 µH	±30%	-	610mA	Shielded	280mOhm	-	-	-	-30°C ~ 100°C	100 kHz	-	Surface Mount	-
PCS4D18-680N-RC 68H30% POWER CHIP SHIELDED INDUC Allied Components International	2,396	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	68 µH	±30%	-	240mA	Shielded	1.3Ohm	-	-	-	-30°C ~ 100°C	100 kHz	-	Surface Mount	-
PCS4D18-4R7N-RC 4.7H30% POWER CHIP SHIELDED INDU Allied Components International	3,270	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	4.7 µH	±30%	-	840mA	Shielded	162mOhm	-	-	-	-30°C ~ 100°C	7.96 MHz	-	Surface Mount	-
PCS4D18-1R0N-RC 1.0H30% POWER CHIP SHIELDED IND Allied Components International	3,160	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	1 µH	±30%	-	1.72A	Shielded	45mOhm	-	-	-	-30°C ~ 100°C	7.96 MHz	-	Surface Mount	-
PCS4D18-101N-RC 100H30% POWER CHIP SHIELDED INDU Allied Components International	3,991	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	100 µH	±30%	-	200mA	Shielded	2Ohm	-	-	-	-30°C ~ 100°C	100 kHz	-	Surface Mount	-
PCS4D18-330N-RC 33H30% POWER CHIP SHIELDED INDUC Allied Components International	2,476	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	33 µH	±30%	-	320mA	Shielded	694mOhm	-	-	-	-30°C ~ 100°C	100 kHz	-	Surface Mount	-
