Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension
PCS4D18-470N-RC 47H30% POWER CHIP SHIELDED INDUC Allied Components International	2,408	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	47 µH	±30%	-	280mA	Shielded	950mOhm	-	-	-	-30°C ~ 100°C	100 kHz	-	Surface Mount	-
SMAC20-4J-RC 12.5nH 5% SMD Air Core Inductor Allied Components International	2,612	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	-	Air	12.5 nH	±5%	4 A	-	Unshielded	3.4mOhm Max	137 @ 150MHz	3.3GHz	-	-40°C ~ 125°C	150 MHz	-	Surface Mount	-
SMAC30-6J-RC 17.5nH 5% SMD Air Core Inductor Allied Components International	3,836	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	-	Air	17.5 nH	±5%	4 A	-	Unshielded	4.5mOhm Max	100 @ 150MHz	2.2GHz	-	-40°C ~ 125°C	150 MHz	-	Surface Mount	-
SMAC30-9J-RC 35.5nH 5% SMD Air Core Inductor Allied Components International	3,341	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	-	Air	35.5 nH	±5%	4 A	-	Unshielded	6.8mOhm Max	112 @ 150MHz	1.5GHz	-	-40°C ~ 125°C	150 MHz	-	Surface Mount	-
MLC20-1R0K-RC 1.0UH 10% 1203 MULTILAYER CHIP Allied Components International	3,200	0.98	RFQ	Datasheet	1206 (3216 Metric)	Tape & Reel (TR)	-	Active	Multilayer	-	1 µH	±10%	100 mA	-	Shielded	400mOhm Max	45 @ 10MHz	75MHz	-	-40°C ~ 125°C	10 MHz	-	Surface Mount	1206

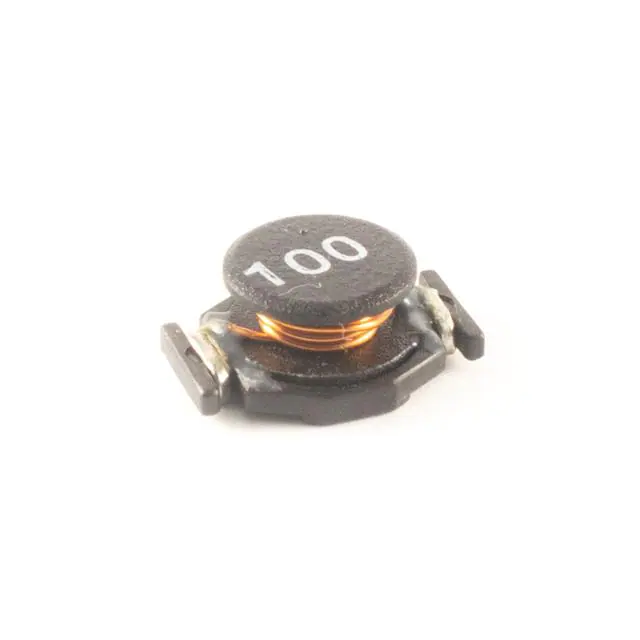

PCHC40-3R3M-RC 3.3UH 20% PWR CHIP HIGH CURRENT Allied Components International	3,978	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	Wirewound	-	3.3 µH	±20%	5.9 A	6.4A	Unshielded	14mOhm Max	-	65MHz	-	-40°C ~ 85°C	100 kHz	-	Surface Mount	-

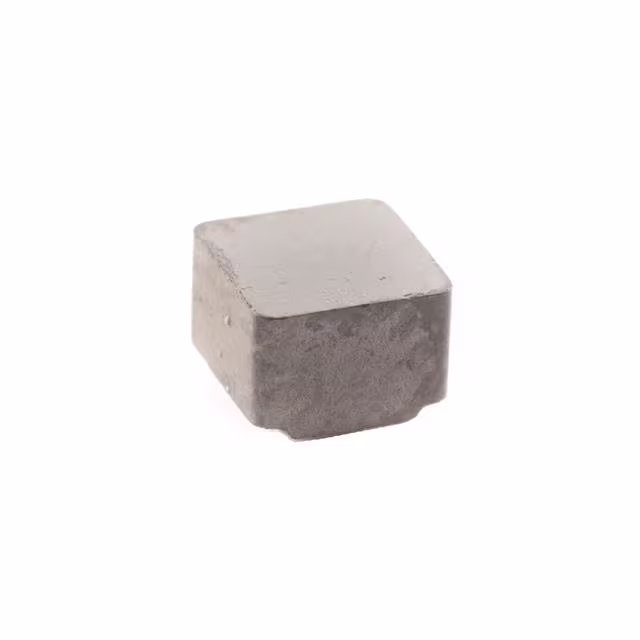

PS10-102M-RC 1000uH +/-20% Power Inductor Allied Components International	2,289	0.98	RFQ	Datasheet	1515 (4040 Metric)	Tape & Reel (TR)	PS10	Active	Wirewound	-	1 mH	±20%	-	100mA	Shielded	29.2Ohm Max	20 @ 1MHz	1.5MHz	-	-25°C ~ 85°C	100 kHz	-	Surface Mount	-
LS03-2R2J-RC 2.2uH +/-5% Ferrite Core Chip Allied Components International	3,511	0.98	RFQ	Datasheet	0603 (1608 Metric)	Tape & Reel (TR)	LS03	Active	Wirewound	Ferrite	2.2 µH	±5%	-	500mA	Unshielded	1.2Ohm Max	17 @ 7.9MHz	140MHz	-	-40°C ~ 125°C	7.9 MHz	-	Surface Mount	0603

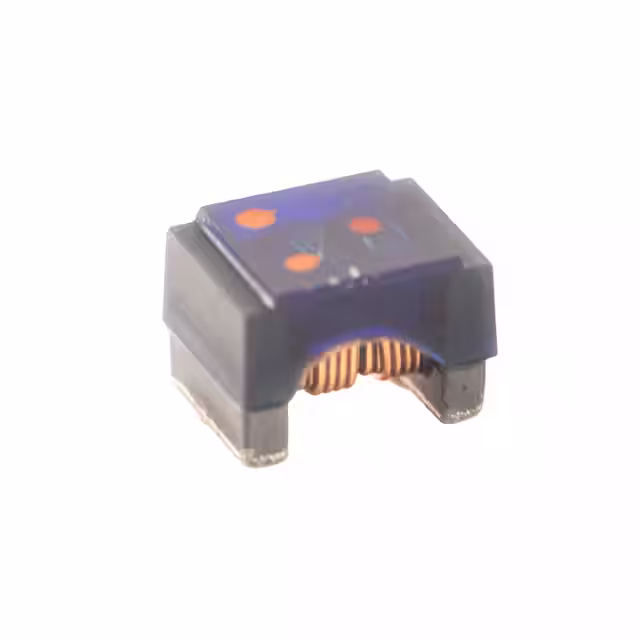

FCHC20-681K-RC 680uH +/-10% High Current Chip Allied Components International	2,687	0.98	RFQ	Datasheet	1414 (3535 Metric)	Tape & Reel (TR)	FCHC20	Active	Wirewound	Ferrite	680 µH	±10%	-	65mA	Unshielded	28Ohm	15 @ 796kHz	2MHz	-	-25°C ~ 105°C	796 kHz	-	Surface Mount	1414

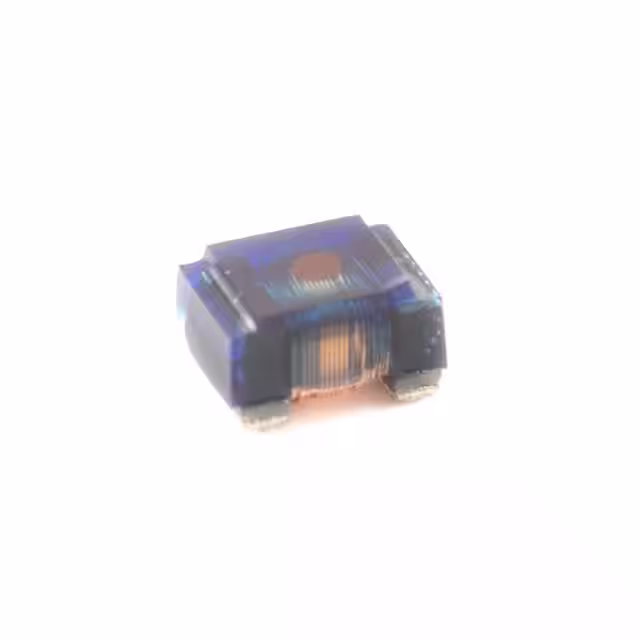

LD05-101M-RC 100uH +/-20% 0805 Ferrite Core Allied Components International	2,904	0.98	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR)	LD05	Active	Wirewound	Ferrite	100 µH	±20%	-	70mA	Unshielded	9Ohm Max	18 @ 7.96MHz	9MHz	-	-25°C ~ 85°C	7.96 MHz	-	Surface Mount	0805

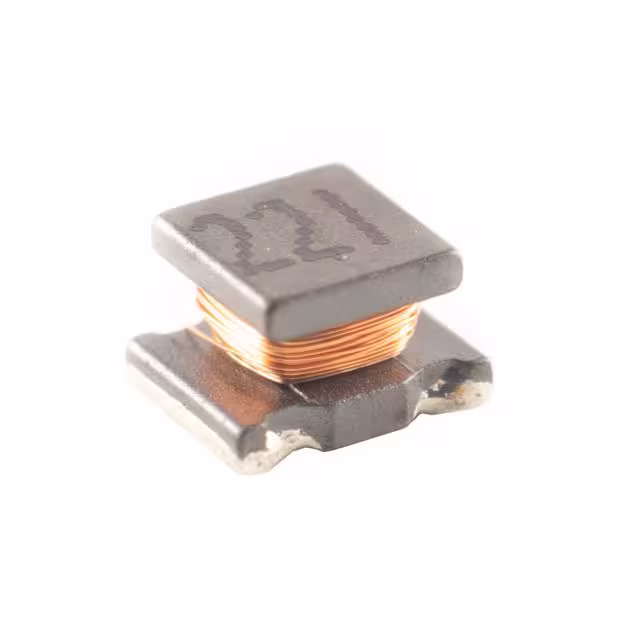

LRHQ20-221K-RC 220uH +/-10% Lo-Res Hi-Q Chip Allied Components International	2,460	0.98	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR)	LRHQ20	Active	Wirewound	Ferrite	220 µH	±10%	65 mA	-	Unshielded	11.8Ohm Max	40 @ 796kHz	5.5MHz	-	-25°C ~ 85°C	1 MHz	-	Surface Mount	1210
LRHQ20-561K-RC 560uH +/-10% Lo-Res Hi-Q Chip Allied Components International	3,585	0.98	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR)	LRHQ20	Active	Wirewound	Ferrite	560 µH	±10%	40 mA	-	Unshielded	28Ohm Max	50 @ 796kHz	5MHz	-	-25°C ~ 85°C	1 MHz	-	Surface Mount	1210

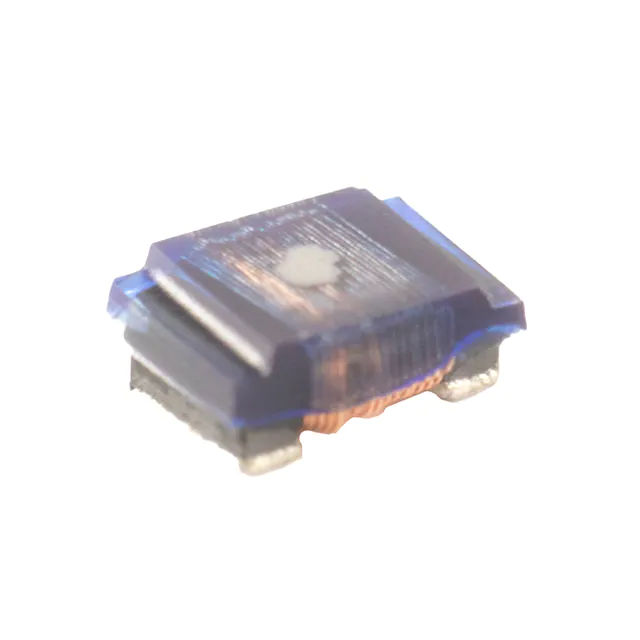

LT05-270K-RC 27uH +/-10% Low Profile Inductor Allied Components International	2,548	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	LT05	Active	-	Ferrite	27 µH	±10%	-	230mA	Unshielded	10Ohm Max	10 @ 2.52MHz	21MHz	-	-25°C ~ 85°C	2.52 MHz	-	Surface Mount	-
LT05-390K-RC 39uH +/-10% Low Profile Inductor Allied Components International	3,985	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	LT05	Active	-	Ferrite	39 µH	±10%	-	190mA	Unshielded	16Ohm Max	10 @ 2.52MHz	15MHz	-	-25°C ~ 85°C	2.52 MHz	-	Surface Mount	-

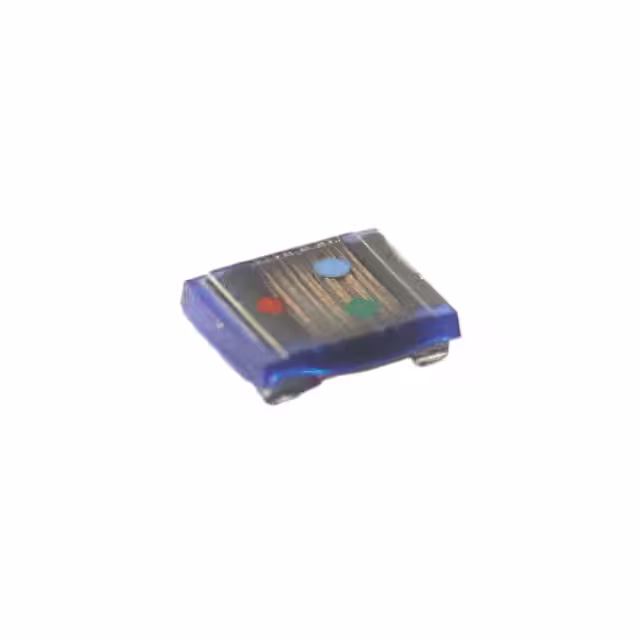

LT20-220K-RC 22uH +/-10% L.P. Ferrite Chip Allied Components International	2,279	0.98	RFQ	Datasheet	1210 (3225 Metric)	Tape & Reel (TR)	LT20	Active	Wirewound	Ferrite	22 µH	±10%	-	350mA	Unshielded	5.20Ohm Max	16 @ 2.52MHz	50MHz	-	-25°C ~ 85°C	2.52 MHz	-	Surface Mount	1210
MLC10-4R7K-RC 4.7UH 10% 0704 MULTILAYER CHIP Allied Components International	3,134	0.98	RFQ	Datasheet	0805 (2012 Metric)	Tape & Reel (TR)	-	Active	Multilayer	-	4.7 µH	±10%	30 mA	-	Shielded	1Ohm Max	45 @ 10MHz	35MHz	-	-25°C ~ 85°C	10 MHz	-	Surface Mount	0805
HFC03-5N6S-RC 5.6NH 0.3NH 0402 HI-FREQ CHIP Allied Components International	3,387	0.98	RFQ	Datasheet	0402 (1005 Metric)	Tape & Reel (TR)	-	Active	-	-	5.6 nH	±0.3nH	400 mA	-	Unshielded	200mOhm Max	8 @ 100kHz	5.1GHz	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	0402
LT05-150K-RC 15uH +/-10% Low Profile Inductor Allied Components International	3,534	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	LT05	Active	-	Ferrite	15 µH	±10%	-	380mA	Unshielded	4.8Ohm Max	10 @ 2.52MHz	30MHz	-	-25°C ~ 85°C	2.52 MHz	-	Surface Mount	-
PCSN5D33-100M-RC 10UH 20% SHIELDED PWR INDUCTOR Allied Components International	3,974	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	-	-	10 µH	±20%	2.5 A	-	Shielded	100mOhm Max	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-
PCSDR74-821M-RC 820uH +/-20% Pwr Chip Inductor Allied Components International	3,416	0.98	RFQ	Datasheet	Nonstandard	Tape & Reel (TR)	-	Active	-	-	820 µH	±20%	311 mA	349mA	Shielded	3.516Ohm Max	-	-	-	-55°C ~ 125°C	100 kHz	-	Surface Mount	-
