| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
PCHC1265HP-R36M0.36H 20% POWER CHOKE HIGH CURRE |
3,735 | 2.25 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 360 nH | ±20% | 45 A | 66A | Shielded | 0.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC1265HP-2R7M2.7H 20% POWER CHOKE HIGH CURREN |
2,448 | 2.25 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 2.7 µH | ±20% | 20 A | 32A | Shielded | 5.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC1265HP-1R0M1.0H 20% POWER CHOKE HIGH CURREN |
2,683 | 2.25 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 1 µH | ±20% | 30 A | 48A | Shielded | 2.3mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC1265HP-6R8M6.8H 20% POWER CHOKE HIGH CURREN |
2,422 | 2.25 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 6.8 µH | ±20% | 11.5 A | 18A | Shielded | 11.5mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC1265HP-5R6M5.6H 20% POWER CHOKE HIGH CURREN |
2,303 | 2.25 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 5.6 µH | ±20% | 12.5 A | 23A | Shielded | 10mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
PCHC1265HP-4R7M4.7H 20% POWER CHOKE HIGH CURREN |
3,894 | 2.25 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | - | Active | - | - | 4.7 µH | ±20% | 13.5 A | 28A | Shielded | 8.4mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
VTC-4486470UH,VERTIVAL TOROIDAL CHOKE |
2,392 | 2.25 |
RFQ |
Datasheet |
Vertical, 2 PC Pin | Tray | - | Active | Toroidal | - | 470 µH | ±20% | 1 A | - | Unshielded | 225mOhm Max | - | - | - | -40°C ~ 105°C | 10 kHz | - | Through Hole | Radial |
|
HTC100-151M-RC150uH +/-20% H.M. Toroidal Choke |
3,841 | 2.50 |
RFQ |
Datasheet |
Horizontal, 2 PC Pin | Tape & Reel (TR) | TC100 | Active | Toroidal | - | 150 µH | ±20% | 1.5 A | 1.4A | Unshielded | 420mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
AHC40-3-500K-RC50UH 10% AXIAL HIGH CURRENT |
3,368 | 2.50 |
RFQ |
Datasheet |
Axial | Tray | - | Active | - | - | 50 µH | ±10% | 3 A | - | Unshielded | 65mOhm Max | - | 4MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial |
|

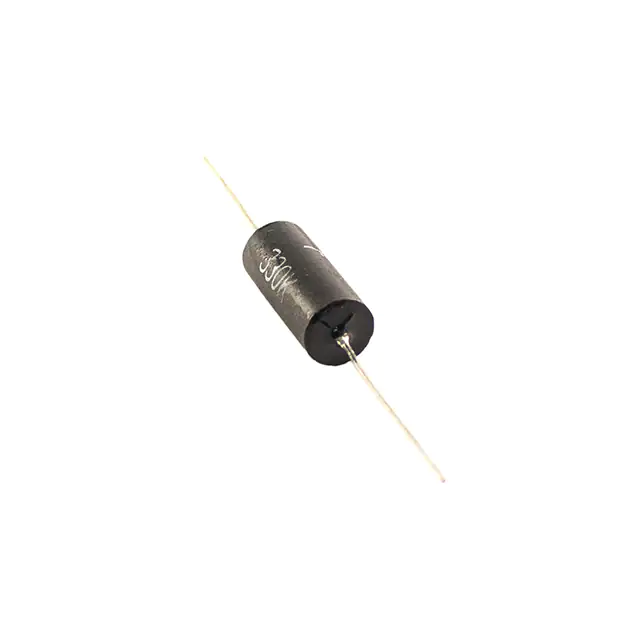

ASPC70-330K-RC33UH 10% PWR SHIELDED INDUCTOR |
2,726 | 2.50 |
RFQ |
Datasheet |
Axial | Bag | - | Active | - | - | 33 µH | ±10% | 707 mA | - | Shielded | 36mOhm | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | Axial |
|
ASPC60-102K-RC1000UH 10% PWR SHIELDED INDUCTOR |
3,847 | 2.50 |
RFQ |
Datasheet |
Axial | Bag | - | Active | - | - | 1 mH | ±10% | 610 mA | 30mA | Shielded | 800Ohm Max | 80 @ 790kHz | 3.5MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial |
|
|
VTC100-102K-RC1000UH 10% Vrt Mnt Toroidal Ch |
3,428 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 1 mH | ±20% | 500 mA | 500mA | Unshielded | 1.6Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|

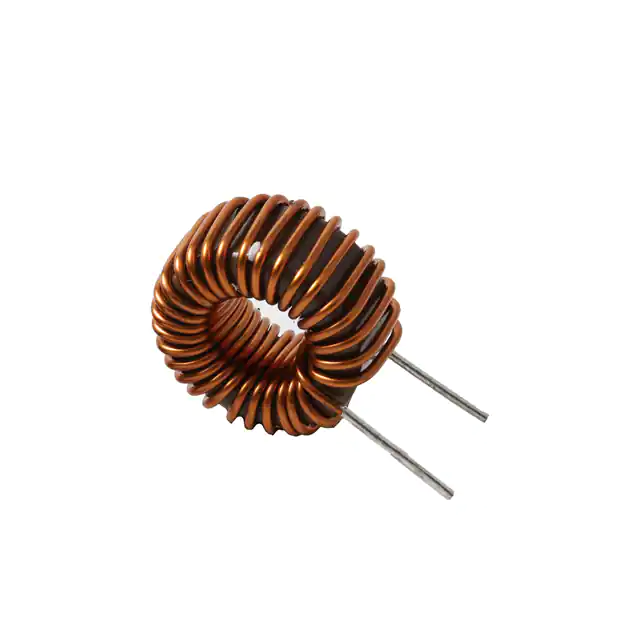

VTC210-151L-RC150H 15% VRT MOUNT TOROIDAL CHOK |
3,722 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | - | Active | Toroidal | - | 150 µH | ±15% | 3.4 A | - | Unshielded | 62mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
AHC40-3-101K-RC100UH 10% AXIAL HIGH CURRENT |
2,396 | 2.50 |
RFQ |
Datasheet |
Axial | Tray | - | Active | - | - | 100 µH | ±10% | 3 A | - | Unshielded | 75mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial |
|
|
HTC100-220M-RC22UH 20% Hrz Mnt Toroidal Choke |
2,816 | 2.50 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Box | TC100 | Active | Toroidal | - | 22 µH | ±20% | 3.5 A | 3.9A | Unshielded | 29mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
HTC100-181M-RC180UH 20% Hrz Mnt Toroidal Chok |
2,893 | 2.50 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Box | TC100 | Active | Toroidal | - | 180 µH | ±20% | 1.5 A | 1.3A | Unshielded | 490mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
HTC100-221M-RC220UH 20% Hrz Mnt Toroidal Chok |
2,015 | 2.50 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Box | TC100 | Active | Toroidal | - | 220 µH | ±20% | 1 A | 1A | Unshielded | 590mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
HTC100-331M-RC330UH 20% Hrz Mnt Toroidal Chok |
3,914 | 2.50 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Box | TC100 | Active | Toroidal | - | 330 µH | ±20% | 700 mA | 600mA | Unshielded | 660mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-680K-RC68UH 10% Vrt Mnt Toroidal Choke |
3,834 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 68 µH | ±20% | 2 A | 1.9A | Unshielded | 125mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
ASPC60-501K-RC500UH 10% PWR SHIELDED INDUCTOR |
2,183 | 2.50 |
RFQ |
Datasheet |
Axial | Bag | - | Active | - | - | 500 µH | ±10% | 880 mA | 44mA | Shielded | 390Ohm Max | 25 @ 790kHz | 6MHz | - | -55°C ~ 125°C | 790 kHz | - | Through Hole | Axial |
