| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
AHC40-5-500K-RC50UH 10% 5 AMP AXIAL HI CURRENT |
3,423 | 2.50 |
RFQ |
Datasheet |
Axial | Tray | - | Active | - | - | 50 µH | ±10% | 5 A | - | Unshielded | 50mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial |
|
|
AHC40-2-101K-RC100UH 10% 2AMP AXIAL HI CURRENT |
3,213 | 2.50 |
RFQ |
Datasheet |
Axial | Tray | - | Active | - | - | 100 µH | ±10% | 2 A | - | Unshielded | 150mOhm Max | - | 2MHz | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Axial |
|
VTC100-2R2M-RC2.2UH 20% Vrt Mnt Toroidal Chok |
2,308 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 2.2 µH | ±20% | 5 A | 8A | Unshielded | 7mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
HTC100-271M-RC270UH 20% Hrz Mnt Toroidal Chok |
3,901 | 2.50 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Box | TC100 | Active | Toroidal | - | 270 µH | ±20% | 1 A | 1A | Unshielded | 640mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-4R7M-RC4.7UH 20% Vrt Mnt Toroidal Chok |
2,582 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 4.7 µH | ±20% | 5 A | 6.5A | Unshielded | 10mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-331M-RC330UH 10% Vrt Mnt Toroidal Chok |
2,905 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 330 µH | ±20% | 700 mA | 600mA | Unshielded | 660mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-271M-RC270UH 20% Vrt Mnt Toroidal Chok |
3,163 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 270 µH | ±20% | 1 A | 1A | Unshielded | 640mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-181M-RC180UH 20% Vrt Mnt Toroidal Chok |
3,099 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 180 µH | ±20% | 1.5 A | 1.3A | Unshielded | 490mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-561K-RC560UH 10% Vrt Mnt Toroidal Chok |
2,008 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 560 µH | ±20% | 700 mA | 600mA | Unshielded | 990mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-471M-RC470UH 20% Vrt Mnt Toroidal Chok |
2,744 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 470 µH | ±20% | 700 mA | 600mA | Unshielded | 880mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-391M-RC390UH 20% Vrt Mnt Toroidal Chok |
3,695 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 390 µH | ±20% | 700 mA | 600mA | Unshielded | 740mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
|
VTC100-221M-RC220UH 20% Vrt Mnt Toroidal Chok |
2,244 | 2.50 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | TC100 | Active | Toroidal | - | 220 µH | ±20% | 1 A | 1A | Unshielded | 590mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | Radial |
|
APC30-221K-RC220UH 10% AXIAL POWER CHOKE |
3,820 | 2.75 |
RFQ |
Datasheet |
Axial | Bag | APC30 | Active | - | - | 220 µH | ±10% | 1.6 A | 1.89A | - | 162mOhm Max | - | - | - | -55°C ~ 125°C | 8 kHz | - | Through Hole | Axial |
|
|
APC30-330K-RC33UH 10% AXIAL POWER CHOKE |
2,094 | 2.75 |
RFQ |
Datasheet |
Axial | Bag | APC30 | Active | - | - | 33 µH | ±10% | 4 A | 4.82A | - | 32mOhm Max | - | - | - | -55°C ~ 125°C | 15 kHz | - | Through Hole | Axial |
|
|
APC30-560K-RC56UH 10% AXIAL POWER CHOKE |
2,946 | 2.75 |
RFQ |
Datasheet |
Axial | Bag | APC30 | Active | - | - | 56 µH | ±10% | 3.2 A | 3.66A | - | 37mOhm Max | - | - | - | -55°C ~ 125°C | 20 kHz | - | Through Hole | Axial |
|
AS40-104K-RC100MH 10% AXIAL SHIELDED IND. |
2,448 | 2.75 |
RFQ |
Datasheet |
Axial | Bag | AS40 | Active | - | - | 100 mH | ±10% | 11 mA | - | Shielded | 678Ohm Max | 18 @ 7.9kHz | 110kHz | - | -55°C ~ 125°C | 7.9 kHz | - | Through Hole | Axial |
|

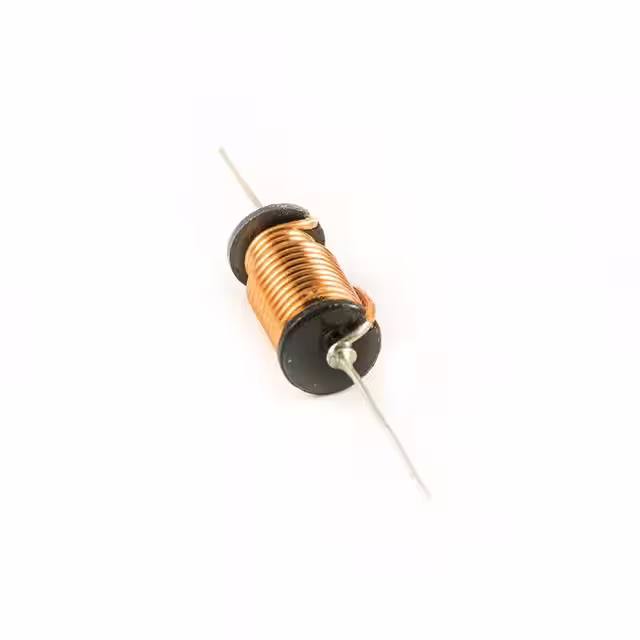

APC45-220K-RC-TR22UH 10% AXIAL LEADED PWR CHOKE |
3,308 | 2.75 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | APC45 | Active | Wirewound | - | 22 µH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 85°C | 27 kHz | - | Through Hole | Axial |
|
|
APC45-270K-RC-TR27UH 10% AXIAL LEADED PWR CHOKE |
2,272 | 2.75 |
RFQ |
Datasheet |
Axial | Tape & Reel (TR) | APC45 | Active | Wirewound | - | 27 µH | ±10% | - | - | Unshielded | - | - | - | - | -40°C ~ 85°C | 28 kHz | - | Through Hole | Axial |
|
|
APC30-223K-RC22000UH 10% AXIAL POWER CHOKE |
2,551 | 2.75 |
RFQ |
Datasheet |
Axial | Bag | APC30 | Active | - | - | 22 mH | ±10% | 130 mA | 190mA | - | 16.8Ohm Max | - | - | - | -55°C ~ 125°C | 10 kHz | - | Through Hole | Axial |
|
|
APC30-683K-RC68000UH 10% AXIAL POWER CHOKE |
2,303 | 2.75 |
RFQ |
Datasheet |
Axial | Bag | APC30 | Active | - | - | 68 mH | ±10% | 83 mA | 108mA | - | 46.9Ohm Max | - | - | - | -55°C ~ 125°C | 22 kHz | - | Through Hole | Axial |
