| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
LQH44PN6R8MGRLFIXED IND 6.8UH 840MA 204MOHM SM |
2,551 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LQH44 | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 840 mA | 850mA | Shielded | 204mOhm Max | - | 15MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1515 (4040 Metric) |
|
|
LQH44PNR68NGRLFIXED IND 680NH 1.5A 51.6MOHM SM |
3,776 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | LQH44 | Obsolete | Drum Core, Wirewound | Ferrite | 680 nH | ±30% | 1.5 A | 2.4A | Shielded | 51.6mOhm Max | - | 54MHz | - | -40°C ~ 105°C | 1 MHz | - | Surface Mount | 1515 (4040 Metric) |
|
LQM31PN1R0MC0LFIXED IND 1UH 1.1A 175 MOHM SMD |
3,658 | 0.00 |
RFQ |
Datasheet |
1206 (3216 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQM31 | Obsolete | Multilayer | Ferrite | 1 µH | ±20% | 1.1 A | - | Shielded | 175mOhm Max | - | 70MHz | - | -55°C ~ 125°C | 1 MHz | - | Surface Mount | 1206 (3216 Metric) |
|
1273AS-H-1R5N=P3FIXED IND 1.5UH 7.3A 10 MOHM SMD |
2,028 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | DEM8030C | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 7.3 A | 7.5A | Shielded | 10mOhm Max | - | - | - | - | 100 kHz | - | Surface Mount | - |
|
LQH3NPN100MJ0LFIXED IND 10UH 710MA 360MOHM SMD |
3,009 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 710 mA | 560mA | Shielded | 360mOhm Max | - | 35MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN150MM0LFIXED IND 15UH 730MA 432MOHM SMD |
2,480 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±20% | 730 mA | 520mA | Shielded | 432mOhm Max | - | 30MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN1R0NM0LFIXED IND 1UH 2.05A 52.8MOHM SMD |
3,374 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 2.05 A | 1.4A | Shielded | 52.8mOhm Max | - | 130MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN6R8MJ0LFIXED IND 6.8UH 850MA 252MOHM SM |
3,387 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 6.8 µH | ±20% | 850 mA | 700mA | Shielded | 252mOhm Max | - | 45MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
|
LQH3NPN4R7MJ0LFIXED IND 4.7UH 1.12A 156MOHM SM |
3,911 | 0.00 |
RFQ |
Datasheet |
1212 (3030 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH3 | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 1.12 A | 780mA | Shielded | 156mOhm Max | - | 65MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1212 (3030 Metric) |
|
LQH2HPN4R7MG0LFIXED IND 4.7UH 700MA 432MOHM SM |
3,395 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH2 | Obsolete | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 700 mA | 1A | Shielded | 432mOhm Max | - | 60MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
LQH2HPN220MG0LFIXED IND 22UH 340MA 1.92OHM SMD |
3,240 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH2 | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 340 mA | 490mA | Shielded | 1.92Ohm Max | - | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
LQH2HPN101MG0LFIXED IND 100UH 130MA 12 OHM SMD |
2,017 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH2 | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 130 mA | 210mA | Shielded | 12Ohm Max | - | 5MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|
|
LQH2HPN100MG0LFIXED IND 10UH 490MA 876MOHM SMD |
2,366 | 0.00 |
RFQ |
Datasheet |
1008 (2520 Metric) | Tape & Reel (TR),Cut Tape (CT) | LQH2 | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 490 mA | 700mA | Shielded | 876mOhm Max | - | 10MHz | - | -40°C ~ 85°C | 1 MHz | - | Surface Mount | 1008 (2520 Metric) |
|

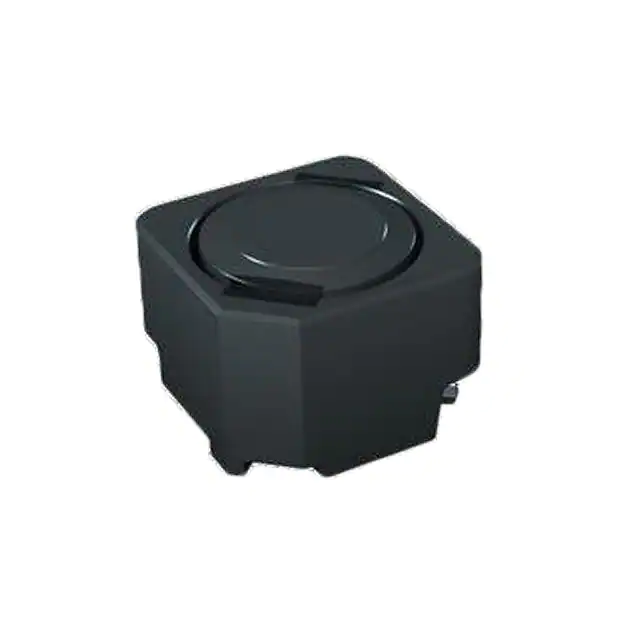

MBH6045C-100MA=P3FIXED IND 10UH 2A 75.6 MOHM SMD |
3,892 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MBH6045C | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2 A | 3A | Shielded | 75.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - |
|
|
MBH6045C-100MB=P3FIXED IND 10UH 2.5A 45.6MOHM SMD |
3,950 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MBH6045C | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±20% | 2.5 A | 1.7A | Shielded | 45.6mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - |
|
|
MBH6045C-101MB=P3FIXED IND 100UH 830MA 408MOHM SM |
2,074 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MBH6045C | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±20% | 830 mA | 530mA | Shielded | 408mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - |
|
|
MBH6045C-1R0ND=P3FIXED IND 1UH 4.4A 18.2MOHM SMD |
2,521 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MBH6045C | Obsolete | Drum Core, Wirewound | Ferrite | 1 µH | ±30% | 4.4 A | 5.8A | Shielded | 18.2mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - |
|
|
MBH6045C-1R5NA=P3FIXED IND 1.5UH 4.3A 22.1MOHM SM |
2,382 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MBH6045C | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.3 A | 8.4A | Shielded | 22.1mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - |
|
|
MBH6045C-1R5NB=P3FIXED IND 1.5UH 4.4A 19.5MOHM SM |
2,348 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MBH6045C | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 4.4 A | 4.7A | Shielded | 19.5mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - |
|
|
MBH6045C-220MA=P3FIXED IND 22UH 1.2A 166.8MOHM SM |
2,591 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | MBH6045C | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±20% | 1.2 A | 2A | Shielded | 166.8mOhm Max | - | - | AEC-Q200 | - | 100 kHz | - | Surface Mount | - |
