Mfr. Part #	Availability	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Material-Core	Inductance	Tolerance	CurrentRating(Amps)	Current-Saturation(Isat)	Shielding	DCResistance(DCR)	Q@Freq	Frequency-SelfResonant	Ratings	OperatingTemperature	InductanceFrequency-Test	Features	MountingType	Size/Dimension
LQH3NPN3R3MJ0L FIXED IND 3.3UH 1.27A 126MOHM SM Murata Electronics	3,513	RFQ	Datasheet	1212 (3030 Metric)	Tape & Reel (TR)	LQH3	Obsolete	Drum Core, Wirewound	Ferrite	3.3 µH	±20%	1.27 A	950mA	Shielded	126mOhm Max	-	70MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1212 (3030 Metric)
LQH2HPN2R2MM0L FIXED IND 2.2UH 1.25A 176MOHM SM Murata Electronics	2,083	RFQ	Datasheet	1008 (2520 Metric)	Tape & Reel (TR)	LQH2	Obsolete	Wirewound	-	2.2 µH	±20%	1.25 A	-	Shielded	176mOhm Max	-	10MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1008 (2520 Metric)
LQH2HPN4R7NM0L FIXED IND 4.7UH 800MA SMD Murata Electronics	3,876	RFQ	Datasheet	1008 (2520 Metric)	Tape & Reel (TR)	LQH2	Obsolete	Wirewound	-	4.7 µH	±30%	800 mA	-	Shielded	-	-	10MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1008 (2520 Metric)

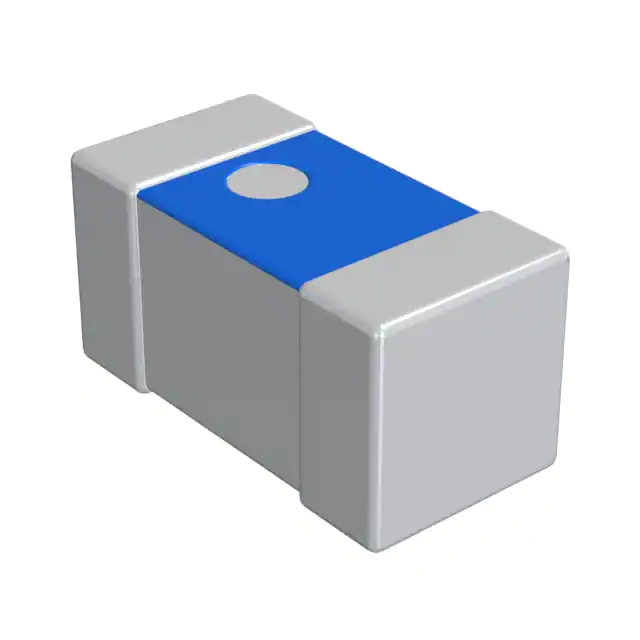

LQP02TN0N4S02D FIXED IND 0.4NH 320MA 500MOHM SM Murata Electronics	3,130	RFQ	Datasheet	01005 (0402 Metric)	Tape & Reel (TR)	LQP02	Obsolete	Thick Film	-	0.4 nH	±0.3nH	320 mA	-	Unshielded	500mOhm Max	8 @ 500MHz	6GHz	-	-55°C ~ 125°C	500 MHz	-	Surface Mount	01005 (0402 Metric)
LQH3NPN100MG0L FIXED IND 10UH 630MA 684MOHM SMD Murata Electronics	2,376	RFQ	Datasheet	1212 (3030 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQH3	Obsolete	Drum Core, Wirewound	Ferrite	10 µH	±20%	630 mA	500mA	Shielded	684mOhm Max	-	45MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1212 (3030 Metric)
LQH3NPN101MM0L FIXED IND 100UH 240MA 4.2OHM SMD Murata Electronics	3,205	RFQ	Datasheet	1212 (3030 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQH3	Obsolete	Drum Core, Wirewound	Ferrite	100 µH	±20%	240 mA	200mA	Shielded	4.2Ohm Max	-	12MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1212 (3030 Metric)
LQH3NPN1R0MM0L FIXED IND 1UH 2.05A 52.8MOHM SMD Murata Electronics	2,900	RFQ	Datasheet	1212 (3030 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQH3	Obsolete	Drum Core, Wirewound	Ferrite	1 µH	±20%	2.05 A	1.4A	Shielded	52.8mOhm Max	-	130MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1212 (3030 Metric)
LQH3NPN220MG0L FIXED IND 22UH 430MA 1.32OHM SMD Murata Electronics	2,883	RFQ	Datasheet	1212 (3030 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQH3	Obsolete	Drum Core, Wirewound	Ferrite	22 µH	±20%	430 mA	340mA	Shielded	1.32Ohm Max	-	25MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1212 (3030 Metric)
LQH3NPN221MG0L FIXED IND 220UH 130MA 16.8OHM SM Murata Electronics	3,715	RFQ	Datasheet	1212 (3030 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQH3	Obsolete	Drum Core, Wirewound	Ferrite	220 µH	±20%	130 mA	100mA	Shielded	16.8Ohm Max	-	8.5MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1212 (3030 Metric)
LQH3NPN330MM0L FIXED IND 33UH 500MA 1.02OHM SMD Murata Electronics	3,926	RFQ	Datasheet	1212 (3030 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQH3	Obsolete	Drum Core, Wirewound	Ferrite	33 µH	±20%	500 mA	370mA	Shielded	1.02Ohm Max	-	22MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1212 (3030 Metric)
LQH3NPN3R3MM0L FIXED IND 3.3UH 1.45A 111MOHM SM Murata Electronics	2,486	RFQ	Datasheet	1212 (3030 Metric)	Tape & Reel (TR),Cut Tape (CT)	LQH3	Obsolete	Drum Core, Wirewound	Ferrite	3.3 µH	±20%	1.45 A	1A	Shielded	111mOhm Max	-	75MHz	-	-40°C ~ 85°C	1 MHz	-	Surface Mount	1212 (3030 Metric)
LQH44PN100MGRL FIXED IND 10UH 660MA 324MOHM SMD Murata Electronics	2,419	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	10 µH	±20%	660 mA	800mA	Shielded	324mOhm Max	-	13MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
LQH44PN150MGRL FIXED IND 15UH 540MA 504MOHM SMD Murata Electronics	3,028	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	15 µH	±20%	540 mA	640mA	Shielded	504mOhm Max	-	10MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
LQH44PN1R0NGRL FIXED IND 1UH 1.3A 74.4 MOHM SMD Murata Electronics	3,881	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	1 µH	±30%	1.3 A	1.7A	Shielded	74.4mOhm Max	-	50MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
LQH44PN220MGRL FIXED IND 22UH 450MA 684MOHM SMD Murata Electronics	2,324	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	22 µH	±20%	450 mA	500mA	Shielded	684mOhm Max	-	8MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
LQH44PN2R2NGRL FIXED IND 2.2UH 1.2A 88.8MOHM SM Murata Electronics	3,974	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	2.2 µH	±30%	1.2 A	1.6A	Shielded	88.8mOhm Max	-	45MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
LQH44PN330MGRL FIXED IND 33UH 280MA 1.68OHM SMD Murata Electronics	2,897	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	33 µH	±20%	280 mA	400mA	Shielded	1.68Ohm Max	-	6MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
LQH44PN3R3NGRL FIXED IND 3.3UH 1A 132 MOHM SMD Murata Electronics	2,566	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	3.3 µH	±30%	1 A	1.5A	Shielded	132mOhm Max	-	25MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
LQH44PN470MGRL FIXED IND 47UH 240MA 2.04OHM SMD Murata Electronics	2,138	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	47 µH	±20%	240 mA	360mA	Shielded	2.04Ohm Max	-	6MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
LQH44PN4R7MGRL FIXED IND 4.7UH 960MA 156MOHM SM Murata Electronics	2,993	RFQ	Datasheet	Nonstandard	Tape & Reel (TR),Cut Tape (CT)	LQH44	Obsolete	Drum Core, Wirewound	Ferrite	4.7 µH	±20%	960 mA	1.2A	Shielded	156mOhm Max	-	17MHz	-	-40°C ~ 105°C	1 MHz	-	Surface Mount	1515 (4040 Metric)
