| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
8230-52-RCFIXED IND 22UH 190MA 3.3 OHM TH |
3,705 | 2.24 |
RFQ |
Datasheet |
Axial | Bulk | 8230 | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 190 mA | - | Unshielded | 3.3Ohm Max | 50 @ 2.5MHz | 25MHz | - | -55°C ~ 105°C | 2.5 MHz | - | Through Hole | - |
|

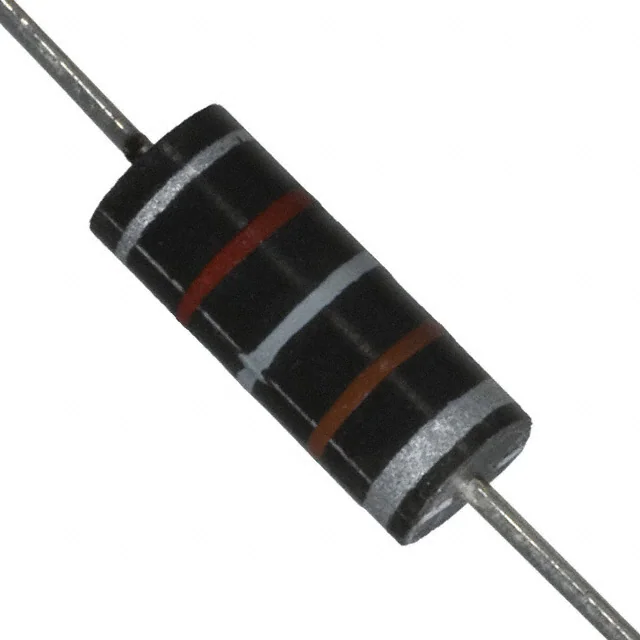

9250A-185-RCFIXED IND 1.8MH 50MA 29.9 OHM TH |
2,291 | 2.24 |
RFQ |
Datasheet |
Axial | Bulk | 9250A | Active | Molded | Ferrite | 1.8 mH | ±10% | 50 mA | 30mA | Shielded | 29.9Ohm Max | 45 @ 250kHz | 1MHz | - | -55°C ~ 125°C | 250 kHz | - | Through Hole | - |
|
SRP1510CA-330MIND,16.5X15.5X9.7MM,33UH20%,13A |
3,678 | 0.00 |
RFQ |
Datasheet |
Surface Mount | Tape & Reel (TR),Cut Tape (CT) | SRP1510CA | Active | - | Metal | 33 µH | ±20% | 13 A | 18.7A | Shielded | 20mOhm Max | 30 @ 100kHz | 4MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Nonstandard | - |
|
8230-92-RCFIXED IND 1MH 38MA 72 OHM TH |
3,949 | 2.77 |
RFQ |
Datasheet |
Axial | Bulk | 8230 | Active | Drum Core, Wirewound | Ferrite | 1 mH | ±10% | 38 mA | - | Unshielded | 72Ohm Max | 30 @ 790kHz | 3.4MHz | - | -55°C ~ 105°C | 790 kHz | - | Through Hole | - |
|
5900-330-RCFIXED IND 33UH 3.4A 37 MOHM TH |
3,820 | 2.80 |
RFQ |
Datasheet |
Axial | Tray | 5900 | Active | Drum Core, Wirewound | Ferrite | 33 µH | ±10% | 3.4 A | 4.6A | Unshielded | 37mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
5900-181-RCFIXED IND 180UH 1.7A 140 MOHM TH |
3,787 | 2.80 |
RFQ |
Datasheet |
Axial | Tray | 5900 | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 1.7 A | 2A | Unshielded | 140mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
5900-392-RCFIXED IND 3.9MH 370MA 3.1 OHM TH |
3,474 | 2.80 |
RFQ |
Datasheet |
Axial | Tray | 5900 | Active | Drum Core, Wirewound | Ferrite | 3.9 mH | ±10% | 370 mA | 420mA | Unshielded | 3.1Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
2103-V-RCFIXED IND 15UH 7.7A 12 MOHM TH |
2,288 | 3.20 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | 2100 | Active | Toroidal | - | 15 µH | ±15% | 7.7 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
2103-H-RCFIXED IND 15UH 7.7A 12 MOHM TH |
3,164 | 3.20 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2100 | Active | Toroidal | - | 15 µH | ±15% | 7.7 A | - | Unshielded | 12mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
2110-V-RCFIXED IND 56UH 3.4A 60 MOHM TH |
2,286 | 3.20 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | 2100 | Active | Toroidal | - | 56 µH | ±15% | 3.4 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
SRP1513CA-4R7MIND,16.5X15.5X12.7MM,4.7UH20%,31 |
3,937 | 3.39 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | SRP1513CA | Active | - | Metal | 4.7 µH | ±20% | 31 A | 44A | Shielded | 3.3mOhm Max | 40 @ 100kHz | 13MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
PM2120-150K-RCFIXED IND 15UH 12.2A 9 MOHM SMD |
2,827 | 3.67 |
RFQ |
Datasheet |
Nonstandard | Bulk | PM2120 | Active | Toroidal | Iron | 15 µH | ±10% | 12.2 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Surface Mount | - |
|
|
2208-H-RCFIXED IND 39UH 7.1A 22 MOHM TH |
2,325 | 4.00 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2200 | Active | Toroidal | Iron Powder | 39 µH | ±15% | 7.1 A | - | Shielded | 22mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
2100LL-1R0-V-RCFIXED IND 1UH 21.4A 2 MOHM TH |
3,144 | 4.04 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | 2100LL | Active | Toroidal | Sendust | 1 µH | ±20% | 21.4 A | - | Shielded | 2mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|

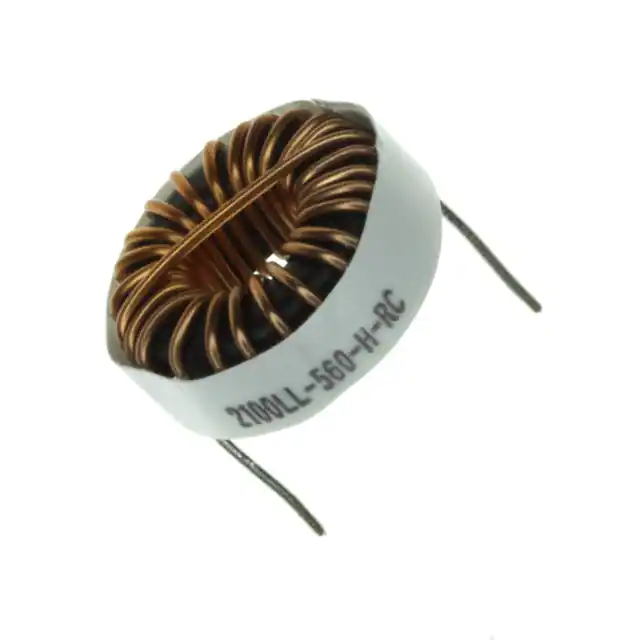

2100LL-560-H-RCFIXED IND 56UH 5A 26 MOHM TH |
2,744 | 4.04 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | 2100LL | Active | Toroidal | Sendust | 56 µH | ±15% | 5 A | - | Shielded | 26mOhm Max | - | - | - | -55°C ~ 125°C | 1 kHz | - | Through Hole | - |
|
|
2200HT-471-H-RCFIXED IND 470UH 2.8A 210 MOHM TH |
2,320 | 4.20 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Tray | 2200HT | Active | Toroidal | Iron Powder | 470 µH | ±15% | 2.8 A | - | Shielded | 210mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2200HT-4R7-V-RCFIXED IND 4.7UH 16.9A 6 MOHM TH |
2,437 | 4.20 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | 2200HT | Active | Toroidal | Iron Powder | 4.7 µH | ±15% | 16.9 A | - | Shielded | 6mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2200HT-560-V-RCFIXED IND 56UH 6.1A 46 MOHM TH |
3,226 | 4.20 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | 2200HT | Active | Toroidal | Iron Powder | 56 µH | ±15% | 6.1 A | - | Shielded | 46mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2100HT-121-V-RCFIXED IND 120UH 3.5A 94 MOHM TH |
3,105 | 4.42 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | 2100HT | Active | Toroidal | - | 120 µH | ±15% | 3.5 A | - | Shielded | 94mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2100HT-151-V-RCFIXED IND 150UH 3.3A 110 MOHM TH |
2,407 | 4.42 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | 2100HT | Active | Toroidal | - | 150 µH | ±15% | 3.3 A | - | Shielded | 110mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
