| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
2300HT-6R8-H-RCFIXED IND 6.8UH 24.5A 5 MOHM TH |
2,029 | 4.03 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Tray | 2300HT | Active | Toroidal | Iron Powder | 6.8 µH | ±15% | 24.5 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2300HT-820-H-RCFIXED IND 82UH 8.8A 37 MOHM TH |
3,619 | 4.03 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Tray | 2300HT | Active | Toroidal | Iron Powder | 82 µH | ±15% | 8.8 A | - | Shielded | 37mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2300HT-821-H-RCFIXED IND 820UH 3.1A 300 MOHM TH |
2,008 | 4.03 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Tray | 2300HT | Active | Toroidal | Iron Powder | 820 µH | ±15% | 3.1 A | - | Shielded | 300mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
2300HT-821-V-RCFIXED IND 820UH 3.1A 300 MOHM TH |
3,186 | 4.03 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | 2300HT | Active | Toroidal | Iron Powder | 820 µH | ±15% | 3.1 A | - | Shielded | 300mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2300HT-8R2-H-RCFIXED IND 8.2UH 24.3A 5 MOHM TH |
3,903 | 4.03 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Tray | 2300HT | Active | Toroidal | Iron Powder | 8.2 µH | ±15% | 24.3 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2300HT-8R2-V-RCFIXED IND 8.2UH 24.3A 5 MOHM TH |
3,959 | 4.03 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | 2300HT | Active | Toroidal | Iron Powder | 8.2 µH | ±15% | 24.3 A | - | Shielded | 5mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
|
2300HT-750-V-RCFIXED IND 75UH 9A 36 MOHM TH |
2,086 | 4.03 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | 2300HT | Active | Toroidal | Iron Powder | 75 µH | ±15% | 9 A | - | Shielded | 36mOhm Max | - | - | - | -55°C ~ 200°C | 1 kHz | - | Through Hole | - |
|
5709-RCFIXED IND 800UH 1.75A 640MOHM TH |
2,007 | 4.11 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | 5700 | Active | Toroidal | Iron Powder | 800 µH | ±15% | 1.75 A | - | Unshielded | 640mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
5710-RCFIXED IND 1MH 1.5A 980 MOHM TH |
2,944 | 4.11 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | 5700 | Active | Toroidal | Iron Powder | 1 mH | ±15% | 1.5 A | - | Unshielded | 980mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
5714-RCFIXED IND 1.25MH 1.75A 850MOHM |
2,699 | 4.11 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Tray | 5700 | Active | Toroidal | Iron Powder | 1.25 mH | ±15% | 1.75 A | - | Unshielded | 850mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
1120-3R9M-RCFIXED IND 3.9UH 11.4A 5 MOHM TH |
2,272 | 5.29 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 3.9 µH | ±20% | 11.4 A | - | Unshielded | 5mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|

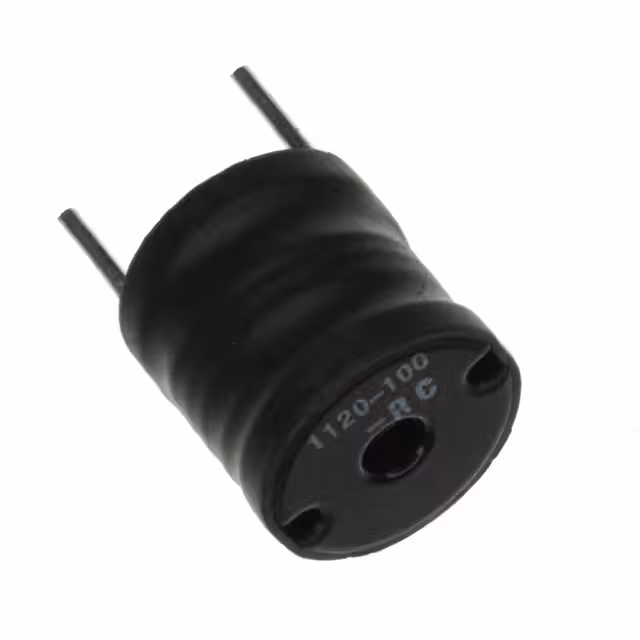

1120-100K-RCFIXED IND 10UH 11.4A 9 MOHM TH |
3,422 | 5.95 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 10 µH | ±10% | 11.4 A | - | Unshielded | 9mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
1120-820K-RCFIXED IND 82UH 4.8A 60 MOHM TH |
2,153 | 5.95 |
RFQ |
Datasheet |
Radial, Vertical Cylinder | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 82 µH | ±10% | 4.8 A | - | Unshielded | 60mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
1120-121K-RCFIXED IND 120UH 4A 90 MOHM TH |
3,579 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 120 µH | ±10% | 4 A | - | Unshielded | 90mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
1120-122K-RCFIXED IND 1.2MH 800MA 1.14OHM TH |
3,433 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 1.2 mH | ±10% | 800 mA | - | Unshielded | 1.14Ohm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
1120-180K-RCFIXED IND 18UH 7.2A 18 MOHM TH |
2,430 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 18 µH | ±10% | 7.2 A | - | Unshielded | 18mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
1120-181K-RCFIXED IND 180UH 4A 110 MOHM TH |
3,848 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 180 µH | ±10% | 4 A | - | Unshielded | 110mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
1120-1R0M-RCFIXED IND 1UH 11.4A 3 MOHM TH |
3,953 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 1 µH | ±20% | 11.4 A | - | Unshielded | 3mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
1120-220K-RCFIXED IND 22UH 7.2A 19 MOHM TH |
2,219 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 22 µH | ±10% | 7.2 A | - | Unshielded | 19mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
|
|
1120-270K-RCFIXED IND 27UH 5.5A 26 MOHM TH |
3,237 | 5.95 |
RFQ |
Datasheet |
Radial | Bulk | 1120 | Active | Drum Core, Wirewound | Ferrite | 27 µH | ±10% | 5.5 A | - | Unshielded | 26mOhm Max | - | - | - | -55°C ~ 105°C | 1 kHz | - | Through Hole | - |
