| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
MP2A-1R0-RFIXED IND 1UH 2.11A 67 MOHM SMD |
2,027 | 2.25 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 1 µH | ±20% | 2.11 A | 3.63A | Unshielded | 67mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
MP2A-R68-RFIXED IND 680NH 3.31A 27MOHM SMD |
3,773 | 2.25 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 680 nH | ±20% | 3.31 A | 4.83A | Unshielded | 27mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CTX10-1-52-RFIXED IND 10UH 2.4A 48.1 MOHM TH |
2,567 | 2.26 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 10 µH | ±20% | 2.4 A | 2.1A | Unshielded | 48.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
UP4B-R47-RFIXED IND 470NH 19.2A 1.9MOHM SM |
2,476 | 2.27 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 19.2 A | 51.7A | Unshielded | 1.9mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
MP2A-1R5-RFIXED IND 1.5UH 2.02A 73MOHM SMD |
2,154 | 2.28 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 1.5 µH | ±20% | 2.02 A | 3.22A | Unshielded | 73mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
UP4B-4R7-RFIXED IND 4.7UH 8.6A 833MOHM SMD |
3,548 | 2.30 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 8.6 A | 15.6A | Unshielded | 833mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
CL0904-3-50TR-RFIXED IND 50NH 80A 0.35 MOHM SMD |
2,660 | 2.30 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CL | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | Unshielded | 0.35mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
|
MP2A-2R2-RFIXED IND 2.2UH 1.87A 86MOHM SMD |
3,196 | 2.30 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 2.2 µH | ±20% | 1.87 A | 2.64A | Unshielded | 86mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
MP2A-3R3-RFIXED IND 3.3UH 1.75A 98MOHM SMD |
3,285 | 2.31 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 3.3 µH | ±20% | 1.75 A | 2.23A | Unshielded | 98mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|

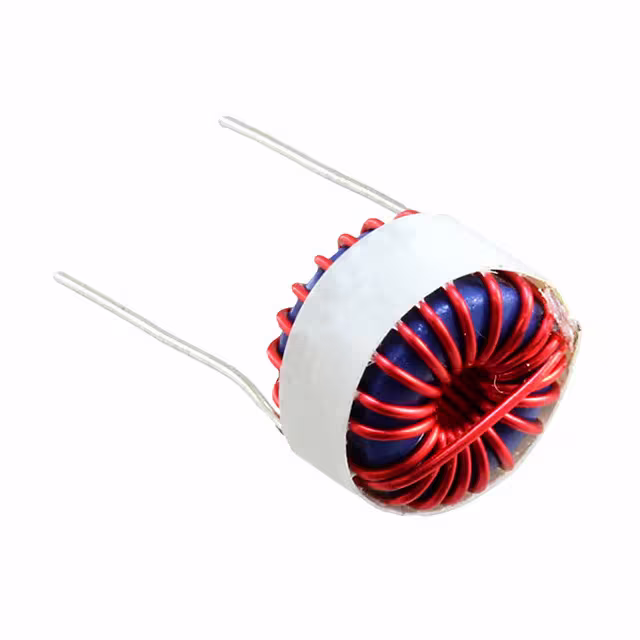

CTX20-1-52LP-RFIXED IND 20UH 1.8A 82.9 MOHM TH |
3,505 | 2.36 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 20 µH | ±20% | 1.8 A | 2.2A | Unshielded | 82.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
UP4B-331-RFIXED IND 330UH 1.1A 580MOHM SMD |
2,636 | 2.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 330 µH | ±20% | 1.1 A | 2A | Unshielded | 580mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
UP4B-1R5-RFIXED IND 1.5UH 13.4A 3.9MOHM SM |
2,428 | 2.37 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 1.5 µH | ±20% | 13.4 A | 28.9A | Unshielded | 3.9mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1105-1R5-RFIXED IND 1.5UH |
2,621 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 1.5 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCM1105-R36-RFIXED IND 360NH |
3,522 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 360 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCM1105-2R8-RFIXED IND 2.8UH |
3,744 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 2.8 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCM1105-3R3-RFIXED IND 3.3UH |
2,156 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 3.3 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCM1105-4R7-RFIXED IND 4.7UH |
3,546 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 4.7 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCM1105-5R6-RFIXED IND 5.6UH |
3,265 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 5.6 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCM1105-6R8-RFIXED IND 6.8UH |
3,684 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 6.8 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCM1105-R47-RFIXED IND 470NH |
2,626 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 470 nH | - | - | - | - | - | - | - | - | - | - | - | - | - |
