| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1105-R68-RFIXED IND 680NH |
2,077 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 680 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCM1105-R72-RFIXED IND 720NH |
2,507 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 720 nH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
HCF0807-2R2-RFIXED IND 2.2UH |
3,855 | 2.38 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | 2.2 µH | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CPLE-3-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD |
2,225 | 2.38 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CPL | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|
|
MP2A-6R8-RFIXED IND 6.8UH 1.49A 136MOHM SM |
3,629 | 2.39 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 6.8 µH | ±20% | 1.49 A | 1.53A | Unshielded | 136mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
HCF1007-2R2-RFIXED IND 2.2UH 10.7A 6.35 MOHM |
2,429 | 2.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCF1007 | Active | Drum Core, Wirewound | Ferrite | 2.2 µH | ±20% | 10.7 A | 18A | Unshielded | 6.35mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCF1007-4R7-RFIXED IND 4.7UH 9.4A 8.65MOHM SM |
3,628 | 2.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCF1007 | Active | Drum Core, Wirewound | Ferrite | 4.7 µH | ±20% | 9.4 A | 12A | Unshielded | 8.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCF1007-5R6-RFIXED IND 5.6UH 9.4A 8.65MOHM SM |
2,851 | 2.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCF1007 | Active | Drum Core, Wirewound | Ferrite | 5.6 µH | ±20% | 9.4 A | 9.4A | Unshielded | 8.65mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCF1007-R30-RFIXED IND 300NH 30A 0.9 MOHM SMD |
3,374 | 2.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCF1007 | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±20% | 30 A | 48A | Unshielded | 0.9mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCF1007-R42-RFIXED IND 420NH 26A 1.3 MOHM SMD |
2,315 | 2.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCF1007 | Active | Drum Core, Wirewound | Ferrite | 420 nH | ±20% | 26 A | 45A | Unshielded | 1.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
|
HCF1007-R56-RFIXED IND 560NH 26A 1.3 MOHM SMD |
3,453 | 2.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | HCF1007 | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 26 A | 36A | Unshielded | 1.3mOhm | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
UP4B-471-RFIXED IND 470UH 910MA 833MOHM SM |
3,589 | 2.45 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | UNI-PAC™ | Active | Drum Core, Wirewound | Ferrite | 470 µH | ±20% | 910 mA | 1.7A | Unshielded | 833mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
FP3-1R5-RFIXED IND 1.5UH 5.78A 13.1 MOHM |
3,805 | 2.58 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | FLAT-PAC 3 | Active | Drum Core, Wirewound | Iron Powder | 1.5 µH | ±15% | 5.78 A | 8A | Unshielded | 13.1mOhm Max | - | - | - | -40°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
MP2A-220-RFIXED IND 22UH 980MA 311MOHM SMD |
3,819 | 2.60 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 22 µH | ±20% | 980 mA | 970mA | Unshielded | 311mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
MP2A-8R2-RFIXED IND 8.2UH 1.34A 167MOHM SM |
2,776 | 2.60 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 8.2 µH | ±20% | 1.34 A | 1.54A | Unshielded | 167mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
MP2A-100-RFIXED IND 10UH 1.29A 179MOHM SMD |
3,970 | 2.63 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | MICRO-PAC PLUS™ | Active | Drum Core, Wirewound | Molybdenum Permalloy(MPP) | 10 µH | ±20% | 1.29 A | 1.42A | Unshielded | 179mOhm | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CPLA-4-50TR-RFIXED IND 50NH 40A 0.6 MOHM SMD |
2,837 | 2.69 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CPL | Active | - | Ferrite | 50 nH | ±20% | 40 A | - | Unshielded | 0.6mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
|

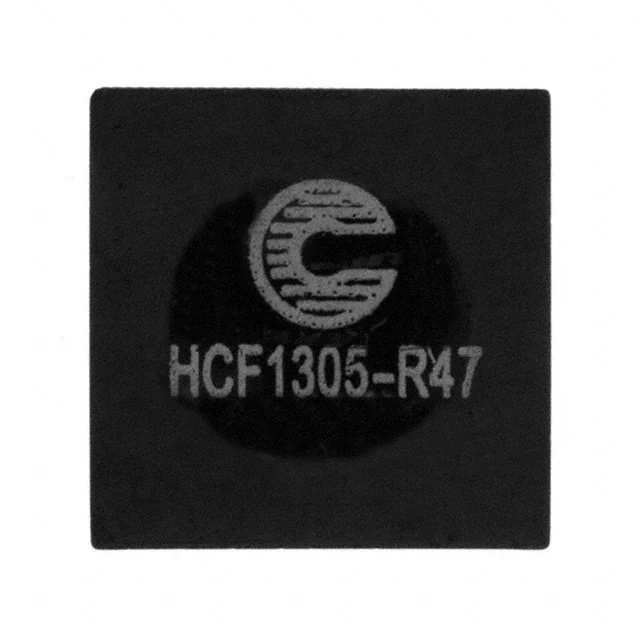

HCF1305-R47-RFIXED IND 470NH 32A 1 MOHM SMD |
3,910 | 2.72 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCF1305 | Active | Drum Core, Wirewound | Ferrite | 470 nH | ±20% | 32 A | 36A | Unshielded | 1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|
HCF1305-R56-RFIXED IND 560NH 32A 1 MOHM SMD |
2,289 | 2.72 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCF1305 | Active | Drum Core, Wirewound | Ferrite | 560 nH | ±20% | 32 A | 30A | Unshielded | 1mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
|

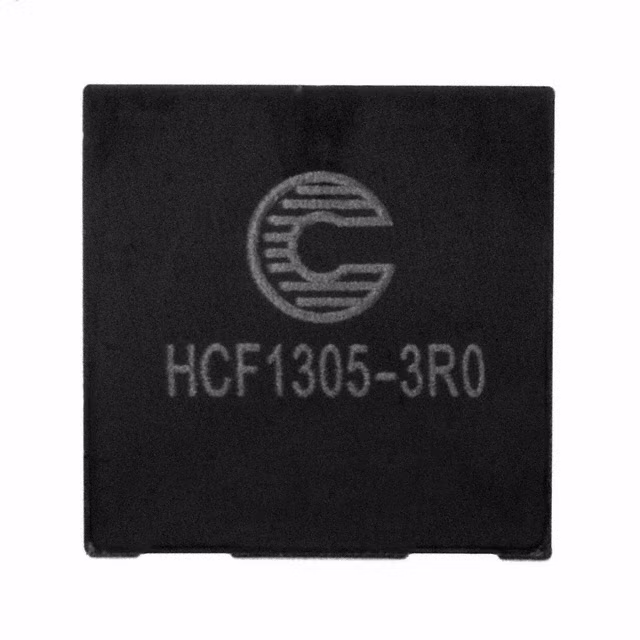

HCF1305-3R0-RFIXED IND 3UH 13.2A 4.9 MOHM SMD |
3,715 | 2.72 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCF1305 | Active | Drum Core, Wirewound | Ferrite | 3 µH | ±20% | 13.2 A | 14.4A | Unshielded | 4.9mOhm Max | - | - | - | -40°C ~ 125°C | 100 kHz | - | Surface Mount | - |
