| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
HCM1A1307-1R0-RFIXED IND 1UH 28A 1.77 MOHM SMD |
3,811 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 1 µH | ±20% | 28 A | 30A | Shielded | 1.77mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-1R2-RFIXED IND 1.2UH 21.8A 2.12 MOHM |
2,107 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 1.2 µH | ±20% | 21.8 A | 28A | Shielded | 2.12mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-1R5-RFIXED IND 1.5UH 20.5A 2.35 MOHM |
3,104 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 1.5 µH | ±20% | 20.5 A | 26A | Shielded | 2.35mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-1R8-RFIXED IND 1.8UH 19.1A 2.94 MOHM |
3,199 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 1.8 µH | ±20% | 19.1 A | 25A | Shielded | 2.94mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-2R2-RFIXED IND 2.2UH 17.6A 3.3MOHM SM |
2,683 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 2.2 µH | ±20% | 17.6 A | 22A | Shielded | 3.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-330-RFIXED IND 33UH 4.7A 45 MOHM SMD |
3,817 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 33 µH | ±20% | 4.7 A | 6A | Shielded | 45mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-3R3-RFIXED IND 3.3UH 15.6A 4.3MOHM SM |
3,035 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 3.3 µH | ±20% | 15.6 A | 20A | Shielded | 4.3mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-4R7-RFIXED IND 4.7UH 11A 7.5MOHM SMD |
3,726 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 4.7 µH | ±20% | 11 A | 15A | Shielded | 7.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-5R6-RFIXED IND 5.6UH 10A 9 MOHM SMD |
3,525 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 5.6 µH | ±20% | 10 A | 17A | Shielded | 9mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-7R8-RFIXED IND 7.8UH 8.8A 11.5MOHM SM |
2,447 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 7.8 µH | ±20% | 8.8 A | 16A | Shielded | 11.5mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-8R2-RFIXED IND 8.2UH 8.2A 13MOHM SMD |
3,658 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 8.2 µH | ±20% | 8.2 A | 13A | Shielded | 13mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-R33-RFIXED IND 330NH 44A 0.92MOHM SMD |
2,948 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 330 nH | ±20% | 44 A | 72A | Shielded | 0.92mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A1307-R47-RFIXED IND 470NH 36.5A 1.05 MOHM |
3,768 | 3.44 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1A | Active | - | Iron Powder | 470 nH | ±20% | 36.5 A | 72A | Shielded | 1.05mOhm Max | - | - | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
CTX10-1-52LP-RFIXED IND 10UH 2.4A 48.1 MOHM TH |
2,771 | 3.45 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 10 µH | ±20% | 2.4 A | 2.1A | Unshielded | 48.1mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
HC1-R30-RFIXED IND 300NH 51.42A 0.36 MOHM |
3,971 | 3.52 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HC1 | Active | Drum Core, Wirewound | Ferrite | 300 nH | ±15% | 51.42 A | 31.8A | Unshielded | 0.36mOhm Max | - | - | - | -40°C ~ 125°C | 300 kHz | - | Surface Mount | - |
|

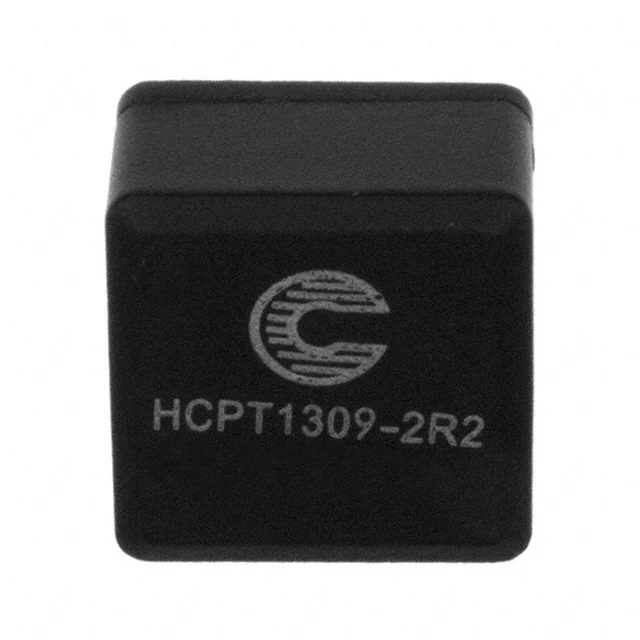

HCPT1309-2R2-RFIXED IND 2.27UH 12.5A 4.1 MOHM |
2,353 | 3.53 |
RFQ |
Datasheet |
Radial, Horizontal | Tray | HCPT1309 | Active | Drum Core, Wirewound | Iron Powder | 2.27 µH | ±20% | 12.5 A | 25A | Unshielded | 4.1mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - |
|
FP1211V1-R470-RIND FLAT PAC 470NH 65A 2 PADS |
2,819 | 3.54 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|

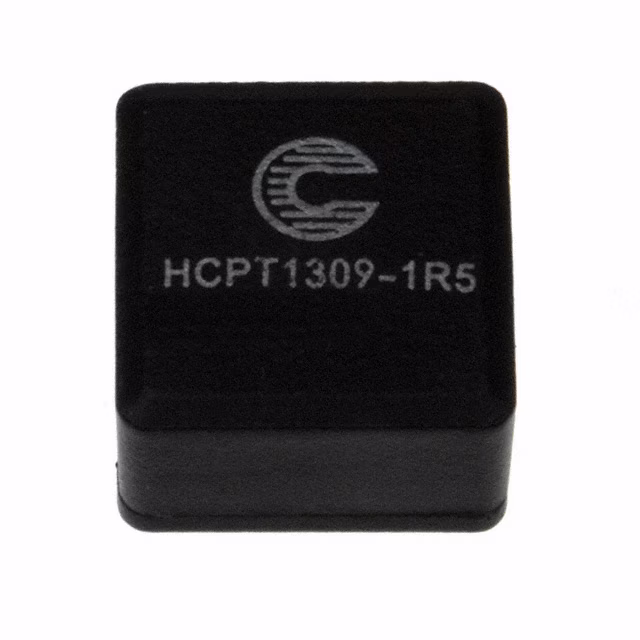

HCPT1309-1R5-RFIXED IND 1.59UH 13.7A 3.82 MOHM |
3,098 | 3.55 |
RFQ |
Datasheet |
Radial, Horizontal | Tray | HCPT1309 | Active | Drum Core, Wirewound | Iron Powder | 1.59 µH | ±20% | 13.7 A | 30.6A | Unshielded | 3.82mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - |
|

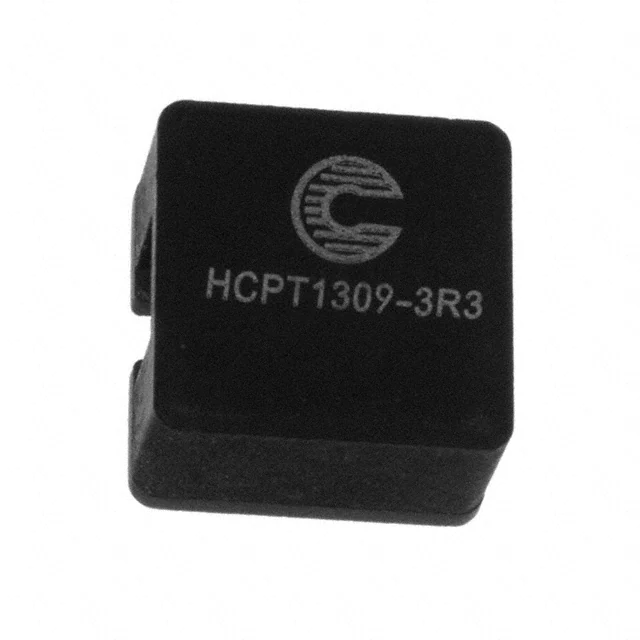

HCPT1309-3R3-RFIXED IND 3.31UH 11.4A 4.8 MOHM |
2,469 | 3.57 |
RFQ |
Datasheet |
Radial, Horizontal | Tray | HCPT1309 | Active | Drum Core, Wirewound | Iron Powder | 3.31 µH | ±20% | 11.4 A | 21A | Unshielded | 4.8mOhm | - | - | - | -40°C ~ 105°C | 100 kHz | - | Through Hole | - |
|
|
CPL2-2-50TR-RFIXED IND 50NH 80A 0.28 MOHM SMD |
2,805 | 3.59 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR),Cut Tape (CT) | CPL | Active | - | Ferrite | 50 nH | ±20% | 80 A | - | Unshielded | 0.28mOhm | - | - | - | -40°C ~ 125°C | 1 MHz | - | Surface Mount | - |
