| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
CTX20-7-52-RFIXED IND 20UH 11.4A 11 MOHM TH |
3,067 | 6.92 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 20 µH | ±20% | 11.4 A | 14.5A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|

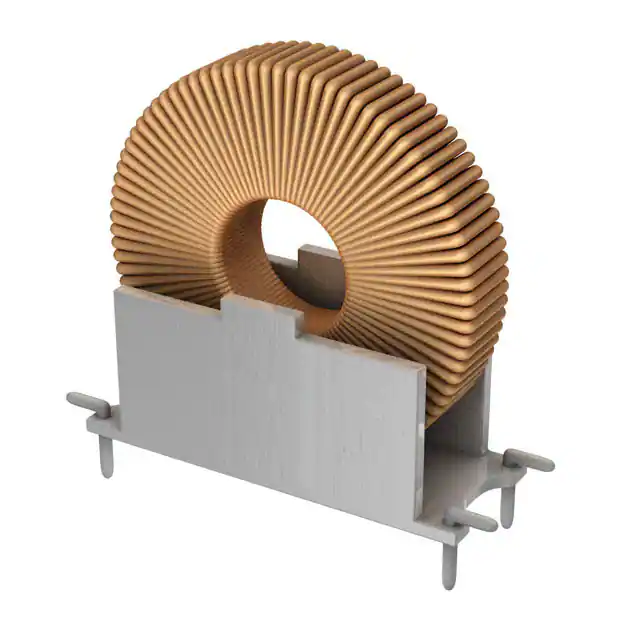

CTX10-7-52M-RFIXED IND 10UH 11.4A 8 MOHM TH |
2,436 | 6.97 |
RFQ |
Datasheet |
Radial, Vertical, 4 Leads (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 10 µH | ±20% | 11.4 A | 13.5A | Unshielded | 8mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CTX20-7-52LP-RFIXED IND 20UH 11.4A 11 MOHM TH |
3,830 | 7.07 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 20 µH | ±20% | 11.4 A | 14.5A | Unshielded | 11mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
CL1108R1-4-R035-RIND CL1108R1 200NH 25A 4-PHA |
2,427 | 7.26 |
RFQ |
- | Tape & Reel (TR) | - | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
HCM1A2213V2-330-RFIXED IND 33UH 11A 15.5 MOHM SMD |
3,239 | 7.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1AV2 | Active | - | Iron Powder | 33 µH | ±20% | 11 A | 16A | Shielded | 15.5mOhm Max | - | 3MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A2213V2-150-RFIXED IND 15UH 17A 6 MOHM SMD |
2,411 | 7.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1AV2 | Active | - | Iron Powder | 15 µH | ±20% | 17 A | 24A | Shielded | 6mOhm Max | - | 5MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A2213V2-100-RFIXED IND 10UH 20A 4.1 MOHM SMD |
2,337 | 7.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1AV2 | Active | - | Iron Powder | 10 µH | ±20% | 20 A | 32.5A | Shielded | 4.1mOhm Max | - | 7MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
HCM1A2213V2-2R2-RFIXED IND 2.2UH 42.5A 1.25 MOHM |
2,452 | 7.57 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | HCM1AV2 | Active | - | Iron Powder | 2.2 µH | ±20% | 42.5 A | 48A | Shielded | 1.25mOhm Max | - | 17MHz | AEC-Q200 | -55°C ~ 155°C | 100 kHz | - | Surface Mount | - |
|
|
CL1110R1-6-R050-RMULTIPHASE COUPLED INDUCTOR SMT |
3,213 | 7.40 |
RFQ |
12-SMD | Tape & Reel (TR) | CL | Active | - | Ferrite | 250 nH | - | - | 20A | Shielded | 300mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 6 Phase | Surface Mount | 12-SMD | |
|
|
CL1110-6-100TR-RIND CL1110 400NH 15A 6-PHASE |
2,803 | 7.47 |
RFQ |
12-SMD | Tape & Reel (TR) | CL | Active | - | Ferrite | 450 nH | ±20% | - | 15A | Unshielded | 0.69mOhm Max | - | - | - | -40°C ~ 125°C | 1 MHz | 6 Phase | Surface Mount | 12-SMD | |
|
|
HCM2213V2-3R3-RIND MP 3.3UH 41A 2 PADS SMT |
3,594 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 3.3 µH | ±20% | 34 A | 41A | Shielded | 1.77mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-470-RIND MP 47UH 15A 2 PADS SMT |
2,532 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 47 µH | ±20% | 10 A | 15A | Shielded | 17.5mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-220-RIND MP 22UH 16A 2 PADS SMT |
3,877 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 22 µH | ±20% | 13.5 A | 16A | Shielded | 10mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-150-RIND MP 15UH 24A 2 PADS SMT |
3,791 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 15 µH | ±20% | 17 A | 24A | Shielded | 6mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-1R0-RIND MP 1.0UH 71A 2 PADS SMT |
3,322 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 1 µH | ±20% | 50 A | 71A | Shielded | 0.84mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-820-RIND MP 82UH 9.5A 2 PADS SMT |
3,236 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 82 µH | ±20% | 7 A | 9.5A | Shielded | 34.3mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-750-RIND MP 75UH 10A 2 PADS SMT |
2,217 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 75 µH | ±20% | 7.5 A | 10A | Shielded | 32.5mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-101-RIND MP 100UH 8A 2 PADS SMT |
3,376 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 100 µH | ±20% | 6.4 A | 8A | Shielded | 39.5mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-4R7-RIND MP 4.7UH 37A 2 PADS SMT |
2,227 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 4.7 µH | ±20% | 33 A | 37A | Shielded | 1.85mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - | |
|
|
HCM2213V2-R47-RIND MP 0.47UH 100A 2 PADS SMT |
3,006 | 7.51 |
RFQ |
Nonstandard | Tape & Reel (TR) | HCMV2 | Active | - | Alloy Powder | 470 nH | ±20% | 66 A | 100A | Shielded | 0.5mOhm | - | - | - | -55°C ~ 155°C | - | - | Surface Mount | - |
