| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Type | Material-Core | Inductance | Tolerance | CurrentRating(Amps) | Current-Saturation(Isat) | Shielding | DCResistance(DCR) | Q@Freq | Frequency-SelfResonant | Ratings | OperatingTemperature | InductanceFrequency-Test | Features | MountingType | Size/Dimension |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

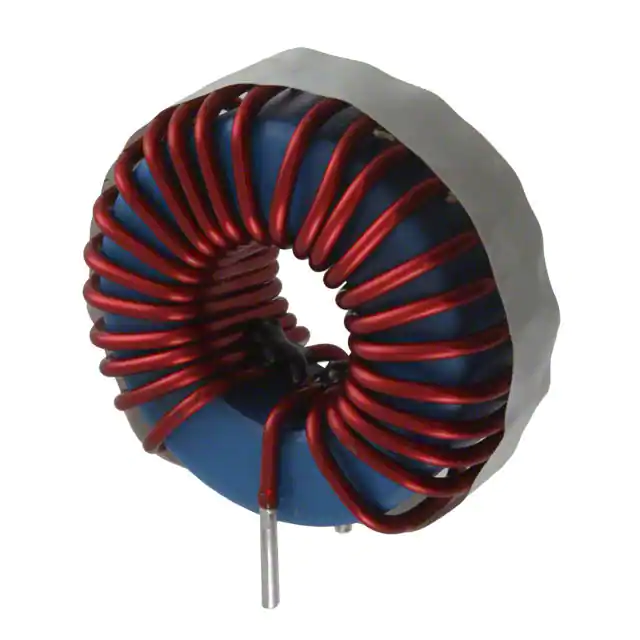

CTX100-10-52-RFIXED IND 100UH 17.6A 10.9 MOHM |
3,942 | 21.09 |
RFQ |
Datasheet |
Radial, Vertical (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 100 µH | ±20% | 17.6 A | 13A | Unshielded | 10.9mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
CTX20-16-52LP-RFIXED IND 20UH 31.5A 3.4 MOHM TH |
3,190 | 21.27 |
RFQ |
Datasheet |
Radial, Horizontal (Open) | Bulk | CTX | Active | Toroidal | Iron Powder | 20 µH | ±20% | 31.5 A | 29.5A | Unshielded | 3.4mOhm Max | - | - | - | -40°C ~ 75°C | 100 kHz | - | Through Hole | - |
|
|
MPI4040R2-2R2-R-35KMPI4040R2-2R2-R-35K |
3,923 | 0.61 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
MPI4040R3-4R7-R-35KMPI4040R3-4R7-R-35K |
2,264 | 0.62 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
FP1007R3-R30-R/BKNFP1007R3-R30-R/BKN |
3,409 | 1.35 |
RFQ |
- | Bulk | * | Active | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | - | |
|
|
CD1-100-RFIXED IND 10UH 4A 35 MOHM SMD |
2,768 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 10 µH | ±30% | 4 A | 4.4A | Shielded | 35mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-101-RFIXED IND 100UH 1.36A 304MOHM SM |
3,870 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 100 µH | ±30% | 1.36 A | 1.35A | Shielded | 304mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-150-RFIXED IND 15UH 3.35A 50 MOHM SMD |
3,047 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 15 µH | ±30% | 3.35 A | 3.6A | Shielded | 50mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-151-RFIXED IND 150UH 1.05A 506MOHM SM |
3,624 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 150 µH | ±30% | 1.05 A | 1.15A | Shielded | 506mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-1R5-RFIXED IND 1.5UH 8.3A 8.1MOHM SMD |
2,981 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 1.5 µH | ±30% | 8.3 A | 10A | Shielded | 8.1mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-220-RFIXED IND 22UH 2.77A 73 MOHM SMD |
2,032 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 22 µH | ±30% | 2.77 A | 2.9A | Shielded | 73mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-221-RFIXED IND 220UH 860MA 756MOHM SM |
3,217 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 220 µH | ±30% | 860 mA | 920mA | Shielded | 756mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-2R5-RFIXED IND 2.5UH 7.3A 10 MOHM SMD |
3,989 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 2.5 µH | ±30% | 7.3 A | 7.5A | Shielded | 10mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-330-RFIXED IND 33UH 2.45A 93 MOHM SMD |
2,292 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 33 µH | ±30% | 2.45 A | 2.3A | Shielded | 93mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-331-RFIXED IND 330UH 720MA 1.09OHM SM |
3,494 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 330 µH | ±30% | 720 mA | 700mA | Shielded | 1.09Ohm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-3R8-RFIXED IND 3.8UH 6.55A 13MOHM SMD |
2,593 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 3.8 µH | ±30% | 6.55 A | 6A | Shielded | 13mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-470-RFIXED IND 47UH 2.09A 128MOHM SMD |
2,486 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 47 µH | ±30% | 2.09 A | 2.1A | Shielded | 128mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-5R2-RFIXED IND 5.2UH 5.05A 22MOHM SMD |
2,647 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 5.2 µH | ±30% | 5.05 A | 5.5A | Shielded | 22mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CD1-680-RFIXED IND 68UH 1.62A 213MOHM SMD |
3,781 | 0.00 |
RFQ |
Datasheet |
Nonstandard | Tape & Reel (TR) | CD | Obsolete | Drum Core, Wirewound | Ferrite | 68 µH | ±30% | 1.62 A | 1.5A | Shielded | 213mOhm Max | - | - | - | -40°C ~ 85°C | 100 kHz | - | Surface Mount | - |
|
|
CTX32CT-100-RFIXED IND 10UH 300MA 500MOHM SMD |
2,962 | 0.00 |
RFQ |
Datasheet |
1210 (3225 Metric) | Tape & Reel (TR) | 1210 | Obsolete | Drum Core, Wirewound | Ceramic | 10 µH | ±10% | 300 mA | - | Unshielded | 500mOhm Max | 15 @ 2.52MHz | 30MHz | - | -25°C ~ 85°C | 2.52 MHz | - | Surface Mount | 1210 |
