| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | SwitchCircuit | Multiplexer/DemultiplexerCircuit | NumberofCircuits | On-StateResistance(Max) | Channel-to-ChannelMatching(ΔRon) | Voltage-SupplySingle(V+) | Voltage-SupplyDual(V±) | SwitchTime(TonToff)(Max) | -3dbBandwidth | ChargeInjection | ChannelCapacitance(CS(off)CD(off)) | Current-Leakage(IS(off))(Max) | Crosstalk | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
ADG507AKPZIC MULTIPLEXER DUAL 8X1 28PLCC |
5,203 | 25.08 |
RFQ |
Datasheet |
28-LCC (J-Lead) | Bulk,Tube | - | Active | - | 8:1 | 2 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG506ATQIC MULTIPLEXER 16X1 28CDIP |
2,093 | 56.60 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | - | 16:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C (TA) | Through Hole |
|
AD7506KNZIC MULTIPLEXER 16X1 28DIP |
1,647 | 65.80 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk,Tube | - | Active | - | 16:1 | 1 | 450Ohm | 18Ohm | - | ±15V | 1.5µs, 1µs | - | - | 5pF, 40pF | 5nA | - | 0°C ~ 70°C (TA) | Through Hole |
|
|
ADG526ATQIC MULTIPLEXER 16X1 28CDIP |
3,176 | 68.42 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | - | 16:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C (TA) | Through Hole |
|
|
ADG407BNZIC MULTIPLEXER DUAL 8X1 28DIP |
186 | 21.12 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk,Tube | - | Active | - | 8:1 | 2 | 80Ohm | 4Ohm | 12V | ±15V | 160ns, 150ns | - | 8pC | 5pF, 25pF | 500pA | -85dB @ 100kHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
ADG506ATQ/883BIC MULTIPLEXER 16CH 28CDIP |
3,212 | 73.25 |
RFQ |
Datasheet |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | - | 16:1 | 1 | 300Ohm | 15Ohm (Typ) | 10.8V ~ 16.5V | - | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C | Through Hole |
|
ADG506ATE/883BIC MULTIPLEXER 16CH 28CLCC |
2,820 | 161.37 |
RFQ |
Datasheet |
28-LCC | Tube | - | Active | - | 16:1 | 1 | 300Ohm | 15Ohm (Typ) | 10.8V ~ 16.5V | - | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C | Surface Mount |
.jpg)
|

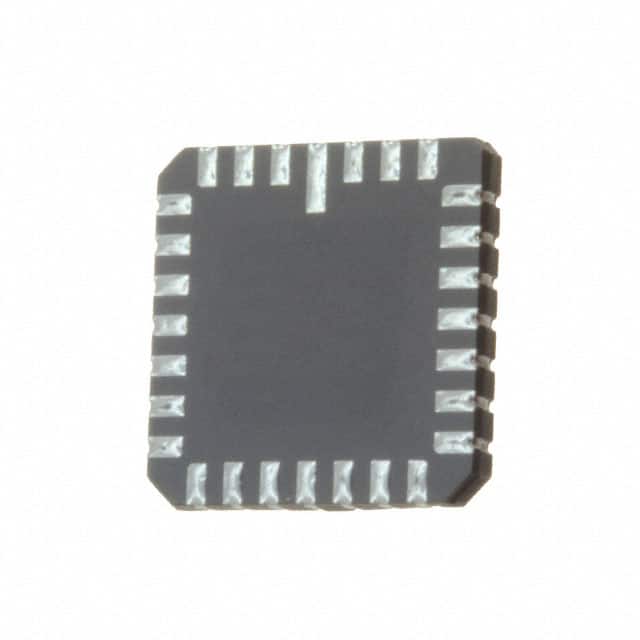

5962-89710013XIC MULTIPLEXER 16X1 28CLCC |
3,024 | 178.79 |
RFQ |
28-CDIP (0.600, 15.24mm) | Tube | - | Active | SPST | 16:1 | 1 | 450Ohm | 22.5Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 44pF | 1nA | - | -55°C ~ 125°C | Through Hole | |
|
ADG701BRMZ-REEL7IC SWITCH SPST 8MSOP |
2,613 | 1.00 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NO | 1:1 | 1 | 3Ohm | - | 1.8V ~ 5V | - | 12ns, 8ns (Typ) | 200MHz | 5pC | 17pF, 17pF | 10pA (Typ) | - | -40°C ~ 85°C (TA) | Surface Mount | |
|
|
ADG1334BRSZ-REELIC SWITCH QUAD SPDT 20SSOP |
3,369 | 1.00 |
RFQ |
20-SSOP (0.209, 5.30mm Width) | Tape & Reel (TR),Cut Tape (CT),Bulk | - | Active | SPST - NO/NC | 1:1 | 4 | 200Ohm | 5Ohm | 12V | ±15V | 130ns, 85ns | 700MHz | 2pC | 5pF, 5pF | 10nA | -85dB @ 1MHz | -40°C ~ 105°C (TA) | Surface Mount | |
|
|
ADG602BRMZIC SWITCH SPST 8MSOP |
340 | 3.93 |
RFQ |
8-TSSOP, 8-MSOP (0.118, 3.00mm Width) | Tube | - | Active | SPST - NC | 1:1 | 1 | 2.5Ohm | - | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 120ns, 75ns | 180MHz | 250pC | 50pF, 50pF | 250pA | - | -40°C ~ 85°C (TA) | Surface Mount | |
|
ADG417BNZIC SWITCH SPST 8DIP |
2,249 | 4.92 |
RFQ |
Datasheet |
8-DIP (0.300, 7.62mm) | Tube | - | Active | SPST - NC | 1:1 | 1 | 35Ohm | - | 12V | ±15V | 160ns, 100ns | - | 7pC | 6pF, 6pF | 250pA | - | -40°C ~ 85°C (TA) | Through Hole |
|
ADG611YRZIC SWITCH QUAD SPST 16SOIC |
3,663 | 1.00 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Bulk,Tube | - | Active | SPST - NC | 1:1 | 4 | 115Ohm | 2Ohm | 2.7V ~ 5.5V | ±2.7V ~ 5.5V | 65ns, 40ns | 680MHz | -0.5pC | 5pF, 5pF | 100pA | -90dB @ 10MHz | -40°C ~ 125°C (TA) | Surface Mount |
|
LTC1380IS#PBFIC MULTIPLEXER 8X1 16SOIC |
2,964 | 10.42 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | - | 8:1 | 1 | 70Ohm | - | 2.7V | ±5V | 1.5µs, 1.2µs | - | 1pC | 3pF, 26pF | 5nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG509FBRWZIC MULTIPLEXER DUAL 4X1 16SOIC |
3,592 | 1.00 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Bulk,Tube | - | Active | SP4T | 4:1 | 2 | 270Ohm (Typ) | 8.1Ohm | 15V | ±15V | 230ns, 130ns | - | 15pC | 3pF, 12pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
ADG508AKPZIC MULTIPLEXER 8X1 20PLCC |
196 | 12.59 |
RFQ |
Datasheet |
20-LCC (J-Lead) | Bulk,Tube | - | Active | - | 8:1 | 1 | 300Ohm | 15Ohm | 10.8V ~ 16.5V | ±10.8V ~ 16.5V | 300ns, 300ns | - | 4pC | 5pF, 22pF | 1nA | - | -40°C ~ 85°C (TA) | Surface Mount |
|
|
ADG426BNZIC MULTIPLEXER 16X1 28DIP |
797 | 19.05 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk,Tube | - | Active | - | 16:1 | 1 | 80Ohm | 4Ohm | 12V | ±15V | 160ns, 150ns | - | 8pC | 5pF, 50pF | 500pA | -85dB @ 1MHz | -40°C ~ 85°C (TA) | Through Hole |
|
|
ADG201ASRZ-EPIC SWITCH QUAD SPST 16PLCC |
3,412 | 19.74 |
RFQ |
Datasheet |
16-SOIC (0.154, 3.90mm Width) | Tube | - | Active | SPST - NC | 1:1 | 4 | 90Ohm | 4.5Ohm | 10V ~ 15V | ±10V ~ 15V | 300ns, 250ns | - | 20pC | 5pF | 2nA | -80dB @ 100kHz | -55°C ~ 125°C (TA) | Surface Mount |
|
AD7506JN/+SINGLE-ENDED MUX,16 CHANNEL |
2,606 | 1.00 |
RFQ |
Datasheet |
28-DIP (0.600, 15.24mm) | Bulk | - | Active | - | 16:1 | 1 | 450Ohm | 18Ohm (Typ) | ±15V | ±15V | 1.5µs, 1µs | - | - | 5pF, 40pF | 50nA | - | 0°C ~ 70°C | Through Hole |
|
|
AD7506SDMULTIPLEXERS/SWITCHES,16 CHANNEL |
2,053 | 1.00 |
RFQ |
Datasheet |
28-CDIP (0.605, 15.37mm) | Bulk | - | Active | - | 16:1 | 1 | 450Ohm | 18Ohm (Typ) | ±15V | ±15V | 1.5µs, 1µs | - | - | 5pF, 40pF | 50nA | - | - | Through Hole |
