LED Lighting - COBs, Engines, Modules, Strips(24132)

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
BXRC-40E4000-F-Z2 LED ARRAY 4000LM NEUTRAL WHITE Bridgelux	2,711	RFQ		Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	3511lm (Typ)	1.05A	85°C	28.8V	116 lm/W	2.1A	80	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
BXRC-40E4000-F-Z3 LED ARRAY 4000LM NEUTRAL WHITE Bridgelux	3,962	RFQ		Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	3511lm (Typ)	1.05A	85°C	28.8V	116 lm/W	2.1A	80	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
BXRC-40G1000-B-02 LED ARRAY 1000LM NEUTRAL WHITE Bridgelux	3,673	RFQ	Datasheet	Tray	Vero® 10 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Starboard	-	350mA	85°C	25.7V	-	700mA	90	120°	With Connector	20.00mm Dia	1.90mm	9.90mm Dia
BXRC-40G10K0-L-02 LED ARRAY 10000LM NEUTRAL WHITE Bridgelux	2,482	RFQ	Datasheet	Tray	Vero® 29 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	9060lm (Typ)	2.1A	25°C	38.6V	112 lm/W	4.2A	90	120°	With Connector	49.20mm Dia	1.90mm	29.20mm Dia
BXRC-40G2000-C-02 LED ARRAY 2000LM NEUTRAL WHITE Bridgelux	3,390	RFQ	Datasheet	Tray	Vero® 13 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	1810lm (Typ)	500mA	25°C	32.5V	111 lm/W	1.05A	90	120°	With Connector	36.20mm Dia	1.90mm	13.20mm Dia
BXRC-40G2000-C-Z2 LED ARRAY 2000LM NEUTRAL WHITE Bridgelux	3,505	RFQ		Tray	Vero® 13 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	1575lm (Typ)	500mA	85°C	31.5V	100 lm/W	1.05A	90	120°	With Connector	36.20mm Dia	1.90mm	13.20mm Dia
BXRC-40G2000-C-Z3 LED ARRAY 2000LM NEUTRAL WHITE Bridgelux	3,355	RFQ		Tray	Vero® 13 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	1575lm (Typ)	500mA	85°C	31.5V	100 lm/W	1.05A	90	120°	With Connector	36.20mm Dia	1.90mm	13.20mm Dia
BXRC-40G4000-F-02 LED ARRAY 4000LM NEUTRAL WHITE Bridgelux	2,259	RFQ	Datasheet	Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	3515lm (Typ)	1.05A	25°C	29.5V	113 lm/W	2.1A	90	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
BXRC-40G4000-F-Z2 LED ARRAY 4000LM NEUTRAL WHITE Bridgelux	3,230	RFQ		Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	3058lm (Typ)	1.05A	85°C	28.8V	101 lm/W	2.1A	90	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
BXRC-40G4000-F-Z3 LED ARRAY 4000LM NEUTRAL WHITE Bridgelux	3,374	RFQ		Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Neutral	4000K 2-Step MacAdam Ellipse	-	Round	3058lm (Typ)	1.05A	85°C	28.8V	101 lm/W	2.1A	90	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
BXRC-50C2000-C-Z4 LED ARRAY 2000LM COOL WHITE Bridgelux	3,179	RFQ		Tray	Vero® 13 Array	Obsolete	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	2037lm (Typ)	500mA	85°C	31.3V	130 lm/W	1.05A	70	120°	With Connector	36.20mm Dia	1.90mm	13.20mm Dia
BXRC-50C4000-F-Z4 LED ARRAY 4000LM COOL WHITE Bridgelux	3,775	RFQ		Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	3898lm (Typ)	1.05A	85°C	28.6V	130 lm/W	2.1A	70	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
BXRC-50E2000-C-Z4 LED ARRAY 2000LM COOL WHITE Bridgelux	3,337	RFQ		Tray	Vero® 13 Array	Obsolete	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	1936lm (Typ)	500mA	85°C	31.3V	124 lm/W	1.05A	80	120°	With Connector	36.20mm Dia	1.90mm	13.20mm Dia
BXRC-50E4000-F-Z4 LED ARRAY 4000LM COOL WHITE Bridgelux	3,361	RFQ		Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	3696lm (Typ)	1.05A	85°C	28.6V	123 lm/W	2.1A	80	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
BXRC-50G2000-C-Z4 LED ARRAY 2000LM COOL WHITE Bridgelux	2,792	RFQ		Tray	Vero® 13 Array	Obsolete	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	1773lm (Typ)	500mA	85°C	31.3V	113 lm/W	1.05A	90	120°	With Connector	36.20mm Dia	1.90mm	13.20mm Dia
BXRC-50G4000-F-Z4 LED ARRAY 4000LM COOL WHITE Bridgelux	3,878	RFQ		Tray	Vero® 18 Array	Obsolete	Chip On Board (COB)	White, Cool	5000K 4-Step MacAdam Ellipse	-	Round	3419lm (Typ)	1.05A	85°C	28.6V	114 lm/W	2.1A	90	120°	With Connector	36.20mm Dia	1.90mm	18.40mm Dia
CBT-90-G-L11-CM100 EMITTER GREEN MODULE Luminus Devices Inc.	3,015	RFQ	Datasheet	Tray	CBT-90	Discontinued at Mosen	LED Module	Green	-	525nm (510nm ~ 540nm)	Rectangle	2150lm (2000lm ~ 2300lm)	13.5A	40°C	4.5V	35 lm/W	27A	-	-	With Connector	28.00mm L x 26.75mm W	4.08mm	3.00mm L x 3.00mm W
CBT-90-G-L11-CM101 EMITTER GREEN MODULE Luminus Devices Inc.	3,441	RFQ	Datasheet	Tray	CBT-90	Discontinued at Mosen	LED Module	Green	-	528nm (520nm ~ 535nm)	Rectangle	2150lm (2000lm ~ 2300lm)	13.5A	40°C	4.5V	35 lm/W	27A	-	-	With Connector	28.00mm L x 26.75mm W	4.08mm	3.00mm L x 3.00mm W
LZ4-20MD0C-0000 LED DOME RGBW 4CH CLEAR MCPCB OSRAM SYLVANIA Inc.	2,160	RFQ	Datasheet	Tray	LZ4	Obsolete	LED Module	Red, Green, Blue, White - Cool (RGBW)	6500K	624nm Red, 525nm Green, 457nm Blue	Starboard	115lm Red, 160lm Green, 30lm Blue, 190lm White	700mA Red, 700mA Green, 700mA Blue, 700mA White	25°C	2.7V Red, 3.7V Green, 3.6V Blue, 3.6V White	61 lm/W Red, 62 lm/W Green, 12 lm/W Blue, 75 lm/W White	1A Red, 1A Green, 1A Blue, 1A White	75 (Typ)	95°	-	19.90mm Dia	5.60mm	5.60mm Dia

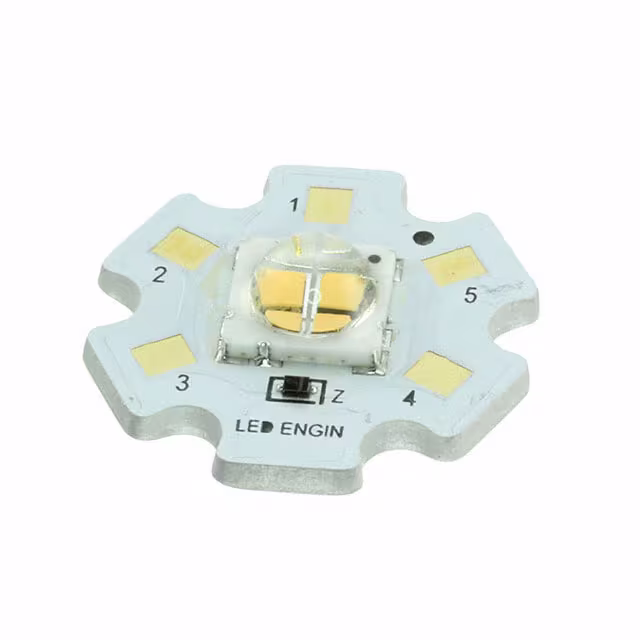

LZ4-40GW08-0027 LED WHITE CLEAR DOME 1CH MCPCB OSRAM SYLVANIA Inc.	2,478	RFQ	Datasheet	Tray	LZ4	Obsolete	LED Module	White, Warm	2700K 3-Step MacAdam Ellipse	-	Starboard	401lm (356lm ~ 445lm)	700mA	25°C	13.2V	43 lm/W	1A	98 (Typ)	105°	-	19.90mm Dia	5.40mm	5.60mm Dia
