LED Lighting - COBs, Engines, Modules, Strips(24132)

Mfr. Part #	Availability	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Color	CCT(K)	Wavelength	Configuration	LuminousFlux@Current/Temperature	Current-Test	Temperature-Test	Voltage-Forward(Vf)(Typ)	Lumens/Watt@Current-Test	Current-Max	CRI(ColorRenderingIndex)	ViewingAngle	Features	Size/Dimension	Height	LightEmittingSurface(LES)
LZ7-N4MU00-0000 LED MULTI CLEAR FLAT 7CH MCPCB OSRAM SYLVANIA Inc.	3,909	RFQ	Datasheet	Tray	LuxiGen™	Active	LED Module	Amber, Blue, Cyan, Green, Red, Violet, White - Cool	6500K	457nm Blue, 500nm Cyan, 525nm Green, 624nm Red, 395nm Violet	Rectangle	96lm Amber, 24lm Blue, 101lm Cyan, 133lm Green, 83lm Red, 900mW Violet, 208lm White	700mA Amber, 700mA Blue, 700mA Cyan, 700mA Green, 700mA Red, 700mA Violet, 700mA White	25°C	3.3V Amber, 3.3V Blue, 3.45V Cyan, 3.7V Green, 2.5V Red, 3.7V Violet, 3.3V White	42 lm/W Amber, 10 lm/W Blue, 42 lm/W Cyan, 51 lm/W Green, 47 lm/W Red, 90 lm/W White	1A Amber, 1.5A Blue, 1A Cyan, 1.5A Green, 1.5A Red, 1A Violet, 1.5A White	75 (Typ)	120°	-	38.30mm L x 31.20mm W	2.41mm	-
LZ9-J0GW00-0027 LED WHITE CLEAR DOME 1X9 MCPCB OSRAM SYLVANIA Inc.	2,110	RFQ	Datasheet	Tray	LuxiGen™ LZ9	Active	LED Module	White, Warm	2700K 3-Step MacAdam Ellipse	-	Starboard	1113lm (868lm ~ 1357lm)	700mA	25°C	29.1V	55 lm/W	800mA	95	110°	-	19.90mm Dia	5.50mm	6.20mm Dia
LZ9-M0GW00-0027 LED WHITE CLEAR DOME 3X3 MCPCB OSRAM SYLVANIA Inc.	2,823	RFQ	Datasheet	Tray	LuxiGen™ LZ9	Active	LED Module	White, Warm	2700K 3-Step MacAdam Ellipse	-	Starboard	1113lm (868lm ~ 1357lm)	3 x 700mA	25°C	9.7V	55 lm/W	800mA	98 (Typ)	110°	-	19.90mm Dia	5.50mm	6.20mm Dia

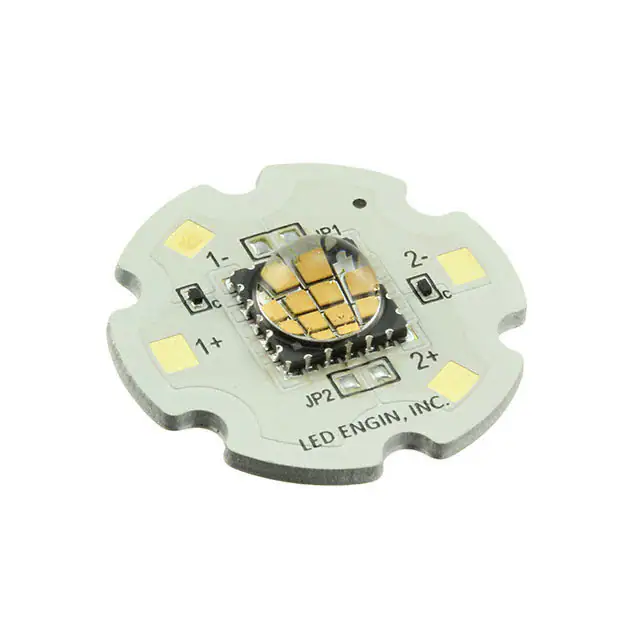

LZC-C0GW00-0027 LED WHITE CLEAR DOME 2X6 MCPCB OSRAM SYLVANIA Inc.	3,786	RFQ	Datasheet	Tray	LuxiGen™ LZC	Active	LED Module	White, Warm	2700K 3-Step MacAdam Ellipse	-	Starboard	1391lm (1085lm ~ 1696lm)	2 x 700mA	25°C	19.4V	51 lm/W	1A	95	110°	-	28.30mm Dia	6.90mm	8.20mm Dia

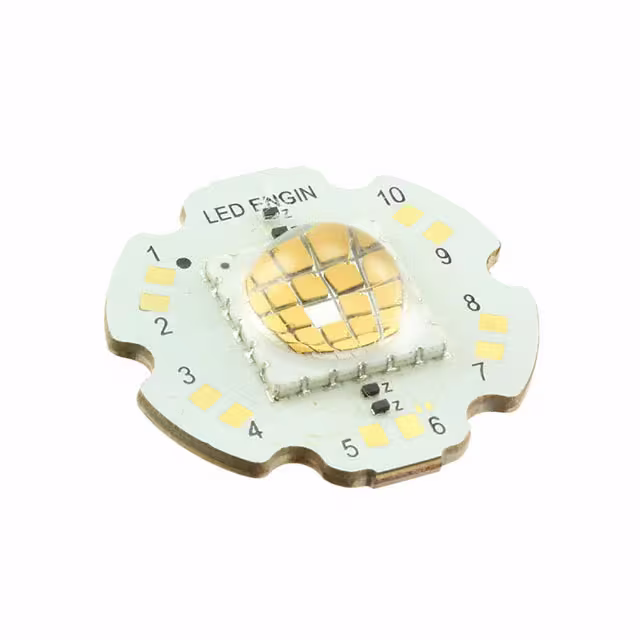

LZP-D0GW00-0027 LED WHITE CLEAR DOME 4X6 MCPCB OSRAM SYLVANIA Inc.	2,462	RFQ	Datasheet	Tray	LuxiGen™ LZP	Active	LED Module	White, Warm	2700K 3-Step MacAdam Ellipse	-	Starboard	2775lm (2350lm ~ 3200lm)	4 x 700mA	25°C	19.4V	51 lm/W	1A	95	110°	-	28.30mm Dia	8.10mm	10.50mm Dia

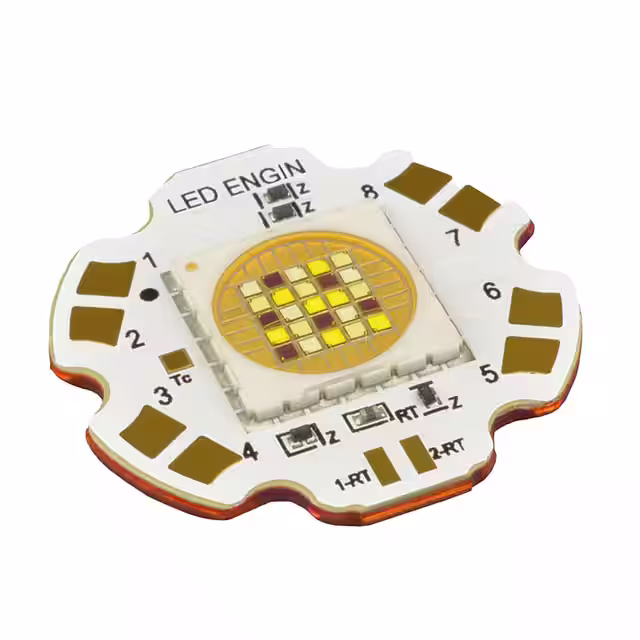

LZP-L4MD00-0000 LED RGBW FLAT LENS 4CH MCPCB OSRAM SYLVANIA Inc.	2,950	RFQ	Datasheet	Tray	LZP	Obsolete	LED Module	Red, Green, Blue, White - Cool	6450K	624nm Red, 525nm Green, 457nm Blue	Starboard	493lm Red, 800lm Green, 170lm Blue, 1453lm White	700mA Red, 700mA Green, 700mA Blue, 700mA White	25°C	15V Red, 21.6V Green, 19.2V Blue, 22.4V White	47 lm/W Red, 53 lm/W Green, 13 lm/W Blue, 93 lm/W	1A Red, 1A Green, 1A Blue, 1A White	75 (Typ)	120°	-	27.60mm Dia	2.80mm	11.70mm L x 11.70mm W
L202-3080033C30001 LED BOARD 3000K 80CRI WAGO CONN Lumileds	3,364	RFQ	Datasheet	Tray	LUXEON XR-3535L	Obsolete	LED Module	White, Warm	3000K	-	Linear Light Strip	1403lm (Typ)	300mA	25°C	33V	142 lm/W	600mA	80	-	With Connector	280.00mm L x 55.00mm W	1.20mm	-
L202-3580033C30001 LED BOARD 3500K 80CRI WAGO CONN Lumileds	3,972	RFQ	Datasheet	Tray	LUXEON XR-3535L	Obsolete	LED Module	White, Warm	3500K	-	Linear Light Strip	1469lm (Typ)	300mA	25°C	33V	148 lm/W	600mA	80	-	With Connector	280.00mm L x 55.00mm W	1.20mm	-
L202-4080033C30001 LED BOARD 4000K 80CRI WAGO CONN Lumileds	3,765	RFQ	Datasheet	Tray	LUXEON XR-3535L	Obsolete	LED Module	White, Neutral	4000K	-	Linear Light Strip	1502lm (Typ)	300mA	25°C	33V	152 lm/W	600mA	80	-	With Connector	280.00mm L x 55.00mm W	1.20mm	-
L202-5080033C30000 LED BOARD 5000K 80CRI MOLEX CONN Lumileds	2,912	RFQ	Datasheet	Tray	LUXEON XR-3535L	Obsolete	LED Module	White, Cool	5000K	-	Linear Light Strip	1502lm (Typ)	300mA	25°C	33V	152 lm/W	600mA	80	-	With Connector	280.00mm L x 55.00mm W	1.20mm	-
L202-5080033C30001 LED BOARD 5000K 80CRI WAGO CONN Lumileds	3,265	RFQ	Datasheet	Tray	LUXEON XR-3535L	Obsolete	LED Module	White, Cool	5000K	-	Linear Light Strip	1502lm (Typ)	300mA	25°C	33V	152 lm/W	600mA	80	-	With Connector	280.00mm L x 55.00mm W	1.20mm	-
LZ4-40DB00-R000 EMITTER SINGLE COLOR DENTAL BLUE OSRAM SYLVANIA Inc.	3,589	RFQ	Datasheet	-	LZ4	Obsolete	LED Module	Blue	-	460nm	Starboard	270mW (240mW ~ 300mW)	700mA	25°C	3.5V	-	1A	-	110°	-	19.90mm Dia	5.90mm	6.20mm Dia
SI-B8V051280WW LED 3000K 80CRI LM561B Samsung Semiconductor, Inc.	2,150	RFQ	Datasheet	Tray	LT-M272A	Obsolete	LED Module	White, Warm	3000K	-	Linear Light Strip	710lm (Typ)	450mA	55°C	12V	131 lm/W	450mA	80	115°	-	275.00mm L x 18.00mm W	5.80mm	-
SI-B8U051280WW LED 3500K 80CRI LM561B Samsung Semiconductor, Inc.	3,984	RFQ	Datasheet	Tray	LT-M272A	Obsolete	LED Module	White, Warm	3500K	-	Linear Light Strip	721lm (Typ)	450mA	55°C	12V	134 lm/W	450mA	80	115°	-	275.00mm L x 18.00mm W	5.80mm	-
SI-B8T051280WW LED 4000K 80CRI LM561B Samsung Semiconductor, Inc.	3,471	RFQ	Datasheet	Tray	LT-M272A	Obsolete	LED Module	White, Neutral	4000K	-	Linear Light Strip	743lm (Typ)	450mA	55°C	12V	138 lm/W	450mA	80	115°	-	275.00mm L x 18.00mm W	5.80mm	-
SI-B8R051280WW LED 5000K 80CRI LM561B Samsung Semiconductor, Inc.	3,402	RFQ	Datasheet	Tray	LT-M272A	Obsolete	LED Module	White, Cool	5000K	-	Linear Light Strip	766lm (Typ)	450mA	55°C	12V	142 lm/W	450mA	80	115°	-	275.00mm L x 18.00mm W	5.80mm	-
SI-B8V071280WW LED 3000K 80CRI LM561B Samsung Semiconductor, Inc.	2,598	RFQ	Datasheet	Tray	LT-M272B	Obsolete	LED Module	White, Warm	3000K	-	Linear Light Strip	946lm (Typ)	300mA	50°C	24V	131 lm/W	360mA	80	115°	-	275.00mm L x 18.00mm W	5.80mm	-

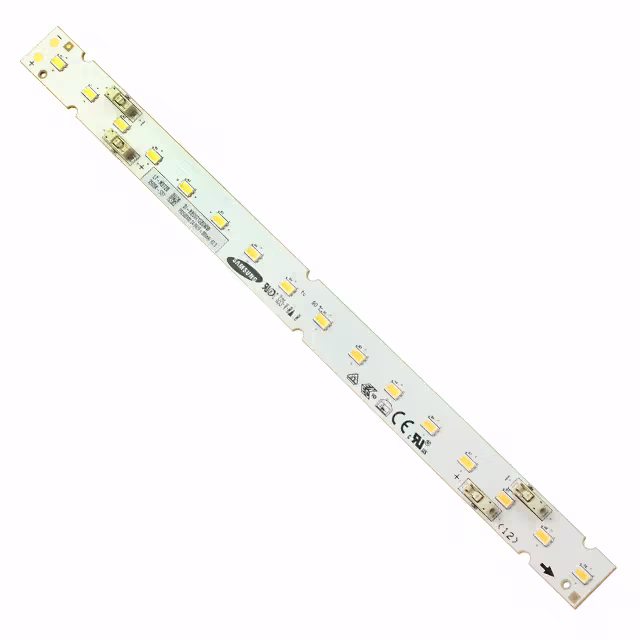

SI-B8U071280WW LED 3500K 80CRI LM561B Samsung Semiconductor, Inc.	2,782	RFQ	Datasheet	Tray	LT-M272B	Obsolete	LED Module	White, Warm	3500K	-	Linear Light Strip	961lm (Typ)	300mA	50°C	24V	133 lm/W	360mA	80	115°	-	275.00mm L x 18.00mm W	5.80mm	-

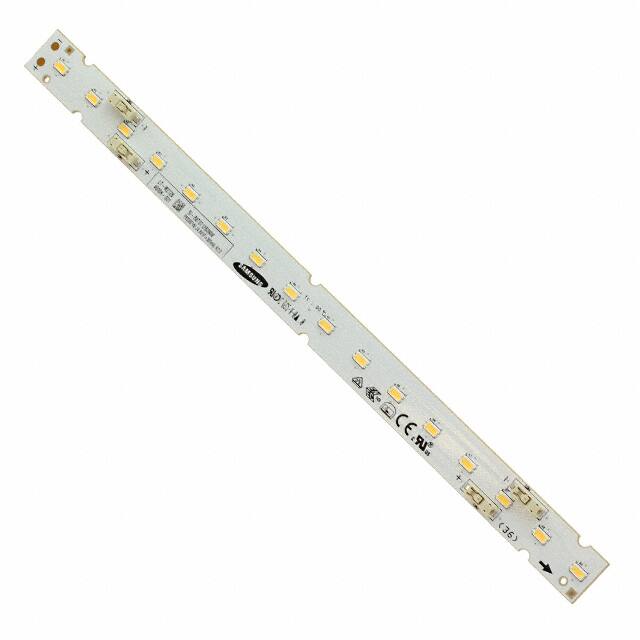

SI-B8T071280WW LED 4000K 80CRI LM561B Samsung Semiconductor, Inc.	2,115	RFQ	Datasheet	Tray	LT-M272B	Obsolete	LED Module	White, Neutral	4000K	-	Linear Light Strip	991lm (Typ)	300mA	50°C	24V	138 lm/W	360mA	80	115°	-	275.00mm L x 18.00mm W	5.80mm	-

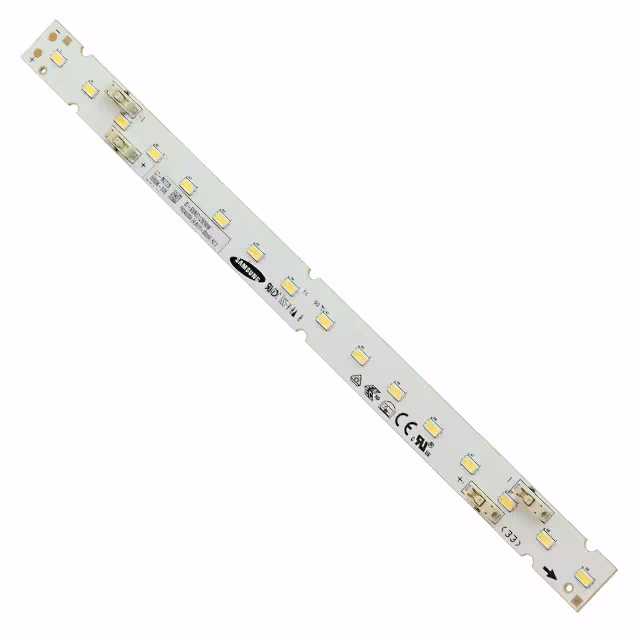

SI-B8R071280WW LED 5000K 80CRI LM561B Samsung Semiconductor, Inc.	2,232	RFQ	Datasheet	Tray	LT-M272B	Obsolete	LED Module	White, Cool	5000K	-	Linear Light Strip	1021lm (Typ)	300mA	50°C	24V	142 lm/W	360mA	80	115°	-	275.00mm L x 18.00mm W	5.80mm	-
