| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
HCNW4502-000EOPTOISOLATOR 5KV TRANSISTOR 8DIP |
3,452 | 3.31 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.68V | 25 mA | - | -55°C ~ 85°C | Through Hole |
|

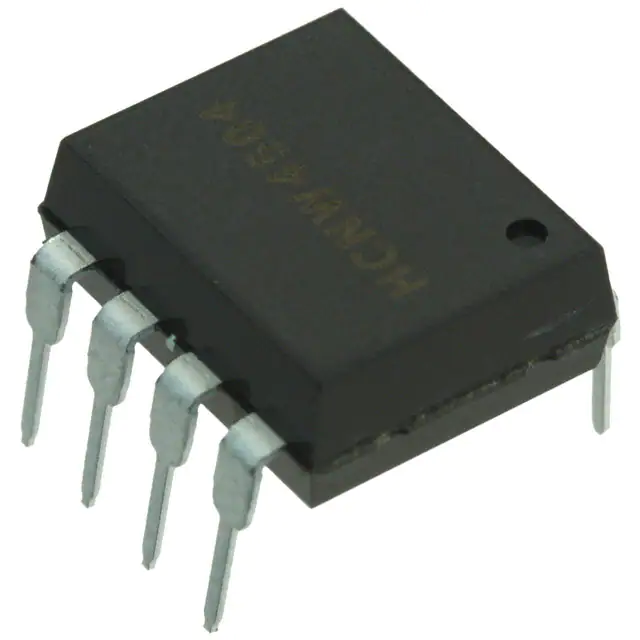

HCNW4504-000EOPTOISOLATOR 5KV TRANSISTOR 8DIP |
3,426 | 3.52 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 19% @ 16mA | 63% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.59V | 25 mA | - | -55°C ~ 85°C | Through Hole |
|
HCPL-2530OPTOISO 3.75KV 2CH TRANS 8DIP |
3,457 | 4.22 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 7% @ 16mA | 50% @ 16mA | 200ns, 1.3µs | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
ACNT-H50L-000EOPTOISO 7.5KV TRANSISTOR 8SO |
3,165 | 6.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 7500Vrms | 31% @ 12mA | 80% @ 12mA | 800ns, 1µs | - | DC | Transistor | 24V | 8mA | 1.45V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|

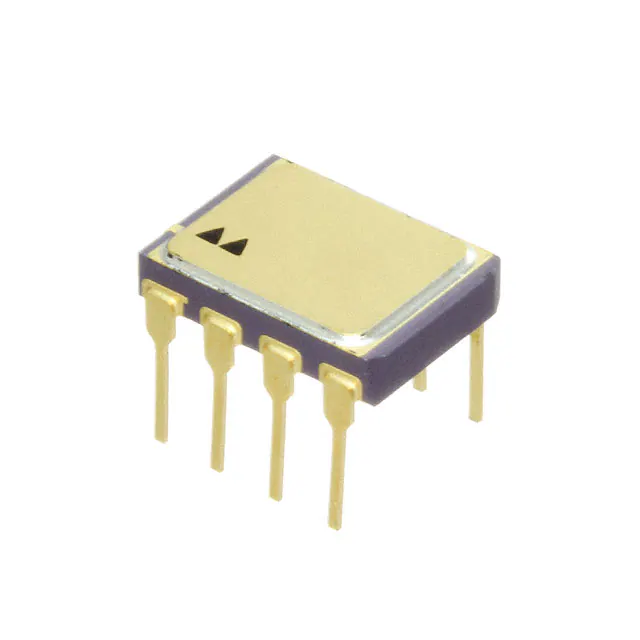

ACPL-5700LOPTOISO 1.5KV DARLINGTON 8-DIP |
3,526 | 98.38 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 1500VDC | 200% @ 5mA | - | 2µs, 6µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | - | -55°C ~ 125°C | Through Hole |
|
HCPL-6551OPTOISO 1.5KV TRANS W/BASE 16DFF |
2,975 | 166.46 |
RFQ |
Datasheet |
Bulk | - | Active | 4 | 1500VDC | 9% @ 16mA | - | 400ns, 1µs | - | DC | Transistor with Base | 20V | 8mA | 1.55V | 20 mA | - | -55°C ~ 125°C | Surface Mount |
|
HCNW4502-500EOPTOISO 5KV TRANS 8DIP GULL WING |
3,543 | 3.35 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor | 20V | 8mA | 1.68V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
|
6N135-300EOPTOISO 3.75KV TRANS W/BASE 8SMD |
3,965 | 1.87 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 7% @ 16mA | 50% @ 16mA | 200ns, 1.3µs | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-4731-500EOPTOISO 3.75KV 2CH DARL 8-DIP GW |
2,613 | 6.77 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington | 18V | 60mA | 1.25V | 10 mA | - | 0°C ~ 70°C | Surface Mount |
|
ACPL-K49T-000EOPTOISOLATOR 5KV TRANSISTOR |
3,092 | 4.73 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 20µs, 20µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
|
|
HCPL-4731-300EOPTOISO 3.75KV 2CH DARL 8-DIP GW |
2,801 | 6.77 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 600% @ 500µA | 8000% @ 500µA | 3µs, 34µs | - | DC | Darlington | 18V | 60mA | 1.25V | 10 mA | - | 0°C ~ 70°C | Surface Mount |
|
8302401XAOPTOISO 1.5KV 4CH DARL 16-SMD GW |
2,716 | 108.22 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
HCPL-181-00BEOPTOISO 3.75KV TRANS 4MINIFLAT |
3,767 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
ACPL-217-50CEOPTOISOLATOR 3.75KV TRANS 4SOIC |
3,769 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
ACPL-227-50CEOPTOISOLATOR 3KV 2CH TRANS 8SOIC |
2,338 | 1.27 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3000Vrms | 200% @ 5mA | 400% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
HCPL-817-06CEOPTOISOLATOR 5KV TRANSISTOR 4DIP |
2,958 | 0.53 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 200% @ 5mA | 400% @ 5mA | - | 4µs, 3µs | DC | Transistor | 70V | 50mA | 1.2V | 50 mA | 200mV | -30°C ~ 100°C | Through Hole |
|
|
ACPL-K49T-560EOPTOISOLATOR 5KV TRANSISTOR |
2,632 | 4.37 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 20µs, 20µs (Max) | - | DC | Transistor | 20V | 8mA | 1.5V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
|
ACPL-054L-560EOPTOISOLTR 3.75KV 2CH TRANS 8-SO |
2,136 | 4.89 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 2 | 3750Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
|
ACPL-K44T-560EOPTOISOLATOR 5KV 2CH TRANSISTOR |
2,826 | 6.86 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q100, R²Coupler™ | Active | 2 | 5000Vrms | 32% @ 10mA | 100% @ 10mA | 150ns, 500ns | - | DC | Transistor | 20V | 8mA | 1.55V | 20 mA | - | -40°C ~ 125°C | Surface Mount |
|
|
ACNT-H511C-000E15MM CTI600V OPTOCOUPLER (1MBD) |
2,959 | 6.83 |
RFQ |
Tube | - | Active | 1 | 7500Vrms | 31% @ 12mA | 80% @ 12mA | - | - | DC | Transistor with Base | 24V | 12mA | 1.45V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
