| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | NumberofChannels | Voltage-Isolation | CurrentTransferRatio(Min) | CurrentTransferRatio(Max) | TurnOn/TurnOffTime(Typ) | Rise/FallTime(Typ) | InputType | OutputType | Voltage-Output(Max) | Current-Output/Channel | Voltage-Forward(Vf)(Typ) | Current-DCForward(If)(Max) | VceSaturation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
.jpg)
|
HCNR201-000EOPTOISO 5KV LINEAR PHVOLT 8DIP |
3,538 | 6.23 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 0.36% @ 10mA | 0.72% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|

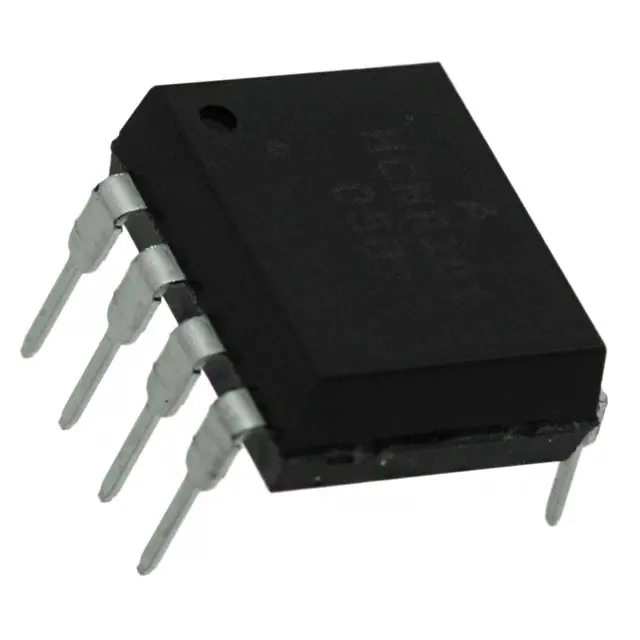

HCNR201-050EOPTOISO 5KV LINEAR PHVOLT 8DIP |
2,194 | 6.30 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 0.36% @ 10mA | 0.72% @ 10mA | - | - | DC | Photovoltaic, Linearized | - | - | 1.6V | 25 mA | - | -55°C ~ 100°C | Through Hole |
|
ACNT-H511-000E15MM OPTOCOUPLER (1MBD) |
2,011 | 6.33 |
RFQ |
Datasheet |
Bulk | - | Active | 1 | 7500Vrms | 31% @ 12mA | 80% @ 12mA | 150ns, 400ns | - | DC | Transistor | 24V | 12mA | 1.45V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
HCPL-3760-300EOPTOISOLATOR 3.75KV DARL 8DIP GW |
3,440 | 6.93 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | - | - | 4.5µs, 8µs | 14µs, 0.4µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 85°C | Surface Mount |
|
ACPL-K376-000EOPTOISO 5KV DARL 8-SO STRETCHED |
3,166 | 7.82 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | - | - | 6.3µs, 6.4µs | 24µs, 0.4µs | AC, DC | Darlington | 20V | 30mA | - | - | - | -40°C ~ 105°C | Surface Mount |
|
6N140A#300OPTOISO 1.5KV 4CH DARL 16-DIP GW |
3,741 | 94.29 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Surface Mount |
|
6N140AOPTOISO 1.5KV 4CH DARLNG 16-DIP |
150 | 101.81 |
RFQ |
Datasheet |
Tube | - | Active | 4 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
HCPL-5731OPTOISO 1.5KV 2CH DARLNG 8-DIP |
2,540 | 119.52 |
RFQ |
Datasheet |
Bulk | - | Active | 2 | 1500VDC | 200% @ 5mA | - | 2µs, 8µs | - | DC | Darlington | 20V | 40mA | 1.4V | 10 mA | 110mV | -55°C ~ 125°C | Through Hole |
|
ACPL-217-50DEOPTOISOLATOR 3.75KV TRANS 4-SO |
3,416 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 300% @ 5mA | 600% @ 5mA | 3µs, 3µs | 2µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 400mV | -55°C ~ 110°C | Surface Mount |
|
HCPL-181-06BEOPTOISO 3.75KV TRANS 4MINIFLAT |
3,972 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 130% @ 5mA | 260% @ 5mA | - | 4µs, 3µs | DC | Transistor | 80V | 50mA | 1.2V | 50 mA | 200mV | -55°C ~ 100°C | Surface Mount |
|
HCPL-0701-500EOPTOISO 3.75KV DARL W/BASE 8SOIC |
3,605 | 2.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Surface Mount |
|
|
HCPL-0501-560EOPTOISO 3.75KV TRANS W/BASE 8SO |
2,605 | 2.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
ACPL-M50L-560EOPTOISOLATOR 3.75KV TRANS 5-SO |
2,441 | 2.63 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 3750Vrms | 100% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
ACPL-W50L-500EOPTOISO 5KV TRANS 6-SO STRETCHED |
2,518 | 3.15 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 93% @ 3mA | 200% @ 3mA | 200ns, 380ns | - | DC | Transistor | 24V | 8mA | 1.5V | 20 mA | - | -40°C ~ 105°C | Surface Mount |
|
|
6N139-000EOPTOISO 3.75KV DARL W/BASE 8DIP |
2,306 | 1.64 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 500% @ 1.6mA | 2600% @ 1.6mA | 200ns, 2µs | - | DC | Darlington with Base | 18V | 60mA | 1.4V | 20 mA | - | -40°C ~ 85°C | Through Hole |
|
|
HCNW4504-500EOPTOISOLATOR 5KV TRANS 8DIPGW |
2,609 | 3.59 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | 1 | 5000Vrms | 19% @ 16mA | 63% @ 16mA | 200ns, 300ns | - | DC | Transistor | 20V | 8mA | 1.59V | 25 mA | - | -55°C ~ 85°C | Surface Mount |
|
|
6N136-300EOPTOISO 3.75KV TRANS W/BASE 8SMD |
3,606 | 1.87 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor with Base | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCNW136-000EOPTOISOLATOR 5KV TRANS 8DIP |
3,912 | 2.53 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 5000Vrms | 15% @ 16mA | - | 1µs, 1µs (Max) | - | DC | Transistor with Base | 20V | 8mA | 1.68V | 25 mA | - | -55°C ~ 85°C | Through Hole |
|
|
HCPL-050L-000EOPTOISO 3.75KV TRANS W/BASE 8SO |
3,514 | 2.53 |
RFQ |
Datasheet |
Tube | - | Active | 1 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor with Base | 7V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Surface Mount |
|
|
HCPL-2531-000EOPTOISO 3.75KV 2CH TRANS 8DIP |
2,371 | 3.10 |
RFQ |
Datasheet |
Tube | - | Active | 2 | 3750Vrms | 19% @ 16mA | 50% @ 16mA | 200ns, 600ns | - | DC | Transistor | 20V | 8mA | 1.5V | 25 mA | - | -55°C ~ 100°C | Through Hole |
