Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial

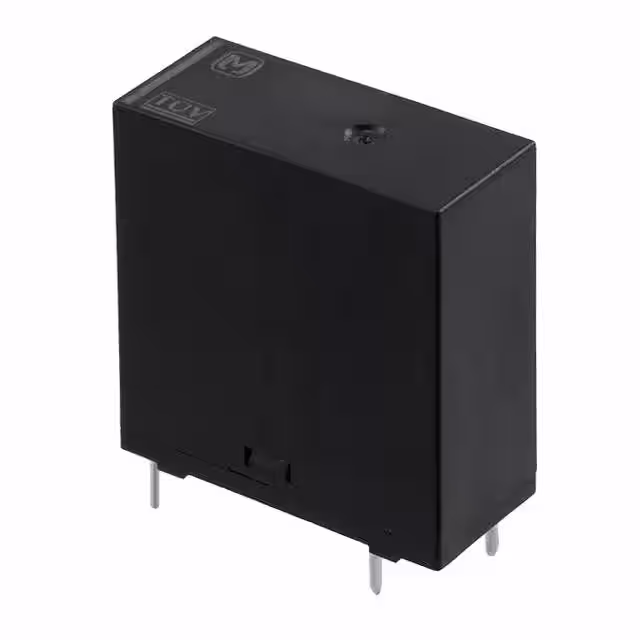

LKG1AF-24V-16 RELAY GEN PURPOSE SPST 16A 24V Panasonic Electric Works	262	2.62	RFQ	Datasheet	Box	LK-G	Obsolete	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	277VAC - Max	22.1 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	-	18 VDC	2.4 VDC	15 ms	20 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
ALE1PF24 RELAY GEN PURPOSE SPST 16A 24V Panasonic Electric Works	132	2.62	RFQ	Datasheet	Bulk	ALE	Obsolete	Through Hole	24VDC	SPST-NO (1 Form A)	16 A	277VAC - Max	16.7 mA	Non Latching	-	PC Pin	-	Class F	18 VDC	1.2 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JS1F-B-18V-F RELAY GEN PURPOSE SPDT 10A 18V Panasonic Electric Works	2,444	2.62	RFQ	Datasheet	Bulk	JS	Obsolete	Through Hole	18VDC	SPDT (1 Form C)	10 A	250VAC, 100VDC - Max	20 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	12.6 VDC	1.8 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JQ1A-B-5V-F RELAY GEN PURPOSE SPST 5A 5V Panasonic Electric Works	3,106	2.62	RFQ	Datasheet	Bulk	JQ	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	5 A	250VAC, 110VDC - Max	40 mA	Non Latching	-	PC Pin	-	Class B	3.75 VDC	0.25 VDC	20 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JTN1AS-TMP-F-DC15V RELAY GEN PURPOSE SPST 30A 15V Panasonic Electric Works	2,279	2.67	RFQ	Datasheet	Bulk	JT-N	Obsolete	Through Hole	15VDC	SPST-NO (1 Form A)	30 A	277VAC - Max	53.3 mA	Non Latching	-	PC Pin, Quick Connect - 0.250 (6.3mm)	Sealed - Fully	Class F	11.25 VDC	1.5 VDC	20 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
JS1APF-B-9V-F RELAY GEN PURPOSE SPST 10A 9V Panasonic Electric Works	3,964	2.85	RFQ	Datasheet	Bulk	JS	Obsolete	Through Hole	9VDC	SPST-NO (1 Form A)	10 A	250VAC, 100VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	6.3 VDC	0.9 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)

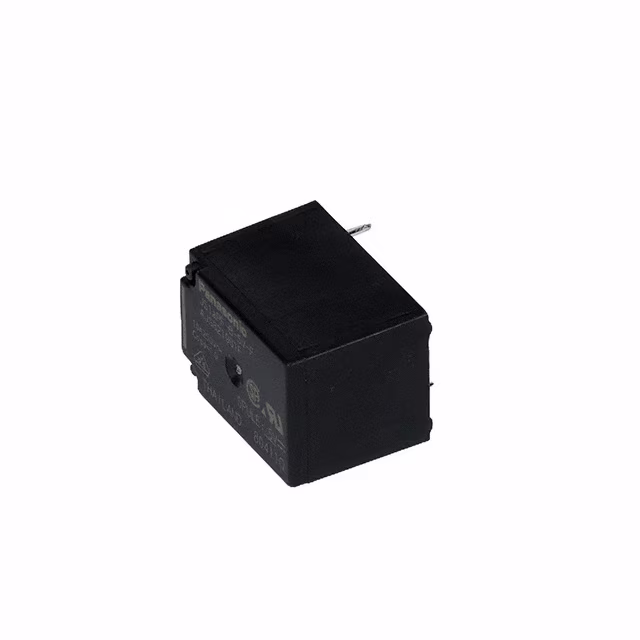

JS1APF-B-5V-F RELAY GEN PURPOSE SPST 10A 5V Panasonic Electric Works	3,617	2.85	RFQ	Datasheet	Bulk	JS	Obsolete	Through Hole	5VDC	SPST-NO (1 Form A)	10 A	250VAC, 100VDC - Max	72 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	3.5 VDC	0.5 VDC	10 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
LKQ1AF-12V-TV-8 RELAY GEN PURPOSE SPST 8A 12V Panasonic Electric Works	3,859	2.88	RFQ	Datasheet	Tube	LK-Q	Obsolete	Through Hole	12VDC	SPST-NO (1 Form A)	8 A	277VAC - Max	20.8 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	-	9.6 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
LKQ1AF-12V-TV8-Y2 RELAY GEN PURPOSE SPST 8A 12V Panasonic Electric Works	3,180	2.90	RFQ	Datasheet	Box	LK-Q	Obsolete	Through Hole	12VDC	SPST-NO (1 Form A)	8 A	277VAC - Max	20.8 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	-	9.6 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
ALE1PB06 RELAY GEN PURPOSE SPST 16A 6V Panasonic Electric Works	3,015	2.90	RFQ	Datasheet	Bulk	ALE	Obsolete	Through Hole	6VDC	SPST-NO (1 Form A)	16 A	277VAC - Max	66.7 mA	Non Latching	-	PC Pin	-	Class B	4.5 VDC	0.3 VDC	20 ms	20 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JQ1A-B-18V-F RELAY GEN PURPOSE SPST 5A 18V Panasonic Electric Works	2,044	3.08	RFQ	Datasheet	Bulk	JQ	Obsolete	Through Hole	18VDC	SPST-NO (1 Form A)	5 A	250VAC, 110VDC - Max	11.1 mA	Non Latching	-	PC Pin	-	Class B	13.5 VDC	0.9 VDC	20 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JQ1A-B-24V-F RELAY GEN PURPOSE SPST 5A 24V Panasonic Electric Works	2,530	3.08	RFQ	Datasheet	Bulk	JQ	Obsolete	Through Hole	24VDC	SPST-NO (1 Form A)	5 A	250VAC, 110VDC - Max	8.3 mA	Non Latching	-	PC Pin	-	Class B	18 VDC	1.2 VDC	20 ms	10 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
JTV1AS-PA-9V RELAY GEN PURPOSE SPST 20A 9V Panasonic Electric Works	2,608	4.52	RFQ	Datasheet	Bulk	JT-V	Obsolete	Through Hole	9VDC	SPST-NO (1 Form A)	20 A	277VAC - Max	3.9 mA	Non Latching	-	PC Pin	Sealed - Fully	-	-	-	15 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
JTN1AS-TMP-F-DC18V RELAY GEN PURPOSE SPST 30A 18V Panasonic Electric Works	3,836	4.62	RFQ	Datasheet	Bulk	JT-N	Obsolete	Through Hole	18VDC	SPST-NO (1 Form A)	30 A	277VAC - Max	44.4 mA	Non Latching	-	PC Pin, Quick Connect - 0.250 (6.3mm)	Sealed - Fully	Class F	13.5 VDC	1.8 VDC	20 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
JTN1S-PA-F-DC18V RELAY GEN PURPOSE SPDT 20A 18V Panasonic Electric Works	3,749	4.62	RFQ	Datasheet	Bulk	JT-N	Obsolete	Through Hole	18VDC	SPDT (1 Form C)	20 A	277VAC - Max	44.4 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	13.5 VDC	1.8 VDC	20 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
JTV1AS-PA-48V RELAY GEN PURPOSE SPST 20A 48V Panasonic Electric Works	2,572	4.78	RFQ	Datasheet	Bulk	JT-V	Obsolete	Through Hole	48VDC	SPST-NO (1 Form A)	20 A	277VAC - Max	20.8 mA	Non Latching	-	PC Pin	Sealed - Fully	-	36 VDC	4.8 VDC	15 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
JTN1S-TMP-F-DC9V RELAY GEN PURPOSE SPDT 20A 9V Panasonic Electric Works	2,976	4.85	RFQ	Datasheet	Bulk	JT-N	Obsolete	Through Hole	9VDC	SPDT (1 Form C)	20 A	277VAC - Max	88.9 mA	Non Latching	-	PC Pin, Quick Connect - 0.250 (6.3mm)	Sealed - Fully	Class F	6.75 VDC	0.9 VDC	20 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)

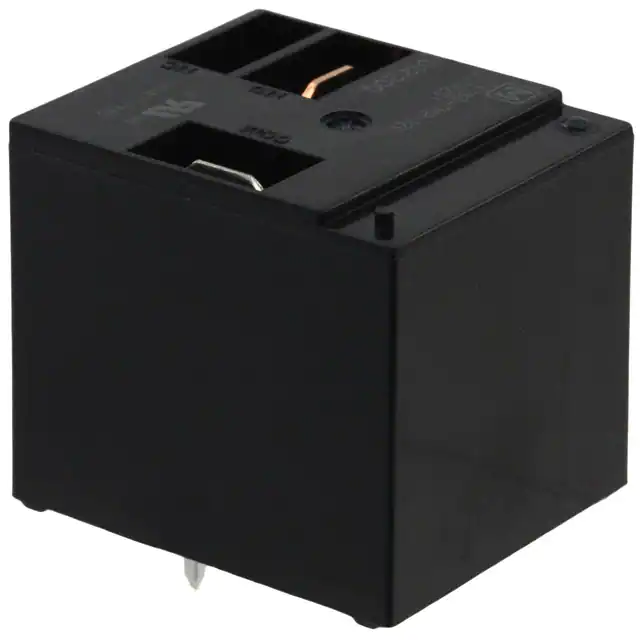

JTV1AS-TMP-24V RELAY GEN PURPOSE SPST 20A 24V Panasonic Electric Works	3,338	4.90	RFQ	Datasheet	Bulk	JT-V	Obsolete	Through Hole	24VDC	SPST-NO (1 Form A)	20 A	277VAC - Max	41.7 mA	Non Latching	-	PC Pin, Quick Connect - 0.250 (6.3mm)	Sealed - Fully	-	18 VDC	2.4 VDC	15 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
JTV1S-TMP-18V RELAY GEN PURPOSE SPST 20A 18V Panasonic Electric Works	2,601	5.16	RFQ	Datasheet	Bulk	JT-V	Obsolete	Through Hole	18VDC	SPST-NO (1 Form A)	20 A	277VAC - Max	55.6 mA	Non Latching	-	PC Pin, Quick Connect - 0.250 (6.3mm)	Sealed - Fully	-	13.5 VDC	1.8 VDC	15 ms	10 ms	-55°C ~ 85°C	Silver Tin Oxide (AgSnO)
JQ1P-6V-F RELAY GEN PURPOSE SPDT 10A 6V Panasonic Electric Works	3,945	5.34	RFQ	Datasheet	Bulk	JQ	Obsolete	Through Hole	6VDC	SPDT (1 Form C)	10 A	250VAC, 110VDC - Max	66.7 mA	Non Latching	-	PC Pin	-	Class E	4.8 VDC	0.3 VDC	20 ms	10 ms	-40°C ~ 70°C	Silver Tin Oxide (AgSnO)
