Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	MountingType	CoilVoltage	ContactForm	ContactRating(Current)	SwitchingVoltage	CoilCurrent	CoilType	Features	TerminationStyle	SealRating	CoilInsulation	MustOperateVoltage	MustReleaseVoltage	OperateTime	ReleaseTime	OperatingTemperature	ContactMaterial
JW1AFSN-DC24V-F RELAY GEN PURPOSE SPST 10A 24V Panasonic Electric Works	2,917	2.74	RFQ	Datasheet	Box	JW	Active	Through Hole	24VDC	SPST-NO (1 Form A)	10 A	250VAC, 30VDC - Max	22 mA	Non Latching	-	PC Pin	Sealed - Fully	-	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)

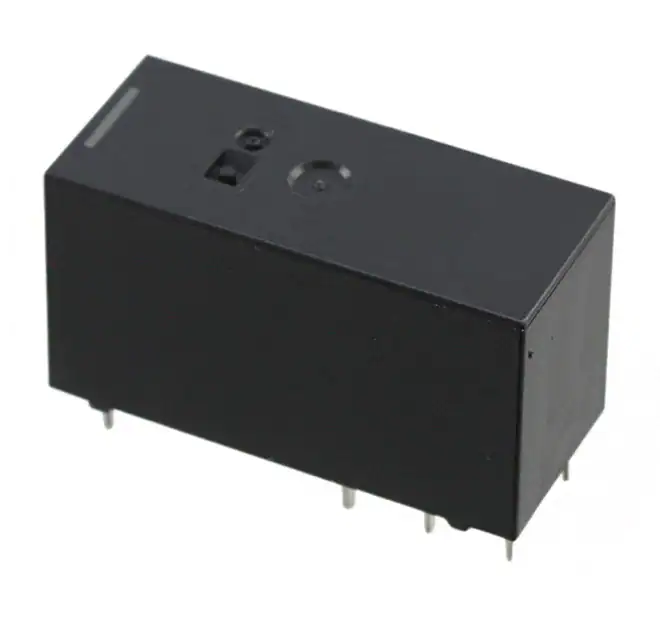

ALZ11B05 RELAY GEN PURPOSE SPDT 16A 5V Panasonic Electric Works	2,203	2.80	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	5VDC	SPDT (1 Form C)	16 A	440VAC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Flux Protection	Class B	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ12B24 RELAY GEN PURPOSE SPDT 16A 24V Panasonic Electric Works	2,265	2.82	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	24VDC	SPDT (1 Form C)	16 A	440VAC - Max	16.7 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Tin Oxide (AgSnO)
ALZ12F05 RELAY GEN PURPOSE SPDT 16A 5V Panasonic Electric Works	2,716	2.82	RFQ	Datasheet	Tube	ALZ	Active	Through Hole	5VDC	SPDT (1 Form C)	16 A	440VAC - Max	80 mA	Non Latching	-	PC Pin	Sealed - Fully	Class F	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 105°C	Silver Tin Oxide (AgSnO)
JW1AFSN-DC12V-F RELAY GEN PURPOSE SPST 10A 12V Panasonic Electric Works	2,784	2.82	RFQ	Datasheet	Box	JW	Active	Through Hole	12VDC	SPST-NO (1 Form A)	10 A	250VAC, 30VDC - Max	44 mA	Non Latching	-	PC Pin	Sealed - Fully	-	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
JW1FSN-DC24V RELAY GEN PURPOSE SPDT 10A 24V Panasonic Electric Works	3,773	2.85	RFQ	Datasheet	Bulk,Bulk	JW	Active	Through Hole	24VDC	SPDT (1 Form C)	10 A	250VAC, 30VDC - Max	22 mA	Non Latching	-	PC Pin	Sealed - Fully	-	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)
JW1FSN-B-DC12V RELAY GEN PURPOSE SPDT 10A 12V Panasonic Electric Works	440	2.96	RFQ	Datasheet	Bulk	JW	Active	Through Hole	12VDC	SPDT (1 Form C)	10 A	250VAC, 30VDC - Max	44 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	8.4 VDC	1.2 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALF1P12 RELAY GEN PURPOSE SPST 20A 12V Panasonic Electric Works	2,514	3.09	RFQ	Datasheet	Box	ALF	Active	Through Hole	12VDC	SPST-NO (1 Form A)	20 A	250VAC - Max	75 mA	Non Latching	-	PC Pin	-	-	8.4 VDC	1.2 VDC	20 ms	15 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
JW2SN-DC5V RELAY GEN PURPOSE DPDT 5A 5V Panasonic Electric Works	3,249	3.12	RFQ	Datasheet	Bulk	JW	Active	Through Hole	5VDC	DPDT (2 Form C)	5 A	250VAC, 30VDC - Max	106 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.5 VDC	0.5 VDC	15 ms	5 ms	-40°C ~ 60°C	Silver Nickel (AgNi)
JW2SN-B-DC24V RELAY GEN PURPOSE DPDT 5A 24V Panasonic Electric Works	2,703	3.41	RFQ	Datasheet	Tube	JW	Active	Through Hole	24VDC	DPDT (2 Form C)	5 A	250VAC, 30VDC - Max	22 mA	Non Latching	-	PC Pin	Sealed - Fully	Class B	16.8 VDC	2.4 VDC	15 ms	5 ms	-40°C ~ 85°C	Silver Nickel (AgNi)
ALF1P05 RELAY GEN PURPOSE SPST 20A 5V Panasonic Electric Works	3,771	3.60	RFQ	Datasheet	Box	ALF	Active	Through Hole	5VDC	SPST-NO (1 Form A)	20 A	250VAC - Max	180 mA	Non Latching	-	PC Pin	-	-	3.5 VDC	0.5 VDC	20 ms	15 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
ALFG1PF12 RELAY GEN PURPOSE SPST 25A 12V Panasonic Electric Works	2,742	4.30	RFQ	Datasheet	Bulk	ALFG	Active	Through Hole	12VDC	SPST-NO (1 Form A)	25 A	250VAC - Max	117 mA	Non Latching	-	PC Pin	-	Class F	8.4 VDC	1.2 VDC	20 ms	10 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
APAN3124 RELAY GEN PURPOSE SPST 5A 24V Panasonic Electric Works	2,399	6.13	RFQ	Datasheet	Tube	PA-N	Active	Through Hole	24VDC	SPST-NO (1 Form A)	5 A	250VAC, 110VDC - Max	4.6 mA	Non Latching	-	PC Pin	Sealed - Fully	-	16.8 VDC	1.2 VDC	10 ms	5 ms	-40°C ~ 90°C	Silver Nickel (AgNi), Gold (Au)
DSP2A-DC5V RELAY GEN PURPOSE DPST 5A 5V Panasonic Electric Works	3,770	7.47	RFQ	Datasheet	Bulk	DSP	Active	Through Hole	5VDC	DPST-NO (2 Form A)	5 A	250VAC, 30VDC - Max	60 mA	Non Latching	-	PC Pin	Sealed - Fully	-	4 VDC	0.5 VDC	10 ms	5 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
DSP1-DC12V-F RELAY GEN PURPOSE DPST 5A 12V Panasonic Electric Works	3,651	7.63	RFQ	Datasheet	Bulk	DSP	Active	Through Hole	12VDC	DPST-NO/NC (1 Form A, 1 Form B)	5 A	250VAC, 30VDC - Max	25 mA	Non Latching	-	PC Pin	Sealed - Fully	-	9.6 VDC	1.2 VDC	10 ms	5 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
DSP1-DC24V-F RELAY GEN PURPOSE DPST 5A 24V Panasonic Electric Works	2,944	7.63	RFQ	Datasheet	Bulk	DSP	Active	Through Hole	24VDC	DPST-NO/NC (1 Form A, 1 Form B)	5 A	250VAC, 30VDC - Max	12.5 mA	Non Latching	-	PC Pin	Sealed - Fully	-	19.2 VDC	2.4 VDC	10 ms	5 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
DK1A-5V-F RELAY GEN PURPOSE SPST 10A 5V Panasonic Electric Works	3,769	8.41	RFQ	Datasheet	Tube	DK	Active	Through Hole	5VDC	SPST-NO (1 Form A)	10 A	250VAC, 125VDC - Max	40 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.5 VDC	0.5 VDC	10 ms	8 ms	-40°C ~ 65°C	Silver Tin Oxide (AgSnO)
ALFG2PF121 RELAY GEN PURPOSE SPST 33A 12V Panasonic Electric Works	2,013	10.89	RFQ	Datasheet	Bulk	ALFG	Active	Through Hole	12VDC	SPST-NO (1 Form A)	33 A	250VAC - Max	117 mA	Non Latching	-	PC Pin	-	Class F	8.4 VDC	1.2 VDC	20 ms	10 ms	-40°C ~ 60°C	Silver Tin Oxide (AgSnO)
S2EB-24V RELAY GEN PURPOSE 4PST 4A 24V Panasonic Electric Works	2,758	15.37	RFQ	Datasheet	Tube	S	Active	Through Hole	24VDC	4PST-2NO/2NC (2 Form A, 2 Form B)	4 A	250VAC, 48VDC - Max	8.4 mA	Non Latching	-	PC Pin	Sealed - Fully	-	16.8 VDC	2.4 VDC	15 ms	10 ms	-55°C ~ 65°C	Silver Alloy, Cadmium Free

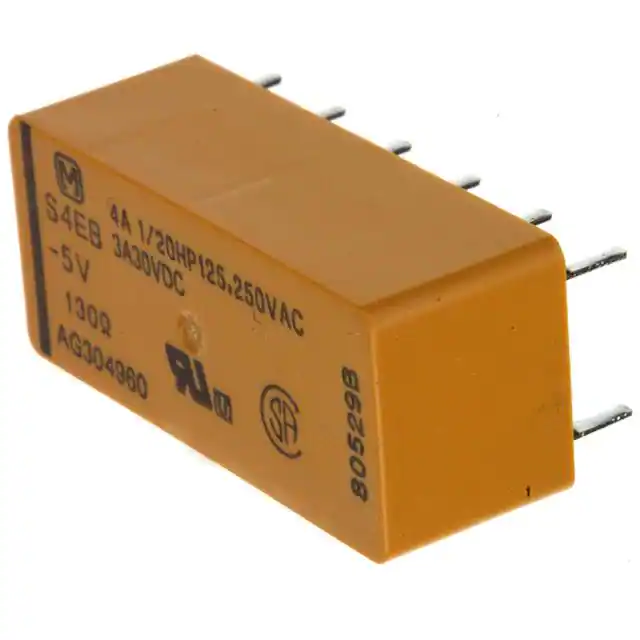

S4EB-5V RELAY GEN PURPOSE 4PST 4A 5V Panasonic Electric Works	3,752	17.64	RFQ	Datasheet	Tube	S	Active	Through Hole	5VDC	4PST-NO (4 Form A)	4 A	250VAC, 48VDC - Max	38.5 mA	Non Latching	-	PC Pin	Sealed - Fully	-	3.5 VDC	0.5 VDC	15 ms	10 ms	-55°C ~ 65°C	Silver Alloy, Cadmium Free
