Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

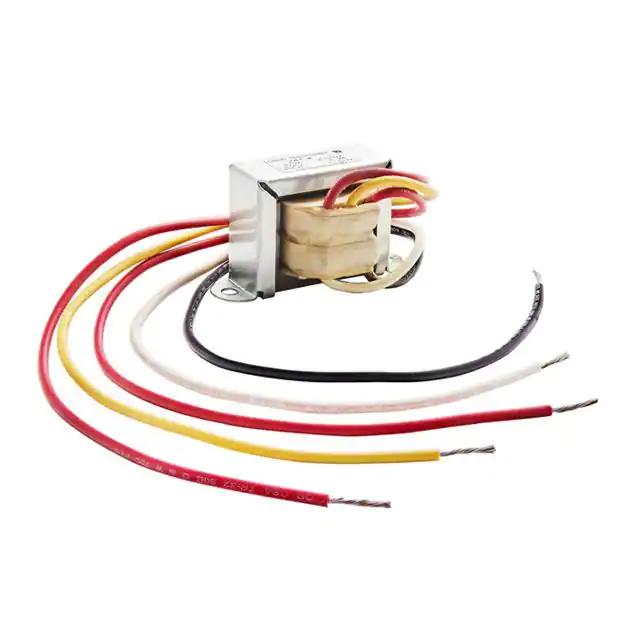

241-5-48L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,913	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	250mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms
241-5-56L PWR XFMR LAMINATED 12VA CHAS MT Signal Transformer	2,922	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	220mA	Single	Single	Yes	12VA	Chassis Mount	Wire Leads	71.40mm L x 36.30mm W	42.80mm	2500Vrms

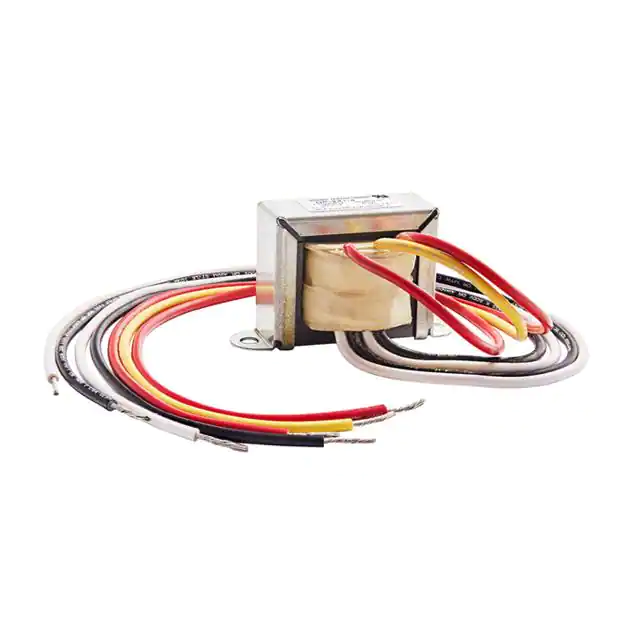

DP-241-4-10L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,868	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	10V	600mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-16L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,575	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	16V	400mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-20L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,273	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	20V	300mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-24L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,641	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	24V	250mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-36L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	3,384	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	36V	170mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DP-241-4-48L PWR XFMR LAMINATED 6VA CHAS MT Signal Transformer	2,998	10.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	48V	125mA	Dual	Single	Yes	6VA	Chassis Mount	Wire Leads	60.30mm L x 33.30mm W	36.20mm	2500Vrms
DPC-16-75 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	2,986	10.58	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 150mA, Series 75mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
LP-56-100 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	2,317	10.71	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 200mA, Series 100mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-88-65 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	3,328	10.71	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 44V, Series 88V	Parallel 130mA, Series 65mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-120-50 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	3,688	10.71	RFQ	Datasheet	Box	LP	Active	Semi-Toroidal	115V, 230V	Parallel 60V, Series 120V	Parallel 100mA, Series 50mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
LP-230-25 PWR XFMR SEMI-TORO 6VA TH Signal Transformer	2,459	10.71	RFQ	Datasheet	Box	LP	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 50mA, Series 25mA	Dual	Dual	No	6VA	Through Hole	PC Pin	47.50mm L x 39.60mm W	21.60mm	1500Vrms
ST-6-36 PWR XFMR LAMINATED 20VA TH Signal Transformer	3,230	10.81	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 18V, Series 36V	Parallel 1.1A, Series 550mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-10 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,774	10.81	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 4A, Series 2A	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-48 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,177	10.81	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 24V, Series 48V	Parallel 800mA, Series 400mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-56 PWR XFMR LAMINATED 20VA TH Signal Transformer	2,566	10.81	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 28V, Series 56V	Parallel 700mA, Series 350mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
ST-6-120 PWR XFMR LAMINATED 20VA TH Signal Transformer	3,800	10.90	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 60V, Series 120V	Parallel 320mA, Series 160mA	Single	Dual	No	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	36.90mm	2500Vrms
DPC-56-15 PWR XFMR LAMINATED 1VA TH Signal Transformer	2,100	10.93	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 28V, Series 56V	Parallel 30mA, Series 15mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
MPC-X-12 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,198	11.04	RFQ	Datasheet	Bulk	MPC	Active	Laminated Core	115V	Parallel 5V, Series 12V	Parallel 360mA, Series 60mA	Single	Dual	Yes	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.70mm	1500Vrms
