Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
ST-7-12 PWR XFMR LAMINATED 36VA TH Signal Transformer	3,108	13.45	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 6.3V, Series 12.6V	Parallel 5.7A, Series 2.85A	Single	Dual	No	36VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	40.40mm	2500Vrms

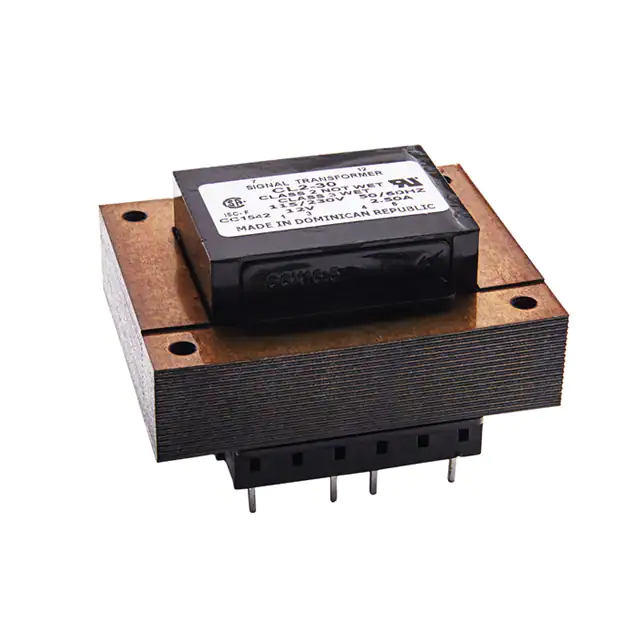

CL2-30-12 PWR XFMR LAMINATED 30VA TH Signal Transformer	3,314	13.78	RFQ	Datasheet	Bulk	CL2	Active	Laminated Core	115V, 230V	12V	2.5A	Dual	Single	No	30VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	39.70mm	4000Vrms
DMPC-X-12 PWR XFMR LAMINATED 10VA TH Signal Transformer	3,245	13.81	RFQ	Datasheet	Bulk	DMPC	Active	Laminated Core	115V, 230V	Parallel 5V, Series 12V	Parallel 360mA, Series 60mA	Dual	Dual	Yes	10VA	Through Hole	PC Pin	47.60mm L x 36.50mm W	41.70mm	1500Vrms

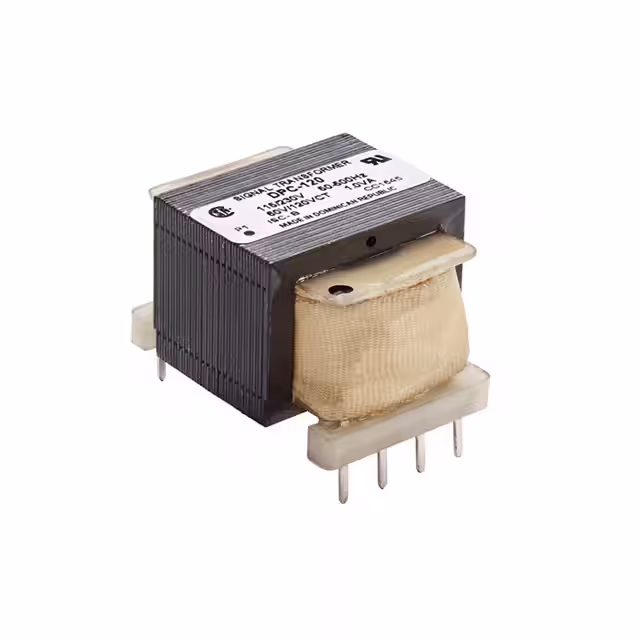

DPC-24-35 PWR XFMR LAMINATED 1VA TH Signal Transformer	2,282	13.83	RFQ	Datasheet	Bulk	DPC	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 70mA, Series 35mA	Dual	Dual	No	1VA	Through Hole	PC Pin	25.40mm L x 34.92mm W	21.08mm	1500Vrms
20-600-LPI PWR XFMR SEMI-TORO 12VA TH Signal Transformer	3,985	16.09	RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 1.2A, Series 600mA	Dual	Dual	No	12VA	Through Hole	PC Pin	66.80mm L x 55.60mm W	26.60mm	4000Vrms
IF-2-56 PWR XFMR SEMI-TORO 2VA TH Signal Transformer	2,414	12.95	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 80mA, Series 40mA	Dual	Dual	No	2VA	Through Hole	PC Pin	53.00mm L x 44.00mm W	17.60mm	4000Vrms
56-100-LPI PWR XFMR SEMI-TORO 6VA TH Signal Transformer	2,851	13.01	RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 200mA, Series 100mA	Dual	Dual	No	6VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	22.70mm	4000Vrms
24-375-LPI PWR XFMR SEMI-TORO 9VA TH Signal Transformer	2,986	13.07	RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 750mA, Series 375mA	Dual	Dual	No	9VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	27.40mm	4000Vrms
34-265-LPI PWR XFMR SEMI-TORO 9VA TH Signal Transformer	2,377	13.07	RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 530mA, Series 265mA	Dual	Dual	No	9VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	27.40mm	4000Vrms
10-900-LPI PWR XFMR SEMI-TORO 9VA TH Signal Transformer	3,500	13.13	RFQ	Datasheet	Box	LPI	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 10V	Parallel 1.8A, Series 900mA	Dual	Dual	No	9VA	Through Hole	PC Pin	60.20mm L x 42.10mm W	27.40mm	4000Vrms
241-6-10L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,285	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	10V	3A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-120L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,124	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	120V	250mA	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-12L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,764	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	12.6V	2.5A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-16L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,449	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	16V	2A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-20L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,952	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	20V	1.5A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-24L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,415	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	24V	1.25A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-28L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,219	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	28V	1.1A	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-36L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	2,848	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	36V	850mA	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-48L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,584	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	48V	630mA	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
241-6-56L PWR XFMR LAMINATED 30VA CHAS MT Signal Transformer	3,377	13.20	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V	56V	540mA	Single	Single	Yes	30VA	Chassis Mount	Wire Leads	82.60mm L x 44.30mm W	49.80mm	2500Vrms
