Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

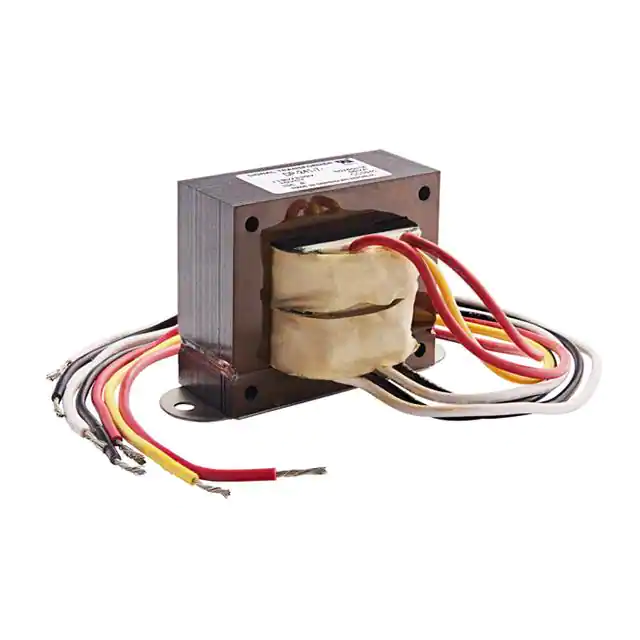

DP-241-7-28L PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	3,574	17.52	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	28V	2A	Dual	Single	Yes	56VA	Chassis Mount	Wire Leads	93.70mm L x 49.20mm W	57.80mm	2500Vrms
DP-241-7-36L PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	3,531	17.52	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	36V	1.5A	Dual	Single	Yes	56VA	Chassis Mount	Wire Leads	93.70mm L x 49.20mm W	57.80mm	2500Vrms
DP-241-7-48L PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	2,933	17.52	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	48V	1.2A	Dual	Single	Yes	56VA	Chassis Mount	Wire Leads	93.70mm L x 49.20mm W	57.80mm	2500Vrms
DP-241-7-56L PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	2,071	17.52	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	56V	1A	Dual	Single	Yes	56VA	Chassis Mount	Wire Leads	93.70mm L x 49.20mm W	57.80mm	2500Vrms

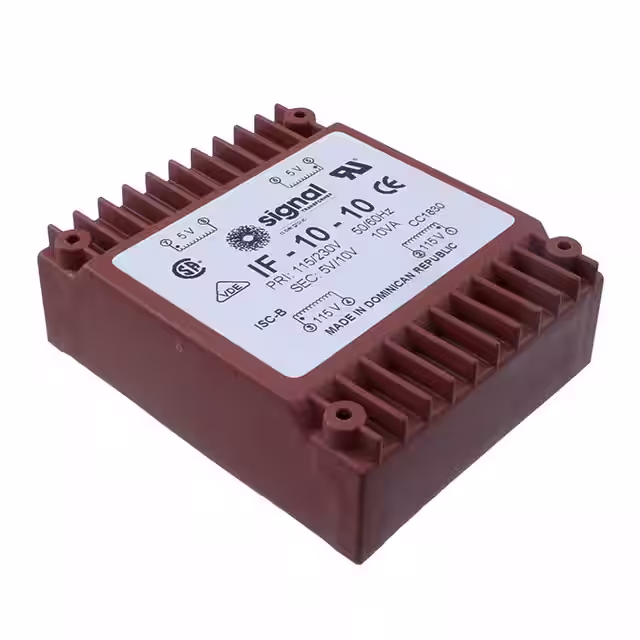

IF-10-10 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	3,558	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 10V	Parallel 2A, Series 1A	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-12 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	3,576	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 1.67A, Series 835mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-16 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	3,208	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 1.25A, Series 625mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-20 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	3,310	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 10V, Series 20V	Parallel 1A, Series 500mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-230 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	2,925	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 115V, Series 230V	Parallel 90mA, Series 45mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-24 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	2,696	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 840mA, Series 420mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-30 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	2,707	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 670mA, Series 335mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-34 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	3,444	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 17V, Series 34V	Parallel 600mA, Series 300mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-40 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	3,099	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 500mA, Series 250mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
IF-10-56 PWR XFMR SEMI-TORO 10VA TH Signal Transformer	3,164	17.53	RFQ	Datasheet	Bulk	IF	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 360mA, Series 180mA	Dual	Dual	No	10VA	Through Hole	PC Pin	67.60mm L x 57.00mm W	22.60mm	4000Vrms
MT-7-15 PWR XFMR LAMINATED 7VA CHAS MT Signal Transformer	3,431	17.72	RFQ	Datasheet	Bulk	MT	Active	Laminated Core	115V	5V, 15V	2.8A, 280mA	Single	Dual	Yes	7VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
MT-7-12 PWR XFMR LAMINATED 7VA CHAS MT Signal Transformer	3,855	17.72	RFQ	Datasheet	Bulk	MT	Active	Laminated Core	115V	5V, 12V	2.8A, 350mA	Single	Dual	Yes	7VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
CL2-50-12 PWR XFMR LAMINATED 50VA TH Signal Transformer	3,343	17.78	RFQ	Datasheet	Bulk	CL2	Active	Laminated Core	115V, 230V	12V	4.2A	Dual	Single	No	50VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.00mm	4000Vrms
LP-10-4800 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	3,769	17.83	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 5V, Series 10V	Parallel 9.6A, Series 4.8A	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
LP-16-3000 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	2,818	17.83	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 6A, Series 3A	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
LP-56-850 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	2,782	17.83	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 28V, Series 56V	Parallel 1.7A, Series 850mA	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
