| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
14A-56-512PWR XFMR LAMINATED 56VA TH |
3,441 | 18.48 |
RFQ |
Datasheet |
Bulk | One-4-All™ | Active | Laminated Core | 115V, 230V | 5V, ±12V | 3A, 300mA | Dual | Dual | Yes | 56VA | Through Hole | PC Pin | 76.20mm L x 63.50mm W | 46.00mm | 4000Vrms |
|

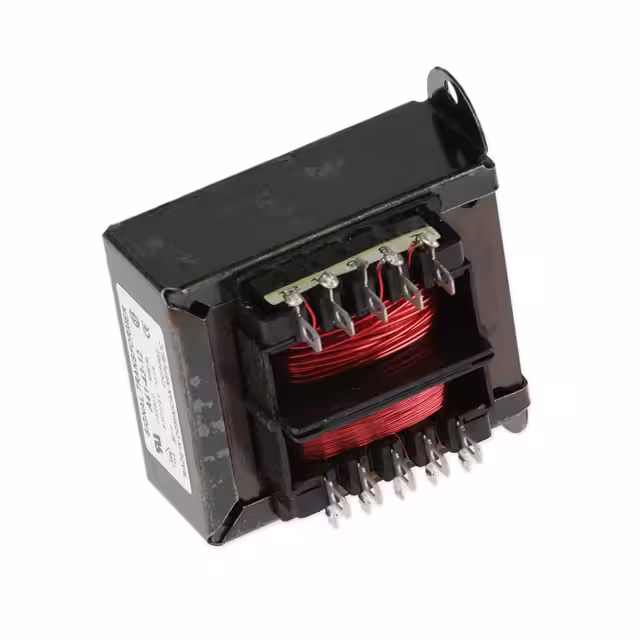

A41-43-515PWR XFMR LAMINATED 43VA CHAS MT |
3,080 | 18.91 |
RFQ |
Datasheet |
Bulk | All-4-One™ | Active | Laminated Core | 115V, 230V | Parallel 5V, Series 15V | Parallel 2A, Series 250mA | Dual | Dual | Yes | 43VA | Chassis Mount | Solder, Quick Connect | 79.40mm L x 54.40mm W | 68.20mm | 4000Vrms |
|
LP-12-3800PWR XFMR SEMI-TORO 48VA TH |
3,907 | 24.74 |
RFQ |
Datasheet |
Bulk | LP | Active | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 7.6A, Series 3.8A | Dual | Dual | No | 48VA | Through Hole | PC Pin | 79.20mm L x 63.50mm W | 34.90mm | 1500Vrms |
|
IF-14-10PWR XFMR SEMI-TORO 14VA TH |
2,517 | 18.99 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 2.8A, Series 1.4A | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms |
|
|
IF-14-12PWR XFMR SEMI-TORO 14VA TH |
2,629 | 18.99 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 6V, Series 12V | Parallel 2.4A, Series 1.2A | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms |
|
|
IF-14-16PWR XFMR SEMI-TORO 14VA TH |
3,590 | 18.99 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 8V, Series 16V | Parallel 1.75A, Series 875mA | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms |
|
|
IF-14-20PWR XFMR SEMI-TORO 14VA TH |
2,066 | 18.99 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.4A, Series 700mA | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms |
|
|
IF-14-230PWR XFMR SEMI-TORO 14VA TH |
3,561 | 18.99 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 120mA, Series 60mA | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms |
|
|
IF-14-34PWR XFMR SEMI-TORO 14VA TH |
3,605 | 18.99 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 17V, Series 34V | Parallel 830mA, Series 415mA | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms |
|
|
IF-14-40PWR XFMR SEMI-TORO 14VA TH |
3,343 | 18.99 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 700mA, Series 350mA | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms |
|
|
IF-14-56PWR XFMR SEMI-TORO 14VA TH |
3,900 | 18.99 |
RFQ |
Datasheet |
Bulk | IF | Active | Semi-Toroidal | 115V, 230V | Parallel 28V, Series 56V | Parallel 500mA, Series 250mA | Dual | Dual | No | 14VA | Through Hole | PC Pin | 67.60mm L x 57.00mm W | 24.30mm | 4000Vrms |
|
DMT-7-12PWR XFMR LAMINATED 7VA CHAS MT |
3,472 | 19.02 |
RFQ |
Datasheet |
Bulk | DMT | Active | Laminated Core | 115V, 230V | 5V, 12V | 2.8A, 350mA | Dual | Dual | Yes | 7VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
DMT-7-15PWR XFMR LAMINATED 7VA CHAS MT |
3,660 | 19.02 |
RFQ |
Datasheet |
Bulk | DMT | Active | Laminated Core | 115V, 230V | 5V, 15V | 2.8A, 280mA | Dual | Dual | Yes | 7VA | Chassis Mount | Solder, Quick Connect | 93.70mm L x 49.20mm W | 57.80mm | 2500Vrms |
|
20-900-LPIPWR XFMR SEMI-TORO 18VA TH |
2,325 | 19.24 |
RFQ |
Datasheet |
Box | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 10V, Series 20V | Parallel 1.8A, Series 900mA | Dual | Dual | No | 18VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 30.00mm | 4000Vrms |
|
|
24-750-LPIPWR XFMR SEMI-TORO 18VA TH |
3,822 | 19.47 |
RFQ |
Datasheet |
Box | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 12V, Series 24V | Parallel 1.5A, Series 750mA | Dual | Dual | No | 18VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 30.00mm | 4000Vrms |
|
|
30-600-LPIPWR XFMR SEMI-TORO 18VA TH |
3,292 | 19.47 |
RFQ |
Datasheet |
Box | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 15V, Series 30V | Parallel 1.2A, Series 600mA | Dual | Dual | No | 18VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 30.00mm | 4000Vrms |
|
|
10-1800-LPIPWR XFMR SEMI-TORO 18VA TH |
2,996 | 19.49 |
RFQ |
Datasheet |
Box | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 5V, Series 10V | Parallel 3.6A, Series 1.8A | Dual | Dual | No | 18VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 30.00mm | 4000Vrms |
|
|
12-1500-LPIPWR XFMR SEMI-TORO 18VA TH |
3,106 | 19.49 |
RFQ |
Datasheet |
Box | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 3A, Series 1.5A | Dual | Dual | No | 18VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 30.00mm | 4000Vrms |
|
|
230-75-LPIPWR XFMR SEMI-TORO 18VA TH |
3,444 | 20.29 |
RFQ |
Datasheet |
Bulk | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 115V, Series 230V | Parallel 150mA, Series 75mA | Dual | Dual | No | 18VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 30.00mm | 4000Vrms |
|
|
40-450-LPIPWR XFMR SEMI-TORO 18VA TH |
3,305 | 26.80 |
RFQ |
Datasheet |
Box | LPI | Active | Semi-Toroidal | 115V, 230V | Parallel 20V, Series 40V | Parallel 900mA, Series 450mA | Dual | Dual | No | 18VA | Through Hole | PC Pin | 66.80mm L x 55.60mm W | 30.00mm | 4000Vrms |
