Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
DPC-28-800 PWR XFMR LAMINATED 24VA TH Signal Transformer	3,561	18.60	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 1.6A, Series 800mA	Dual	Dual	No	24VA	Through Hole	PC Pin	41.30mm L x 57.20mm W	34.93mm	1500Vrms
14A-30-515 PWR XFMR LAMINATED 30VA TH Signal Transformer	543	19.08	RFQ	Datasheet	Bulk	One-4-All™	Active	Laminated Core	115V, 230V	5V, ±15V	1.25A, 200mA	Dual	Dual	Yes	30VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	39.70mm	4000Vrms

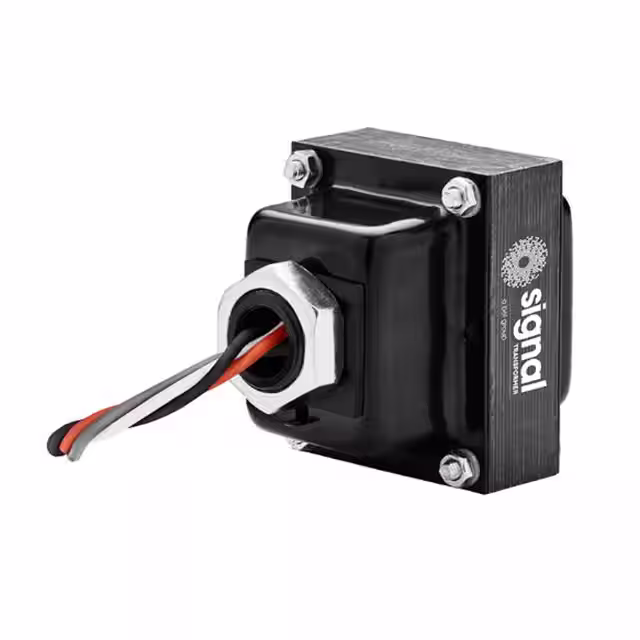

LT120-50-12 TRANSF LED LIGHTING 120V TO 12V Signal Transformer	115	19.25	RFQ	Datasheet	Box	LT	Active	Laminated Core	120V	12V	-	Single	Single	No	50VA	Chassis Mount	Wire Leads	78.7mm L x 66mm W	55.30mm	-
14A-20-515 PWR XFMR LAMINATED 20VA TH Signal Transformer	396	19.56	RFQ	Datasheet	Bulk	One-4-All™	Active	Laminated Core	115V, 230V	5V, ±15V	750mA, 175mA	Dual	Dual	Yes	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.30mm	4000Vrms
14A-20-512 PWR XFMR LAMINATED 20VA TH Signal Transformer	548	19.56	RFQ	Datasheet	Bulk	One-4-All™	Active	Laminated Core	115V, 230V	5V, ±12V	750mA, 200mA	Dual	Dual	Yes	20VA	Through Hole	PC Pin	57.20mm L x 47.60mm W	41.30mm	4000Vrms
LP-16-1500 PWR XFMR SEMI-TORO 24VA TH Signal Transformer	702	19.60	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 8V, Series 16V	Parallel 3A, Series 1.5A	Dual	Dual	No	24VA	Through Hole	PC Pin	72.90mm L x 57.20mm W	31.80mm	1500Vrms
LP-40-600 PWR XFMR SEMI-TORO 24VA TH Signal Transformer	2,667	19.60	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 1.2A, Series 600mA	Dual	Dual	No	24VA	Through Hole	PC Pin	72.90mm L x 57.20mm W	31.80mm	1500Vrms
A41-25-230 PWR XFMR LAMINATED 25VA CHAS MT Signal Transformer	171	19.99	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 220mA, Series 110mA	Dual	Dual	No	25VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 54.40mm W	58.70mm	4000Vrms

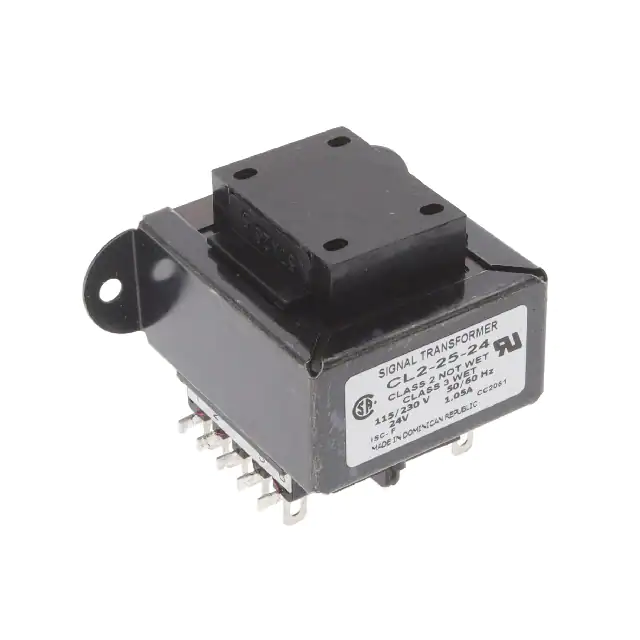

CL2-25-24 PWR XFMR LAMINATED 25VA CHAS MT Signal Transformer	382	20.36	RFQ	Datasheet	Bulk	CL2	Active	Laminated Core	115V, 230V	24V	1.05A	Dual	Single	No	25VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 54.40mm W	58.70mm	4000Vrms
14A-30-20 PWR XFMR LAMINATED 30VA TH Signal Transformer	487	20.60	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 3A, Series 1.5A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	39.70mm	4000Vrms
14A-30-16 PWR XFMR LAMINATED 30VA TH Signal Transformer	311	20.60	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 3.8A, Series 1.9A	Dual	Dual	No	30VA	Through Hole	PC Pin	66.70mm L x 55.50mm W	39.70mm	4000Vrms
A41-43-36 PWR XFMR LAMINATED 43VA CHAS MT Signal Transformer	368	21.52	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	43VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 54.40mm W	68.20mm	4000Vrms
241-7-24 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	316	21.67	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	24V	2.4A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
241-7-16 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	2,110	21.67	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	16V	3.5A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
241-7-28 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	121	21.67	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	28V	2A	Single	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
14A-56-36 PWR XFMR LAMINATED 56VA TH Signal Transformer	513	21.76	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 3.12A, Series 1.56A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.00mm	4000Vrms
14A-56-28 PWR XFMR LAMINATED 56VA TH Signal Transformer	331	21.76	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 4A, Series 2A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.00mm	4000Vrms
DP-241-7-24 PWR XFMR LAMINATED 56VA CHAS MT Signal Transformer	261	21.82	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	24V	2.4A	Dual	Single	Yes	56VA	Chassis Mount	Solder, Quick Connect	93.70mm L x 49.20mm W	57.80mm	2500Vrms
LP-40-1200 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	529	23.32	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 20V, Series 40V	Parallel 2.4A, Series 1.2A	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
LP-24-2000 PWR XFMR SEMI-TORO 48VA TH Signal Transformer	3,084	23.32	RFQ	Datasheet	Bulk	LP	Active	Semi-Toroidal	115V, 230V	Parallel 12V, Series 24V	Parallel 4A, Series 2A	Dual	Dual	No	48VA	Through Hole	PC Pin	79.20mm L x 63.50mm W	34.90mm	1500Vrms
