Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
241-8-28 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	548	28.72	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	28V	3.6A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
241-8-24 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	374	28.72	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	24V	4A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
241-8-12 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	140	28.72	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V	12.6V	8A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-20 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	219	29.44	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	20V	5A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-28 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	168	29.44	RFQ	Datasheet	Box	Two-4-One™	Active	Laminated Core	115V, 230V	28V	3.6A	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms
DP-241-8-120 PWR XFMR LAMINATED 100VA CHAS MT Signal Transformer	157	29.44	RFQ	Datasheet	Bulk	Two-4-One™	Active	Laminated Core	115V, 230V	120V	850mA	Dual	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect	102.40mm L x 58.50mm W	67.70mm	2500Vrms

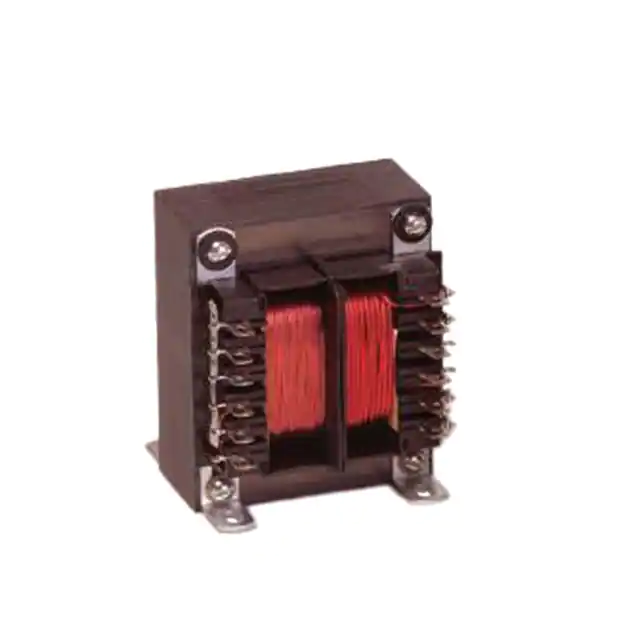

A41-80-36 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	809	30.35	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 4.4A, Series 2.2A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms
A41-80-230 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	270	30.35	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 700mA, Series 350mA	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms

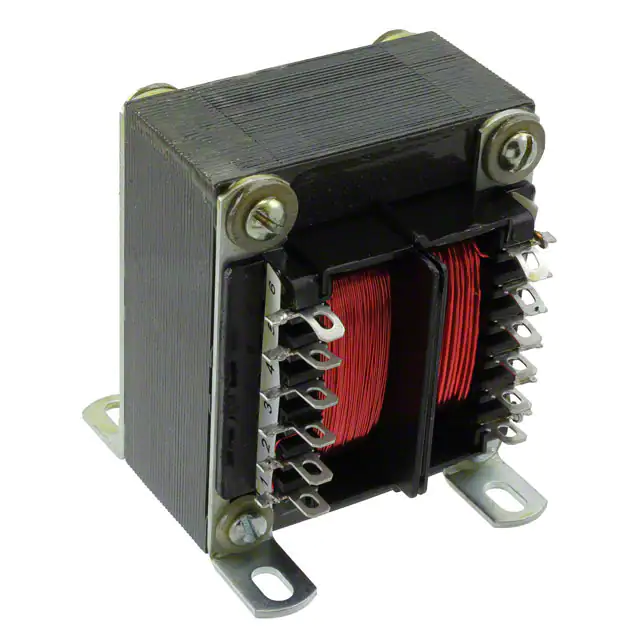

CL2-80-24 PWR XFMR LAMINATED 80VA CHAS MT Signal Transformer	594	30.54	RFQ	Datasheet	Bulk	CL2	Active	Laminated Core	115V, 230V	24V	3.33A	Dual	Single	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 64.30mm W	76.20mm	4000Vrms
A41-175-230 PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	176	40.92	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 1.52A, Series 760mA	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 79.70mm W	95.30mm	4000Vrms
A41-175-36 PWR XFMR LAMINATED 175VA CHAS MT Signal Transformer	2,654	40.92	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 18V, Series 36V	Parallel 9.6A, Series 4.8A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.40mm L x 79.70mm W	95.30mm	4000Vrms
A41-130-28 PWR XFMR LAMINATED 130VA CHAS MT Signal Transformer	108	40.94	RFQ	Datasheet	Box	All-4-One™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 9.2A, Series 4.6A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.40mm L x 76.20mm W	85.70mm	4000Vrms
ST-2-10 PWR XFMR LAMINATED 1.1VA TH Signal Transformer	192	11.70	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 220mA, Series 110mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	24.60mm	2500Vrms

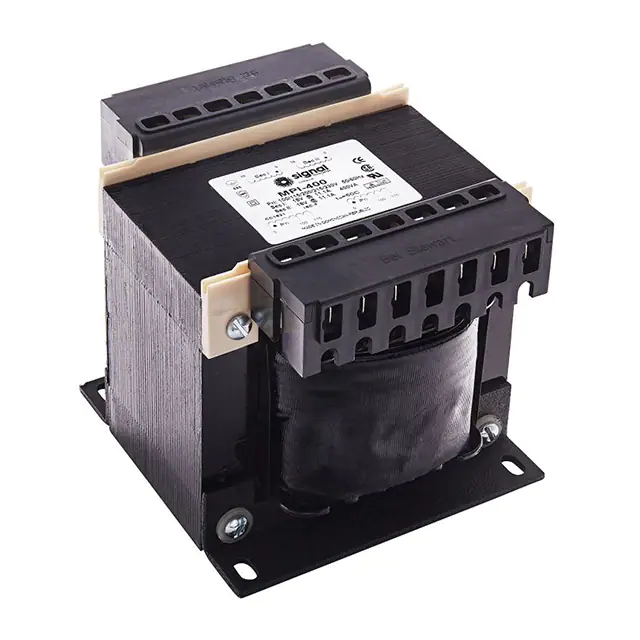

MPI-400-230 PWR XFMR LAMINATED 400VA CHAS MT Signal Transformer	3,838	171.59	RFQ	Datasheet	Bulk	MPI	Active	Laminated Core	100V, 115V, 200V, 215V, 230V	Parallel 115V, Series 230V	Parallel 3.4A, Series 1.7A	Dual, Multiple Taps	Dual	No	400VA	Chassis Mount	Terminal Block	104.80mm L x 128.10mm W	98.20mm	4000Vrms
ST-2-28 PWR XFMR LAMINATED 1.1VA TH Signal Transformer	366	10.50	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 80mA, Series 40mA	Single	Dual	No	1.1VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	24.60mm	2500Vrms
ST-3-16 PWR XFMR LAMINATED 2.4VA TH Signal Transformer	775	10.65	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 8V, Series 16V	Parallel 300mA, Series 150mA	Single	Dual	No	2.4VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.80mm	2500Vrms
ST-3-10 PWR XFMR LAMINATED 2.4VA TH Signal Transformer	373	10.65	RFQ	Datasheet	Bulk	ST	Active	Laminated Core	115V	Parallel 5V, Series 10V	Parallel 500mA, Series 250mA	Single	Dual	No	2.4VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.80mm	2500Vrms
DPC-24-50 PWR XFMR LAMINATED 1.2VA TH Signal Transformer	100	11.50	RFQ	Datasheet	Box	DPC	Active	Laminated Core	115V, 230V	Parallel 12V, Series 24V	Parallel 100mA, Series 50mA	Dual	Dual	No	1.2VA	Through Hole	PC Pin	34.90mm L x 28.60mm W	30.15mm	1500Vrms
ST-4-28 PWR XFMR LAMINATED 6VA TH Signal Transformer	461	11.64	RFQ	Datasheet	Box	ST	Active	Laminated Core	115V	Parallel 14V, Series 28V	Parallel 400mA, Series 200mA	Single	Dual	No	6VA	Through Hole	PC Pin	41.30mm L x 33.30mm W	33.30mm	2500Vrms
14A-2.5R-28 PWR XFMR LAMINATED 2.5VA TH Signal Transformer	296	11.70	RFQ	Datasheet	Box	One-4-All™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 180mA, Series 90mA	Dual	Dual	No	2.5VA	Through Hole	PC Pin	41.30mm L x 36.50mm W	28.60mm	4000Vrms
