Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation
VPP28-2000 PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,365	21.69	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 4A, Series 2A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
VPP12-4400 PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,167	21.69	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 8.8A, Series 4.4A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms

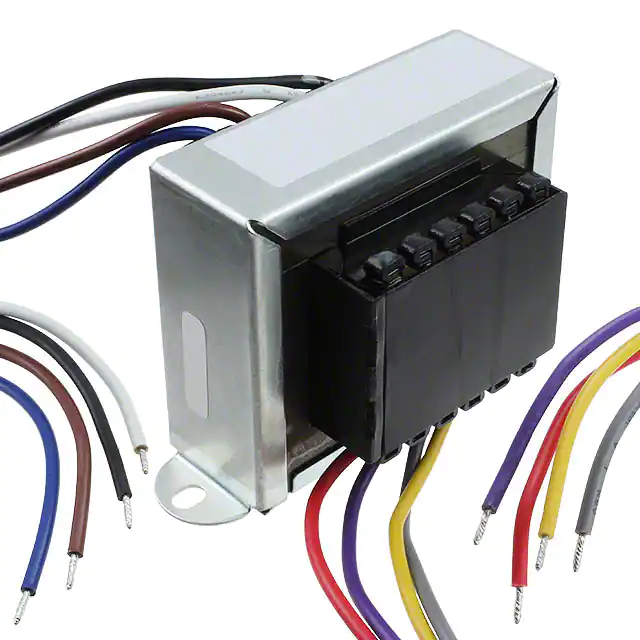

VPL24-2000 PWR XFMR LAMINATED 50.0VA CHAS Triad Magnetics	2,960	21.70	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	24V	2.083A	Dual	Dual	No	50.0VA	Chassis Mount	Wire Leads	57.15mm L x 101.6mm W	65.09mm	3500Vrms
VPP10-5600 PWR XFMR LAMINATED 56VA TH Triad Magnetics	3,431	21.69	RFQ	Datasheet	Box	PC Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 11.2A, Series 5.6A	Dual	Dual	No	56VA	Through Hole	PC Pin	76.20mm L x 63.50mm W	46.02mm	4000Vrms
F-56X PWR XFMR LAMINATED 71VA CHAS MT Triad Magnetics	2,529	23.04	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	25.2V	2.8A	Single	Single	Yes	71VA	Chassis Mount	Wire Leads	101.60mm L x 63.50mm W	65.15mm	1500Vrms

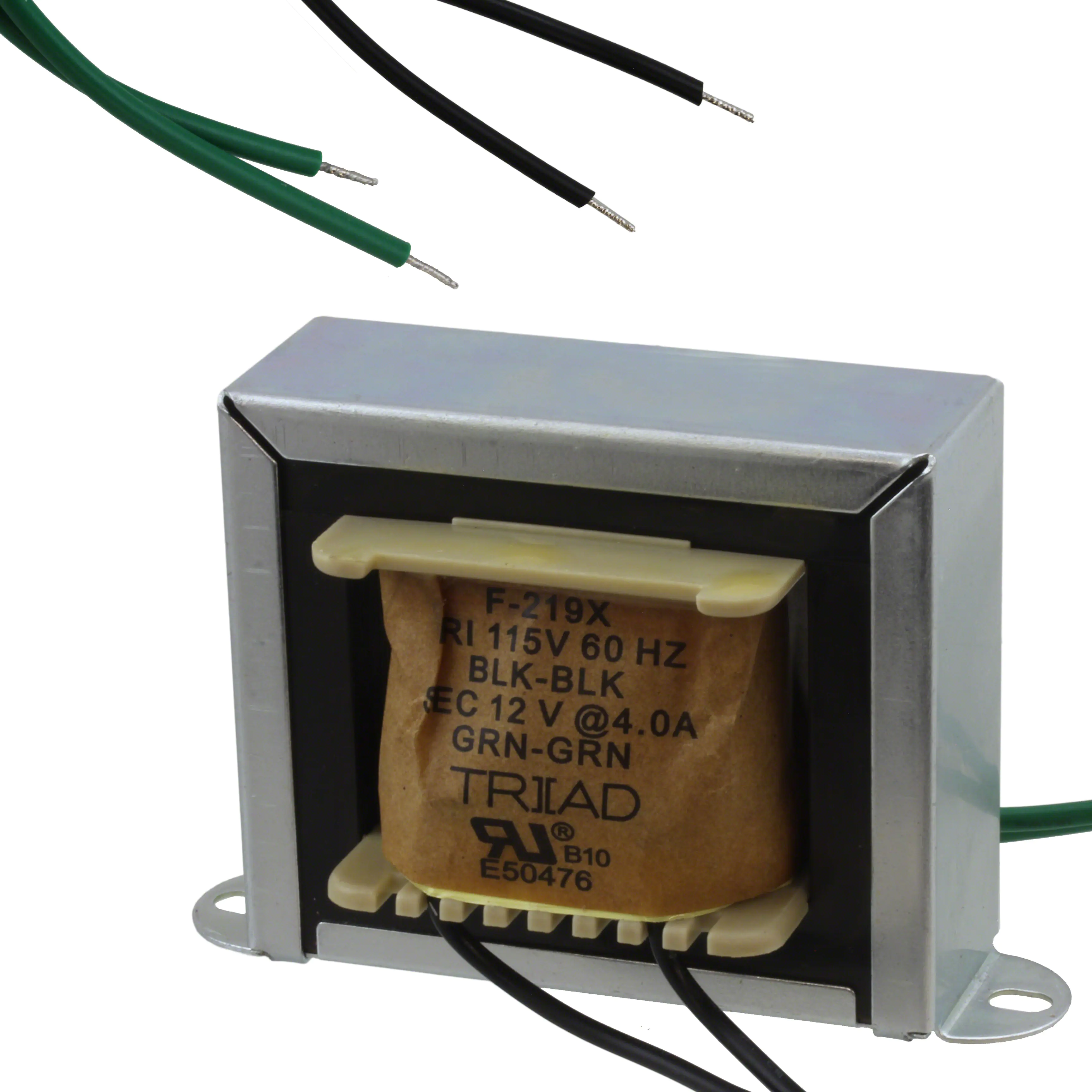

F-219X PWR XFMR LAMINATED 48VA CHAS MT Triad Magnetics	2,582	23.04	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	12V	4A	Single	Single	No	48VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.07mm	1500Vrms

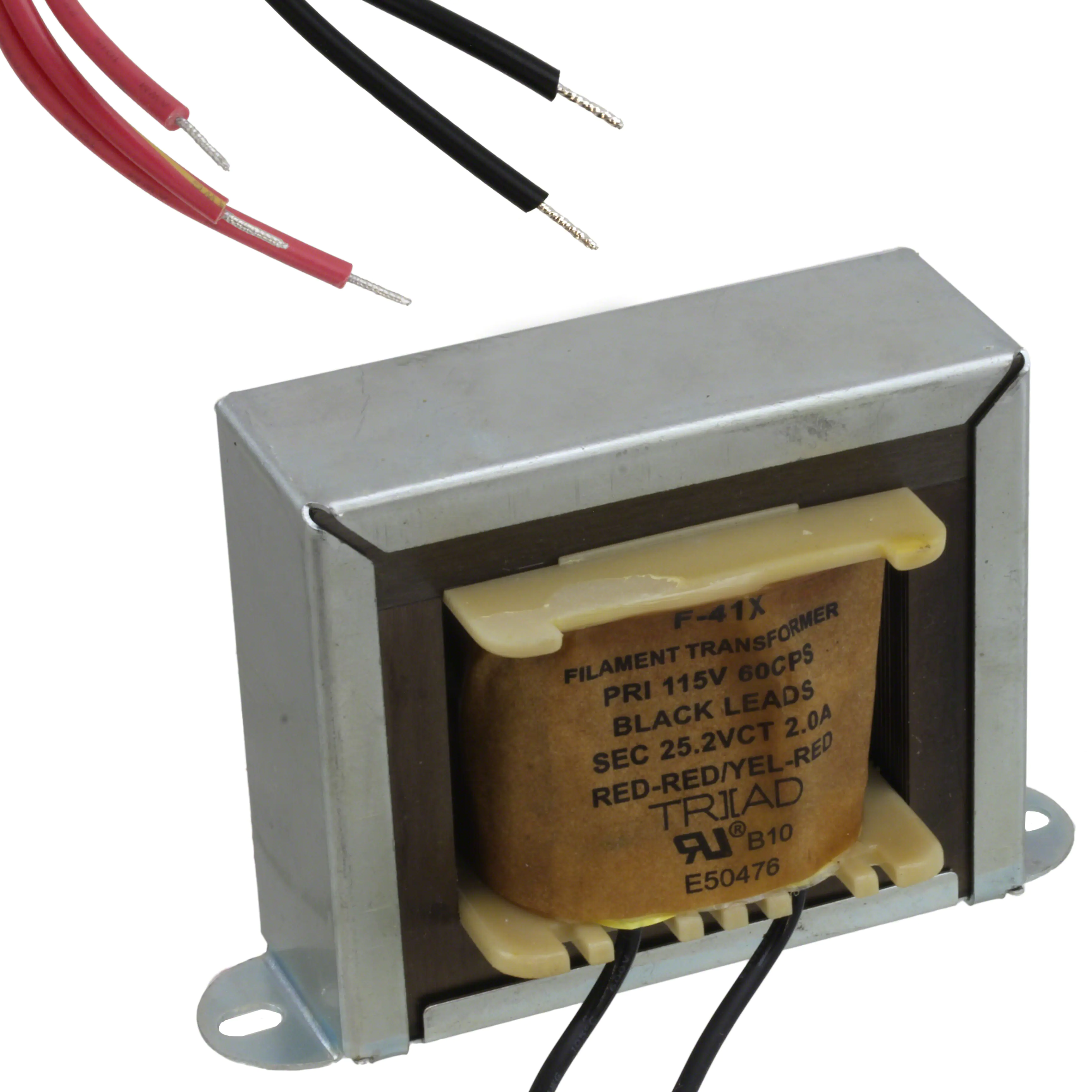

F-41X PWR XFMR LAMINATED 50.4VA CHAS Triad Magnetics	3,154	23.04	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	25.2V	2A	Single	Single	Yes	50.4VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms

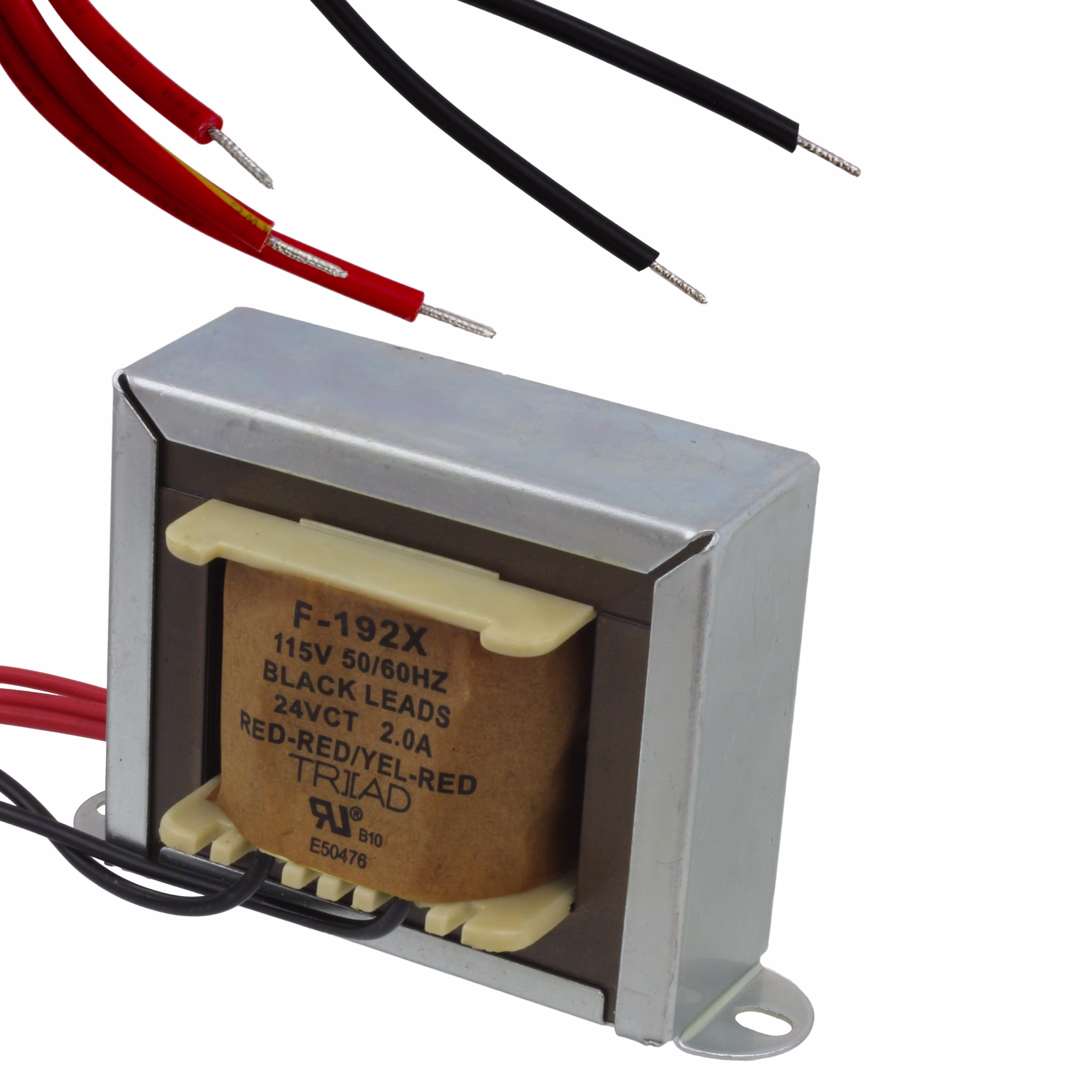

F-192X PWR XFMR LAMINATED 48VA CHAS MT Triad Magnetics	2,264	23.04	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	24V	2A	Single	Single	Yes	48VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms
F-18X PWR XFMR LAMINATED 37.8VA CHAS Triad Magnetics	2,923	23.04	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	6.3V	6A	Single	Single	Yes	37.8VA	Chassis Mount	Wire Leads	101.60mm L x 57.15mm W	65.86mm	1500Vrms

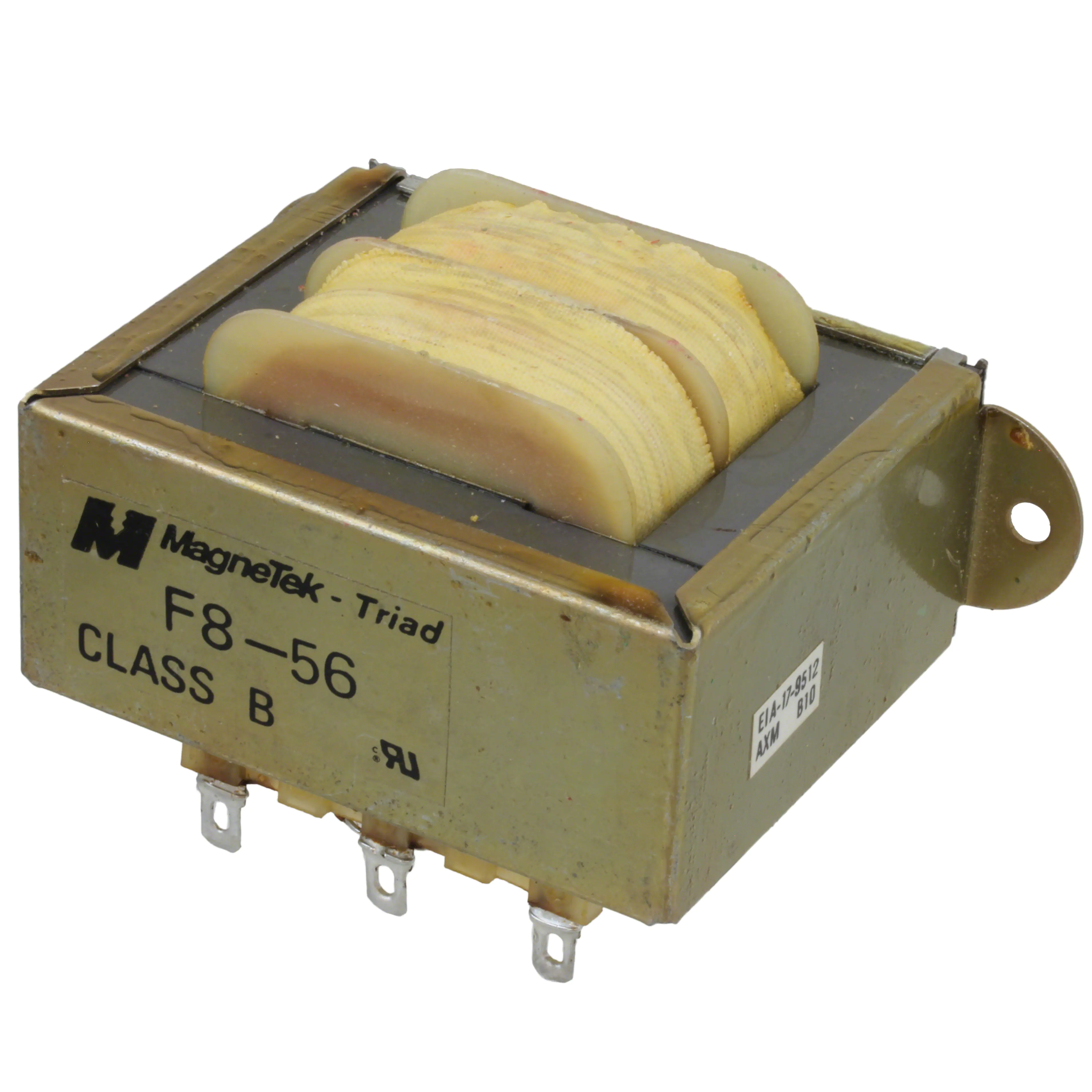

F8-56 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,709	26.32	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	56V	1.8A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC

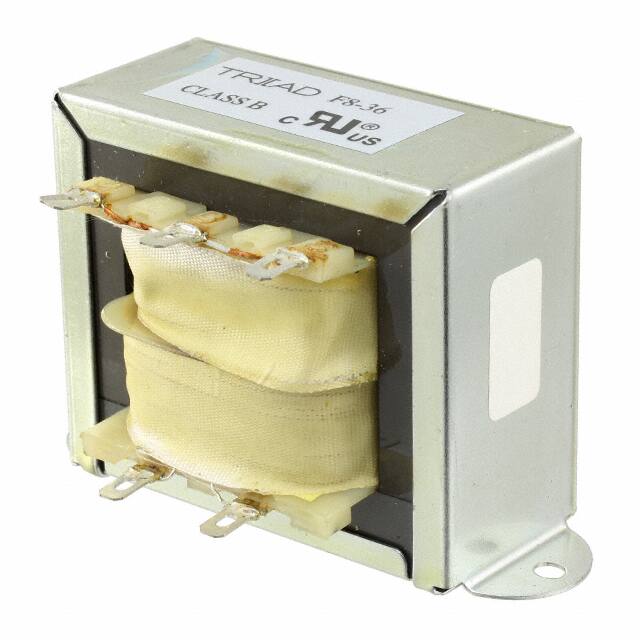

F8-36 PWR XFMR LAMINATED 100VA CHAS MT Triad Magnetics	2,975	26.32	RFQ	Datasheet	Box	Quick Pack	Active	Laminated Core	115V	36V	2.8A	Single	Single	Yes	100VA	Chassis Mount	Solder, Quick Connect - 0.187 (4.7mm)	102.39mm L x 57.15mm W	65.07mm	2500VAC
VPS230-350 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,844	26.54	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 115V, Series 230V	Parallel 700mA, Series 350mA	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS16-5000 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,236	26.54	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 10A, Series 5A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS12-6300 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,511	26.28	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 12.6A, Series 6.3A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms
VPS28-2800 PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	3,643	26.54	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 5.6A, Series 2.8A	Dual	Dual	No	80VA	Chassis Mount	Solder, Quick Connect	63.50mm L x 58.67mm W	76.20mm	4000Vrms

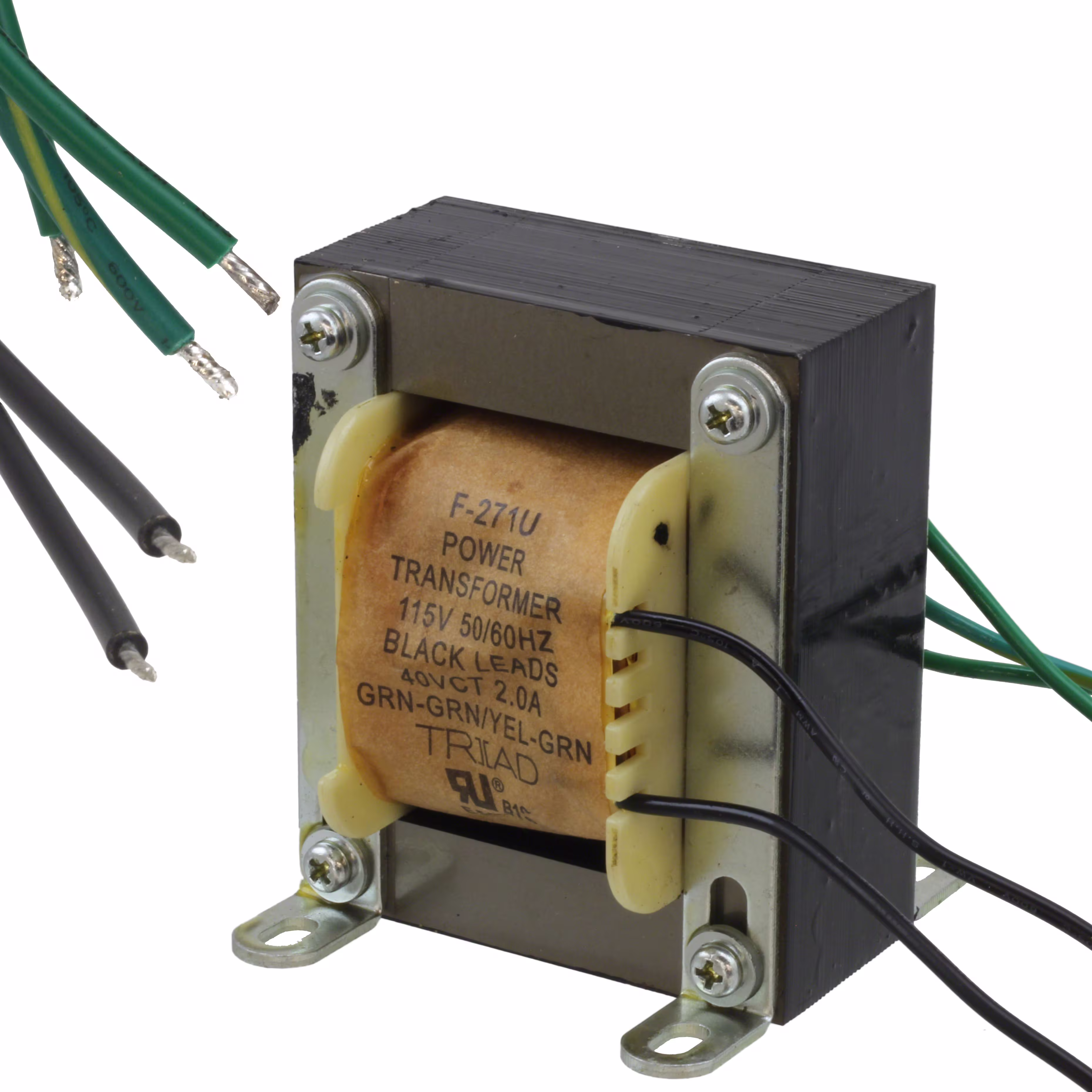

F-271U PWR XFMR LAMINATED 80VA CHAS MT Triad Magnetics	2,002	30.48	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	40V	2A	Single	Single	Yes	80VA	Chassis Mount	Wire Leads	71.42mm L x 73.02mm W	85.73mm	1500Vrms

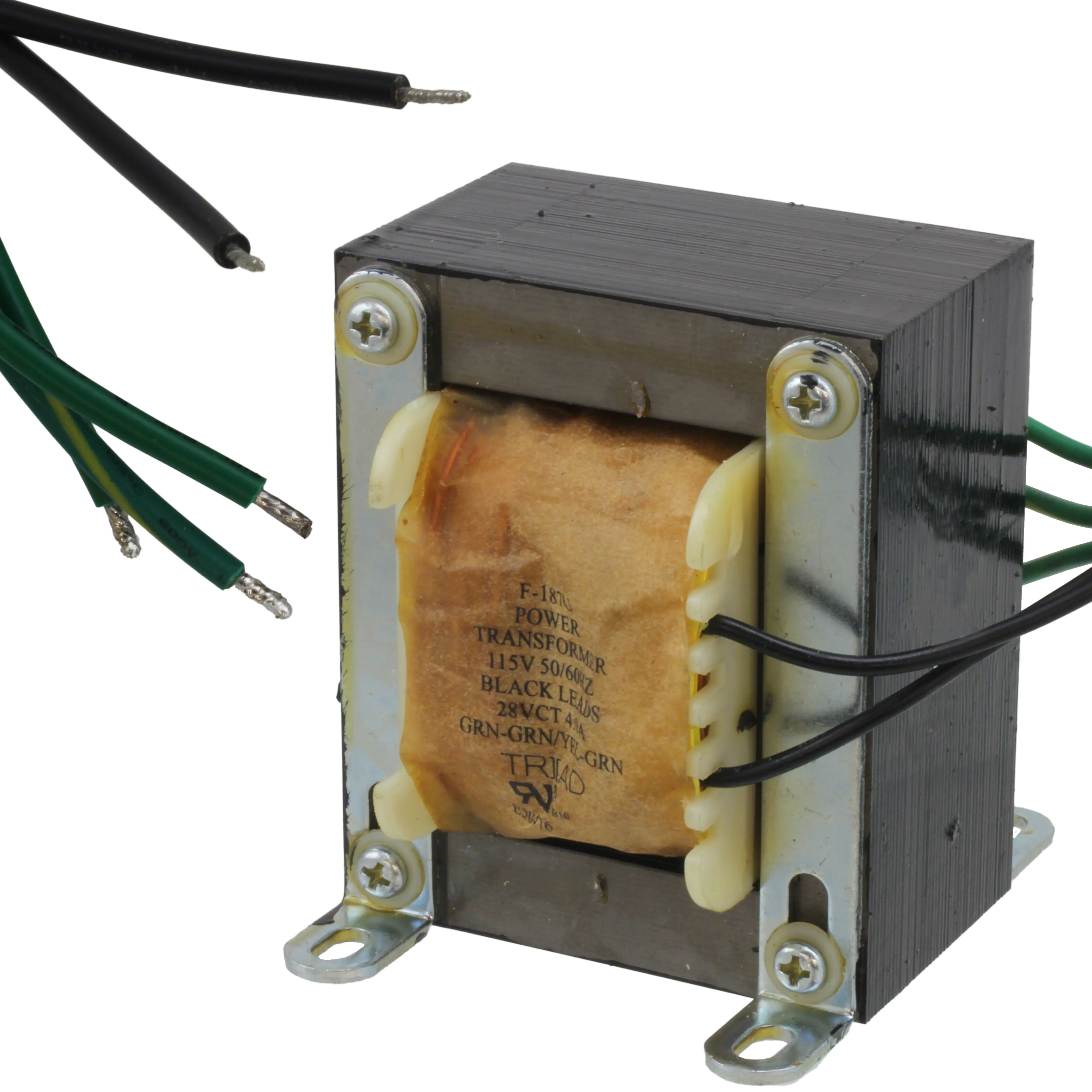

F-187U PWR XFMR LAMINATED 112VA CHAS MT Triad Magnetics	3,235	30.48	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	28V	4A	Single	Single	Yes	112VA	Chassis Mount	Wire Leads	77.77mm L x 71.42mm W	85.73mm	1500Vrms
VPS28-4600 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	3,956	35.71	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 9.2A, Series 4.6A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 68.33mm W	85.85mm	4000Vrms
VPS16-8100 PWR XFMR LAMINATED 130VA CHAS MT Triad Magnetics	2,431	35.71	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 8V, Series 16V	Parallel 16.2A, Series 8.1A	Dual	Dual	No	130VA	Chassis Mount	Solder, Quick Connect	71.37mm L x 68.33mm W	85.85mm	4000Vrms

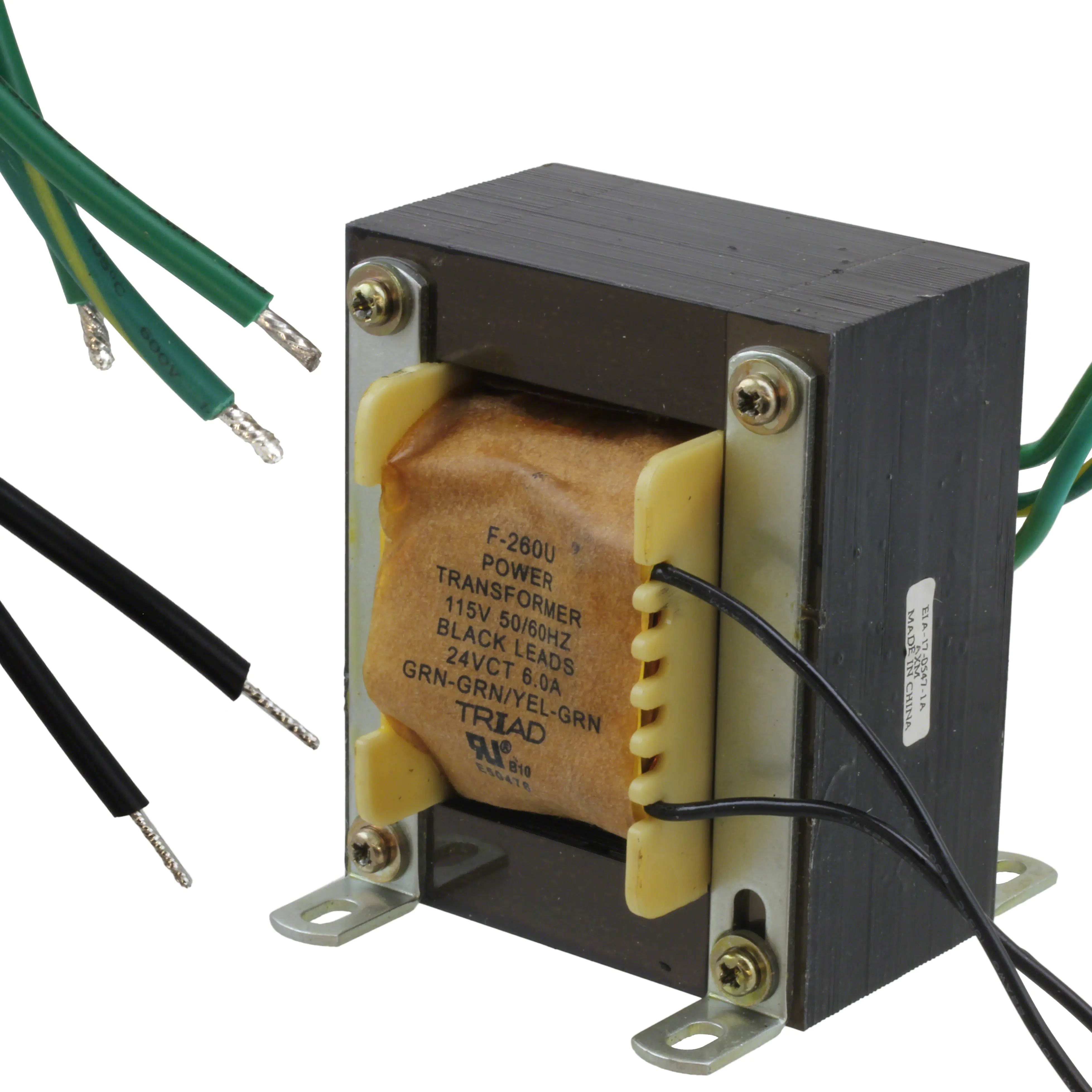

F-260U PWR XFMR LAMINATED 144VA CHAS MT Triad Magnetics	2,569	37.86	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	24V	6A	Single	Single	Yes	144VA	Chassis Mount	Wire Leads	79.38mm L x 88.90mm W	95.25mm	1500Vrms
