Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	Voltage-Primary	Voltage-Secondary(FullLoad)	Current-Output(Max)	PrimaryWinding(s)	SecondaryWinding(s)	CenterTap	Power-Max	MountingType	TerminationStyle	Size/Dimension	Height-Seated(Max)	Voltage-Isolation

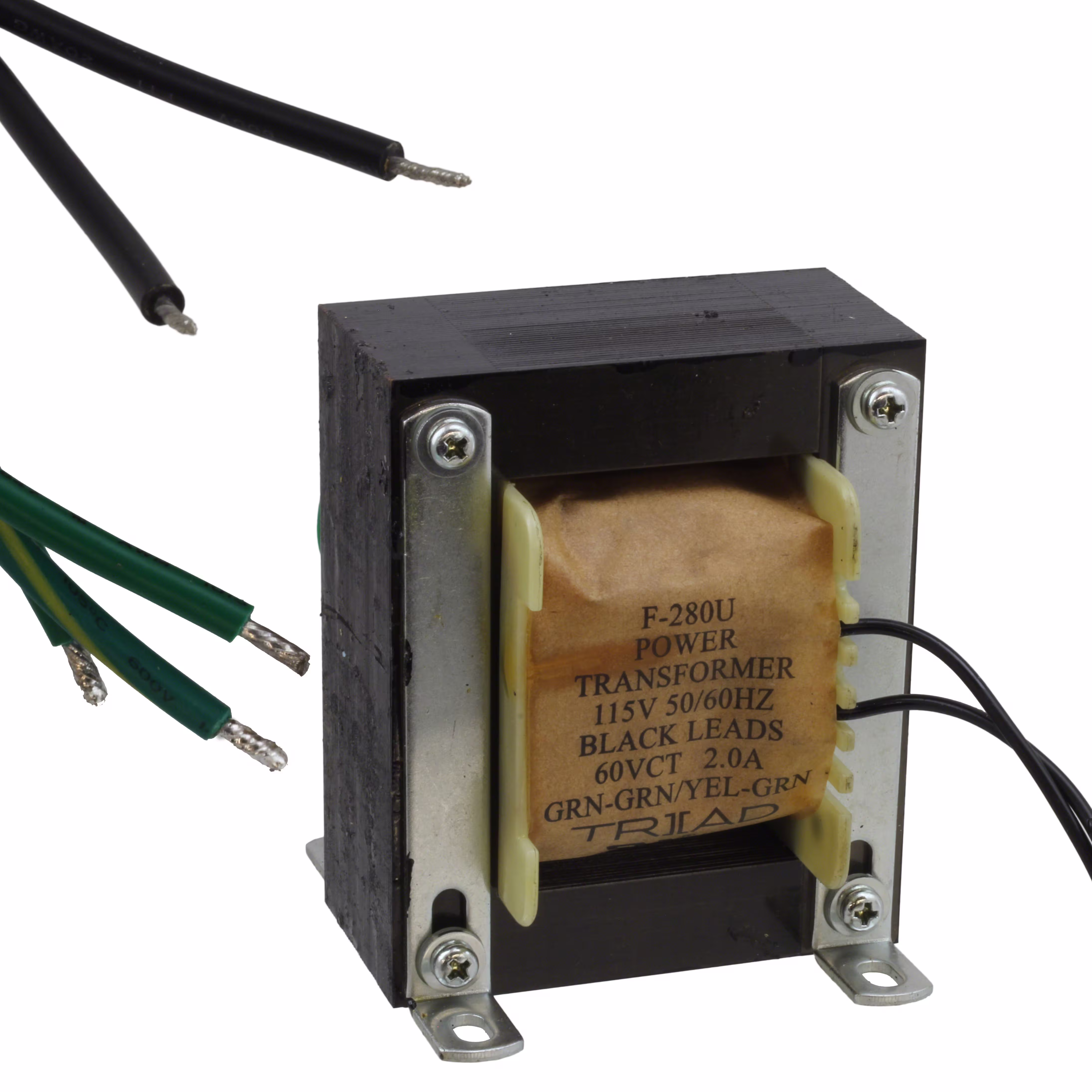

F-280U PWR XFMR LAMINATED 120VA CHAS MT Triad Magnetics	3,310	37.86	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	60V	2A	Single	Single	Yes	120VA	Chassis Mount	Wire Leads	85.73mm L x 79.38mm W	95.25mm	1500Vrms
VPM12-2080 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	2,031	39.04	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 6V, Series 12V	Parallel 4.16A, Series 2.08A	Dual, Multiple Taps	Dual	No	25VA	Chassis Mount	Wire Leads	84.00mm Dia	37.00mm	4000Vrms
VPM18-1390 PWR XFMR TORO 25VA CHAS MT Triad Magnetics	2,903	39.04	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 9V, Series 18V	Parallel 2.78A, Series 1.39A	Dual, Multiple Taps	Dual	No	25VA	Chassis Mount	Wire Leads	84.00mm Dia	37.00mm	4000Vrms

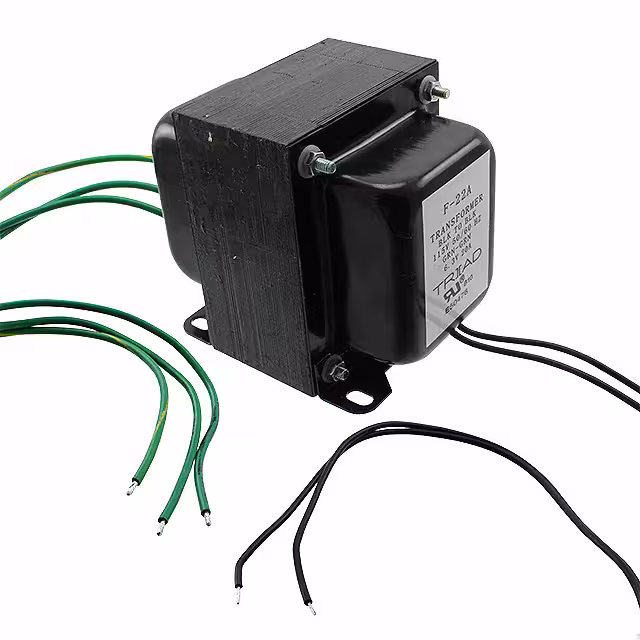

F-22A PWR XFMR LAMINATED 126VA CHAS MT Triad Magnetics	2,549	39.68	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	6.3V	20A	Single	Single	Yes	126VA	Chassis Mount	Wire Leads	83.33mm L x 104.77mm W	98.43mm	2000Vrms

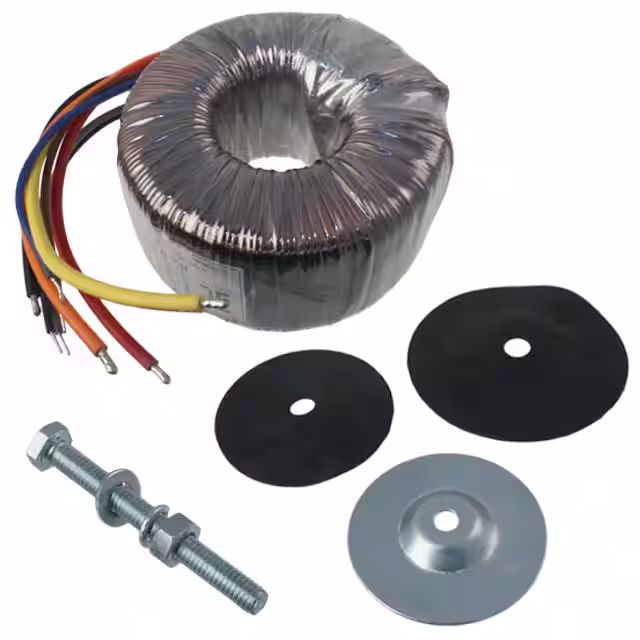

VPT12-8330 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	2,203	39.75	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 6V, Series 12V	Parallel 16.66A, Series 8.33A	Dual	Dual	No	100VA	Chassis Mount	Wire Leads	87.00mm Dia x 47.00mm W	51.0mm	4000Vrms

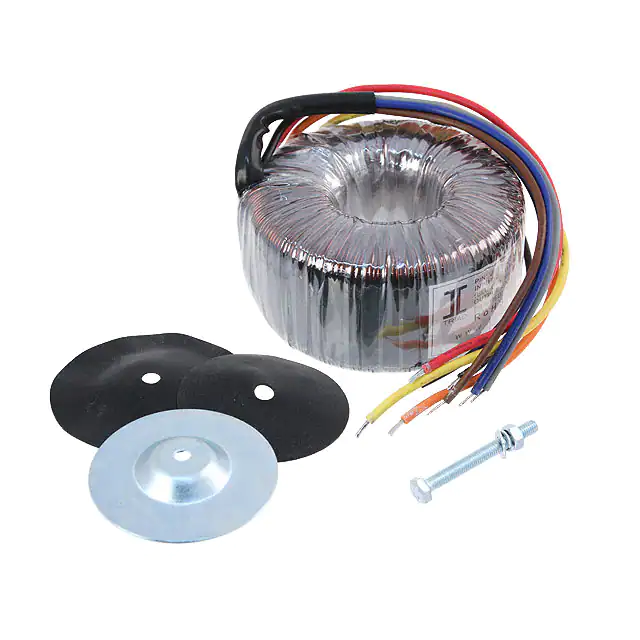

VPT30-3330 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	2,128	39.75	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 15V, Series 30V	Parallel 6.66A, Series 3.33A	Dual	Dual	No	100VA	Chassis Mount	Wire Leads	87.00mm Dia x 47.00mm W	51.0mm	4000Vrms

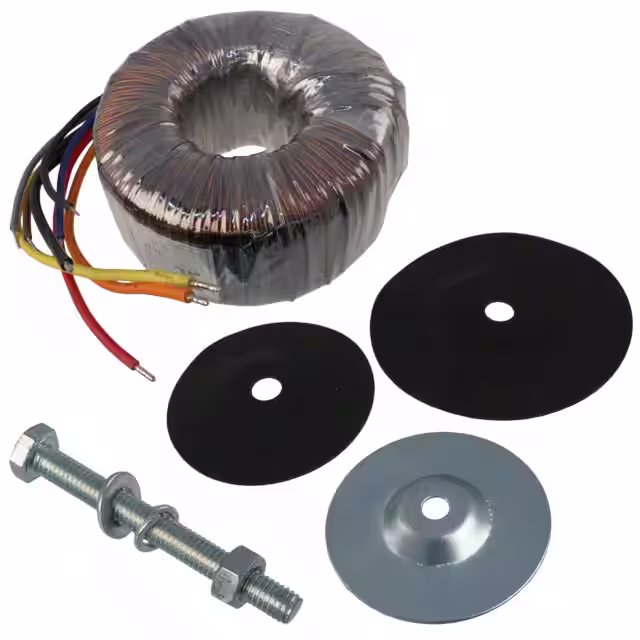

VPT18-5560 PWR XFMR TORO 100VA CHAS MT Triad Magnetics	3,143	39.75	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 11.12A, Series 5.56A	Dual	Dual	No	100VA	Chassis Mount	Wire Leads	87.00mm Dia x 47.00mm W	51.0mm	4000Vrms
VPS20-8800 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	2,900	40.47	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 10V, Series 20V	Parallel 17.6A, Series 8.8A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms
VPS12-14000 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	2,363	40.47	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 6.3V, Series 12.6V	Parallel 28A, Series 14A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms
F-214U PWR XFMR LAMINATED 96VA CHAS MT Triad Magnetics	2,350	40.26	RFQ	Datasheet	Box	Control Transformers	Active	Laminated Core	115V, 230V	Parallel 24V, Series 48V	Parallel 4A, Series 2A	Single	Dual	No	96VA	Chassis Mount	Solder Lug	80.95mm L x 71.42mm W	86.51mm	1500Vrms
VPS28-6250 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	2,271	40.47	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 14V, Series 28V	Parallel 12.5A, Series 6.25A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.50mm L x 71.37mm W	95.25mm	4000Vrms
VPS10-17500 PWR XFMR LAMINATED 175VA CHAS MT Triad Magnetics	3,085	40.47	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Laminated Core	115V, 230V	Parallel 5V, Series 10V	Parallel 35A, Series 17.5A	Dual	Dual	No	175VA	Chassis Mount	Solder, Quick Connect	79.38mm L x 71.37mm W	95.25mm	4000Vrms

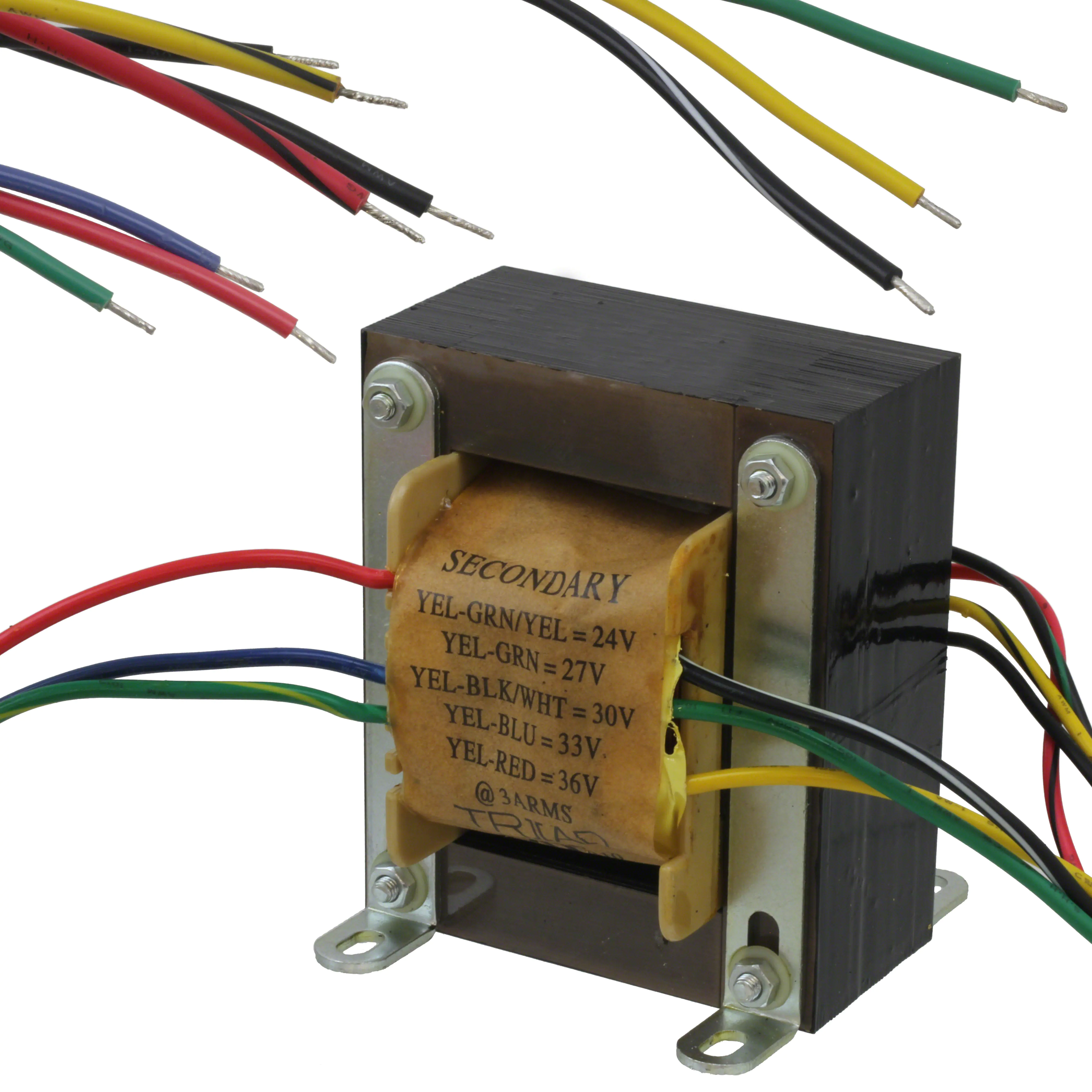

F-361U PWR XFMR LAMINATED 108VA CHAS MT Triad Magnetics	2,096	45.66	RFQ	Datasheet	Box	Universal	Active	Laminated Core	115V, 230V	24V, 27V, 30V, 33V, 36V	3A	Dual	Single, Multiple Taps	No	108VA	Chassis Mount	Wire Leads	79.38mm L x 82.55mm W	95.25mm	1500Vrms

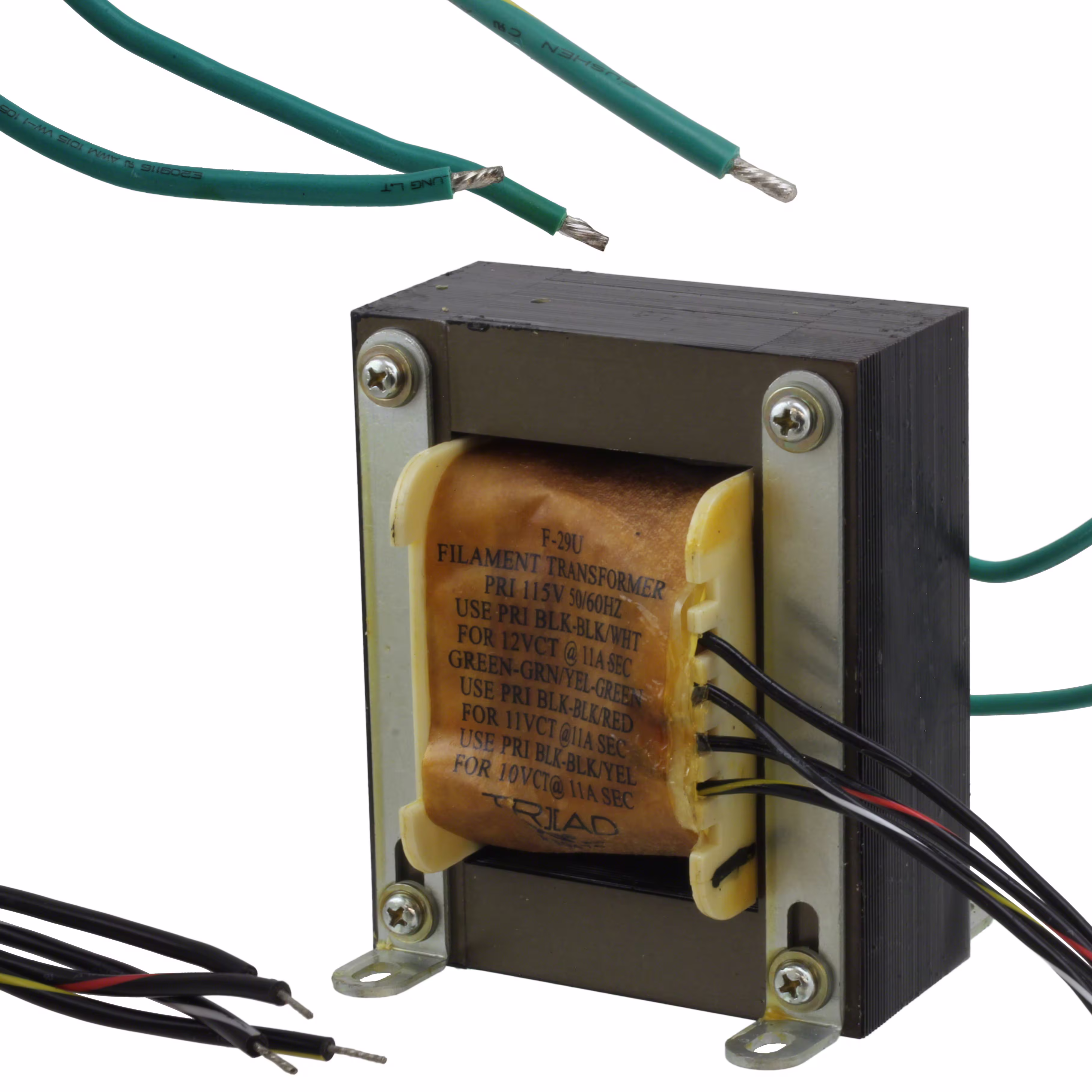

F-29U PWR XFMR LAMINATED 132VA CHAS MT Triad Magnetics	3,074	46.74	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	10V, 11V, 12V	11A	Single	Single	Yes	132VA	Chassis Mount	Wire Leads	88.90mm L x 85.73mm W	104.77mm	3000Vrms

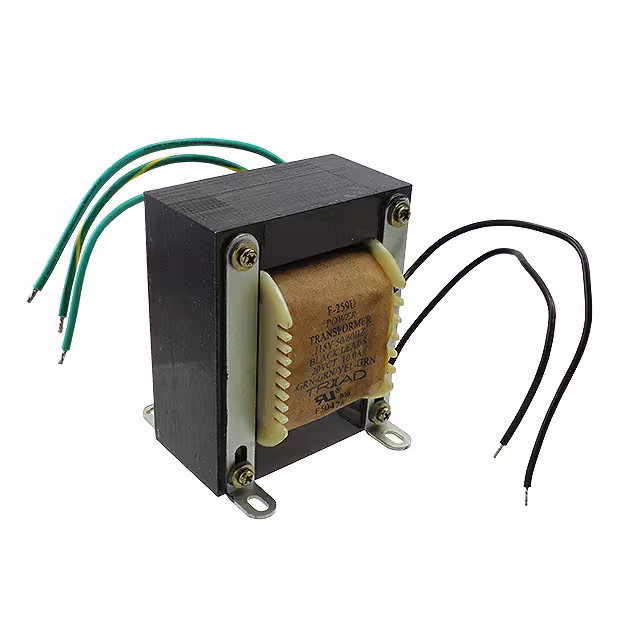

F-259U PWR XFMR LAMINATED 200VA CHAS MT Triad Magnetics	3,987	48.66	RFQ	Datasheet	Box	Single Secondary	Active	Laminated Core	115V	20V	10A	Single	Single	Yes	200VA	Chassis Mount	Wire Leads	87.30mm L x 88.90mm W	104.77mm	1500Vrms
VPM36-1390 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	2,577	49.81	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 18V, Series 36V	Parallel 2.78A, Series 1.39A	Dual, Multiple Taps	Dual	No	50VA	Chassis Mount	Wire Leads	92.00mm Dia	38.00mm	4000Vrms
VPM48-1040 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	3,290	49.81	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 24V, Series 48V	Parallel 2.08A, Series 1.04A	Dual, Multiple Taps	Dual	No	50VA	Chassis Mount	Wire Leads	92.00mm Dia	38.00mm	4000Vrms
VPM240-210 PWR XFMR TORO 50VA CHAS MT Triad Magnetics	3,536	49.81	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 120V, Series 240V	Parallel 420mA, Series 210mA	Dual, Multiple Taps	Dual	No	50VA	Chassis Mount	Wire Leads	92.00mm Dia	38.00mm	4000Vrms

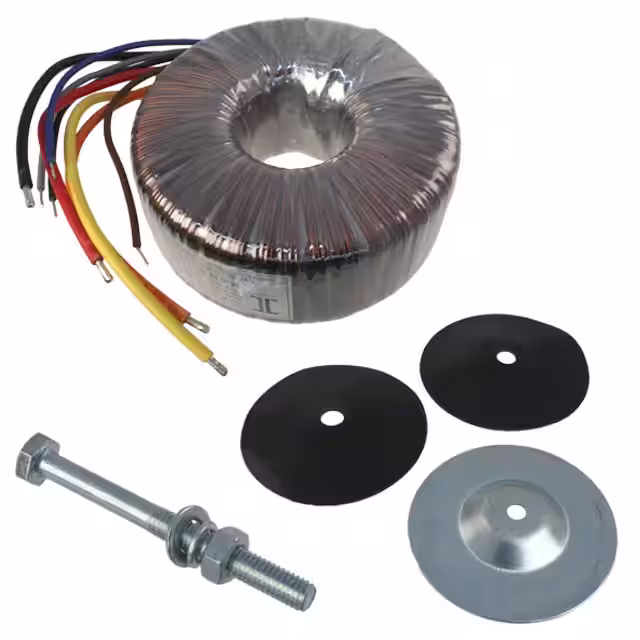

VPT18-8800 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2,032	51.28	RFQ	Datasheet	Box	Chassis Mount: World Series™	Active	Toroidal	115V, 230V	Parallel 9V, Series 18V	Parallel 17.6A, Series 8.8A	Dual	Dual	No	160VA	Chassis Mount	Wire Leads	103.00mm Dia x 48.00mm W	52.0mm	4000Vrms
VPM24-6670 PWR XFMR TORO 160VA CHAS MT Triad Magnetics	2,828	75.87	RFQ	Datasheet	Box	Toroidal Medical, VPM	Active	Toroidal	100V, 120V, 220V, 240V	Parallel 12V, Series 24V	Parallel 13.34A, Series 6.67A	Dual, Multiple Taps	Dual	No	160VA	Chassis Mount	Wire Leads	113.00mm Dia	52.00mm	4000Vrms
