| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
187C48PWR XFMR LAMINATED 12VA CHAS MT |
2,870 | 14.49 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 48V | 250mA | Single | Single | Yes | 12VA | Chassis Mount | Solder, Quick Connect | 71.37mm L x 43.82mm W | 41.15mm | 2000Vrms |
|
161GA12PWR XFMR LAMINATED 4.4VA TH |
2,223 | 14.62 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 6.3V, Series 12.6V | Parallel 700mA, Series 350mA | Single | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms |
|
|
187B36PWR XFMR LAMINATED 6.12VA CHAS |
2,271 | 14.62 |
RFQ |
Datasheet |
Box | 187 | Active | Laminated Core | 115V | 36V | 170mA | Single | Single | Yes | 6.12VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
|
161FA20PWR XFMR LAMINATED 4.4VA TH |
2,394 | 14.62 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 10V, Series 20V | Parallel 440mA, Series 220mA | Single | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms |
|
161F24PWR XFMR LAMINATED 4.4VA TH |
2,647 | 14.62 |
RFQ |
Datasheet |
Bulk | 161 | Active | Laminated Core | 115V | Parallel 12V, Series 24V | Parallel 360mA, Series 180mA | Single | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms |
|
|
160G12PWR XFMR LAMINATED 10VA TH |
3,245 | 14.95 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 700mA, Series 350mA | Dual | Single, Multiple Taps | No | 10VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms |
|
|
160F120PWR XFMR LAMINATED 4.4VA TH |
2,947 | 14.95 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 60V, Series 120V | Parallel 70mA, Series 35mA | Dual | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms |
|
|
160F16PWR XFMR LAMINATED 4.4VA TH |
2,694 | 14.95 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 8V, Series 16V | Parallel 520mA, Series 260mA | Dual | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms |
|
|
160F24PWR XFMR LAMINATED 4.4VA TH |
2,550 | 14.95 |
RFQ |
Datasheet |
Bulk | 160 | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 360mA, Series 180mA | Dual | Single, Multiple Taps | No | 4.4VA | Through Hole | PC Pin | 42.93mm L x 31.75mm W | 36.83mm | 2000Vrms |
|
|
186B120PWR XFMR LAMINATED 6VA CHAS MT |
2,019 | 15.29 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 120V | 50mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
|
186B56PWR XFMR LAMINATED 6.16VA CHAS |
2,755 | 15.29 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 56V | 110mA | Dual | Single | Yes | 6.16VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
|
186B48PWR XFMR LAMINATED 6VA CHAS MT |
3,882 | 15.29 |
RFQ |
Datasheet |
Box | 186 | Active | Laminated Core | 115V, 230V | 48V | 120mA | Dual | Single | Yes | 6VA | Chassis Mount | Solder, Quick Connect | 60.20mm L x 41.28mm W | 34.80mm | 2000Vrms |
|
166E18XFRMR LAMINATED 5.4VA CHAS MOUNT |
2,774 | 15.58 |
RFQ |
Datasheet |
Box | 166 | Active | Laminated Core | 115V | 18V | 300mA | Single | Single | Yes | 5.4VA | Chassis Mount | Wire Leads | 60.45mm L x 38.10mm W | 35.05mm | 2000Vrms |
|
229E88XFRMR SEMI-TORO 2VA THRU HOLE |
2,814 | 15.73 |
RFQ |
Datasheet |
Bulk | 229 | Active | Semi-Toroidal | 115V, 230V | Parallel 44V, Series 88V | Parallel 56mA, Series 28mA | Dual | Dual | No | 2VA | Through Hole | PC Pin | 39.62mm L x 47.75mm W | 16.51mm | 1750Vrms |
|
162E36XFRMR LAMINATED 2.4VA THRU HOLE |
3,707 | 15.80 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 18V, Series 36V | Parallel 130mA, Series 65mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
|
162E12XFRMR LAMINATED 2.4VA THRU HOLE |
2,502 | 15.80 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 6.3V, Series 12.6V | Parallel 400mA, Series 200mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|
|
162E24XFRMR LAMINATED 2.4VA THRU HOLE |
2,539 | 15.80 |
RFQ |
Datasheet |
Bulk | 162 | Active | Laminated Core | 115V, 230V | Parallel 12V, Series 24V | Parallel 200mA, Series 100mA | Dual | Dual | No | 2.4VA | Through Hole | PC Pin | 34.93mm L x 28.58mm W | 30.15mm | 2500Vrms |
|

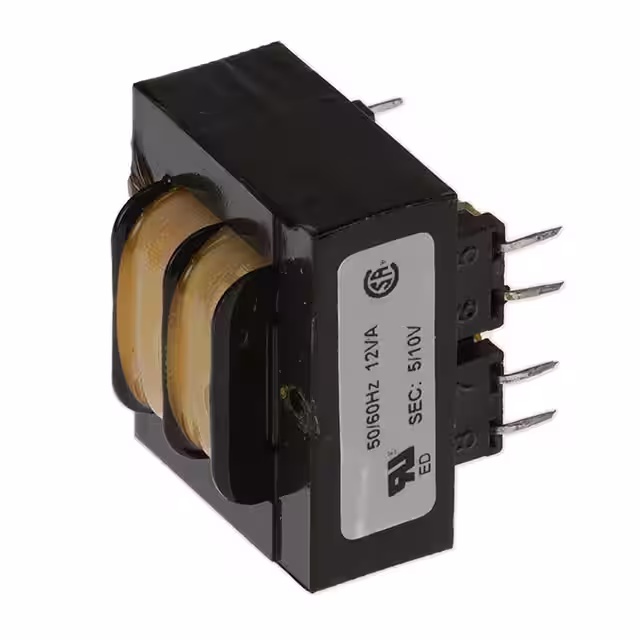

164G10PWR XFMR LAMINATED 12VA TH |
2,656 | 15.82 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 5V, Series 10V | Parallel 2.4A, Series 1.2A | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
|
164G16PWR XFMR LAMINATED 12VA TH |
2,799 | 15.82 |
RFQ |
Datasheet |
Bulk | 164 | Active | Laminated Core | 115V | Parallel 8V, Series 16V | Parallel 1.6A, Series 800mA | Single | Dual | No | 12VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 38.10mm | 2500Vrms |
|
183G28PWR XFMR LAMINATED 10VA TH |
2,599 | 15.93 |
RFQ |
Datasheet |
Bulk | 183 | Active | Laminated Core | 115V, 230V | Parallel 14V, Series 28V | Parallel 720mA, Series 360mA | Dual | Dual | No | 10VA | Through Hole | PC Pin | 47.63mm L x 39.67mm W | 34.93mm | 4000Vrms |
