| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | Type | Voltage-Primary | Voltage-Secondary(FullLoad) | Current-Output(Max) | PrimaryWinding(s) | SecondaryWinding(s) | CenterTap | Power-Max | MountingType | TerminationStyle | Size/Dimension | Height-Seated(Max) | Voltage-Isolation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
167L80PWR XFMR LAMINATED 160VA CHAS MT |
3,470 | 69.63 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 80V | 2A | Single | Single | Yes | 160VA | Chassis Mount | Wire Leads | 79.50mm L x 88.90mm W | 96.77mm | 2000Vrms |
|
165P30PWR XFMR LAMINATED 150VA CHAS MT |
2,640 | 70.16 |
RFQ |
Datasheet |
Bulk | 165 | Active | Laminated Core | 115V | 30V | 5A | Single | Single | Yes | 150VA | Chassis Mount | Wire Leads | 76.20mm L x 101.60mm W | 65.02mm | 2000Vrms |
|
270AXPWR XFMR LAMINATED 42VA CHAS MT |
2,790 | 71.40 |
RFQ |
Datasheet |
Bulk | 270 | Active | Laminated Core | 115V | 480V, 6.3V | 58mA, 2.5A | Single | Dual | Yes | 42VA | Chassis Mount | Wire Leads | 55.63mm L x 63.50mm W | 66.80mm | 2000Vrms |
|
165S12PWR XFMR LAMINATED 126VA CHAS MT |
3,658 | 71.60 |
RFQ |
Datasheet |
Bulk | 165 | Active | Laminated Core | 115V | 12.6V | 10A | Single | Single | Yes | 126VA | Chassis Mount | Wire Leads | 76.20mm L x 101.60mm W | 65.02mm | 2000Vrms |
|
|
167M60PWR XFMR LAMINATED 180VA CHAS MT |
3,690 | 72.17 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 60V | 3A | Single | Single | Yes | 180VA | Chassis Mount | Wire Leads | 79.50mm L x 95.25mm W | 96.77mm | 2000Vrms |
|
BF2FPWR XFMR LAMINATED 75VA CHAS MT |
3,337 | 73.22 |
RFQ |
Datasheet |
Bulk | BF | Active | Laminated Core | 120V | 16V | 4.68A | Single | Single | No | 75VA | Chassis Mount | Wire Leads | 76.20mm L x 63.50mm W | 95.25mm | - |
|
|
271XPWR XFMR LAMINATED 63VA CHAS MT |
2,032 | 73.81 |
RFQ |
Datasheet |
Bulk | 271 | Active | Laminated Core | 115V | 560V, 6.3V, 5V | 69mA, 2A, 2A | Single | Triple | Yes | 63VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms |
|
|
270XPWR XFMR LAMINATED 41VA CHAS MT |
3,787 | 73.89 |
RFQ |
Datasheet |
Bulk | 270 | Active | Laminated Core | 115V | 480V, 6.3V, 5V | 46mA, 1.5A, 2A | Single | Triple | Yes | 41VA | Chassis Mount | Wire Leads | 55.63mm L x 63.50mm W | 66.80mm | 2000Vrms |
|
266S6PWR XFMR LAMINATED 63VA CHAS MT |
2,650 | 74.28 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 3.15V, Series 6.3V | Parallel 20A, Series 10A | Dual | Dual | No | 63VA | Chassis Mount | Wire Leads | 101.60mm L x 62.74mm W | 66.55mm | 2000Vrms |
|
|
266M24PWR XFMR LAMINATED 72VA CHAS MT |
2,842 | 74.28 |
RFQ |
Datasheet |
Box | 266 | Active | Laminated Core | 117V, 234V | Parallel 12V, Series 24V | Parallel 6A, Series 3A | Dual | Dual | No | 72VA | Chassis Mount | Wire Leads | 102.36mm L x 63.50mm W | 66.80mm | 2000Vrms |
|

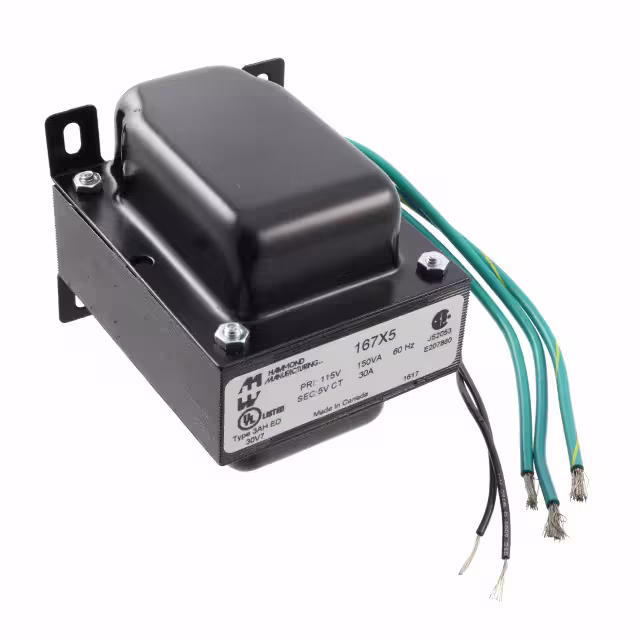

167X5PWR XFMR LAMINATED 150VA CHAS MT |
2,848 | 74.60 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 5V | 30A | Single | Single | Yes | 150VA | Chassis Mount | Wire Leads | 79.50mm L x 88.90mm W | 96.77mm | 2000Vrms |
|
1182N18PWR XFMR TORO 160VA CHAS MT |
3,242 | 75.13 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 18V, Series 36V | Parallel 8.88A, Series 4.44A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms |
|
|
1182H240PWR XFMR TORO 160VA CHAS MT |
3,715 | 75.13 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | 240V | 667mA | Dual | Single | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms |
|
|
1182Q12PWR XFMR TORO 160VA CHAS MT |
2,787 | 75.13 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 12V, Series 24V | Parallel 13.34A, Series 6.67A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms |
|
|
1182M30PWR XFMR TORO 160VA CHAS MT |
2,030 | 75.13 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 30V, Series 60V | Parallel 5.34A, Series 2.67A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms |
|
|
1182N22PWR XFMR TORO 160VA CHAS MT |
2,459 | 75.13 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 22V, Series 44V | Parallel 7.28A, Series 3.64A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms |
|
|
1182P15PWR XFMR TORO 160VA CHAS MT |
3,003 | 75.13 |
RFQ |
Datasheet |
Box | 1182 | Active | Toroidal | 117V | Parallel 15V, Series 30V | Parallel 10.66A, Series 5.33A | Dual | Dual | No | 160VA | Chassis Mount | Wire Leads | 110.49mm Dia | 44.45mm | 4000Vrms |
|
|
165U11PWR XFMR LAMINATED 165VA CHAS MT |
3,319 | 75.25 |
RFQ |
Datasheet |
Bulk | 165 | Active | Laminated Core | 115V | 11V | 15A | Single | Single | Yes | 165VA | Chassis Mount | Wire Leads | 95.25mm L x 82.55mm W | 79.50mm | 2000Vrms |
|
|
270BXPWR XFMR LAMINATED 53VA CHAS MT |
2,866 | 75.31 |
RFQ |
Datasheet |
Bulk | 270 | Active | Laminated Core | 115V | 550V, 6.3V, 5V | 57.5mA, 2A, 2A | Single | Triple | Yes | 53VA | Chassis Mount | Wire Leads | 63.50mm L x 69.85mm W | 77.72mm | 2000Vrms |
|
|
167V7PWR XFMR LAMINATED 157.5VA CHAS |
3,218 | 75.84 |
RFQ |
Datasheet |
Bulk | 167 | Active | Laminated Core | 115V | 7.5V | 21A | Single | Single | Yes | 157.5VA | Chassis Mount | Wire Leads | 79.50mm L x 88.90mm W | 96.77mm | 2000Vrms |
