| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

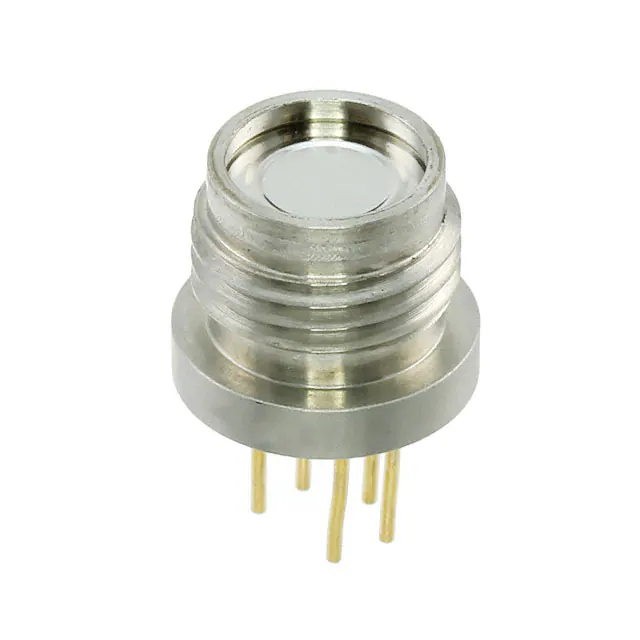

89-03KA-0USENSOR PRESSURE |
107 | 164.83 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Absolute | 3000PSI (20684.27kPa) | Wheatstone Bridge | 0 mV ~ 208 mV | ±0.25% | 9.5V | - | No Port | - | PC Pin | 9000PSI (62052.82kPa) | -40°C ~ 125°C |
|

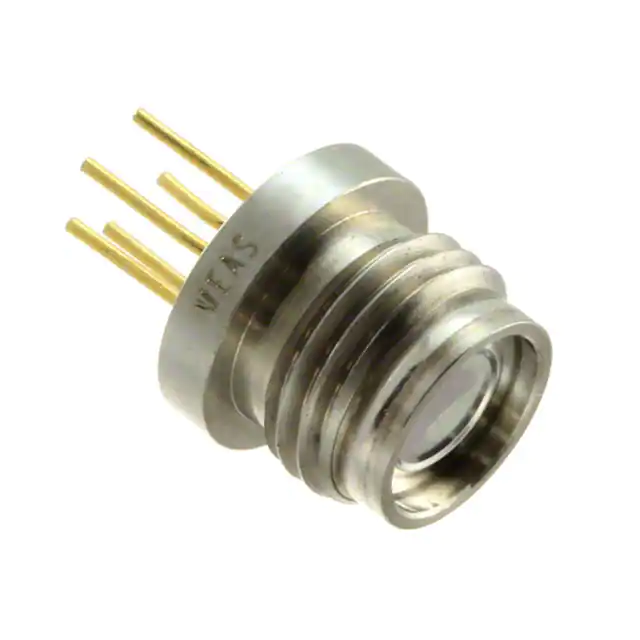

89-05KA-0USENSOR PRESSURE |
3,328 | 164.83 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Absolute | 5000PSI (34473.79kPa) | Wheatstone Bridge | 0 mV ~ 208 mV | ±0.25% | 9.5V | - | No Port | - | PC Pin | 15000PSI (103421.36kPa) | -40°C ~ 125°C |
|
MS583702BA06-50BAROMETRIC PRESSURE SENSOR |
4,936 | 9.27 |
RFQ |
Datasheet |
4-SMD Module | Tape & Reel (TR),Cut Tape (CT) | MS5837 | Active | Board Mount | Absolute | 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) | I²C | 24 b | ±0.007PSI (±0.05kPa) | 1.5V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 145.04PSI (1000kPa) | -20°C ~ 85°C |
|

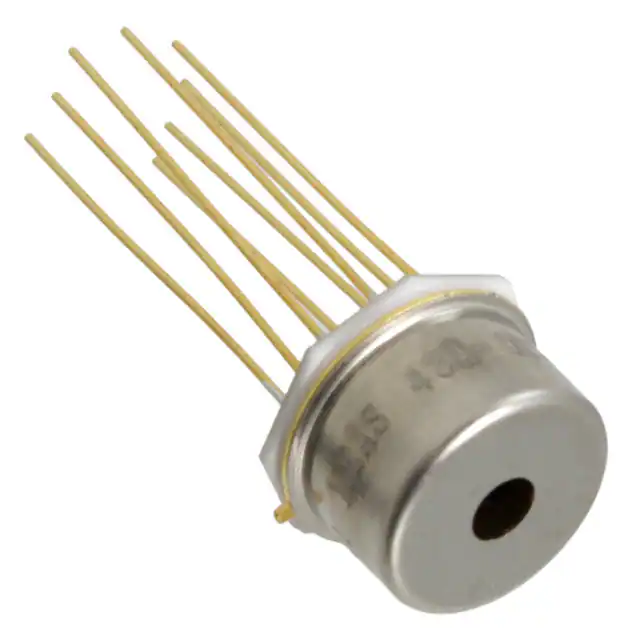

43A-015ASENSOR PRES 15PSIA 0-100MV TO-8 |
202 | 67.76 |
RFQ |
Datasheet |
TO-8 Style, 12 Leads | Bulk | - | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C |
|

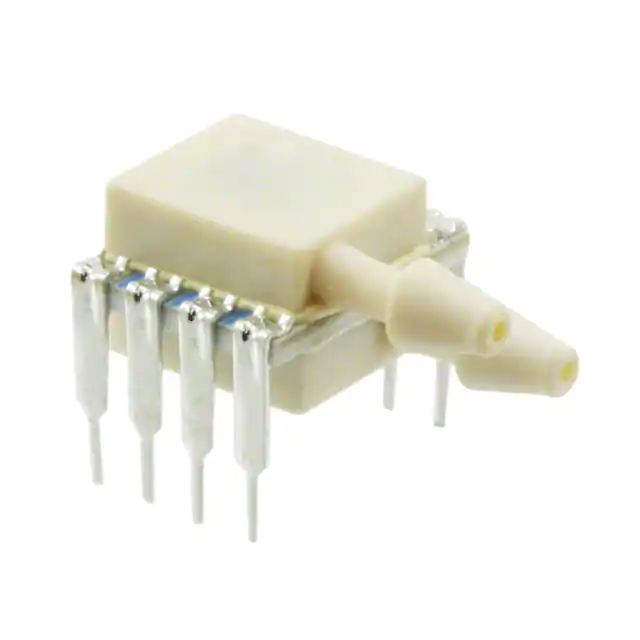

4525-DS5A001DPSENSOR DIFF PRESS 1PSI 8DIP PCB |
236 | 82.74 |
RFQ |
Datasheet |
8-DIP Module | Tray | MS4525 | Active | Board Mount | Differential | 1PSI (6.89kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Amplified Output, Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -25°C ~ 105°C |
|
4525-SS5A100GPSENSOR GAUGE PRESS 100PSI 8DIP |
220 | 82.74 |
RFQ |
Datasheet |
8-DIP Module | Tray | MS4525 | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 5V | Male - 0.14 (3.56mm) Tube | Barbed | Amplified Output, Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -25°C ~ 105°C |
|

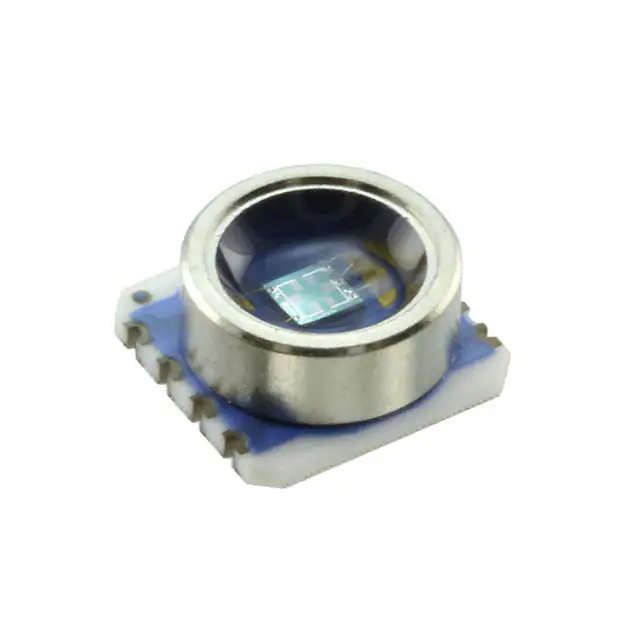

325412000-00SENSOR PRESURE |
289 | 22.29 |
RFQ |
Datasheet |
8-SMD Module | Tube | - | Active | Board Mount | Absolute | 174.05PSI (1200kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.15% | 20V | - | No Port | - | SMD (SMT) Tab | 435.11PSI (3000kPa) | -40°C ~ 125°C |
|

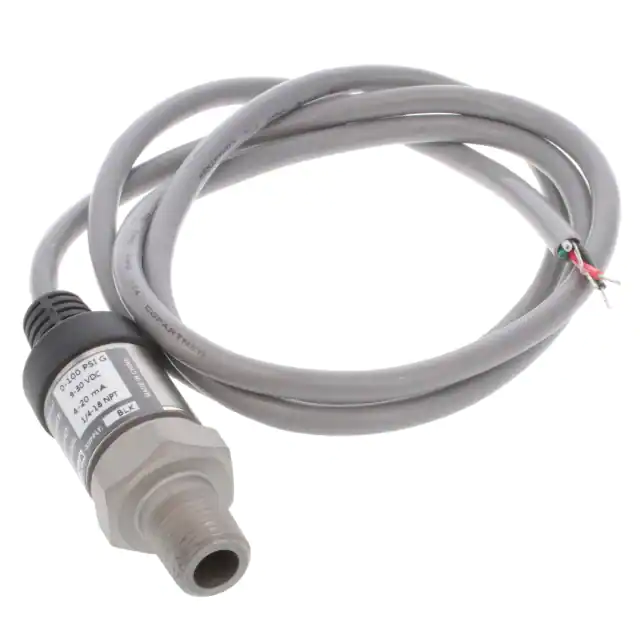

M325M-000005-100PGPRESS XDCR M325M-000005-100PG |
188 | 96.68 |
RFQ |
Datasheet |
Cylinder, Threaded | Box | M3200 | Active | - | Vented Gauge | 100PSI (689.48kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4 (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 200PSI (1378.95kPa) | -40°C ~ 125°C |
|

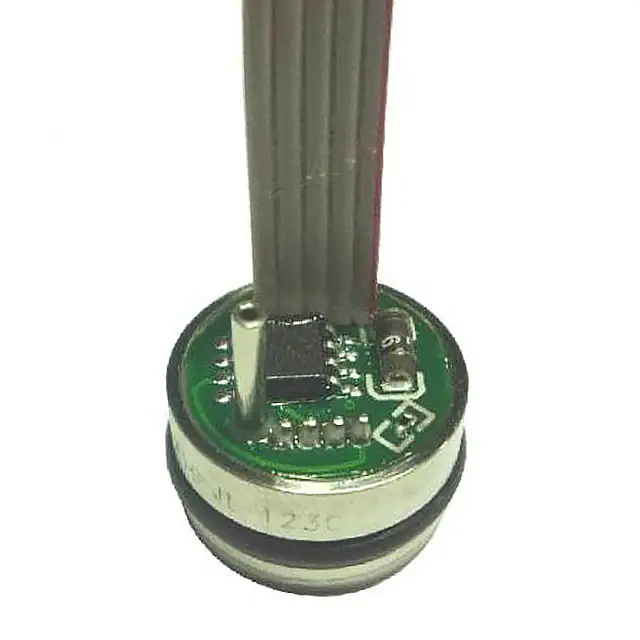

86BSD015PG-3AICSENSOR PRESSURE |
120 | 130.07 |
RFQ |
Datasheet |
Module | Tube | 86BSD | Active | Board Mount | Vented Gauge | 15PSI (103.42kPa) | I²C, SPI | 14 b | ±0.25% | 3.3V | - | No Port | Amplified Output, Temperature Compensated | Cable with Connector | 30PSI (206.84kPa) | -40°C ~ 125°C |
|

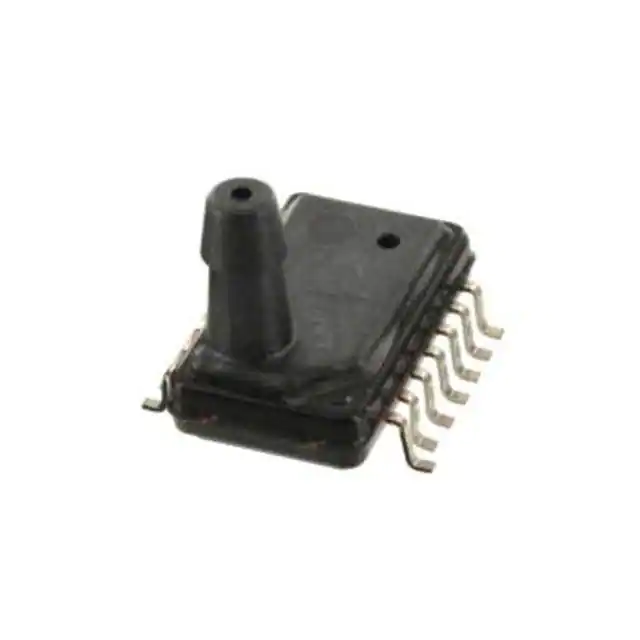

5525DSO-SB005GSSENSOR PRES 5PSI GAUGE SMD |
2,013 | 36.91 |
RFQ |
Datasheet |
14-SMD Module | Tube | MS5525DSO | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | I²C, SPI | 24 b | ±0.5% | 1.8V ~ 3.6V | Male - 0.12 (3mm) Tube | Barbed | Temperature Compensated | Gull Wing | 15PSI (103.42kPa) | -40°C ~ 125°C |
|
SM9235-BCE-S-300-002300PA DIFF. DIGITAL PRESSURE SEN |
225 | 49.00 |
RFQ |
Datasheet |
16-SOIC Module, Dual Top Ports | Box | SM9233 | Active | - | Gauge | 0 ~ 0.04PSI (0 ~ 0.3kPa) | I²C | 16 b | ±2.5% | 3V ~ 5.5V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 1.02PSI (7kPa) | -20°C ~ 85°C |
|
|
SM9236-BCE-S-600-000600PA DIFF. DIGITAL PRESSURE SEN |
223 | 49.00 |
RFQ |
Datasheet |
16-SOIC Module, Dual Top Ports | Box | SM9233 | Active | - | Gauge | 0 ~ 0.09PSI (0 ~ 0.6kPa) | I²C | 16 b | ±1.5% | 3V ~ 5.5V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 1.02PSI (7kPa) | -20°C ~ 85°C |
|
|
SM9233-BCE-S-250-000250PA DIFF. DIGITAL PRESSURE SEN |
206 | 49.00 |
RFQ |
Datasheet |
16-SOIC Module, Dual Top Ports | Box | SM9233 | Active | - | Gauge | 0 ~ 0.04PSI (0 ~ 0.25kPa) | I²C | 16 b | ±3% | 3V ~ 5.5V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 1.02PSI (7kPa) | -20°C ~ 85°C |
|

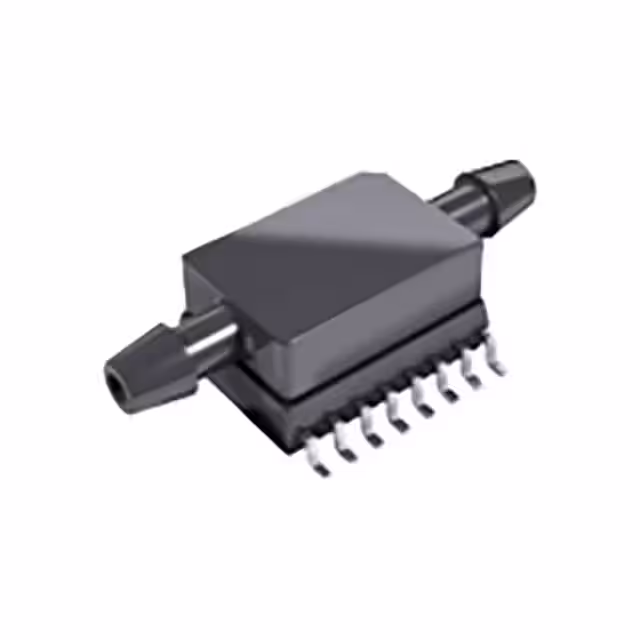

SM9235-BBE-S-300-000300PA DIFF. DIGITAL PRESSURE SEN |
2,329 | 49.00 |
RFQ |
Datasheet |
16-SOIC (0.295, 7.50mm Width) | Box | SM9233 | Active | - | Gauge | 0 ~ 0.04PSI (0 ~ 0.3kPa) | I²C | 16 b | ±2.5% | 3V ~ 5.5V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | - | 1.02PSI (7kPa) | -20°C ~ 85°C |
|

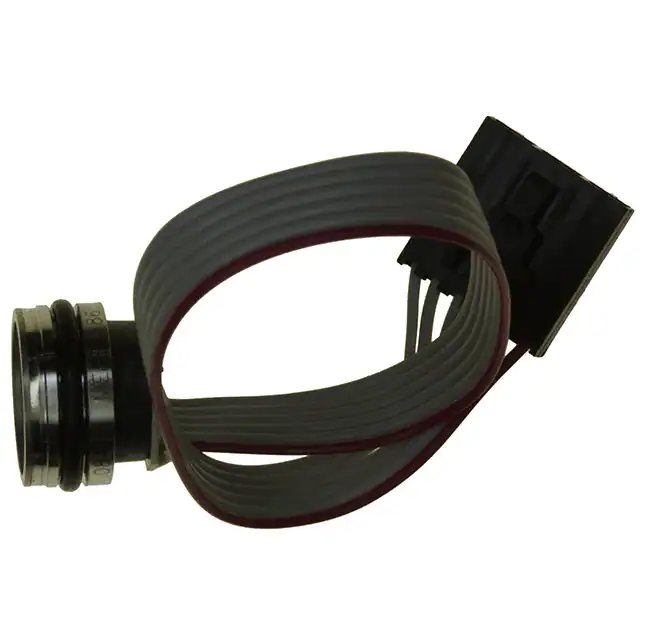

86-300G-CSENSOR PRESSURE 300PSIG STEEL |
190 | 90.13 |
RFQ |
Datasheet |
Cylinder | Bulk | - | Active | Board Mount | Vented Gauge | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C |
|

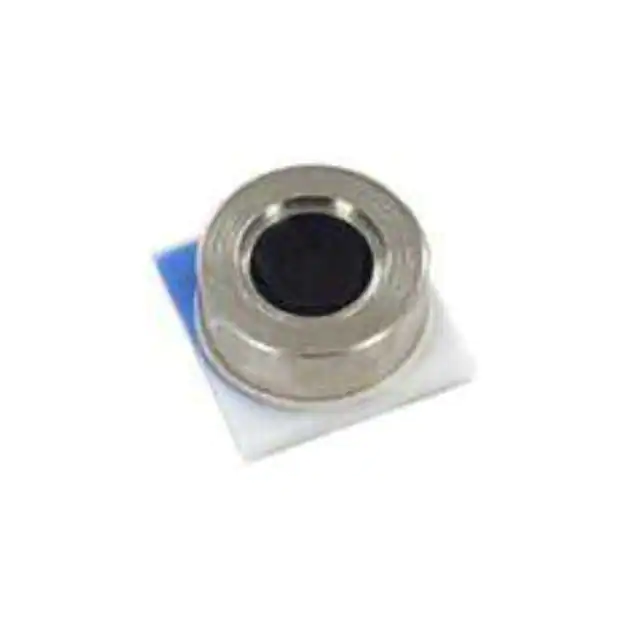

20000980-00MS5840-02BA01 LP PRESS SENSOR |
4,839 | 9.67 |
RFQ |
Datasheet |
4-SMD, No Lead | Tape & Reel (TR),Cut Tape (CT) | - | Active | - | Absolute | 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) | I²C | 24 b | ±0.007PSI (±0.05kPa) | 1.5V ~ 3.6V | - | No Port | Temperature Compensated | SMD (SMT) Tab | 145.04PSI (1000kPa) | -20°C ~ 85°C |
|

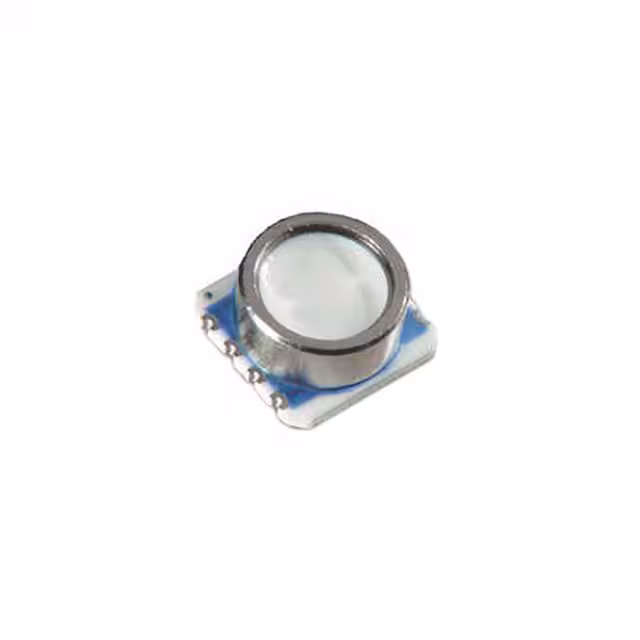

325541030-00MODULE 30 BAR PRESSURE MINI SNSR |
140 | 34.55 |
RFQ |
Datasheet |
8-SMD Module | Tube | - | Active | Board Mount | Absolute | 435.1PSI (3000kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 725.19PSI (5000kPa) | -40°C ~ 85°C |
|
|
4515DO-DS3BK002DPLSENSOR PRESS GAUGE |
694 | 82.74 |
RFQ |
Datasheet |
8-DIP Module | Tray | - | Active | Board Mount | Differential | 0.07PSI (0.5kPa) | I²C | 14 b | ±0.25% | 3.3V | Male - 0.14 (3.56mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 10PSI (68.95kPa) | -10°C ~ 85°C |
|
325541010-00MODULE 30 BAR PRESSURE MINI SNSR |
158 | 82.96 |
RFQ |
Datasheet |
8-SMD Module | Tube | - | Active | Board Mount | Absolute | 435.1PSI (3000kPa) | SPI | 16 b | - | 2.2V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 725.19PSI (5000kPa) | -40°C ~ 85°C |
|

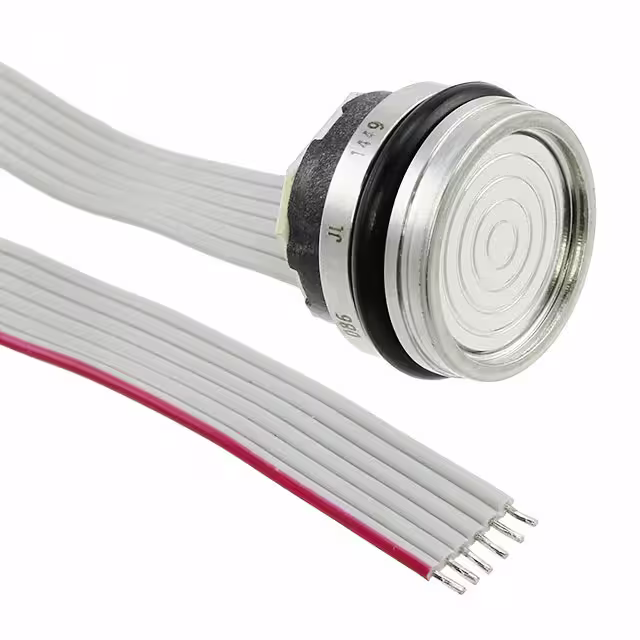

86-030G-RSENSOR PRESSURE 40PSIG STEEL |
138 | 90.13 |
RFQ |
Datasheet |
Cylinder | Tube | - | Active | Board Mount | Vented Gauge | 30PSI (206.84kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Cable with Connector | 90PSI (620.53kPa) | -40°C ~ 125°C |
