| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Package/Case | Packaging | Series | ProductStatus | Applications | PressureType | OperatingPressure | OutputType | Output | Accuracy | Voltage-Supply | PortSize | PortStyle | Features | TerminationStyle | MaximumPressure | OperatingTemperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|

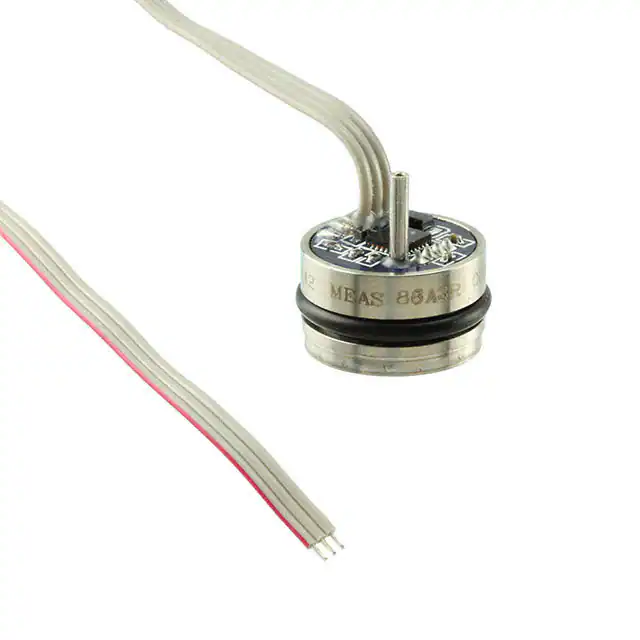

86A3R-000000-100PGSENSOR PRESSURE |
2,373 | 274.36 |
RFQ |
Datasheet |
Module | Tube | - | Active | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | Cable with Connector | 300PSI (2068.43kPa) | -20°C ~ 85°C |
|

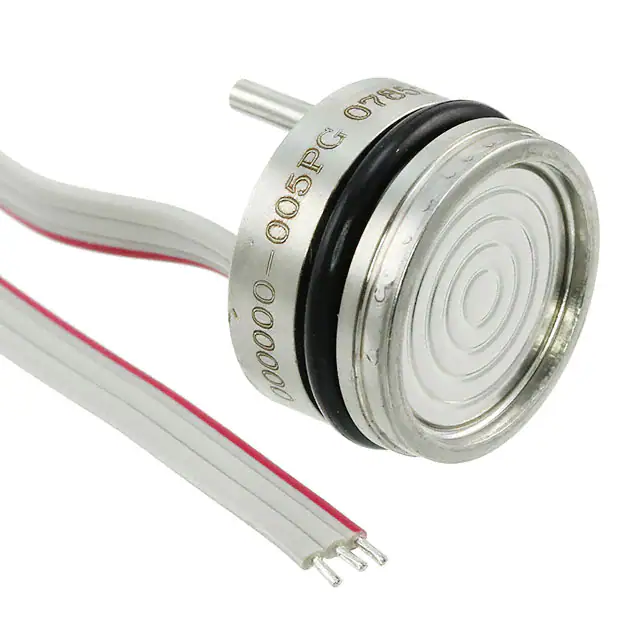

86A3R-000000-005PGSENSOR PRESSURE |
2,069 | 301.79 |
RFQ |
Datasheet |
Module | Tube | - | Active | Board Mount | Vented Gauge | 5PSI (34.47kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±1% | 4.75V ~ 5.25V | - | No Port | Amplified Output, Temperature Compensated | Cable with Connector | 15PSI (103.42kPa) | -20°C ~ 85°C |
|

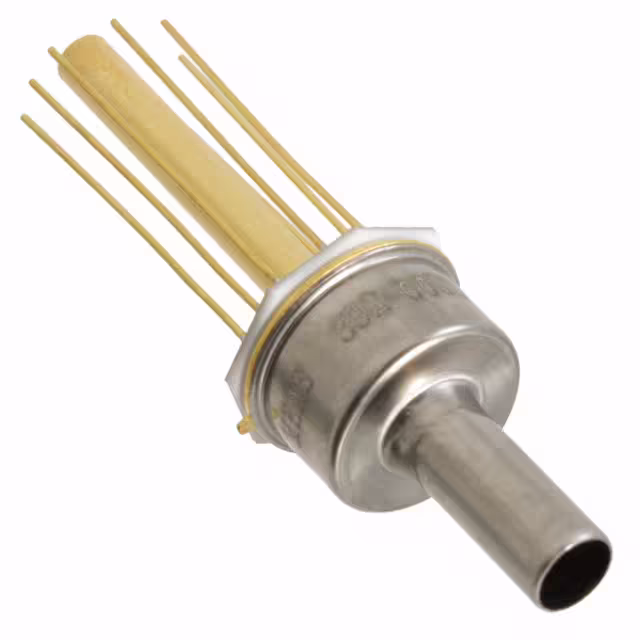

33A-005DSENSOR PRES 5PSID 0-100MV TO-8 |
266 | 67.76 |
RFQ |
Datasheet |
TO-8 Style, 12 Leads | Bulk | - | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | Male - 0.19 (4.78mm) Tube, Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 20PSI (137.9kPa) | -40°C ~ 125°C |
|

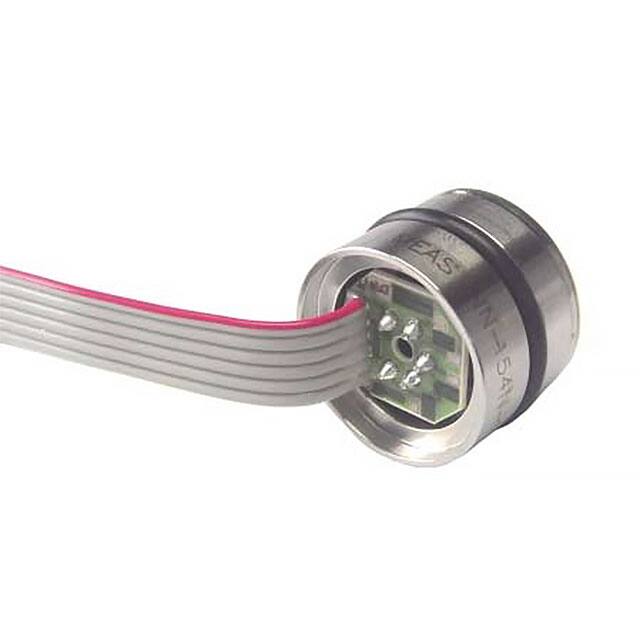

154N-300A-RSENSOR PRESSURE |
2,787 | 178.07 |
RFQ |
Datasheet |
Module | Tube | - | Active | Board Mount | Absolute | 300PSI (2068.43kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | Connector | 900PSI (6205.28kPa) | -40°C ~ 125°C |
|

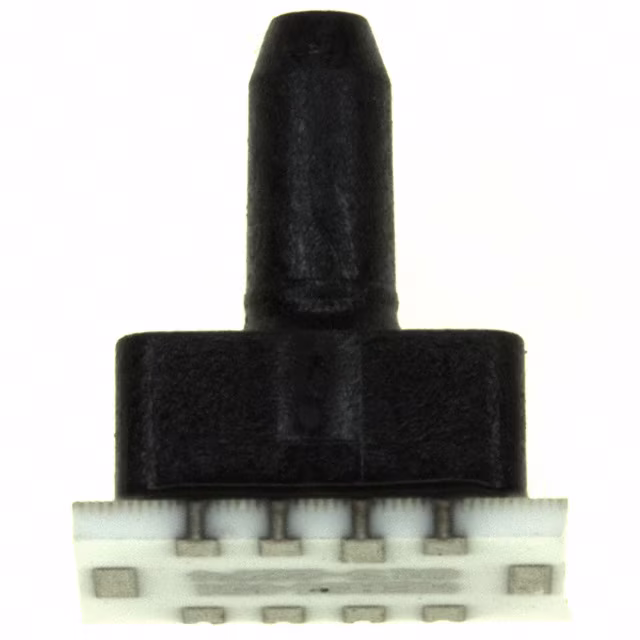

1451-015G-TSENSOR PRESSURE 15PSIG SMD |
2,943 | 0.00 |
RFQ |
Datasheet |
10-SMD Module | Bulk | - | Obsolete | Board Mount | Vented Gauge | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (3V) | ±0.25% | 3V ~ 12V | Male - 0.09 (2.29mm) Tube | Barbless | - | SMD (SMT) Tab | 45PSI (310.26kPa) | -40°C ~ 125°C |
|
SM9336-BCE-S-250-000250PA DIFF. DIGITAL PRESSURE SEN |
394 | 49.00 |
RFQ |
Datasheet |
16-SOIC Module, Dual Top Ports | Box | SM9336 | Active | - | Differential | -0.03 ~ 0.04PSI (-0.2 ~ 0.25kPa) | I²C | 16 b | ±1.5% | 3V ~ 5.5V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 1.02PSI (7kPa) | -20°C ~ 85°C |
|
|
SM9236-BCE-S-600-002600PA DIFF. DIGITAL PRESSURE SEN |
225 | 49.00 |
RFQ |
Datasheet |
16-SOIC Module, Dual Top Ports | Box | SM9233 | Active | - | Gauge | 0 ~ 0.09PSI (0 ~ 0.6kPa) | I²C | 16 b | ±1.5% | 3V ~ 5.5V | Male - 0.12 (3mm) Tube, Dual | Barbed | Temperature Compensated | Gull Wing | 1.02PSI (7kPa) | -20°C ~ 85°C |
|
325212001-00SENSOR PRESURE |
3,856 | 19.55 |
RFQ |
Datasheet |
8-SMD | Tube | - | Active | Board Mount | Absolute | 174.05PSI (1200kPa) | Wheatstone Bridge | 0 mV ~ 150 mV (5V) | ±0.4% | 20V | - | No Port | - | SMD (SMT) Tab | 435.11PSI (3000kPa) | -40°C ~ 125°C |
|

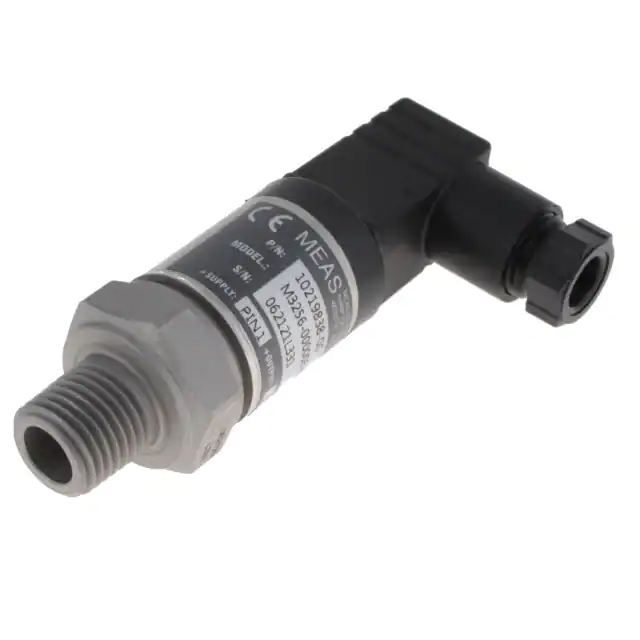

M3256-00000E-010BGPRESS XDCR M3256-00000E-010BG |
3,197 | 95.24 |
RFQ |
Datasheet |
Cylinder, Threaded | Box | M3200 | Active | - | Vented Gauge | 145.04PSI (1000kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4 (6.35mm) BSPT | Threaded | Amplified Output, Temperature Compensated | Connector | 290PSI (2000kPa) | -40°C ~ 125°C |
|

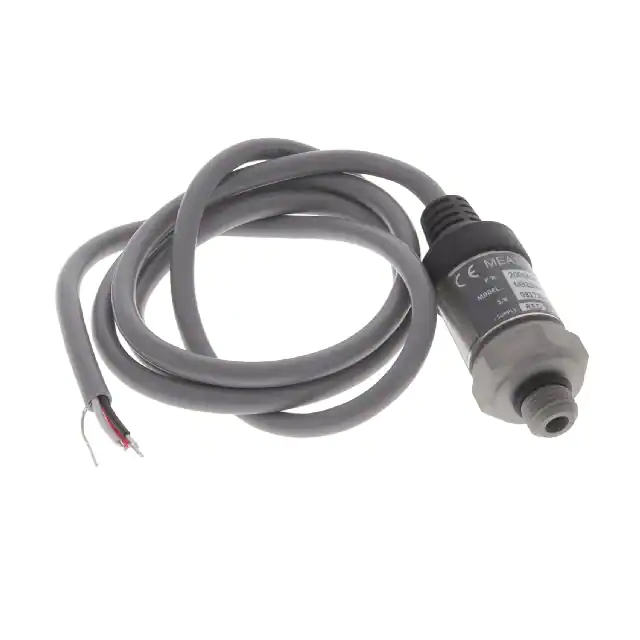

M323M-000004-017BGPRESS XDCR M323M-000004-017BG |
2,916 | 96.68 |
RFQ |
Datasheet |
Cylinder, Threaded | Box | M3200 | Active | - | Vented Gauge | 246.56PSI (1700kPa) | Analog Voltage | 0.5 V ~ 4.5 V | ±0.25% | 4.75V ~ 5.25V | Male - 7/16 (0.44mm) UNF | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 493PSI (3400kPa) | -40°C ~ 125°C |
|

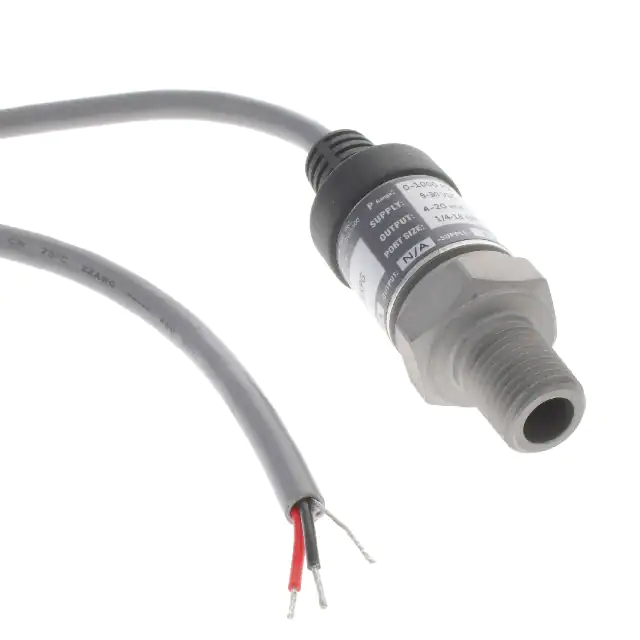

M325M-000005-01KPGPRESS XDCR M325M-000005-01KPG |
2,360 | 96.68 |
RFQ |
Datasheet |
Cylinder, Threaded | Box | M3200 | Active | - | Vented Gauge | 1000PSI (6894.76kPa) | Analog Current | 4 mA ~ 20 mA | ±0.25% | 9V ~ 30V | Male - 1/4 (6.35mm) NPT | Threaded | Amplified Output, Temperature Compensated | Cable/Wire Leads | 2000PSI (13789.51kPa) | -40°C ~ 125°C |
|
SM4291-HGE-S-500-000SENSOR PRESSURE 500MBAR GA |
238 | 24.03 |
RFQ |
Datasheet |
10-SOIC Module, Top Port | Box | SM4000 | Active | - | Gauge | -7.25PSI (-50kPa) | Analog Voltage, I²C | 16 b | - | 3V | Male - 0.12 (3mm) Tube | Barbed | Amplified Output, Temperature Compensated | Gull Wing | 25PSI (172.37kPa) | -20°C ~ 85°C |
|
MS563702BA03-50SENSOR 17.4PSIA I2C 24B 4-QFN |
6,644 | 5.43 |
RFQ |
Datasheet |
4-SMD, No Lead Exposed Pad | Tape & Reel (TR),Cut Tape (CT) | - | Active | Board Mount | Absolute | 4.35PSI ~ 17.4PSI (30kPa ~ 120kPa) | I²C | 24 b | ±0.058PSI (±0.4kPa) | 1.5V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 87.02PSI (600kPa) | -40°C ~ 85°C |
|

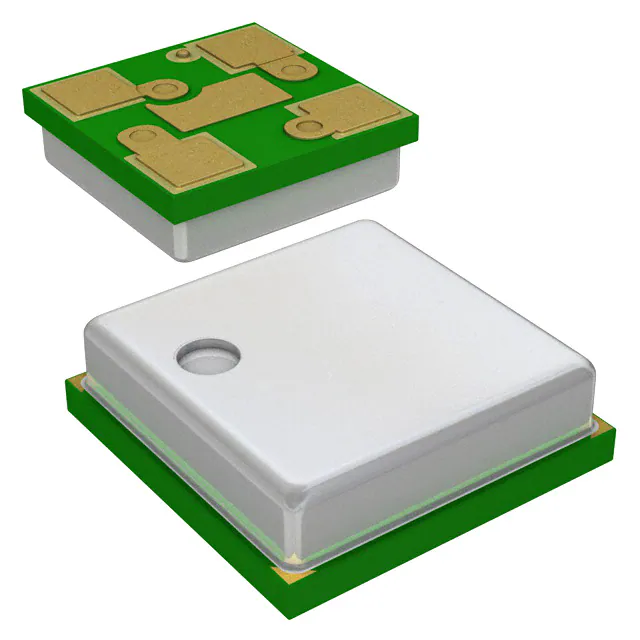

MS561101BA03-50BAROMETRIC PRESSURE SENSOR |
2,351 | 12.90 |
RFQ |
Datasheet |
8-SMD | Tape & Reel (TR),Cut Tape (CT) | - | Active | Board Mount | Absolute | 0.15PSI ~ 17.4PSI (1kPa ~ 120kPa) | I²C, SPI | 24 b | ±0.022PSI (±0.15kPa) | 1.8V ~ 3.6V | - | No Port | - | SMD (SMT) Tab | 87.02PSI (600kPa) | -40°C ~ 85°C |
|

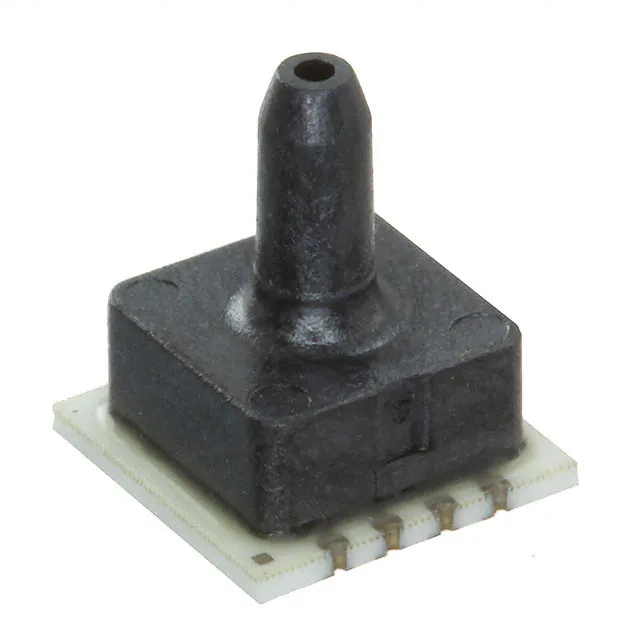

1471-015A-TSENSOR PRESSURE |
116 | 31.13 |
RFQ |
Datasheet |
8-SMD, No Lead, Top Port | Tube | - | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 65 mV (5V) | ±0.25% | 5V ~ 12V | Male - 0.09 (2.29mm) Tube | Barbless | - | SMD (SMT) Tab | 45PSI (310.26kPa) | -40°C ~ 125°C |
|

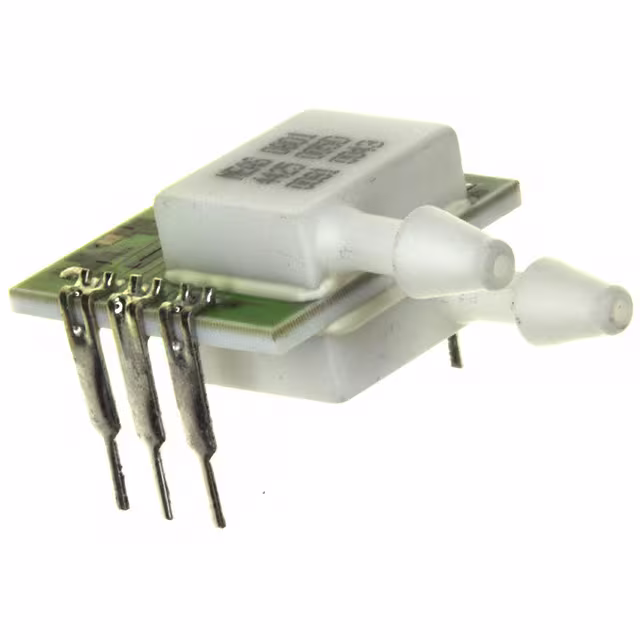

4425-005DSENSOR DIFF PRESS 5PSI 6-DIP PCB |
113 | 46.42 |
RFQ |
Datasheet |
6-DIP Module | Tray | 4425 | Obsolete | Board Mount | Differential | 5PSI (34.47kPa) | Wheatstone Bridge | 0 mV ~ 60 mV (12V) | ±0.25% | 12V ~ 20V | Male - 0.13 (3.4mm) Tube, Dual | Barbed | Temperature Compensated | PC Pin | 15PSI (103.42kPa) | -25°C ~ 85°C |
|

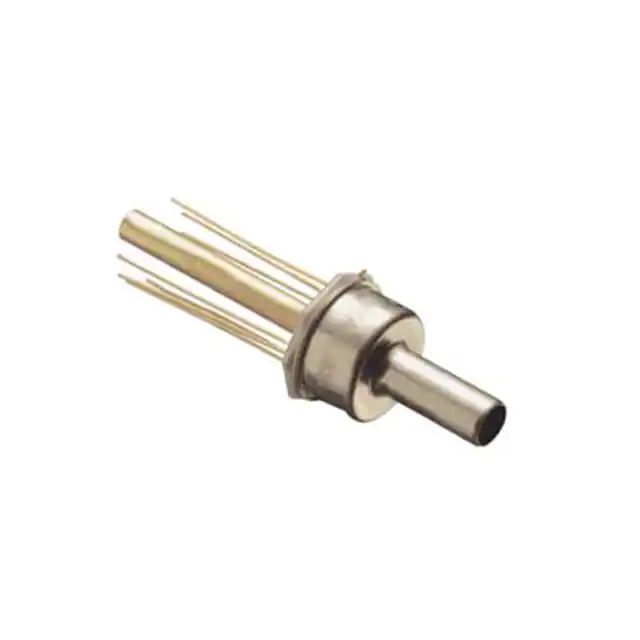

33A-015DSENSOR PRES |
308 | 67.76 |
RFQ |
Datasheet |
TO-8 Style, 12 Leads | Tube | - | Obsolete | Board Mount | Differential | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.2% | - | Male - 0.19 (4.78mm) Tube, Male - 0.13 (3.18mm) Tube | Barbless | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C |
|

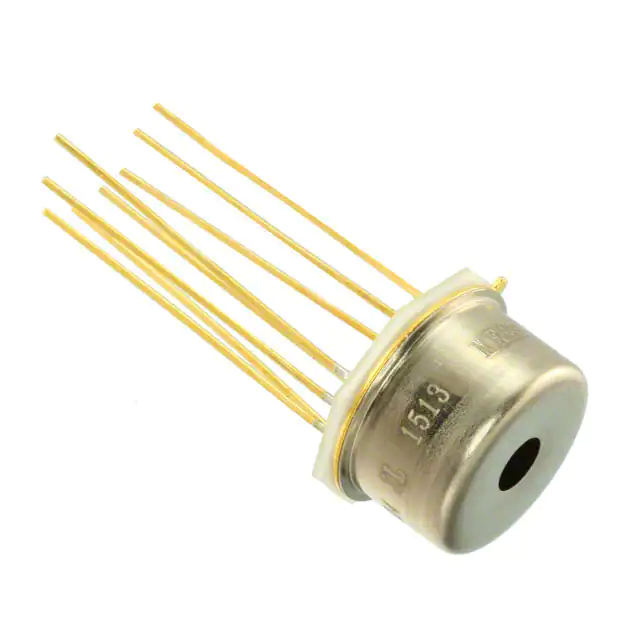

47-015AXB-ASSY PRES TO-8 MDL47 |
345 | 69.92 |
RFQ |
Datasheet |
TO-8 Style, 12 Leads | Tube | 47 | Obsolete | Board Mount | Absolute | 15PSI (103.42kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | - | No Port | Temperature Compensated | PC Pin | 45PSI (310.26kPa) | -40°C ~ 125°C |
|

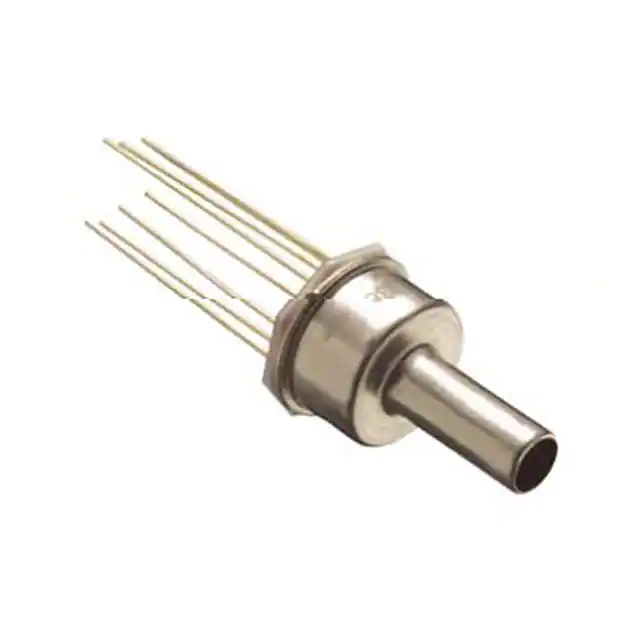

13A-100GSENSOR PRESSURE |
147 | 83.94 |
RFQ |
Datasheet |
TO-8 Style, 12 Leads | Tube | - | Obsolete | Board Mount | Vented Gauge | 100PSI (689.48kPa) | Wheatstone Bridge | 0 mV ~ 100 mV | ±0.1% | - | Male - 0.19 (4.78mm) Tube | Barbless | Temperature Compensated | PC Pin | 300PSI (2068.43kPa) | -40°C ~ 125°C |
|

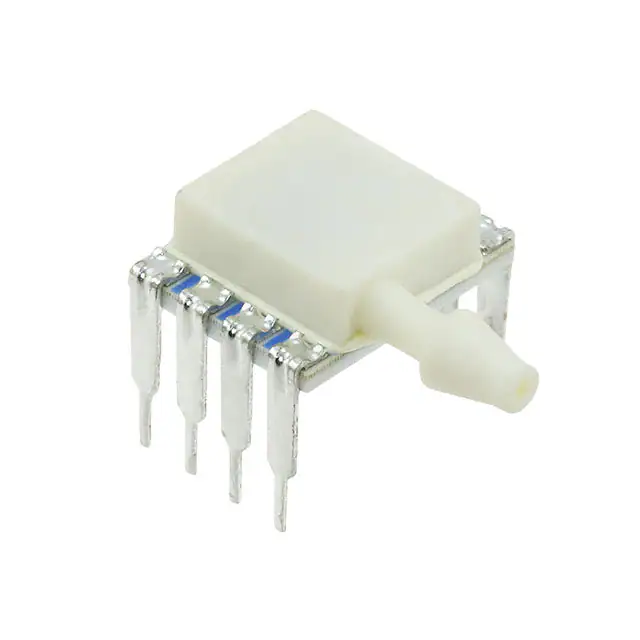

4525DO-SS3AS015APSENSOR PRESS ABSOLUTE 15PSI 8DIP |
2,550 | 82.74 |
RFQ |
Datasheet |
8-DIP Module | Tray | MS4525DO | Active | Board Mount | Absolute | 15PSI (103.42kPa) | SPI | 14 b | ±0.25% | 3.3V | Male - 0.14 (3.56mm) Tube | Barbed | Temperature Compensated | PC Pin | 90PSI (620.53kPa) | -25°C ~ 105°C |
