Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
LVR016K PTC RESET FUSE 240V 160MA RADIAL Littelfuse Inc.	162	0.76	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, LVR	Active	Polymeric	240V (265V Int)	2 A	160 mA	370 mA	15 s	2.5 Ohms	7.8 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.390 Dia x 0.150 T (9.90mm x 3.80mm)	0.543 (13.80mm)	-
AHRF200 PTC RESET FUSE 16V 2A RADIAL Littelfuse Inc.	444	0.80	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	2 A	3.8 A	4.8 s	39 mOhms	110 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.370 Dia x 0.118 T (9.40mm x 3.00mm)	0.567 (14.40mm)	-

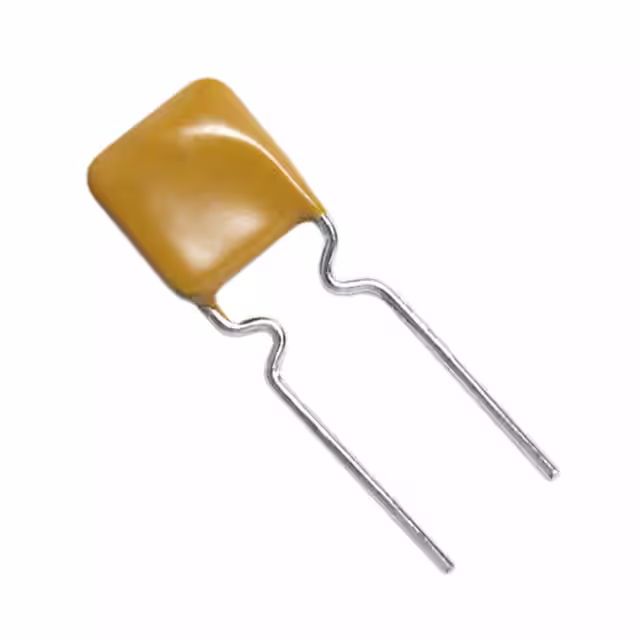

AHEF070 PTC RESET FUSE 32V 700MA RADIAL Littelfuse Inc.	823	0.82	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHEF	Active	Polymeric	32V	100 A	700 mA	1.4 A	3.2 s	230 mOhms	800 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.272 L x 0.118 W (6.90mm x 3.00mm)	0.425 (10.80mm)	-

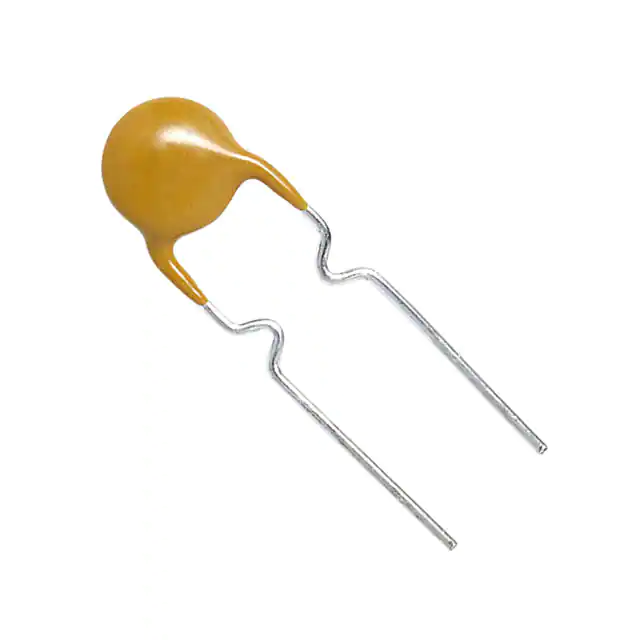

AHEF050 PTC RESET FUSE 32V 500MA RADIAL Littelfuse Inc.	724	0.82	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHEF	Active	Polymeric	32V	100 A	500 mA	1 A	3 s	350 mOhms	1.1 Ohms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.291 Dia x 0.130 T (7.40mm x 3.30mm)	0.500 (12.70mm)	-
TRF250-180 PTC RESET FUSE 100V 180MA RADIAL Littelfuse Inc.	549	0.82	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, TRF250	Active	Polymeric	100V (250V Int)	10 A	180 mA	650 mA	2 s	800 mOhms	4 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 Dia x 0.150 T (9.00mm x 3.80mm)	0.472 (12.00mm)	-
16R800GF PTC RESET FUSE 16V 8A RADIAL Littelfuse Inc.	440	0.82	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 16R	Active	Polymeric	16V	100 A	8 A	13.6 A	5 s	5.6 mOhms	17.5 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.500 L x 0.118 W (12.70mm x 3.00mm)	0.823 (20.90mm)	-
TRF250-055UT PTC RESET FUSE 60V 55MA RADIAL Littelfuse Inc.	486	0.83	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF250	Active	Polymeric	60V (250V Int)	3 A	55 mA	170 mA	5 s	15 Ohms	35 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.189 Dia x 0.150 T (4.80mm x 3.80mm)	0.366 (9.30mm)	-
LVR033K PTC RESET FUSE 240V 330MA RADIAL Littelfuse Inc.	750	0.84	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, LVR	Active	Polymeric	240V (265V Int)	4.5 A	330 mA	740 mA	21 s	770 mOhms	2.6 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.449 L x 0.150 W (11.40mm x 3.80mm)	0.748 (19.00mm)	-
LR4-260SF PTC RESET FUSE 15V 2.6A STRAP Littelfuse Inc.	462	0.91	RFQ	Datasheet	Strap	Bag	PolySwitch®, LR4	Active	Polymeric	15V	100 A	2.6 A	5.8 A	5 s	20 mOhms	63 mOhms	-	-40°C ~ 85°C	-	User Defined	0.866 L x 0.205 W (22.00mm x 5.20mm)	-	-

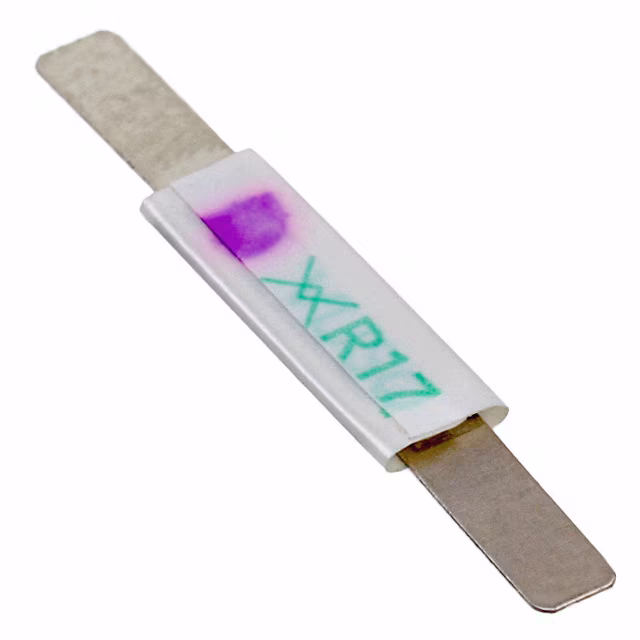

VLR170F PTC RESET FUSE 12V 1.7A STRAP Littelfuse Inc.	429	0.91	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLR	Active	Polymeric	12V	100 A	1.7 A	4.1 A	5 s	18 mOhms	64 mOhms	-	-40°C ~ 70°C	-	User Defined	0.866 L x 0.146 W (22.00mm x 3.70mm)	-	0.032 (0.80mm)
VTP170XSF PTC RESET FUSE 16V 1.7A STRAP Littelfuse Inc.	329	0.97	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VTP	Active	Polymeric	16V	100 A	1.7 A	3.4 A	5 s	-	-	-	-40°C ~ 85°C	-	User Defined	0.862 L x 0.201 W (21.90mm x 5.10mm)	-	0.032 (0.80mm)
AHRF650 PTC RESET FUSE 16V 6.5A RADIAL Littelfuse Inc.	492	1.00	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	6.5 A	7 A	7 s	9 mOhms	26 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.500 L x 0.118 W (12.70mm x 3.00mm)	0.874 (22.20mm)	-
TRF600-150S PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	620	1.14	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	4 s	6 Ohms	17 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-
AGRF1100 PTC RESET FUSE 16V 11A RADIAL Littelfuse Inc.	537	1.17	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AGRF	Active	Polymeric	16V	100 A	11 A	20.3 A	7.5 s	3.3 mOhms	8.9 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.689 L x 0.118 W (17.50mm x 3.00mm)	1.043 (26.50mm)	-
TR600-150F-EX PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	490	1.22	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TR600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	8 s	6 Ohms	22 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.532 L x 0.236 W (13.50mm x 6.00mm)	0.496 (12.60mm)	-
TRF600-150-RB PTC RESET FUSE 250V 150MA RADIAL Littelfuse Inc.	145	1.27	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, TRF600	Active	Polymeric	250V (600V Int)	40 A	150 mA	300 mA	3 s	9 Ohms	22 Ohms	-	-40°C ~ 85°C	-	Through Hole	0.354 L x 0.181 W (9.00mm x 4.60mm)	0.492 (12.50mm)	-

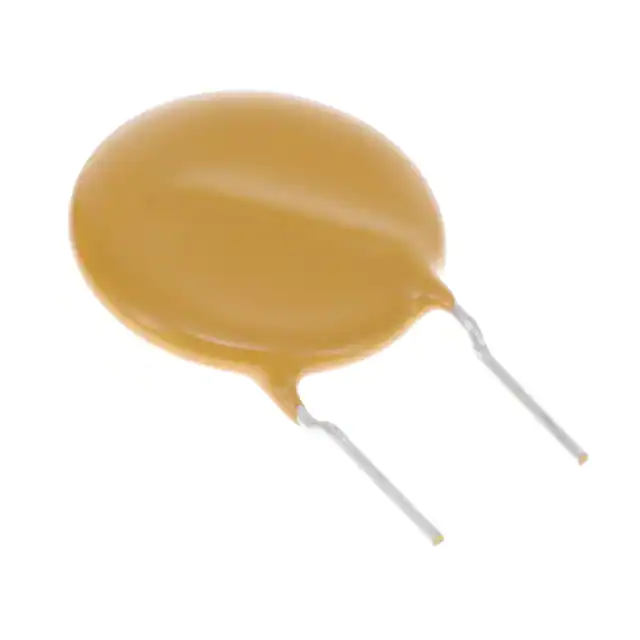

LVR125K-240 PTC RESET FUSE Littelfuse Inc.	238	1.56	RFQ	Datasheet	Radial, Disc	Bulk	LVR	Active	Polymeric	240V (265V Int)	12.5 A	1.25 A	2.5 A	23 s	165 mOhms	440 mOhms	253 mOhms	-20°C ~ 85°C	-	Through Hole	0.835 Dia (21.20mm)	1.252 (31.80mm)	-
AHRF1300 PTC RESET FUSE 16V 13A RADIAL Littelfuse Inc.	250	1.60	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	13 A	27 A	15 s	3.4 mOhms	10 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.138 W (23.50mm x 3.50mm)	1.130 (28.70mm)	-

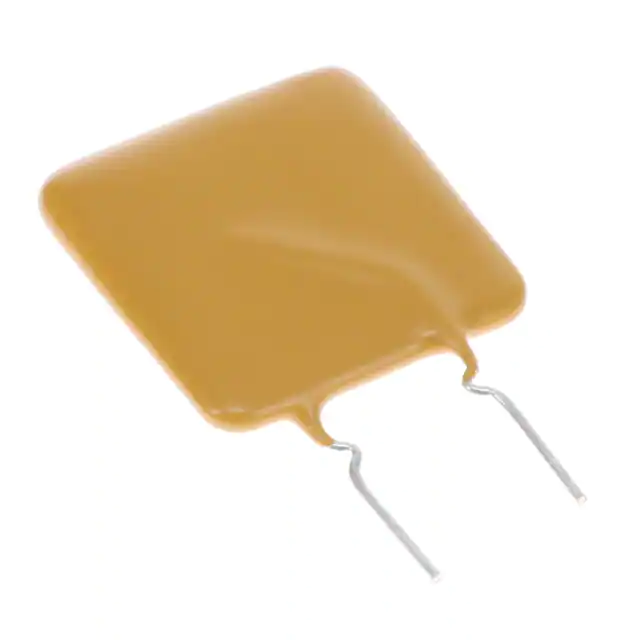

LVR200K-240 PTC RESET FUSE Littelfuse Inc.	232	2.40	RFQ	Datasheet	Radial, Disc	Bulk	LVR	Active	Polymeric	240V (265V Int)	20 A	2 A	4 A	28 s	89 mOhms	221 mOhms	131 mOhms	-20°C ~ 85°C	-	Through Hole	0.980 L x 0.161 W (24.90mm x 4.10mm)	1.370 (34.80mm)	-
LVB125 PTC RESET FUSE 240V 1.25A RADIAL Littelfuse Inc.	2,050	3.37	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, LVB	Active	Polymeric	240V	12.5 A	1.25 A	2.5 A	5 s	152 mOhms	482 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.984 L x 0.175 W (25.00mm x 4.40mm)	1.071 (27.20mm)	-
