Mfr. Part #	Availability	Price	Quantity	Datasheet	Package/Case	Packaging	Series	ProductStatus	Type	Voltage-Max	Current-Max	Current-Hold(Ih)(Max)	Current-Trip(It)	TimetoTrip	Resistance-Initial(Ri)(Min)	Resistance-PostTrip(R1)(Max)	Resistance-25°C(Typ)	OperatingTemperature	Ratings	MountingType	Size/Dimension	Height-Seated(Max)	Thickness(Max)
RUSBF135 PTC RESET FUSE 16V 1.35A RADIAL Littelfuse Inc.	304	0.59	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RUSBF	Active	Polymeric	16V	40 A	1.35 A	2.7 A	4.5 s	40 mOhms	112 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.532 (13.50mm)	-
RUSBF250 PTC RESET FUSE 16V 2.5A RADIAL Littelfuse Inc.	463	0.62	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RUSBF	Active	Polymeric	16V	40 A	2.5 A	5 A	40 s	20 mOhms	60 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.449 L x 0.118 W (11.40mm x 3.00mm)	0.720 (18.30mm)	-
RUSBF185 PTC RESET FUSE 16V 1.85A RADIAL Littelfuse Inc.	201	0.63	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RUSBF	Active	Polymeric	16V	40 A	1.85 A	3.7 A	10 s	30 mOhms	90 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 L x 0.118 W (10.20mm x 3.00mm)	0.618 (15.70mm)	-
AGRF400 PTC RESET FUSE 16V 4A RADIAL Littelfuse Inc.	259	0.76	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AGRF	Active	Polymeric	16V	100 A	4 A	7.6 A	2 s	18.6 mOhms	61 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.555 (14.10mm)	-
AGRF700 PTC RESET FUSE 16V 7A RADIAL Littelfuse Inc.	368	0.86	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AGRF	Active	Polymeric	16V	100 A	7 A	13.2 A	4 s	6.6 mOhms	20 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.441 L x 0.118 W (11.20mm x 3.00mm)	0.827 (21.00mm)	-

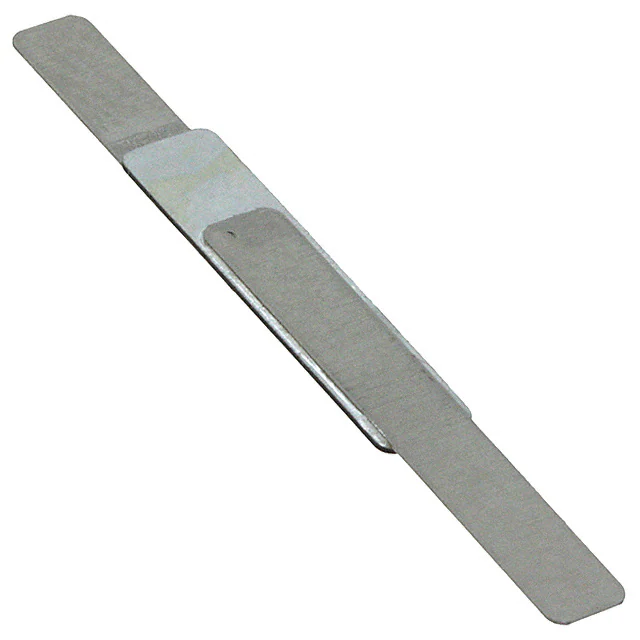

VLR175F PTC RESET FUSE 12V 1.75A STRAP Littelfuse Inc.	950	0.91	RFQ	Datasheet	Strap	Bulk	PolySwitch®, VLR	Active	Polymeric	12V	100 A	1.75 A	4.2 A	5 s	17 mOhms	62 mOhms	-	-40°C ~ 70°C	-	User Defined	0.935 L x 0.122 W (23.75mm x 3.10mm)	-	0.032 (0.80mm)
AHRF600 PTC RESET FUSE 16V 6A RADIAL Littelfuse Inc.	423	0.94	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	6 A	12 A	6.5 s	10 mOhms	32 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.441 L x 0.118 W (11.20mm x 3.00mm)	0.827 (21.00mm)	-
AHRF700 PTC RESET FUSE 16V 7A RADIAL Littelfuse Inc.	500	1.03	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	7 A	13.1 A	7 s	8.7 mOhms	25 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.862 (21.90mm)	-
AGRF1000 PTC RESET FUSE 16V 10A RADIAL Littelfuse Inc.	175	1.17	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AGRF	Active	Polymeric	16V	100 A	10 A	18.5 A	7 s	3.4 mOhms	10.2 mOhms	-	-40°C ~ 85°C	AEC-Q200	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	1.012 (25.70mm)	-
AHRF800 PTC RESET FUSE 16V 8A RADIAL Littelfuse Inc.	298	1.20	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	8 A	15 A	8 s	7.2 mOhms	20 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.650 L x 0.118 W (16.50mm x 3.00mm)	0.886 (22.50mm)	-
RHEF1300 PTC RESET FUSE 16V 13A RADIAL Littelfuse Inc.	407	1.49	RFQ	Datasheet	Radial, Disc	Bag,Bag	PolySwitch®, RHEF	Active	Polymeric	16V	100 A	13 A	24 A	13 s	4.1 mOhms	10 mOhms	-	-40°C ~ 125°C	-	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.130 (28.70mm)	-
AHRF1100 PTC RESET FUSE 16V 11A RADIAL Littelfuse Inc.	250	1.56	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	11 A	21.2 A	11 s	4.8 mOhms	13 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.827 L x 0.118 W (21.00mm x 3.00mm)	1.028 (26.10mm)	-
AHRF1400 PTC RESET FUSE 16V 14A RADIAL Littelfuse Inc.	147	1.82	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	14 A	28.3 A	15.5 s	2.9 mOhms	9 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.925 L x 0.142 W (23.50mm x 3.60mm)	1.126 (28.60mm)	-
RGEF600-1 PTC RESET FUSE 16V 6A RADIAL Littelfuse Inc.	390	0.79	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, RGEF	Active	Polymeric	16V	100 A	6 A	10.2 A	3.3 s	10 mOhms	28 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.402 L x 0.098 W (10.20mm x 2.50mm)	0.673 (17.10mm)	-
LVR016S-1 PTC RESET FUSE 240V 160MA RADIAL Littelfuse Inc.	500	0.80	RFQ	Datasheet	Radial, Disc	Bag	PolySwitch®, LVR	Active	Polymeric	240V (265V Int)	2 A	160 mA	370 mA	15 s	2.5 Ohms	7.8 Ohms	-	-20°C ~ 85°C	-	Through Hole	0.390 Dia x 0.150 T (9.90mm x 3.80mm)	0.492 (12.50mm)	-

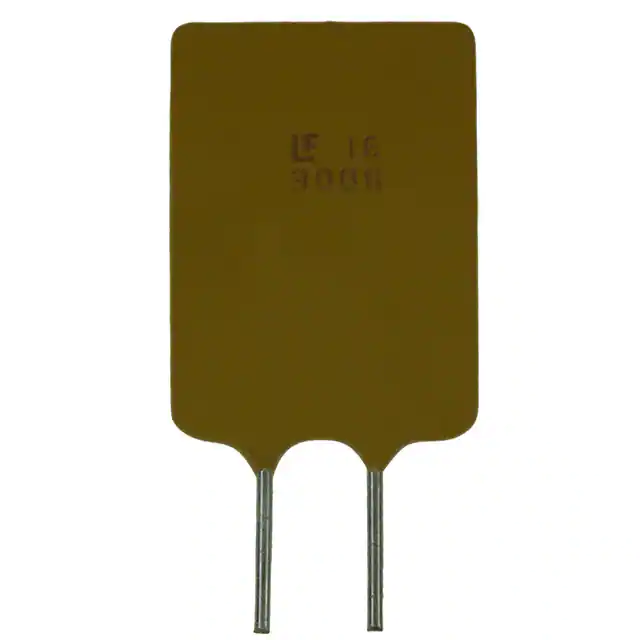

16R900GF PTC RESET FUSE 16V 9A RADIAL Littelfuse Inc.	175	0.82	RFQ	Datasheet	Radial, Disc	Bulk	POLY-FUSE®, 16R	Active	Polymeric	16V	100 A	9 A	15.3 A	5.5 s	4.7 mOhms	13.5 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.854 (21.70mm)	-
16R900GMR PTC RESET FUSE 16V 9A RADIAL Littelfuse Inc.	1,000	0.96	RFQ	Datasheet	Radial, Disc	Cut Tape (CT),Tape & Box (TB)	POLY-FUSE®, 16R	Active	Polymeric	16V	100 A	9 A	15.3 A	5.5 s	4.7 mOhms	13.5 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.854 (21.70mm)	-
RUEF800K-2 PTC RESET FUSE 30V 8A RADIAL Littelfuse Inc.	1,000	0.87	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Cut Tape (CT)	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	8 A	16 A	18.8 s	5 mOhms	20 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.850 L x 0.118 W (21.60mm x 3.00mm)	1.189 (30.20mm)	-
RUEF160S PTC RESET FUSE 30V 1.6A RADIAL Littelfuse Inc.	163	0.50	RFQ	Datasheet	Radial, Disc	Bulk	PolySwitch®, RUEF	Active	Polymeric	30V	100 A	1.6 A	3.2 A	8 s	30 mOhms	110 mOhms	-	-40°C ~ 85°C	-	Through Hole	0.350 L x 0.118 W (8.90mm x 3.00mm)	0.598 (15.20mm)	-
AHRF750-2 PTC RESET FUSE 16V 7.5A RADIAL Littelfuse Inc.	1,000	1.11	RFQ	Datasheet	Radial, Disc	Tape & Reel (TR),Tape & Reel (TR),Cut Tape (CT),Cut Tape (CT)	PolySwitch®, AHRF	Active	Polymeric	16V	100 A	7.5 A	14.8 A	8 s	7.4 mOhms	22 mOhms	-	-40°C ~ 125°C	AEC-Q200	Through Hole	0.551 L x 0.118 W (14.00mm x 3.00mm)	0.925 (23.50mm)	-
