Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PH9384.083NLT XFMR GATE-DR 8CT:3CT SM NPB Pulse Electronics Power	167	2.80	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9384	Active	-	-	-	-	Surface Mount	0.492 L x 0.362 W (12.50mm x 9.20mm)	0.299 (7.60mm)

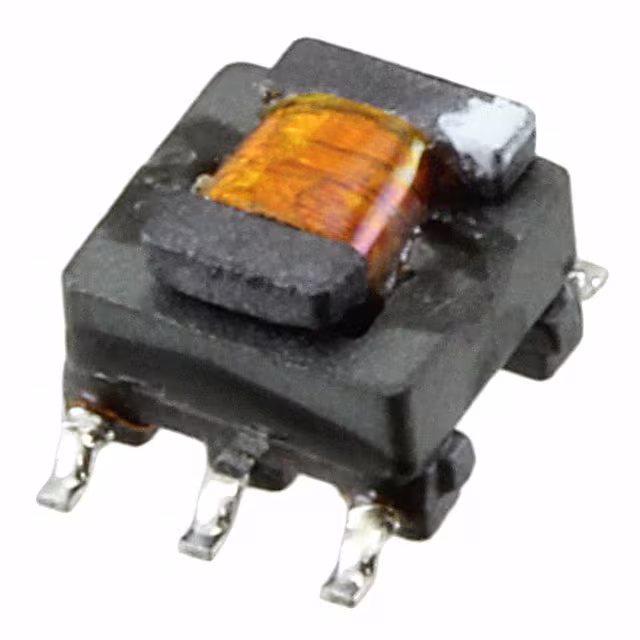

PA1323NL PULSE XFMR 1:1 600UH Pulse Electronics Power	2,577	0.00	RFQ	Datasheet	Tray	-	Active	-	600µH	21.7VµS	1:1	Surface Mount	0.280 L x 0.375 W (7.11mm x 9.52mm)	0.210 (5.33mm)

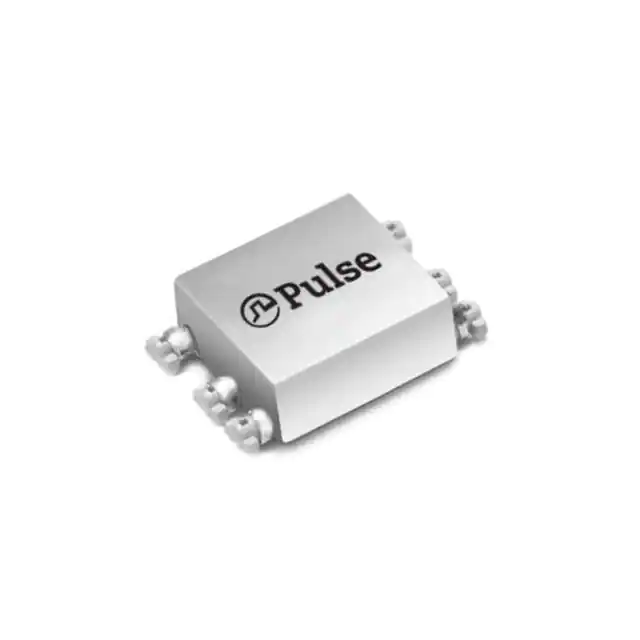

PA3493NLT PULSE XFMR 1.25:1 656UH Pulse Electronics Power	2,308	3.01	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	656µH	23VµS	1.25:1	Surface Mount	0.430 L x 0.380 W (10.92mm x 9.65mm)	0.105 (2.67mm)
PH9085.021NLT IND PWR 3.0X3.0X1.2 1.16MH SMT Pulse Electronics Power	149	2.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	-	Active	-	-	-	-	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)

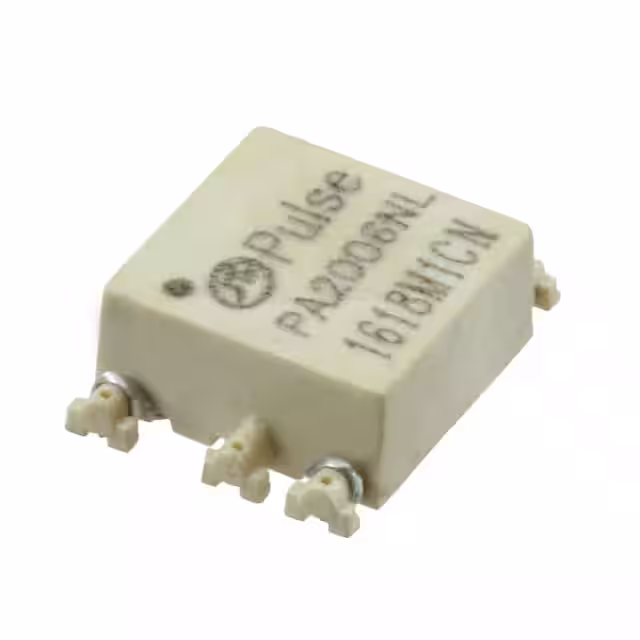

PA2006NL PULSE XFMR 1:1 864UH Pulse Electronics Power	181	0.00	RFQ	Datasheet	Tube	-	Active	-	864µH	26VµS	1:1	Surface Mount	0.340 L x 0.460 W (8.64mm x 11.68mm)	0.160 (4.06mm)
PH9185.012NLT TRANSFORMER 450UH 1:2 SMD Pulse Electronics Power	5,360	4.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)

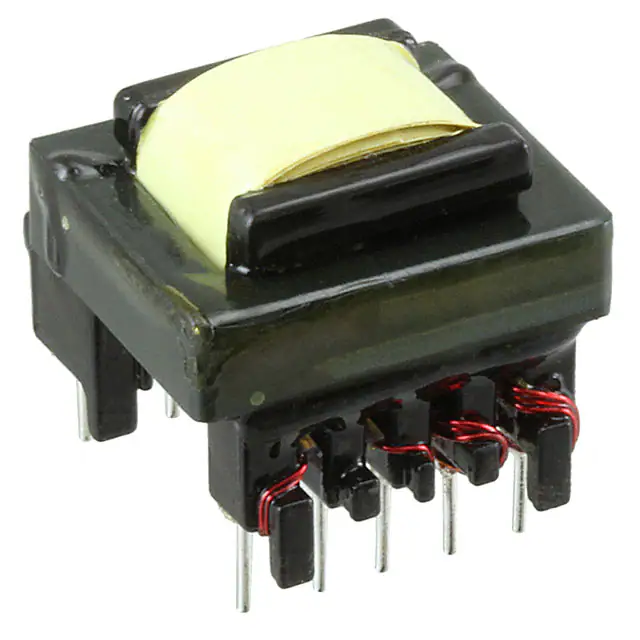

PA2653NL PULSE XFMR 910UH Pulse Electronics Power	2,715	0.00	RFQ	Datasheet	Tray	-	Active	-	910µH	-	-	Through Hole	0.920 L x 0.960 W (23.37mm x 24.38mm)	0.810 (20.57mm)

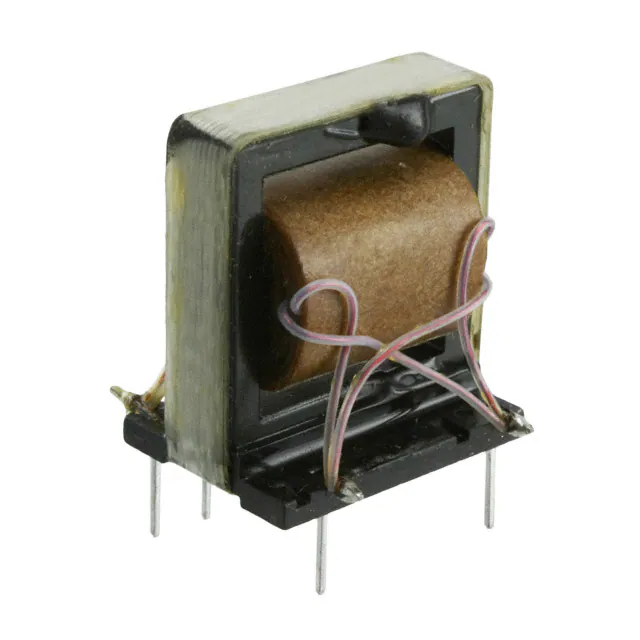

PE-63387NL PULSE XFMR 1:1:1 1.5MH Pulse Electronics Power	3,638	9.72	RFQ	Datasheet	Tray	-	Active	-	1.5mH	320VµS	1:1:1	Through Hole	1.090 L x 0.750 W (27.69mm x 19.05mm)	1.200 (30.48mm)

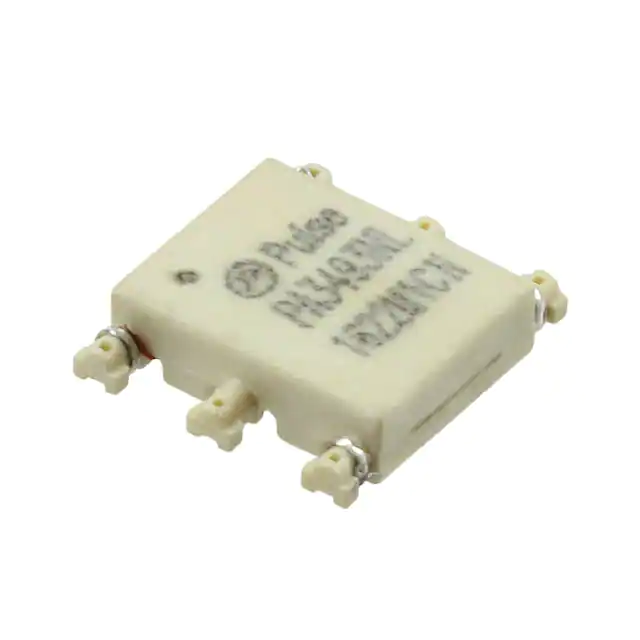

PA3493NL PULSE XFMR 1.25:1 656UH Pulse Electronics Power	1,245	3.01	RFQ	Datasheet	Tube	-	Active	-	656µH	23VµS	1.25:1	Surface Mount	0.430 L x 0.380 W (10.92mm x 9.65mm)	0.105 (2.67mm)
PH9185.021NLT TRANSFORMER 880UH 2:1 SMD Pulse Electronics Power	150	4.55	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
PM2155.045NLT XFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics Power	900	3.81	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PM2155.XXXNLT	Active	Isolation and Data Interface (Encapsulated)	3.2mH	109VµS	4CT:5CT	Surface Mount	0.630 L x 0.591 W (16.00mm x 15.00mm)	0.295 (7.50mm)
PH9185.083NLT TRANSFORMER 560UH 8:3 SMD Pulse Electronics Power	2,595	3.97	RFQ	Datasheet	Tape & Reel (TR),Cut Tape (CT)	PH9185	Active	-	-	-	-	Surface Mount	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.492 (12.50mm)
PA2417NL PULSE XFMR 530UH Pulse Electronics Power	3,241	3.95	RFQ	Datasheet	Tray	-	Active	-	530µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)

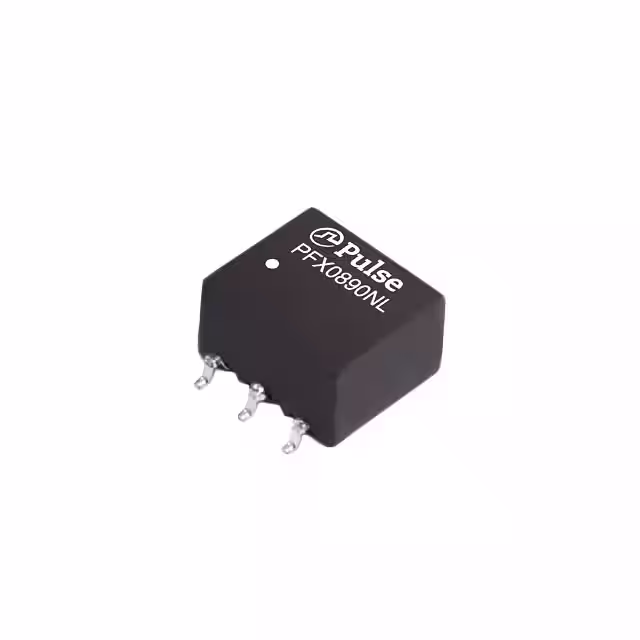

PFX0890NLT PULSE XFMR 1.02MH Pulse Electronics Power	2,123	1.21	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	1.02mH	-	-	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PA1370NL PULSE XFMR 20.4UH Pulse Electronics Power	2,186	2.05	RFQ	Datasheet	Tray	-	Active	-	20.4µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA2466NLT PULSE XFMR 37UH Pulse Electronics Power	3,392	2.05	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	37µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PM2180.038NLT XFMR GATE-DR 3CT:8CT SM NPB Pulse Electronics Power	3,432	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2180.XXXNL	Active	Isolation and Data Interface (Encapsulated)	1.02mH	22VµS	3CT:8CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.089NLT XFMR GATE-DR 8CT:9CT SM NPB Pulse Electronics Power	2,072	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2180.XXXNL	Active	Isolation and Data Interface (Encapsulated)	1.16mH	23.6VµS	8CT:9CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.043NLT XFMR GATE-DR 4CT:3CT SM NPB Pulse Electronics Power	2,061	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2180.XXXNL	Active	Isolation and Data Interface (Encapsulated)	1.16mH	23.6VµS	4CT:3CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
PM2180.083NLT FMR GATE-DR 8CT:3CT SM NPB Pulse Electronics Power	2,092	0.00	RFQ	Datasheet	Tape & Reel (TR)	PM2180.XXXNL	Active	Isolation and Data Interface (Encapsulated)	1.16mH	23.6VµS	8CT:3CT	Surface Mount	0.319 L x 0.280 W (8.10mm x 7.10mm)	0.200 (5.08mm)
