Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	TransformerType	Inductance	ET(Volt-Time)	TurnsRatio-Primary:Secondary	MountingType	Size/Dimension	Height-Seated(Max)
PA1825NLT PULSE XFMR 24.5UH Pulse Electronics Power	3,034	1.80	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	24.5µH	-	-	Surface Mount	0.421 L x 0.525 W (10.70mm x 13.34mm)	0.365 (9.27mm)
PA4065NL PULSE XFMR 100.5UH Pulse Electronics Power	3,380	1.81	RFQ	Datasheet	Tray	EP13	Active	-	100.5µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA3948.001NL PULSE XFMR 32UH 40UH Pulse Electronics Power	3,306	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.002NL PULSE XFMR 32UH 40UH Pulse Electronics Power	2,412	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.003NL PULSE XFMR 32UH 40UH Pulse Electronics Power	2,141	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.004NL PULSE XFMR 32UH 40UH Pulse Electronics Power	3,471	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.005NL PULSE XFMR 32UH 40UH Pulse Electronics Power	2,933	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA3948.006NL PULSE XFMR 32UH 40UH Pulse Electronics Power	2,252	1.88	RFQ	Datasheet	Tray	-	Active	-	32µH, 40µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA1576NL PULSE XFMR 230.4UH Pulse Electronics Power	2,941	2.00	RFQ	Datasheet	Tray	-	Active	-	230.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA1370NLT XFRMR 3.3V 10W 20.4UH POE EP10 Pulse Electronics Power	2,543	2.01	RFQ	Datasheet	Tape & Reel (TR)	EP10	Active	Isolation and Data Interface (Encapsulated)	20.4µH	-	1:0.444:0.388	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA1825NL PULSE XFMR 24.5UH Pulse Electronics Power	3,474	2.04	RFQ	Datasheet	Tray	-	Active	-	24.5µH	-	-	Surface Mount	0.421 L x 0.525 W (10.70mm x 13.34mm)	0.365 (9.27mm)
PA2364NL PULSE XFMR 7:1 25.2UH Pulse Electronics Power	3,879	2.04	RFQ	Datasheet	Tray	-	Active	-	25.2µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA2455NL PULSE XFMR 24UH Pulse Electronics Power	2,975	2.04	RFQ	Datasheet	Tray	-	Active	-	24µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA1576NLT PULSE XFMR 230.4UH Pulse Electronics Power	3,237	2.04	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	230.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)

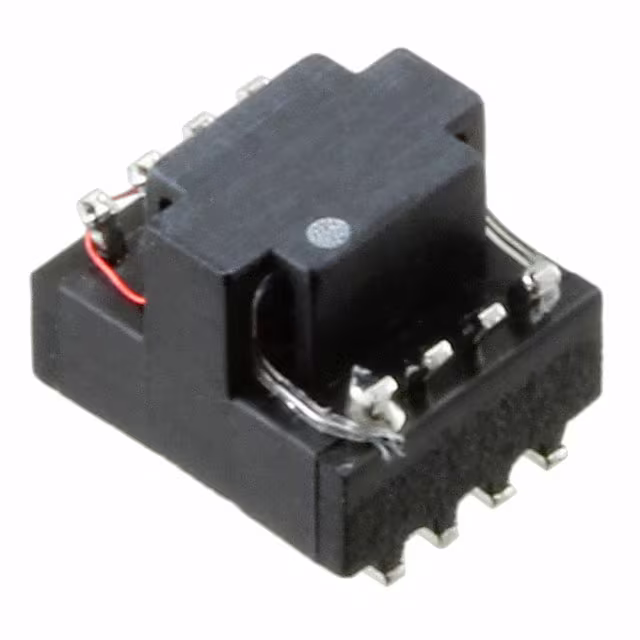

PA2777NLT PULSE XFMR 1:1 335.2UH Pulse Electronics Power	2,191	2.09	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	335.2µH	9.3VµS	1:1	Surface Mount	0.291 L x 0.248 W (7.40mm x 6.30mm)	0.232 (5.90mm)
PA1309NL PULSE XFMR 16.4UH Pulse Electronics Power	3,366	2.09	RFQ	Datasheet	Tray	-	Active	-	16.4µH	-	-	Surface Mount	0.551 L x 0.516 W (14.00mm x 13.11mm)	0.485 (12.32mm)
PA2364NLT PULSE XFMR 7:1 25.2UH Pulse Electronics Power	2,259	2.10	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	25.2µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PA2454NLT PULSE XFMR 24UH Pulse Electronics Power	3,805	2.10	RFQ	Datasheet	Tape & Reel (TR)	-	Active	-	24µH	-	-	Surface Mount	0.515 L x 0.600 W (13.08mm x 15.24mm)	0.451 (11.45mm)
PM2155.015NLT XFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics Power	2,247	2.10	RFQ	Datasheet	Tape & Reel (TR)	PM2155.XXXNLT	Active	Isolation and Data Interface (Encapsulated)	1.35mH	70VµS	1CT:5CT	Surface Mount	0.630 L x 0.591 W (16.00mm x 15.00mm)	0.295 (7.50mm)
PM2155.027NLT XFMR PUSH-PULL SIDE CAR S NPB Pulse Electronics Power	3,820	2.10	RFQ	Datasheet	Tape & Reel (TR)	PM2155.XXXNLT	Active	Isolation and Data Interface (Encapsulated)	2.6mH	98VµS	2CT:7CT	Surface Mount	0.630 L x 0.591 W (16.00mm x 15.00mm)	0.295 (7.50mm)
