Solder Stencils, Templates(621)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	NumberofPositions	Pitch	OuterDimension	InnerDimension	ThermalCenterPad

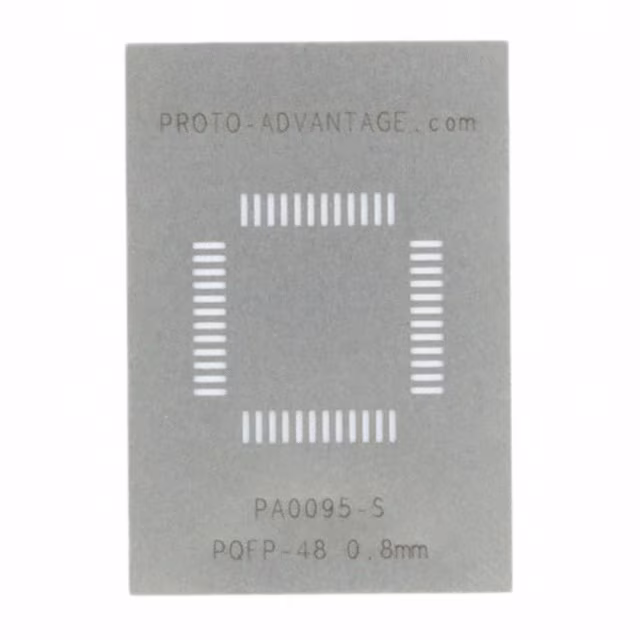

PA0095-S QFP-48 STENCIL Chip Quik Inc.	2,681	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	PQFP	48	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.433 L x 0.433 W (11.00mm x 11.00mm)	-

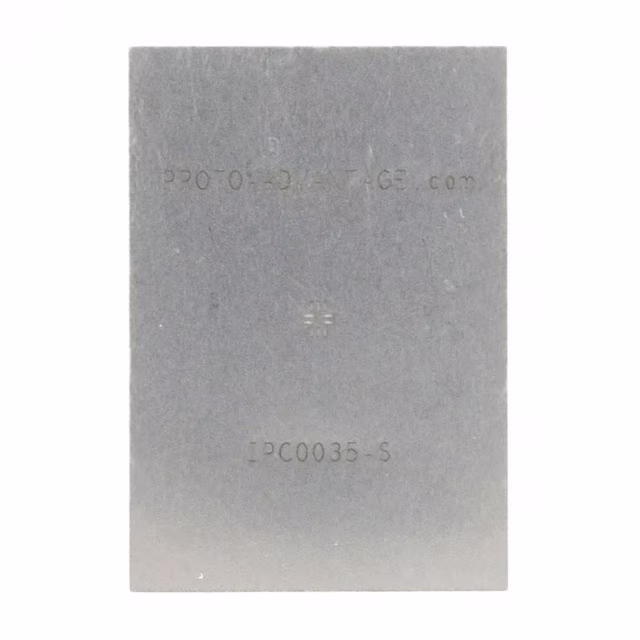

IPC0035-S QFN-10 STENCIL Chip Quik Inc.	2,511	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	10	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.071 L x 0.055 W (1.80mm x 1.40mm)	-

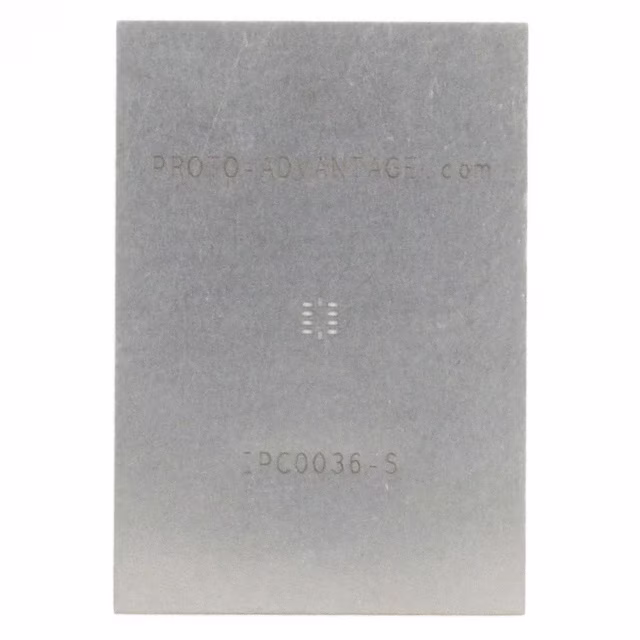

IPC0036-S QFN-10 STENCIL Chip Quik Inc.	2,510	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	10	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.083 L x 0.063 W (2.10mm x 1.60mm)	-

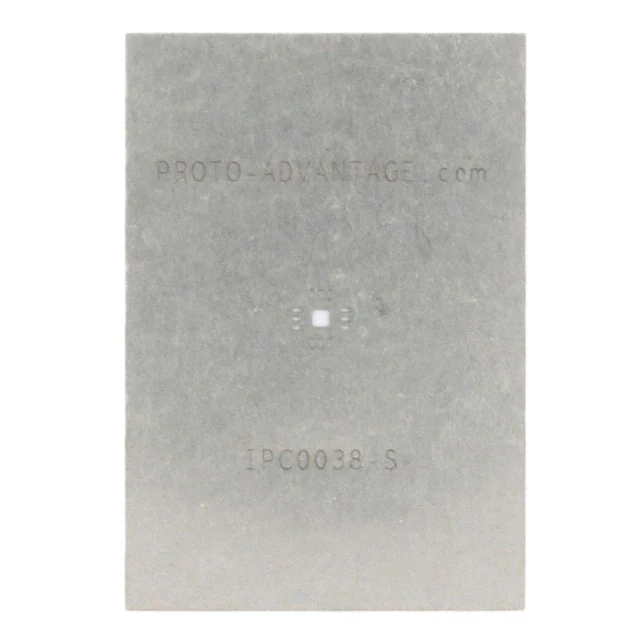

IPC0038-S QFN-12 STENCIL Chip Quik Inc.	3,017	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	12	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	0.055 L x 0.055 W (1.40mm x 1.40mm)

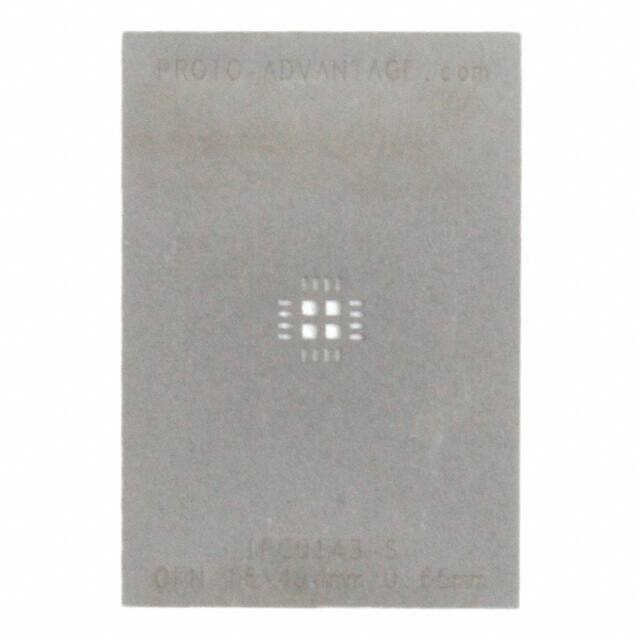

IPC0143-S QFN-16 STENCIL Chip Quik Inc.	3,555	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	16	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)	0.106 L x 0.106 W (2.70mm x 2.70mm)

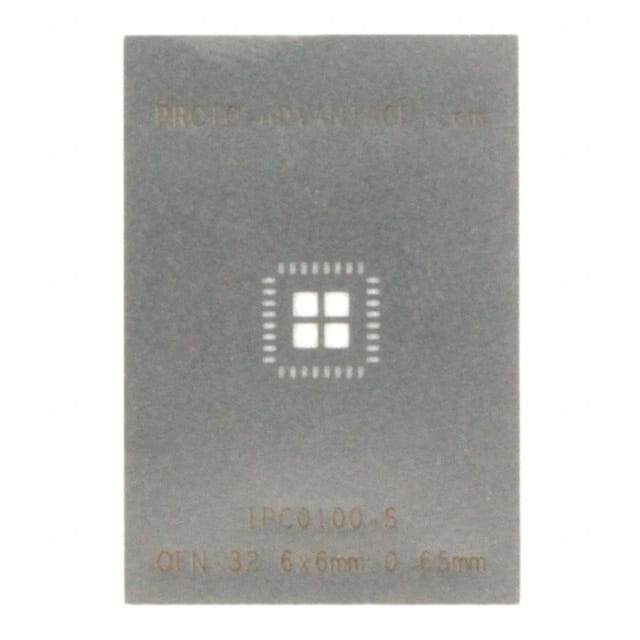

IPC0100-S QFN-32 STENCIL Chip Quik Inc.	2,724	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	32	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)	0.157 L x 0.157 W (4.00mm x 4.00mm)

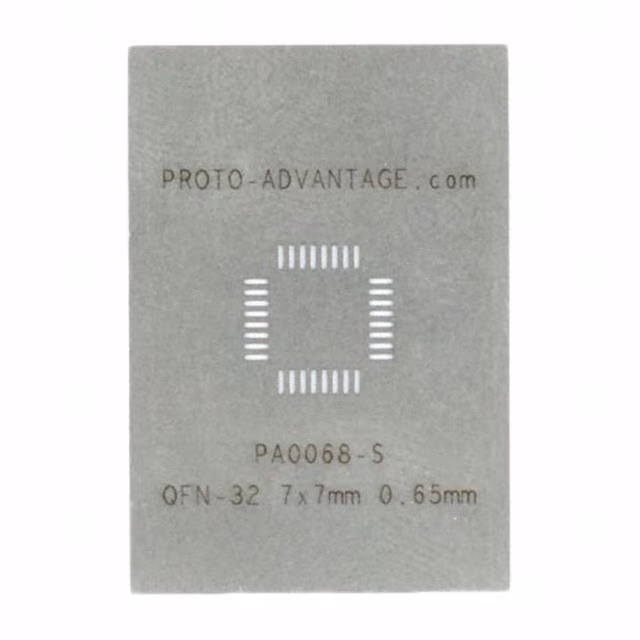

PA0068-S QFN-32 STENCIL Chip Quik Inc.	2,956	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QFN/LFCSP	32	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.276 L x 0.276 W (7.00mm x 7.00mm)	-

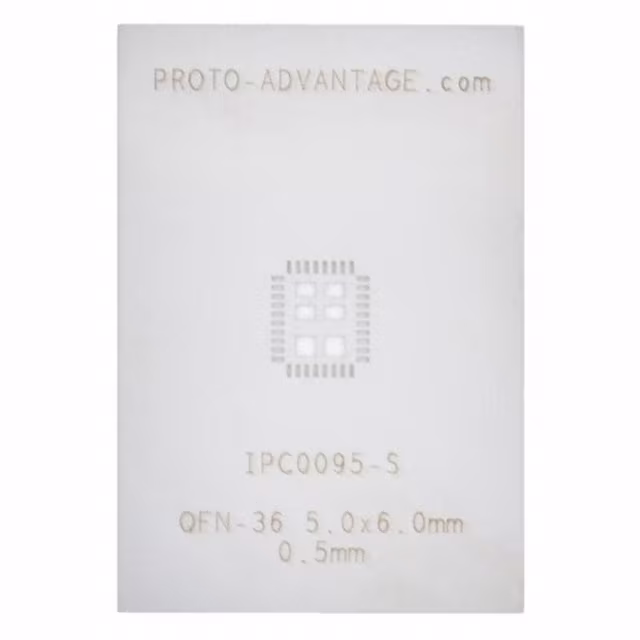

IPC0095-S QFN-36 STENCIL Chip Quik Inc.	2,607	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	36	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.236 L x 0.197 W (6.00mm x 5.00mm)	0.180 L x 0.136 W (4.57mm x 3.45mm)

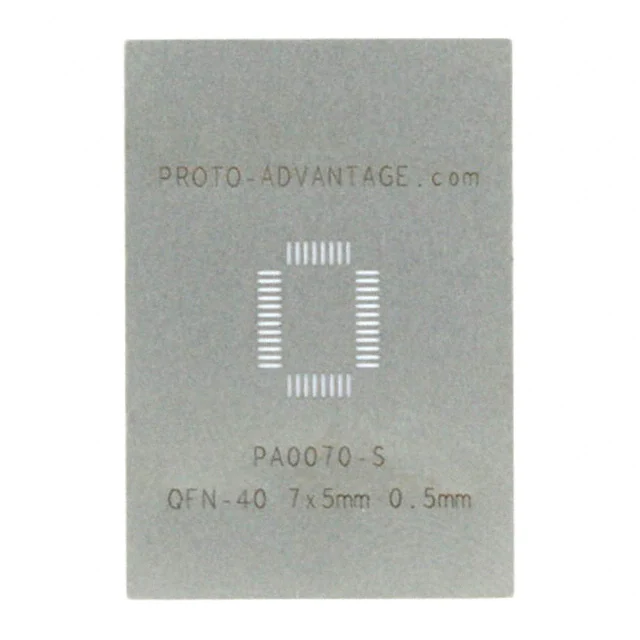

PA0070-S QFN-40 STENCIL Chip Quik Inc.	2,167	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QFN/LFCSP	40	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.276 L x 0.197 W (7.00mm x 5.00mm)	-

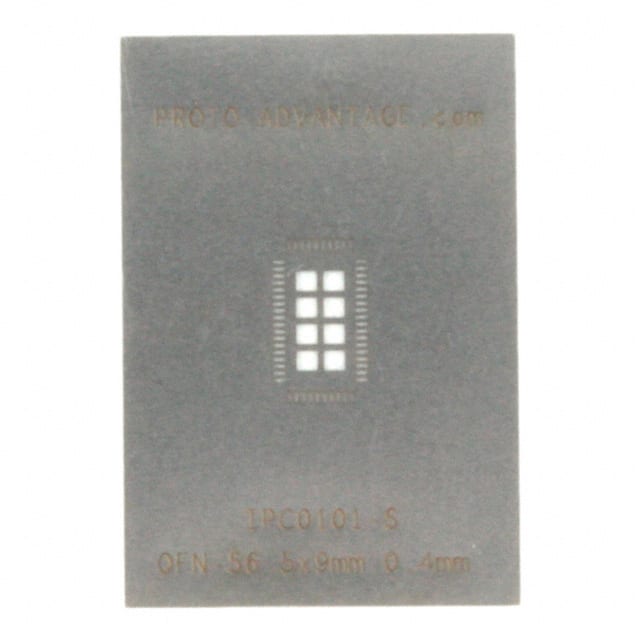

IPC0101-S QFN-56 STENCIL Chip Quik Inc.	3,015	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	56	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.354 L x 0.197 W (9.00mm x 5.00mm)	0.281 L x 0.136 W (7.13mm x 3.45mm)

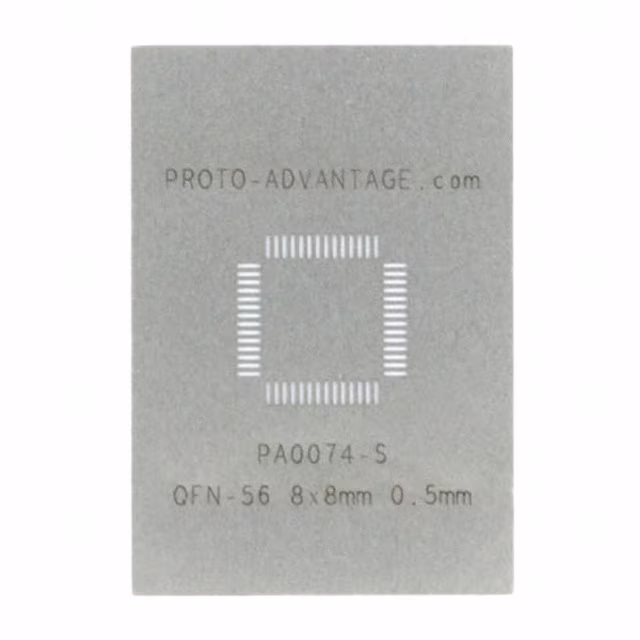

PA0074-S QFN-56 STENCIL Chip Quik Inc.	2,574	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QFN/LFCSP	56	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.315 L x 0.315 W (8.00mm x 8.00mm)	-

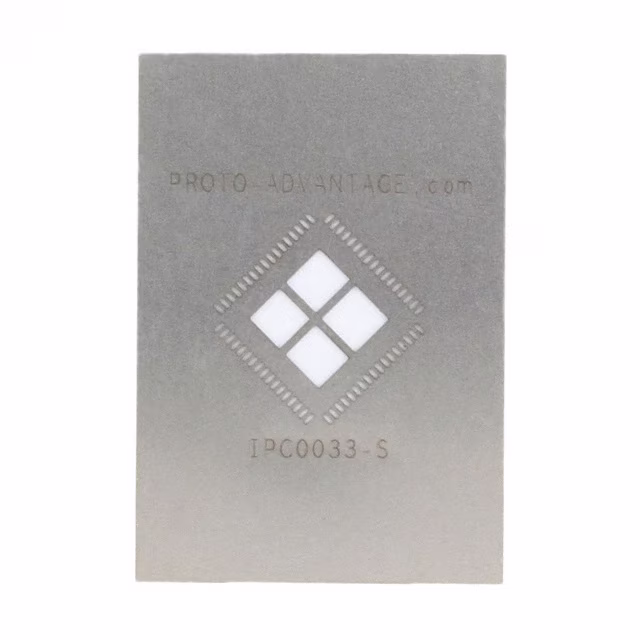

IPC0033-S QFN-68 STENCIL Chip Quik Inc.	3,823	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	68	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.394 L x 0.394 W (10.00mm x 10.00mm)	0.303 L x 0.303 W (7.70mm x 7.70mm)

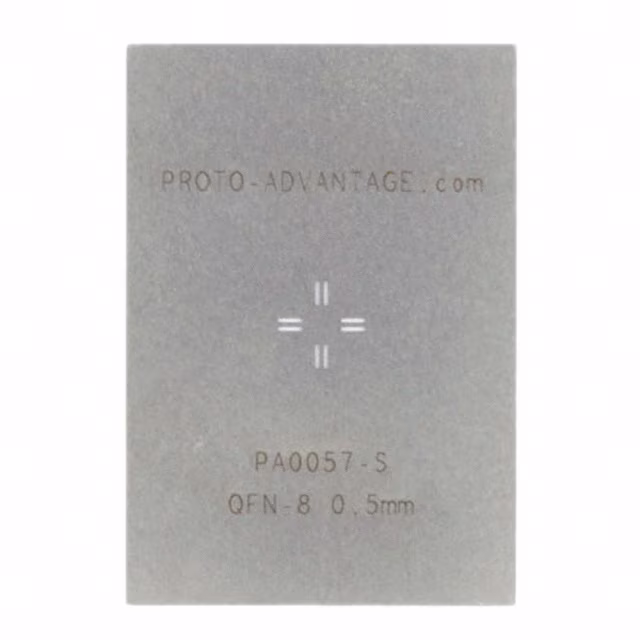

PA0057-S QFN-8 STENCIL Chip Quik Inc.	3,394	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QFN/LFCSP	8	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	-

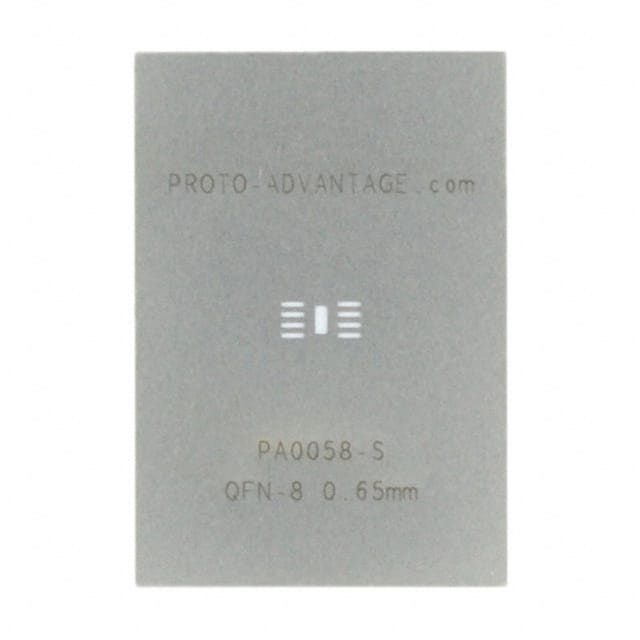

PA0058-S QFN-8 STENCIL Chip Quik Inc.	3,499	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QFN/LFCSP	8	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	0.197 L x 0.039 W (5.00mm x 1.00mm)
PA0028-S QSOP-16 STENCIL Chip Quik Inc.	3,315	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QSOP	16	0.025 (0.64mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

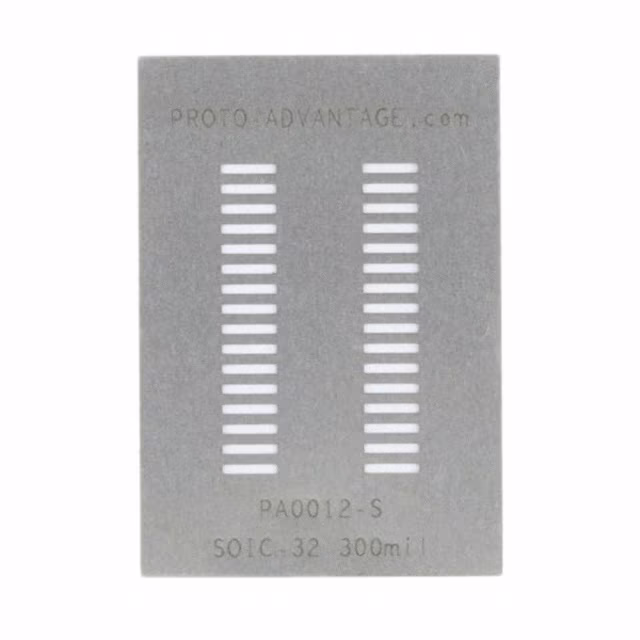

PA0012-S SOIC-32 STENCIL Chip Quik Inc.	2,076	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOIC	32	0.050 (1.27mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

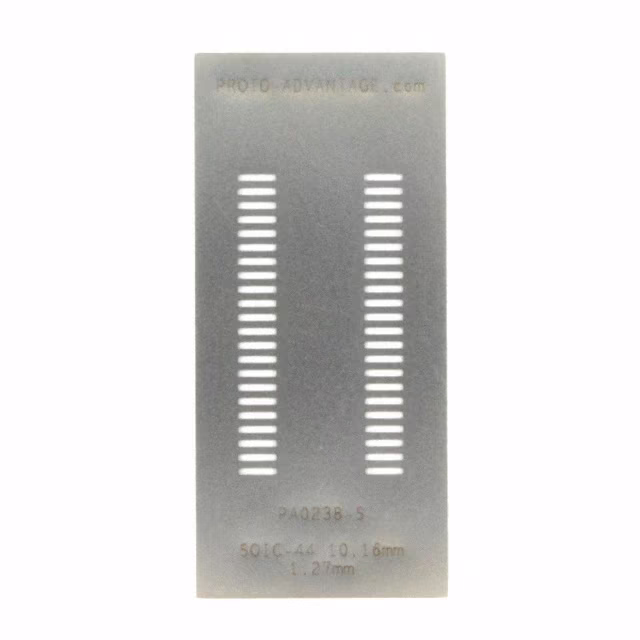

PA0238-S SOIC-44 STENCIL Chip Quik Inc.	2,434	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOIC	44	0.050 (1.27mm)	1.950 L x 0.900 W (49.53mm x 22.86mm)	-	-
PA0010-S SOP-24 STENCIL Chip Quik Inc.	3,945	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOP	24	0.050 (1.27mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

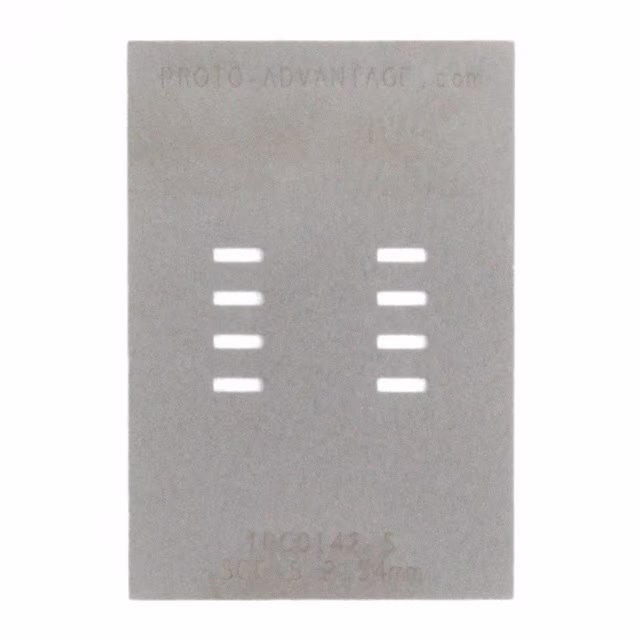

IPC0142-S SOP-8 STENCIL Chip Quik Inc.	2,424	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	SOP	8	0.100 (2.54mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.374 L x 0.261 W (9.50mm x 6.62mm)	-

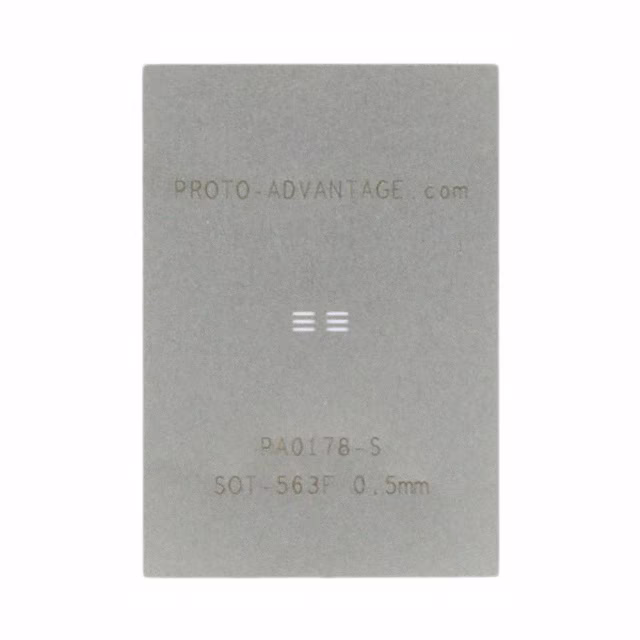

PA0178-S SOT-563F STENCIL Chip Quik Inc.	2,283	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOT/SC	6	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.059 L x 0.047 W (1.50mm x 1.20mm)	-
