Solder Stencils, Templates(621)

Mfr. Part #	Availability	Price	Quantity	Datasheet	Packaging	Series	ProductStatus	Type	NumberofPositions	Pitch	OuterDimension	InnerDimension	ThermalCenterPad
IPC0043-S QFN-32 STENCIL Chip Quik Inc.	2,266	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	32	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.197 L x 0.157 W (5.00mm x 4.00mm)	0.138 L x 0.098 W (3.50mm x 2.50mm)

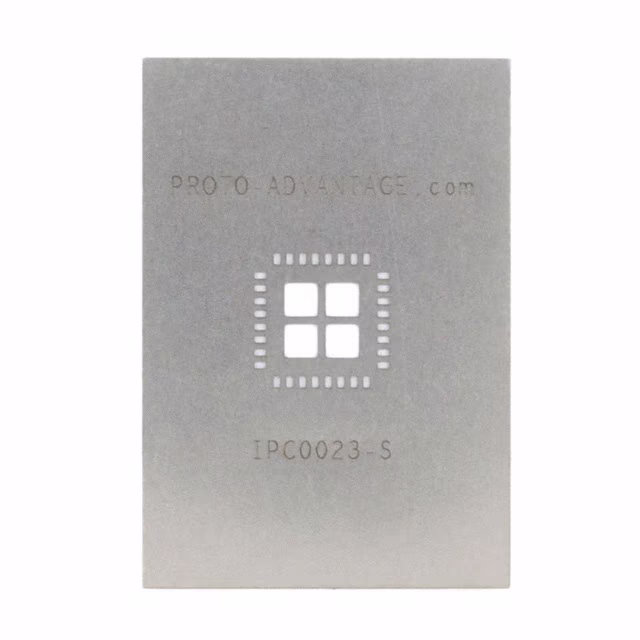

IPC0023-S QFN-32 STENCIL Chip Quik Inc.	3,447	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	32	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.315 L x 0.315 W (8.00mm x 8.00mm)	0.228 L x 0.228 W (5.80mm x 5.80mm)

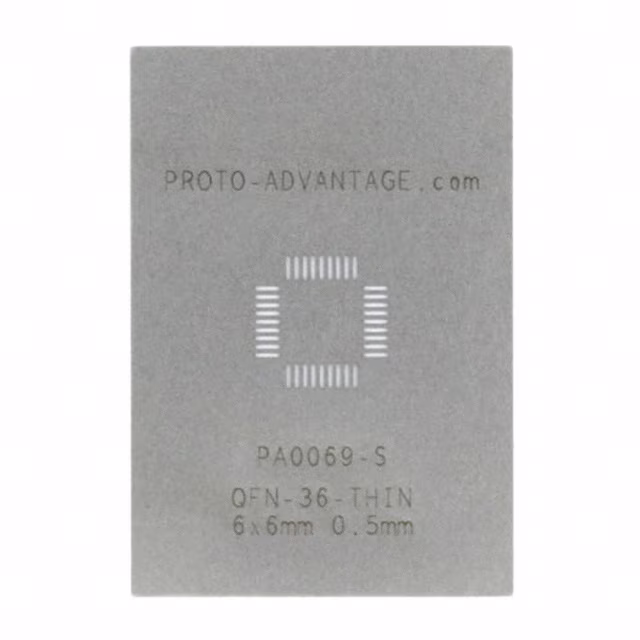

PA0069-S QFN-36-THIN STENCIL Chip Quik Inc.	2,438	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QFN/LFCSP	36	0.020 (0.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.236 L x 0.236 W (6.00mm x 6.00mm)	-
IPC0045-S QFN-46 STENCIL Chip Quik Inc.	3,849	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	46	0.016 (0.40mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.276 L x 0.157 W (7.00mm x 4.00mm)	0.217 L x 0.098 W (5.50mm x 2.50mm)
IPC0002-S QFN-8 STENCIL Chip Quik Inc.	3,928	11.59	RFQ	Datasheet	Bulk	Proto-Advantage IPC	Active	QFN/LFCSP	8	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.118 L x 0.118 W (3.00mm x 3.00mm)	0.043 L x 0.043 W (1.10mm x 1.10mm)

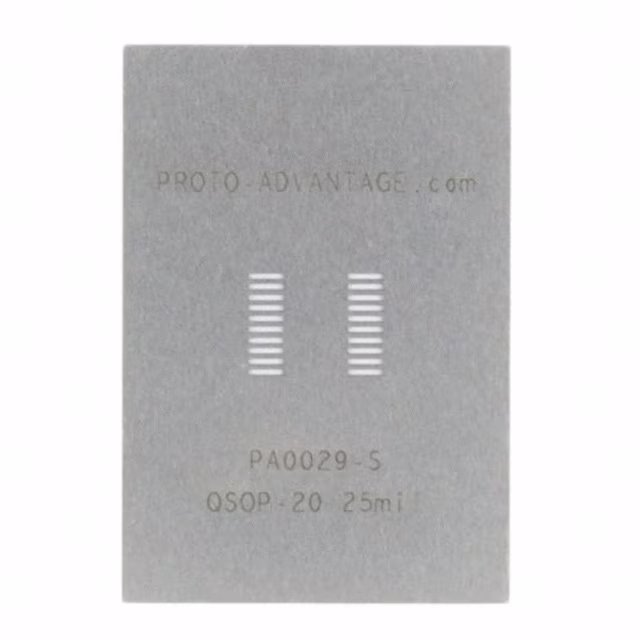

PA0029-S QSOP-20 STENCIL Chip Quik Inc.	2,097	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QSOP	20	0.025 (0.64mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

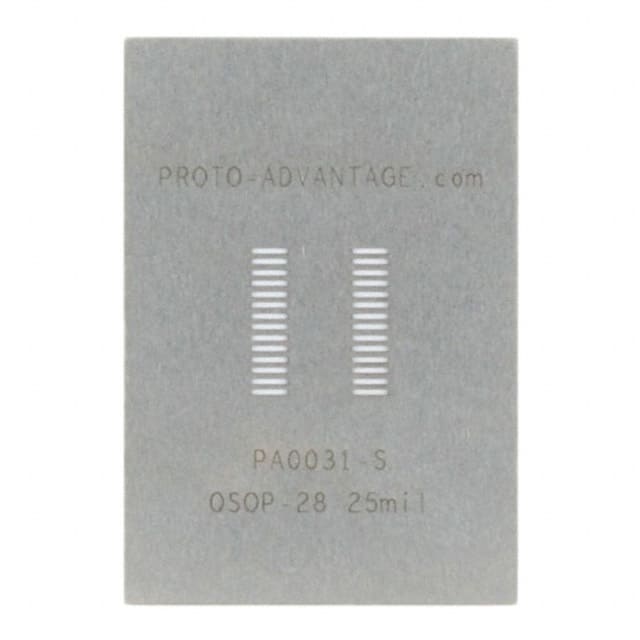

PA0031-S QSOP-28 STENCIL Chip Quik Inc.	2,698	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	QSOP	28	0.025 (0.64mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

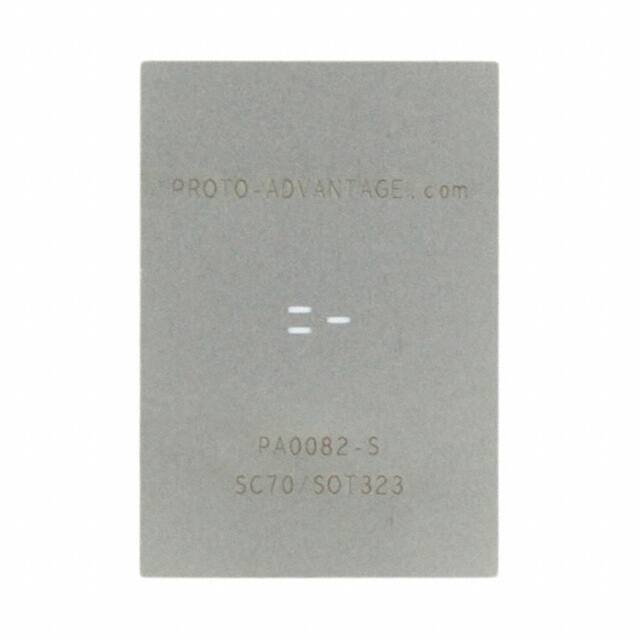

PA0082-S SC70-3/SOT-323 STENCIL Chip Quik Inc.	3,198	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOT/SC	3	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
PA0224-S SOP-40 STENCIL Chip Quik Inc.	3,897	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOP	40	0.050 (1.27mm)	1.950 L x 0.900 W (49.53mm x 22.86mm)	-	-

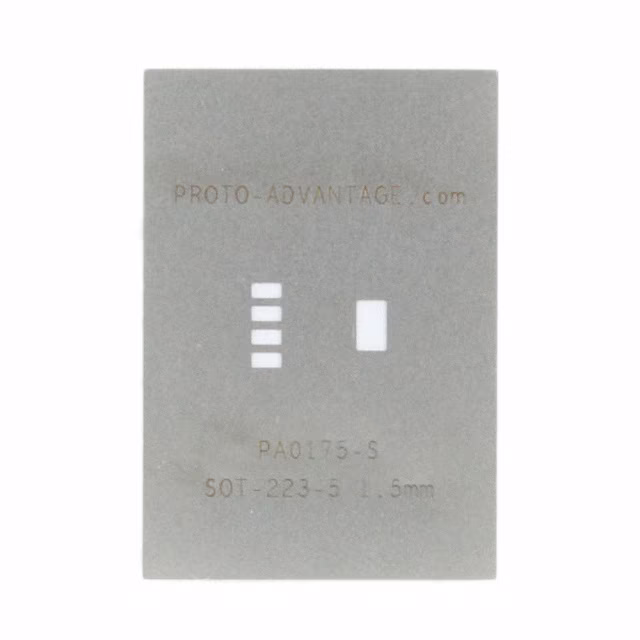

PA0175-S SOT-223-5 STENCIL Chip Quik Inc.	3,890	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOT/SC	4	0.059 (1.50mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.256 L x 0.140 W (6.50mm x 3.56mm)	0.130 L x 0.079 W (3.30mm x 2.00mm)

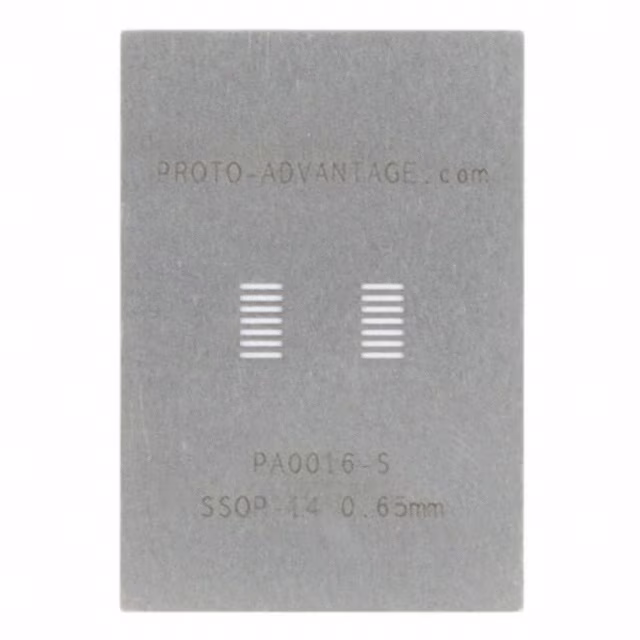

PA0016-S SSOP-14 STENCIL Chip Quik Inc.	3,760	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SSOP	14	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
PA0021-S SSOP-30 STENCIL Chip Quik Inc.	3,130	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SSOP	30	0.026 (0.65mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
PA0023-S SSOP-36 STENCIL Chip Quik Inc.	2,370	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SSOP	36	0.031 (0.80mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
PA0226-S SSOP-56 STENCIL Chip Quik Inc.	2,458	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SSOP	56	0.025 (0.64mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-

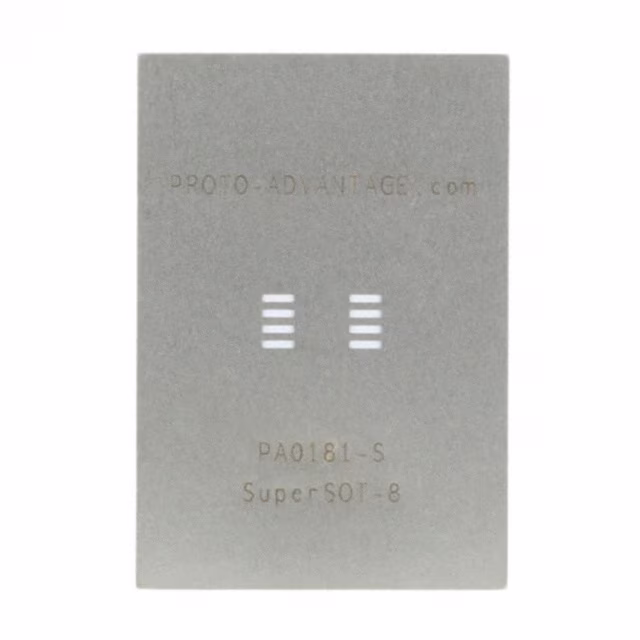

PA0181-S SUPERSOT-8 STENCIL Chip Quik Inc.	3,182	11.59	RFQ	Datasheet	Bulk	Proto-Advantage PA	Active	SOT/SC	8	0.037 (0.95mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	0.157 L x 0.130 W (4.00mm x 3.30mm)	-
DC0805-S DISCRETE 0805 STAINLESS STEEL ST Chip Quik Inc.	2,538	12.93	RFQ		Bulk	Proto-Advantage DC	Active	-	2	0.079 (2.00mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
DC1206-S DISCRETE 1206 STAINLESS STEEL ST Chip Quik Inc.	3,141	12.93	RFQ		Bulk	Proto-Advantage DC	Active	-	2	0.122 (3.10mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
DC1210-S DISCRETE 1210 STAINLESS STEEL ST Chip Quik Inc.	2,091	12.93	RFQ		Bulk	Proto-Advantage DC	Active	-	2	0.118 (3.00mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
DC1411-S DISCRETE 1411 STAINLESS STEEL ST Chip Quik Inc.	3,034	12.93	RFQ		Bulk	Proto-Advantage DC	Active	-	2	0.114 (2.90mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
DC1813-S DISCRETE 1813 STAINLESS STEEL ST Chip Quik Inc.	2,894	12.93	RFQ		Bulk	Proto-Advantage DC	Active	-	2	0.161 (4.10mm)	1.300 L x 0.900 W (33.02mm x 22.86mm)	-	-
