| Photo | Mfr. Part # | Availability | Price | Quantity | Datasheet | Packaging | Series | ProductStatus | FETType | Technology | DraintoSourceVoltage(Vdss) | Current-ContinuousDrain(Id)@25°C | DriveVoltage(MaxRdsOnMinRdsOn) | RdsOn(Max)@IdVgs | Vgs(th)(Max)@Id | GateCharge(Qg)(Max)@Vgs | Vgs(Max) | InputCapacitance(Ciss)(Max)@Vds | FETFeature | PowerDissipation(Max) | OperatingTemperature | MountingType |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
DMS3015SSS-13MOSFET N-CH 30V 11A 8SO |
14,775 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 11A (Ta) | 4.5V, 10V | 11.9mOhm @ 11A, 10V | 2.5V @ 250µA | 30.6 nC @ 10 V | ±12V | 1276 pF @ 15 V | Schottky Diode (Body) | 1.55W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMN4800LSS-13MOSFET N-CH 30V 9A 8SOP |
3,996 | 0.48 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 9A (Ta) | 4.5V, 10V | 16mOhm @ 9A, 10V | 1.6V @ 250µA | 9.47 nC @ 5 V | ±25V | 798 pF @ 10 V | - | 1.46W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZVP3306FTAMOSFET P-CH 60V 90MA SOT23-3 |
2,012 | 0.51 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 60 V | 90mA (Ta) | 10V | 14Ohm @ 200mA, 10V | 3.5V @ 1mA | - | ±20V | 50 pF @ 18 V | - | 330mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMN3033LDM-7MOSFET N-CH 30V 6.9A SOT-26 |
13,971 | 0.53 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 6.9A (Ta) | 4.5V, 10V | 33mOhm @ 6.9A, 10V | 2.1V @ 250µA | 13 nC @ 10 V | ±20V | 755 pF @ 10 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMT3006LFDF-7MOSFET N-CH 30V 14.1A 6UDFN |
49,356 | 0.56 |
RFQ |
Datasheet |
Cut Tape (CT),Tape & Box (TB) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 14.1A (Ta) | 3.7V, 10V | 7mOhm @ 9A, 10V | 3V @ 250µA | 22.6 nC @ 10 V | ±20V | 1320 pF @ 15 V | - | 800mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMN3B01FTAMOSFET N-CH 30V 1.7A SOT23-3 |
28,540 | 0.58 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 1.7A (Ta) | 2.5V, 4.5V | 150mOhm @ 1.7A, 4.5V | 700mV @ 250µA (Min) | 2.93 nC @ 4.5 V | ±12V | 258 pF @ 15 V | - | 625mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMG4407SSS-13MOSFET P-CH 30V 9.9A 8SO |
43,991 | 0.70 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 9.9A (Ta) | 6V, 10V | 11mOhm @ 12A, 20V | 3V @ 250µA | 20.5 nC @ 10 V | ±25V | 2246 pF @ 15 V | - | 1.45W (Ta) | -50°C ~ 150°C (TJ) | Surface Mount |
|
|
DMT6015LSS-13MOSFET N-CH 60V 9.2A 8SO |
14,380 | 0.78 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 9.2A (Ta) | 4.5V, 10V | 16mOhm @ 10A, 10V | 2.5V @ 250µA | 18.9 nC @ 30 V | ±16V | 1103 pF @ 30 V | - | 1.5W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|

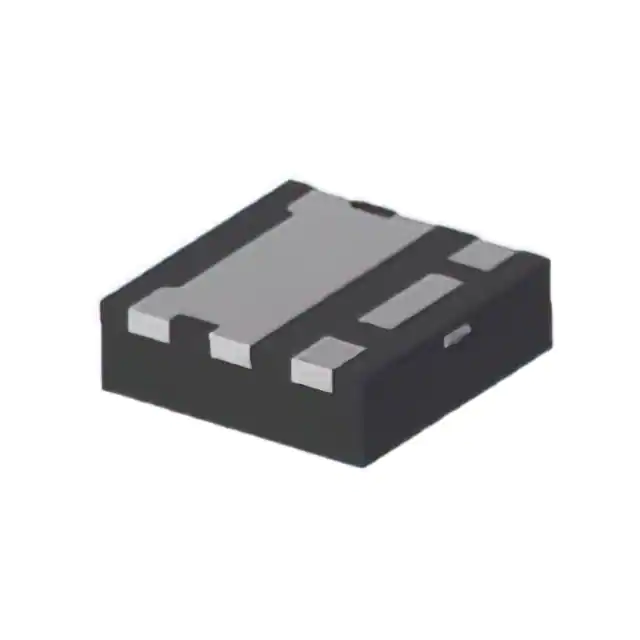

DMP2035UFCL-7MOSFET P-CH 20V 6.6A 6UDFN |
14,626 | 0.65 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 20 V | 6.6A (Ta) | 1.8V, 4.5V | 24mOhm @ 8A, 4.5V | 1V @ 250µA | 44 nC @ 8 V | ±8V | 2200 pF @ 10 V | - | 740mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMP3036SSS-13MOSFET P-CH 30V 19.5A 8SO |
16,763 | 0.81 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 19.5A (Tc) | 5V, 10V | 20mOhm @ 9A, 10V | 3V @ 250µA | 16.5 nC @ 10 V | ±25V | 1931 pF @ 15 V | - | 1.4W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP1011UCB9-7MOSFET P-CH 8V 10A U-WLB1515-9 |
12,039 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 8 V | 10A (Ta) | 2.5V, 4.5V | 10mOhm @ 2A, 4.5V | 1.1V @ 250µA | 10.5 nC @ 4.5 V | -6V | 1060 pF @ 4 V | - | 890mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN2A03E6TAMOSFET N-CH 20V 3.7A SOT23-6 |
5,135 | 0.91 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 20 V | 3.7A (Ta) | 2.5V, 4.5V | 55mOhm @ 7.2A, 4.5V | 700mV @ 250µA (Min) | 8.2 nC @ 4.5 V | ±12V | 837 pF @ 10 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP4013LFGQ-7MOSFET P-CH 40V 10.3A PWRDI3333 |
12,142 | 1.00 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | P-Channel | MOSFET (Metal Oxide) | 40 V | 10.3A (Ta) | 4.5V, 10V | 13mOhm @ 10A, 10V | 3V @ 250µA | 68.6 nC @ 10 V | ±20V | 3426 pF @ 20 V | - | 1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZXMN7A11KTCMOSFET N-CH 70V 4.2A TO252-3 |
9,682 | 1.01 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 70 V | 4.2A (Ta) | 4.5V, 10V | 130mOhm @ 4.4A, 10V | 1V @ 250µA | 7.4 nC @ 10 V | ±20V | 298 pF @ 40 V | - | 2.11W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
ZVNL110GTAMOSFET N-CH 100V 600MA SOT223 |
4,335 | 1.03 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 100 V | 600mA (Ta) | 5V, 10V | 3Ohm @ 500mA, 10V | 1.5V @ 1mA | - | ±20V | 75 pF @ 25 V | - | 1.1W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP25H18DLFDE-7MOSFET P-CH 250V 260MA 6UDFN |
17,897 | 1.52 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 250 V | 260mA (Ta) | 3.5V, 10V | 14Ohm @ 200mA, 10V | 2.5V @ 1mA | 2.8 nC @ 10 V | ±40V | 81 pF @ 25 V | - | 600mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
ZXMN3B04N8TAMOSFET N-CH 30V 7.2A 8SO |
432 | 1.26 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 30 V | 7.2A (Ta) | 2.5V, 4.5V | 25mOhm @ 7.2A, 4.5V | 700mV @ 250µA (Min) | 23.1 nC @ 4.5 V | ±12V | 2480 pF @ 15 V | - | 2W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
DMT6005LSS-13MOSFET N-CH 60V 13.5A 8SO |
10,453 | 1.72 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 13.5A (Ta) | 4.5V, 10V | 6mOhm @ 20A, 10V | 3V @ 250µA | 47.1 nC @ 10 V | ±20V | 2962 pF @ 30 V | - | 1.3W (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
DMP32D4SFB-7BMOSFET P-CH 30V 400MA 3DFN |
10,695 | 0.45 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | - | Active | P-Channel | MOSFET (Metal Oxide) | 30 V | 400mA (Ta) | 2.5V, 10V | 2.4Ohm @ 200mA, 10V | 2.3V @ 250µA | 1.3 nC @ 10 V | ±20V | 51 pF @ 15 V | - | 500mW (Ta) | -55°C ~ 150°C (TJ) | Surface Mount |
|
|
BS870Q-7-FMOSFET N-CH 60V 250MA SOT23 |
11,828 | 0.33 |
RFQ |
Datasheet |
Tape & Reel (TR),Cut Tape (CT) | Automotive, AEC-Q101 | Active | N-Channel | MOSFET (Metal Oxide) | 60 V | 250mA (Ta) | 10V | 5Ohm @ 200mA, 10V | 3V @ 250µA | - | ±20V | 50 pF @ 10 V | - | 300mW | -55°C ~ 150°C (TJ) | Surface Mount |
